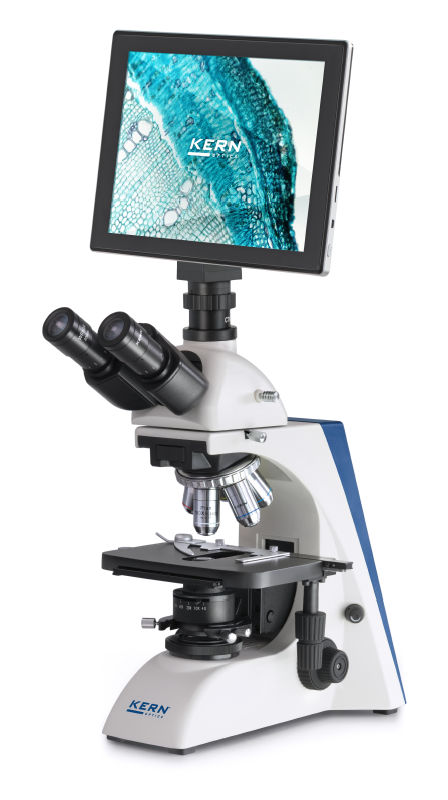

KERN OBN 135T241 Digital Microscope Set

OBN 135T241 Digital Microscope Kit

Product family: OBN-S

Digital laboratory microscopes with infinity optics and professional Köhler illumination

Description

The OBN series laboratory microscopes are also available as a complete digital solution with an adapted tablet camera for your live examinations. The appropriate C-mount adapter is, of course, included in the delivery

The adapted KERN ODC 241 tablet camera has been specially developed for simple, convenient and direct examination of the specimen on the screen. Ideally suited for school pupils and students in training or for demonstration purposes in the laboratory

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

OBN 135

The KERN OBN series is characterised by its unbeatable, consistently high quality and ergonomic design. The variety of modular components allows the OBN series to offer a high degree of customisation for professional users

Powerful and continuously dimmable 3W LED illumination

This series features professional Köhler illumination with an adjustable field diaphragm, as well as a centring and height-adjustable 1.25 Abbe condenser with an adjustable aperture diaphragm

The very large mechanical cross-table, with ergonomic, coaxial coarse and fine adjustment on both sides, enables quick and precise adjustment and focusing of your specimen

ODC 241

The integrated 5-MP camera not only enables live image transmission to the Android tablet but also allows you to capture images and videos for documentation purposes. Simple measurements, such as distance, area and angle measurements, as well as a manual counting function, are also available

Automatic white balance and automatic contrast adjustment can be carried out quickly and easily, enabling efficient working

The integrated interfaces provide a wide range of additional functions, such as

- Data storage on a USB stick or SD card

- Connection of a USB mouse

- Transmission of the live image to an external screen via HDMI

- Transfer of stored data to external receivers via Wi-Fi

The package includes the tablet camera with pre-installed software and the mains adaptor

Technical specifications

Optical system: Infinity

Tube type: Trinocular

Eyepiece magnification: 10×

Eyepiece field of view: 20 mm

Standard objectives: 4x, 10x, 20x, 40x, 100x

Objective quality: Infinity Plan

Objective turret screw-in positions: 5

Illumination type: transmitted light

Illumination type: LED transmitted light

Type of incident light: None

Focusing mechanism: Coaxial coarse and fine adjustment

Minimum fine adjustment 0.002 mm

Display resolution: 2048x1536

Camera – Sensor type: Sony CMOS

Camera – Colour depth: Colour

Camera – Sensor size: 1/2.8"

Camera – Resolution: 5 MP

Camera – Frame rate: 30 fps

Interfaces: Wi-Fi, USB 2.0, HDMI, microSD card slot

C-mount magnification 0.5x

Dimensions (W×D×H) 390×235×620 mm

GTIN/EAN number 4045761228535
