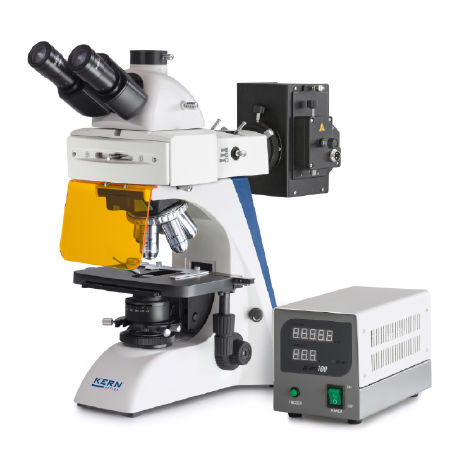

KERN OBN 148 Fluorescence Microscope

OBN 148 Fluorescence Microscope

Product family: OBN-14

The fluorescence microscope for professional users

Description

The KERN OBN-14 series fluorescence microscope builds on the high quality and versatility for which the OBN series is renowned. Its outstanding and robust design, combined with high-quality optics, sets new standards in fluorescence microscopy in this class

The powerful and dimmable 20W halogen transmitted light (Philips) and a 100W epi-fluorescence illumination unit ensure perfect illumination and excitation of your fluorescence specimens

This series features professional Köhler illumination with an adjustable field diaphragm, as well as a centring and height-adjustable 1.25 Abbe condenser with an adjustable aperture diaphragm

The very large mechanical cross-table, with ergonomic, coaxial coarse and fine adjustment on both sides, enables quick and precise adjustment and focusing of your specimen

The filter wheel, which can accommodate up to six filters, is fitted as standard with B/G/UV/V fluorescence filters

A wide selection of eyepieces, objectives, colour filters, dark-field condensers, as well as a butterfly tube, polarisation and phase-contrast units can be easily integrated thanks to the modular design

The centring objective for fluorescence adjustment, a dust cover, eyecups and a multilingual user manual are included in the scope of delivery

Technical Specifications

Optical system: Infinity

Tube type: Trinocular

Eyepiece magnification 10×

Eyepiece field of view 20 mm

Standard objectives: 4x, 10x, 20x, 40x, 100x

Objective quality: Infinity Plan

Objective turret screw-in positions: 5

Illumination type: reflected light, transmitted light

Illumination type: transmitted light, halogen

Transmitted light intensity: 20W

Illumination type: Reflected light, HBO

Illuminance (incident light): 100W

Fluorescence unit: UV, V, B, G (HBO)

Focusing mechanism: Coaxial coarse and fine adjustment

Minimum fine adjustment: 0.002 mm

Dimensions (W×D×H) 530×220×490 mm

GTIN/EAN number 4045761163157
