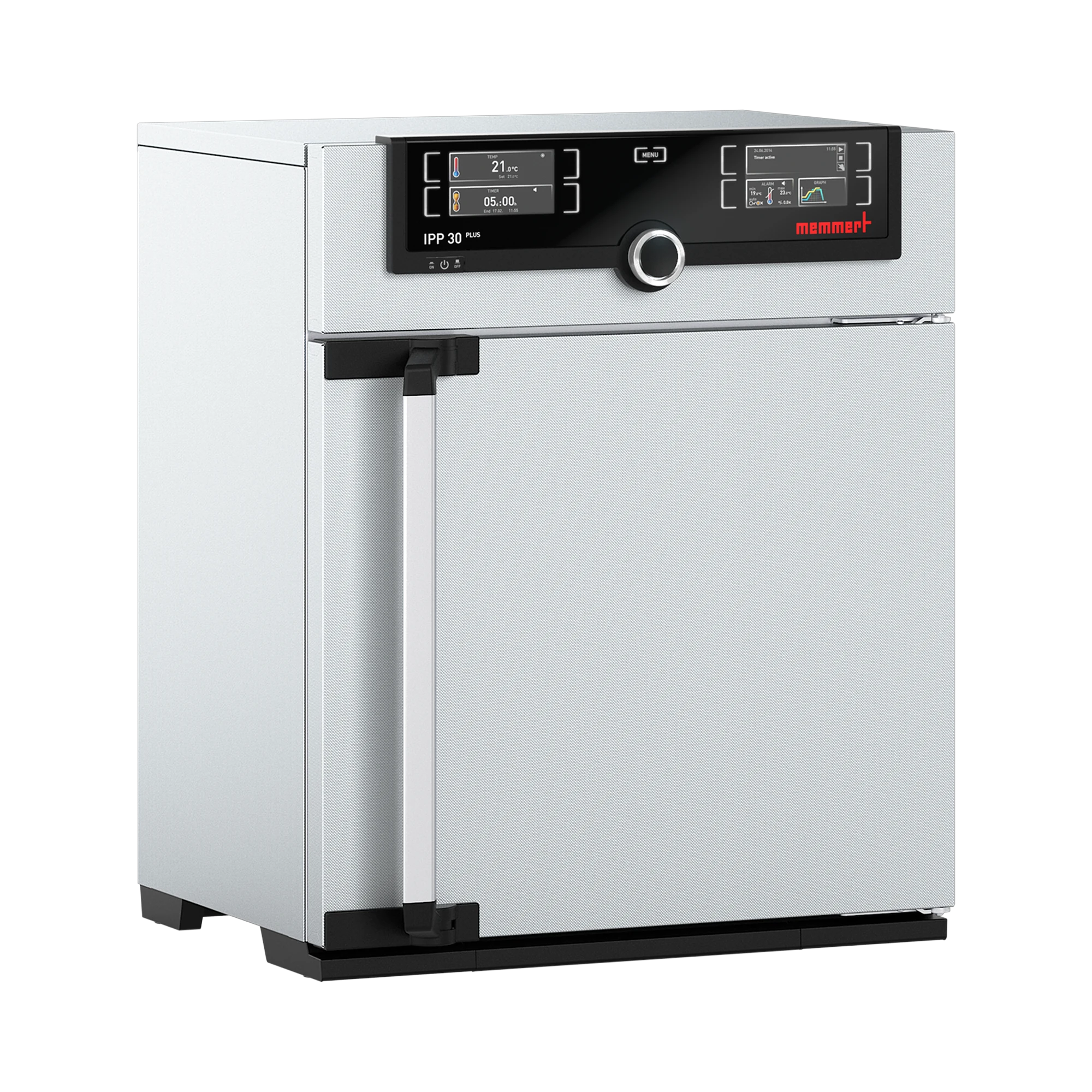

Memmert IPP30plus Peltier-cooled incubator, 32 L, TwinDISPLAY, AutoSAFETY
€2,978.00
Delivery time: 2-3 weeks
- Compact benchtop unit (32 L) with TwinDISPLAY
- 2x Pt100 sensors for high safety
- Cooling & heating (0 to +70 °C)
- Peltier technology: energy-saving according to Memmert
- SetpointWAIT & AutoSAFETY functions
- Includes internal glass door & AtmoCONTROL software
- Up to 3 grids possible, more available as accessories
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Memmert IPP30plus Peltier-cooled incubator, 32 L, TwinDISPLAY, AutoSAFETY"
The Memmert IPP30plus Peltier-cooled incubator reliably maintains samples and cultures at temperatures ranging from 0 to +70 °C, including well below room temperature. With an internal capacity of 32 l and the TwinDISPLAY feature, the unit is suitable for applications with higher demands on redundancy, documentation and process reliability compared to the SingleDISPLAY basic version, the IPP30.
TwinDISPLAY: dual sensor system, full programmability
Instead of a single Pt100 sensor, the IPP30plus features two Pt100 sensors of DIN Class A quality (4-wire measurement) that monitor the temperature in tandem. If one sensor fails, the second automatically takes over. In addition, the upper and lower Peltier elements can be controlled individually, allowing for a more precise distribution of cooling and heating power within the chamber. Via the Ethernet OR USB port, you can programme, manage and transfer process data directly using the AtmoCONTROL software included in the scope of delivery, without the need for a separate licence, unlike with the SingleDISPLAY version.
AutoSAFETY: automatic over-/under-temperature protection
The AutoSAFETY (ASF) function automatically tracks the setpoint within a selectable tolerance range and, in the event of over- or under-temperature, triggers an alarm or switches off the heating/cooling function, a level of safety not offered by the SingleDISPLAY basic version. In addition, an adjustable temperature monitor/limiter of protection class TWW 3.3 or TWB 2 can be freely selected on the display. Only TwinDISPLAY units can also be ordered with optional extensions such as a programmable door lock (Option D4), door-open detection (Option V5) or a USB user ID stick for access authorisation (Option B33170); according to the manufacturer, these extensions are not technically available on the basic SingleDISPLAY version.
Workmanship and features
The fully insulated stainless steel door with a 2-point compression lock and the internal glass door allow visual inspection of the interior without disrupting the temperature through frequent opening. The stainless steel interior offers space for up to 3 shelves with a maximum total load of 60 kg (20 kg per shelf); an electropolished stainless steel grid shelf is included as standard.
Compact design within the IPP series
With an internal volume of 32 l, the IPP30plus is the smallest TwinDISPLAY model in Memmert’s range of Peltier-cooled incubators, which also includes the IPP55plus (53 l) and IPP110ecoplus (108 l), each featuring the same TwinDISPLAY equipment, redundant sensors and AutoSAFETY. Those who regularly cool larger sample volumes or require more shelves will find suitable alternatives featuring the same Peltier technology and the same temperature range of 0 to +70 °C.
Operating conditions and installation
The IPP30plus is designed for operation at ambient temperatures between +16 and +40 °C and a relative humidity of up to 70 % (non-condensing), at altitudes of up to 2,000 metres above sea level. It can be connected to either 230 V or 115 V (50/60 Hz) with a power consumption of around 140 W. The net weight is around 40 kg.
Typical applications
As a TwinDISPLAY version with redundant sensors and AutoSAFETY, the IPP30plus is particularly suitable where process reliability and documentation are essential:
- Validatable refrigerated incubation with documented, redundant temperature monitoring
- Microbiological refrigerated incubation with heightened requirements for reliability
- Temperature-stable storage of sensitive reagents and reference materials
- Research and quality assurance requiring full programmability via AtmoCONTROL
Particularly in smaller laboratories with limited space, the IPP30plus often replaces two separate units: a conventional heating incubator for temperatures above room temperature and an additional cooling unit for lower temperatures. As the Peltier element can both heat and cool, a single unit covers both applications. In combination with redundant sensor technology and AutoSAFETY, the unit is particularly suitable for applications where a sensor failure must not go unnoticed, such as during unattended incubation runs lasting several days.
Technical details
| Internal volume | 32 l |
|---|---|
| Internal dimensions (W×H×D) | 400 × 320 × 250 mm (depth minus 10 mm for the fan) |
| External dimensions (W×H×D) | 585 × 704 × 434 mm (+56 mm door handle, +111 mm Peltier rear panel) |
| Setting temperature range | 0 to +70 °C |
| Working temperature range (without lighting) | at least 20 °C below room temperature up to +70 °C |
| Setting accuracy | 0.1 °C |
| Sensors | 2× Pt100 DIN Class A, 4-wire measurement, cross-monitoring with automatic function takeover |
| Cooling/heating principle | Peltier, individual control of upper/lower element |
| Ventilation | Forced circulation of internal air via Peltier forced air circulation fan |
| Control | ControlCOCKPIT TwinDISPLAY, 2× TFT colour graphic displays |
| Safety function | AutoSAFETY (automatic over/under-temperature protection), selectable temperature monitor/limiter TWW 3.3 or TWB 2 |
| Door | Fully insulated stainless steel door with 2-point locking, internal glass door |
| Max. load | 60 kg total / 20 kg per shelf |
| Max. number of shelves | 3 |
| Interfaces | Ethernet + USB, full programming/management via AtmoCONTROL software (included in the scope of delivery) |
| Voltage/Power | 230 V or 115 V, 50/60 Hz, approx. 140 W |
| Environmental conditions | +16 to +40 °C, max. 70 % RH non-condensing, max. 2,000 m above sea level |
| Packaging dimensions | 660 × 890 × 650 mm |
| Net weight/Gross weight | approx. 40 kg / approx. 56 kg |
Scope of delivery
- 1× Memmert IPP30plus Peltier-cooled incubator (basic unit)
- 1× stainless steel grid shelf, electropolished
- AtmoCONTROL software (USB stick)
- 1× factory calibration certificate (calibration at +10/+25/+40 °C)
Regulatory information
Manufacturer’s WEEE registration number (Memmert GmbH + Co. KG, Stiftung EAR): DE 66812464.
Individual requirements and procurement service
Do you require additional accessories such as further stainless steel grid shelves, a programmable door lock, a door-open detection system or a bespoke calibration? Our procurement service will be happy to assist you with special enquiries and spare parts. As factory options, Memmert also offers DAkkS calibration according to DKD-R 5-7, IQ/OQ documents and IQ/OQ qualification. We order these with the device on request.
| Volume: | 32 l |
|---|
Matching accessories
The E28884 stainless steel grid is an electropolished shelf for 19 Memmert models in size 30. If you need more shelf levels than are fitted as standard, you can add grids up to the maximum number in the table. The image is for illustration only. It is a Memmert drawing showing grids of different sizes.Suitable forThe table shows for each model the number of grids included in the scope of delivery of the unit, the maximum possible number and the load per shelf.ModelGrids as standardMaximum number of gridsLoad per shelf (kg)UF301320UN301320UF30plus1320UN30plus1320IF30plus1320IN30plus1320IF301320IN301320UN30pa1320IPP301320IPP30plus1320IN30m1320IN30mplus1320IF30m1320IF30mplus1320UN30m1320UN30mplus1320UF30m1320UF30mplus1320The permissible total load of the unit also limits the loading. Please observe the information in the data sheet of the unit.Scope of delivery1 stainless steel grid, electropolished (E28884)
The levelling base frame B29745 has a height of 600 mm and is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. A flat base frame with a height of 130 mm (B33657) is also available. The mobile version with a height of 660 mm is available as B29746. The image is for illustration only.Suitable forModelSizeUF3030UN3030UF30plus30UN30plus30IF30plus30IN30plus30IF3030IN3030UN30pa30IPP3030IPP30plus30IN30m30IN30mplus30IF30m30IF30mplus30UN30m30UN30mplus30UF30m30UF30mplus30Scope of delivery1 levelling base frame, height 600 mm
The mobile base frame B29746 is 660 mm high. It is designed for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. The levelling version with a height of 600 mm is available as B29745, a flat base frame with a height of 130 mm as B33657. The image is for illustration only.Suitable forModelSizeUF3030UN3030UF30plus30UN30plus30IF30plus30IN30plus30IF3030IN3030UN30pa30IPP3030IPP30plus30IN30m30IN30mplus30IF30m30IF30mplus30UN30m30UN30mplus30UF30m30UF30mplus30Scope of delivery1 mobile base frame, height 660 mm
The B02070 slide-in drip tray is made of stainless steel and has a 15 mm rim. It is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30 and collects dripping liquid. According to Memmert, the maximum load per slide-in drip tray for this size is 1.5 kg. According to Memmert, it can also impair the spatial temperature distribution. The image is for illustration only.Suitable forModelSizeUF3030UN3030UF30plus30UN30plus30IF30plus30IN30plus30IF3030IN3030UN30pa30IPP3030IPP30plus30IN30m30IN30mplus30IF30m30IF30mplus30UN30m30UN30mplus30UF30m30UF30mplus30Scope of delivery1 stainless steel slide-in drip tray, 15 mm rim
The stainless steel base drip tray B04356 is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. It has a 15 mm rim and collects dripping liquid. Memmert states a maximum load of 1.5 kg per base drip tray. According to Memmert, it can impair the spatial temperature distribution. The image is for illustration only.Suitable forModelSizeUF3030UN3030UF30plus30UN30plus30IF30plus30IN30plus30IF3030IN3030UN30pa30IPP3030IPP30plus30IN30m30IN30mplus30IF30m30IF30mplus30UN30m30UN30mplus30UF30m30UF30mplus30Scope of delivery1 stainless steel base drip tray, 15 mm rim
