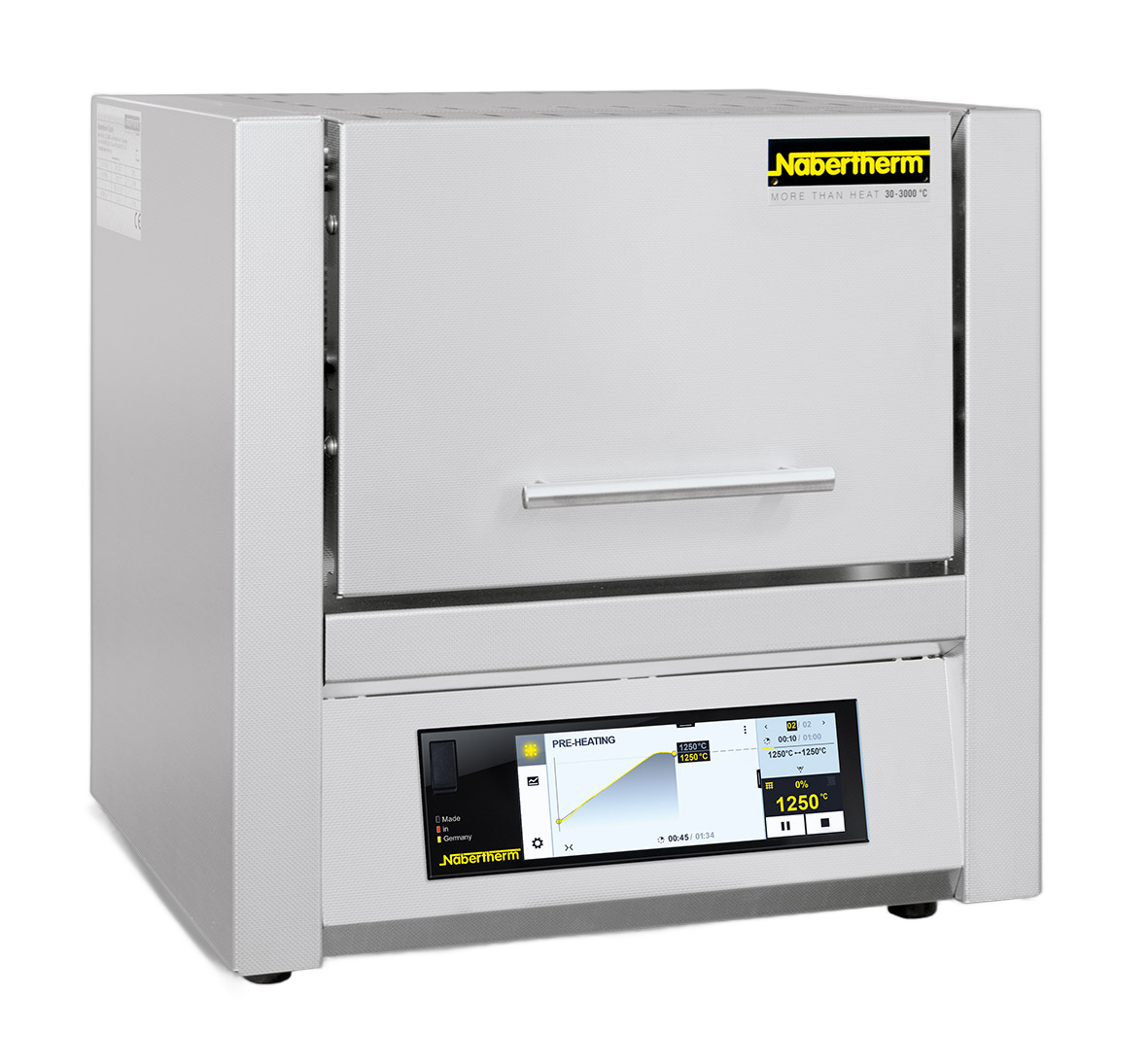

Nabertherm Muffle Furnace LT 5/13/B510, 5 l, Tmax 1,300 °C, Lift Door, L-055H3AL
€4,192.00
% Manufacturer's RRP: €5,240.00 20% below manufacturer's RRP
- 5 litres working volume, Tmax 1,300 °C
- Lift door with adjustable air inlet opening
- Heating from two sides, heating elements on support tubes
- Touch controller B510 with 5 programs of 4 segments each
- NTLog Basic for process data recording via USB stick
- Temperature uniformity ±5 K according to DIN 17052-1
Product information "Nabertherm Muffle Furnace LT 5/13/B510, 5 l, Tmax 1,300 °C, Lift Door, L-055H3AL"
The Nabertherm muffle furnace LT 5/13 reaches a maximum temperature of 1,300 °C with a working volume of 5 litres and opens upwards via a lift door. The heating elements are mounted on support tubes on two sides of the furnace chamber and radiate freely into the interior, surrounded by multi-layer insulation made of robust lightweight refractory bricks. The furnace is operated via the B510 touch controller.
Housing, door and air routing
The housing is double-walled and rear-ventilated, made of textured stainless steel sheet. The lift door opens upwards and has an adjustable air inlet, while exhaust air escapes through an opening in the rear wall of the furnace. Inside, the working space measures 225 x 170 x 130 mm (W x D x H), externally the furnace is 490 x 450 x 580 mm, with the open lift door requiring an additional 320 mm of clearance above. The LT 5/13 weighs 46 kg. The heating elements on support tubes are designed for free heat radiation and a long service life.
Controller B510 and connection
The B510 controller has touch operation and stores five programs with four segments each. The heating is switched via solid-state relays, keeping operation quiet. Via NTLog Basic, process data can be recorded directly to a USB stick. The furnace is designed for a single-phase connection, the connected load is 2.6 kW. Empty and closed, it reaches Tmax minus 100 K, meaning 1,200 °C, in around 55 minutes.
Temperature uniformity and additional equipment
According to DIN 17052-1, the LT 5/13 maintains a temperature uniformity of ±5 K in the empty working chamber with the air inlet slide closed, once the operating temperature is above 800 °C. An adjustable temperature limiter with adjustable cut-off temperature can be ordered as a factory option. In addition, a protective gas connection for purging the furnace with non-flammable process gases can be ordered, it cannot be combined with the exhaust chimney variants and is not gas-tight.
Selection guide
Those who prefer a flap door in the same size can obtain the L 5/13 on request. More working volume is offered by the L 9/13 (art. no. L-095K3AL) with 9 litres and flap door, all variants are shown in the table below.
Typical applications
The series is intended for use in laboratories and research. With 5 litres of working volume and a lift door, the LT 5/13 is suitable for individual samples or small batches heated up to 1,300 °C, and for changing temperature profiles via the five program slots of the B510 controller. When the lift door is open, 320 mm are added to the external dimensions, which should be factored into installation planning.
Technical details
| Tmax | 1,300 °C |
| Working volume | 5 l |
| Internal dimensions (W x D x H) | 225 x 170 x 130 mm |
| External dimensions (W x D x H) | 490 x 450 x 580 mm (+320 mm with open lift door) |
| Connected load | 2.6 kW |
| Electrical connection | single-phase |
| Weight | 46 kg |
| Heating time | approx. 55 min (empty, closed furnace up to Tmax minus 100 K) |
| Heating | two sides, heating elements on support tubes |
| Insulation | multi-layer with lightweight refractory bricks |
| Door | Lift door |
| Controller | B510, touch operation, 5 programs with 4 segments each |
| Temperature uniformity | ±5 K according to DIN 17052-1 (from 800 °C operating temperature) |
Other models in the series
The muffle furnace series with brick insulation up to 1,300 °C from Nabertherm comprises six variants across three sizes with flap or lift door.
| Model | Volume | Tmax | Door |
|---|---|---|---|
| L 5/13 (on request) | 5 l | 1,300 °C | Flap door |
| LT 5/13 (this page) | 5 l | 1,300 °C | Lift door |
| L 9/13 | 9 l | 1,300 °C | Flap door |
| LT 9/13 (on request) | 9 l | 1,300 °C | Lift door |
| L 15/13 (on request) | 15 l | 1,300 °C | Flap door |
| LT 15/13 (on request) | 15 l | 1,300 °C | Lift door |
Scope of delivery
- 1x Nabertherm muffle furnace LT 5/13 with standard B510 controller
Regulatory information
The unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on returning waste equipment can be found on our page Environment and disposal.
Individual requirements and procurement service
Factory options available for the LT 5/13 include an exhaust chimney (also with fan or catalytic converter), an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection, a manual or automatic gas supply system, and a thermocouple lead-through in the rear wall or furnace door. For individual requirements, LT Laborhandel provides personal advice.
