Restek Rxi-5Sil MS GC Capillary Column, 15 m, 0.25 mm ID, 0.25 µm, 13620
€504.00
% Manufacturer's RRP: €560.00 10% below manufacturer's RRP
- Rxi-5Sil MS in 15 m, 0.25 mm ID and 0.25 µm film
- Silarylene phase of low polarity, crosslinked
- Usable from -60 °C to 320 °C isothermal, 350 °C programmed
- For GC-MS analysis of semivolatiles
- Less column bleed and higher thermal stability thanks to phenyl groups in the polymer backbone
Product information "Restek Rxi-5Sil MS GC Capillary Column, 15 m, 0.25 mm ID, 0.25 µm, 13620"
At 15 m length, 0.25 mm inner diameter and 0.25 µm film thickness, the Rxi-5Sil MS 13620 is the shorter of the two Rxi-5Sil MS columns in the shop. The phase has low polarity and is designed as a low-bleed GC-MS column for semivolatiles.
Silarylene phase with phenyl groups in the backbone

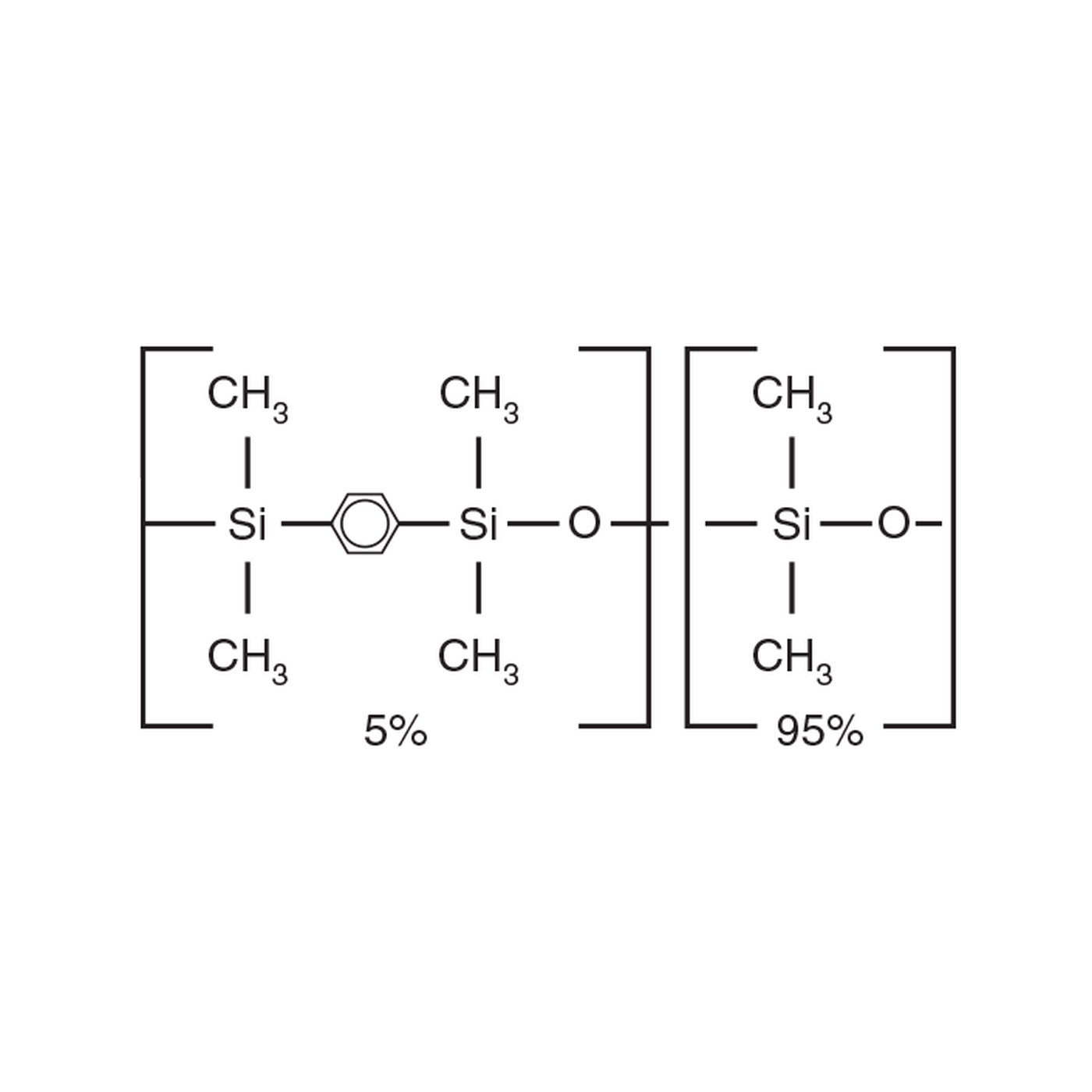

In the Rxi-5Sil MS, the phenyl groups are built into the polymer backbone. This silarylene design makes the phase more thermally stable, lets it bleed less and reduces its susceptibility to oxidation. Chemically, the phase is a crosslinked 1,4-bis(dimethylsiloxy)phenylene dimethyl polysiloxane. The table lists the USP phase classes G27 and G36.
Comparable phases from other manufacturers are Agilent DB-5msUI, Phenomenex ZB-5MSplus and SLB-5ms from Supelco (Millipore Sigma). Comparable part numbers are Agilent 122-5512UI and Phenomenex 7EG-G030-11.
Temperature limits
The column starts at -60 °C. 320 °C is permitted isothermally and 350 °C in a temperature program. The range from -60 °C also allows low starting temperatures in a program; the limits apply to both lengths.
The specifications at a glance
The length of 15 m refers to the capillary tube, the inner diameter of 0.25 mm to the clear diameter, and the film thickness of 0.25 µm to the thickness of the phase layer on the tube wall. Crosslinked means that the polymer chains of the phase are linked to one another. Isothermal means operation at a constant oven temperature, programmed means operation with a temperature program.
15 m or 30 m
Both Rxi-5Sil MS columns in the shop have 0.25 mm inner diameter and 0.25 µm film thickness. They differ in length. Anyone transferring a running method to the other length should revalidate it, because retention times change.
| Part number | Length | Inner diameter | Film thickness | Difference to this column |
|---|---|---|---|---|
| 13623 | 30 m | 0.25 mm | 0.25 µm | +15 m |
Typical applications
The column is intended for GC-MS analysis of semivolatiles. Polycyclic aromatic compounds, chlorinated hydrocarbons, phthalates, phenols and amines are named, as well as organochlorine and organophosphorus pesticides, pharmaceuticals, solvent impurities and hydrocarbons.
Technical details
| Part number | 13620 |
|---|---|
| Product line | Rxi GC columns |
| Phase | Rxi-5Sil MS |
| Phase composition | Crosslinked 1,4-bis(dimethylsiloxy)phenylene dimethyl polysiloxane |
| Polarity | Low (non-polar) |
| Length | 15 m |
| Inner diameter | 0.25 mm |
| Film thickness | 0.25 µm |
| Column material | Fused silica |
| Lower temperature limit | -60 °C |
| Upper temperature limit isothermal | 320 °C |
| Upper temperature limit programmed | 350 °C |
| USP phase class | G27, G36 |
| Comparable phases from other manufacturers | Agilent DB-5msUI, Phenomenex ZB-5MSplus, Supelco SLB-5ms |
| Comparable part numbers from other manufacturers | Agilent 122-5512UI, Phenomenex 7EG-G030-11 |
| Applications | GC-MS analysis of semivolatiles, pesticides, phthalates, phenols, amines, pharmaceuticals, hydrocarbons |
| Pack contents | 1 piece (single column) |
Scope of delivery
One capillary column (single piece) with a length of 15 m is supplied.
Individual requirements and procurement service
Some dimensions of the Rxi-5Sil MS are also available as Integra-Guard columns with a built-in guard column. Restek also offers further lengths, diameters and film thicknesses as well as other phases and accessories. LT Laborhandel procures them on request, including by Restek part number. Write to us with the version you want, and we will get back to you with a quote.
