Restek Stabilwax GC Capillary Column, 30 m, 0.32 mm ID, 1.00 µm, 10654
€742.00
% Manufacturer's RRP: €824.00 9% below manufacturer's RRP
- Stabilwax, polar phase of crosslinked polyethylene glycol
- 30 m, 0.32 mm inner diameter, 1.00 µm film
- Usable from 40 °C to 240 °C isothermal, 260 °C programmed
- For FAMEs, flavours, essential oils and solvents
- Can be regenerated by rinsing with solvents
Product information "Restek Stabilwax GC Capillary Column, 30 m, 0.32 mm ID, 1.00 µm, 10654"
The Stabilwax 10654 is a polar capillary column with crosslinked polyethylene glycol as the stationary phase. It has a length of 30 m, an inner diameter of 0.32 mm and a film thickness of 1.00 µm, and is intended for fatty acid methyl esters (FAMEs), flavours, essential oils and solvents.
Polar phase with firmly bonded surface

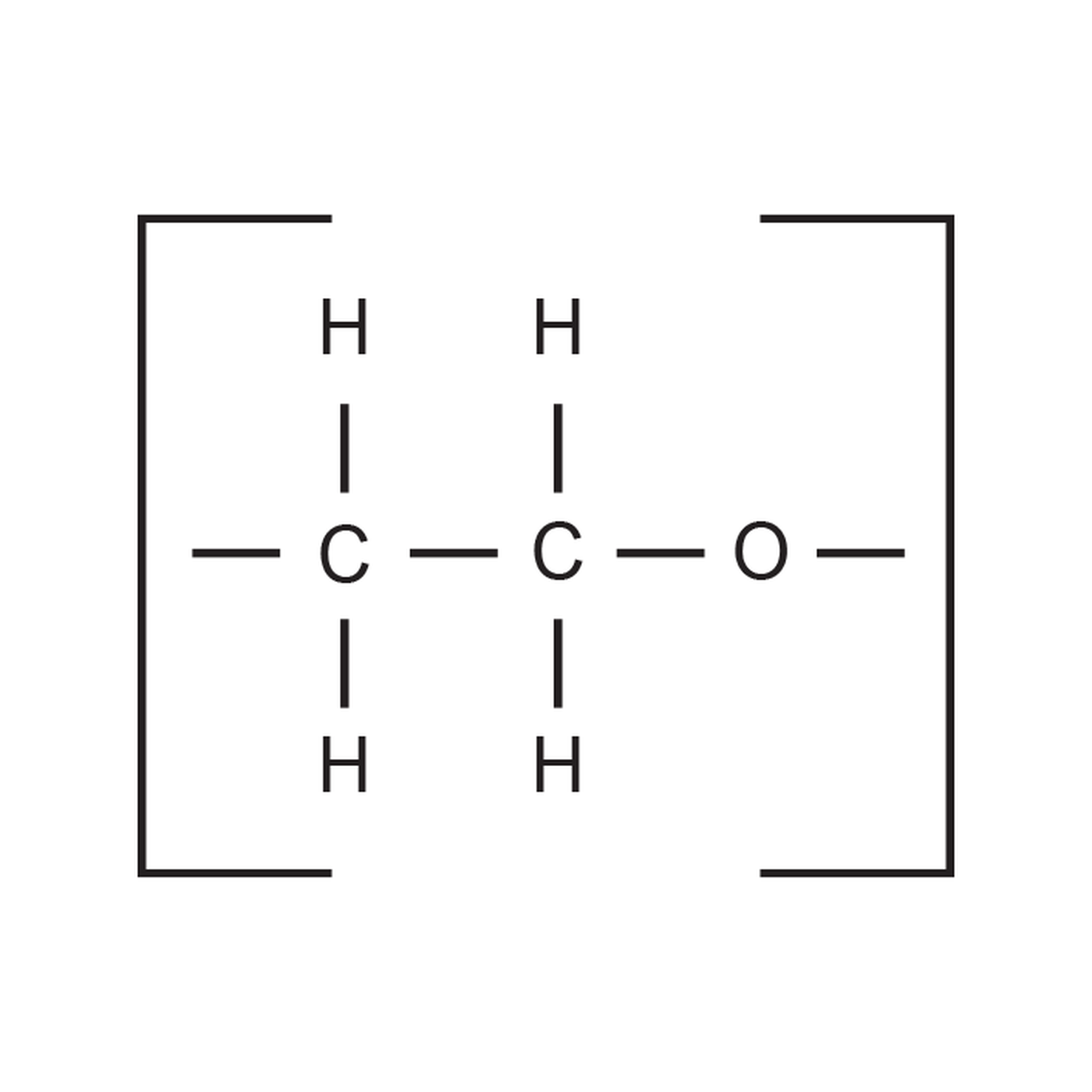

On the Stabilwax, the polar-deactivated surface is firmly bonded to the Carbowax polymer. This increases thermal stability and service life, even with repeated use up to 260 °C. The retention times of polar compounds do not shift in the process. A used column can be regenerated by rinsing with solvents.
The USP phase classes are G14, G15, G16, G20 and G39. Comparable phases from other manufacturers are Agilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW and Supelco SUPELCOWAX 10. A comparable part number is Agilent 123-7334.
Temperature range
The range starts at 40 °C. The column can be used isothermally up to 240 °C and in a temperature program up to 260 °C.
The dimensions at a glance
The 30 m refers to the capillary tube, 0.32 mm to the inner diameter, and 1.00 µm to the thickness of the phase layer on the tube wall. Crosslinked means that the polymer chains are linked to one another. In the temperature data, isothermal stands for a constant oven temperature and programmed for a run with a temperature program.
30 m or 60 m
The 30 m column and its 60 m counterpart share phase, inner diameter (0.32 mm) and film thickness (1.00 µm). Anyone transferring a method to the other length should revalidate it, because retention times change.
| Part number | Length | Inner diameter | Film thickness | Difference to this column |
|---|---|---|---|---|
| 10657 | 60 m | 0.32 mm | 1.00 µm | +30 m |
Typical applications
The phase is intended for the following applications:
- FAMEs
- Flavours and essential oils
- Solvents
- Aromatics including xylene isomers
- Acrolein and acrylonitrile
- Oxygenated compounds
- Purity testing of chemicals
- Analysis of alcoholic beverages
Technical details
| Part number | 10654 |
|---|---|
| Phase | Stabilwax |
| Phase composition | Crosslinked polyethylene glycol (wax phase) |
| Polarity | Polar |
| Length | 30 m |
| Inner diameter | 0.32 mm |
| Film thickness | 1.00 µm |
| Column material | Fused silica |
| Lower temperature limit | 40 °C |
| Upper temperature limit isothermal | 240 °C |
| Upper temperature limit programmed | 260 °C |
| USP phase class | G14, G15, G16, G20, G39 |
| Analyte groups | FAME |
| Comparable phases from other manufacturers | Agilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW, Supelco SUPELCOWAX 10 |
| Comparable part numbers from other manufacturers | Agilent 123-7334 |
| Pack contents | 1 piece (single column) |
Scope of delivery
One capillary column (single piece) with a length of 30 m is supplied. Part number 10654 stands for 0.32 mm inner diameter.
Individual requirements and procurement service
Restek offers the Stabilwax in further dimensions. The version with 30 m, 0.53 mm inner diameter and 1.00 µm film thickness has the Restek part number 10655, and we procure it on request as well. LT Laborhandel also procures other phases and accessories, in each case by part number or by phase and dimensions. Write to us with what you need.
