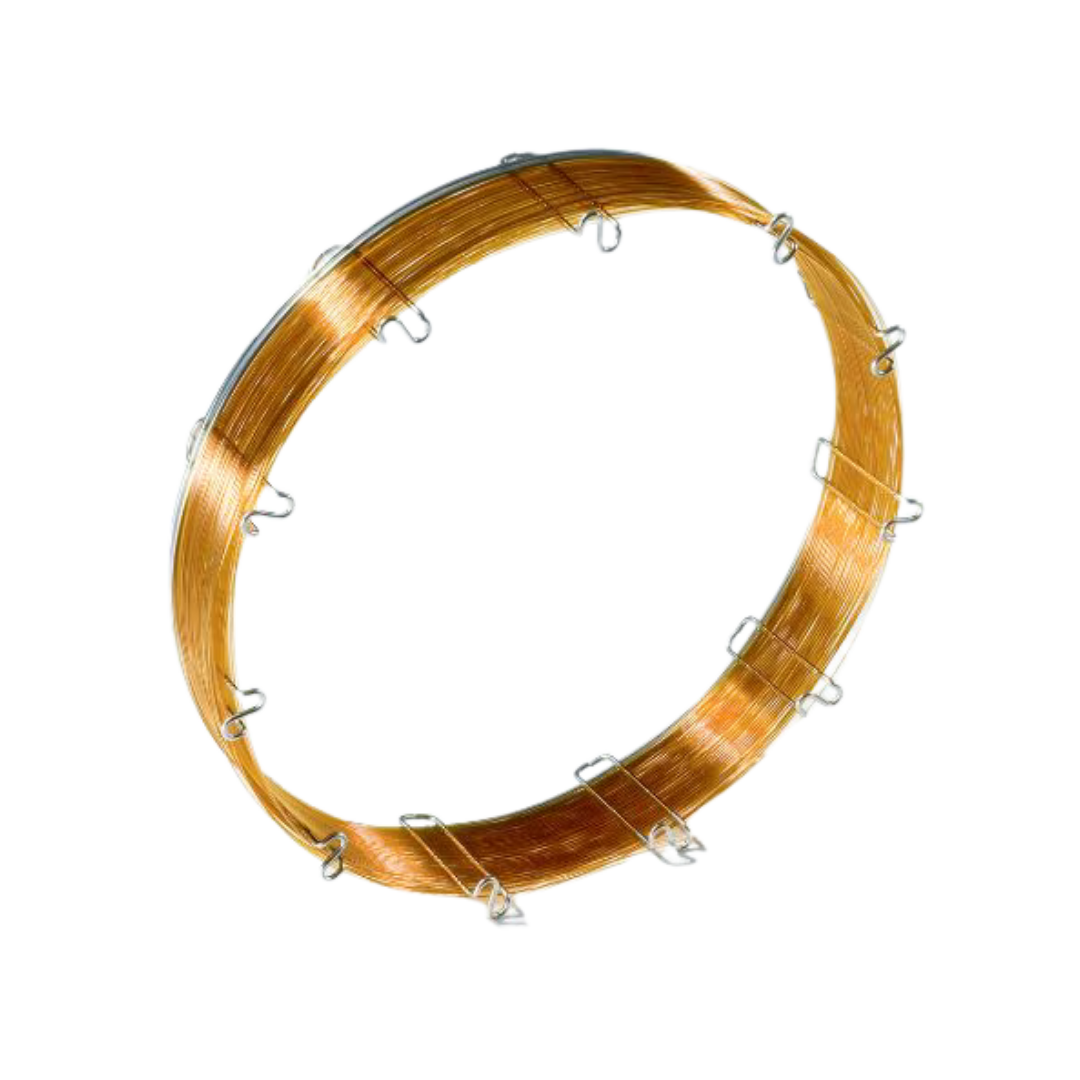

Restek Stabilwax GC Capillary Column, 60 m, 0.32 mm ID, 1.00 µm, 10657

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Restek Stabilwax GC Capillary Column, 60 m, 0.32 mm ID, 1.00 µm, 10657"

At 60 m, the Stabilwax 10657 is the long version of this polar wax column in the shop. Inner diameter (0.32 mm) and film thickness (1.00 µm) are the same as on the 30 m column 10654. The phase consists of crosslinked polyethylene glycol.

About the phase

The polar-deactivated surface of the Stabilwax is firmly bonded to the Carbowax polymer. This gives higher thermal stability and a long service life, even with repeated operation up to 260 °C. According to Restek, the retention times of polar compounds do not shift, and the column can be regenerated by rinsing with solvents.

USP classes: G14, G15, G16, G20, G39. Agilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW and Supelco SUPELCOWAX 10 are comparable phases, and Agilent 123-7364 is a comparable part number.

Temperature limits

Usable from 40 °C. The upper limits are 240 °C for a constant oven temperature and 260 °C for a run with a temperature program.

Notes on the dimensions

On this column, 60 m is the length, 0.32 mm the clear inner diameter of the capillary and 1.00 µm the thickness of the phase film. The phase is crosslinked, meaning the polymer chains are linked. The two upper limits distinguish isothermal operation from a run with a temperature program.

Why the longer column

Compared with the 30 m column 10654, this one is twice as long, and all other dimensions are the same. Retention times change when the length changes, so the method has to be re-checked.

Part numberLengthInner diameterFilm thicknessDifference to this column
1065430 m0.32 mm1.00 µm-30 m

Typical applications

The Stabilwax is intended for FAMEs, flavours, essential oils and solvents. Other fields of use are aromatics including xylene isomers, acrolein and acrylonitrile, oxygenated compounds, purity testing of chemicals and the analysis of alcoholic beverages.

Technical details

Part number10657
PhaseStabilwax

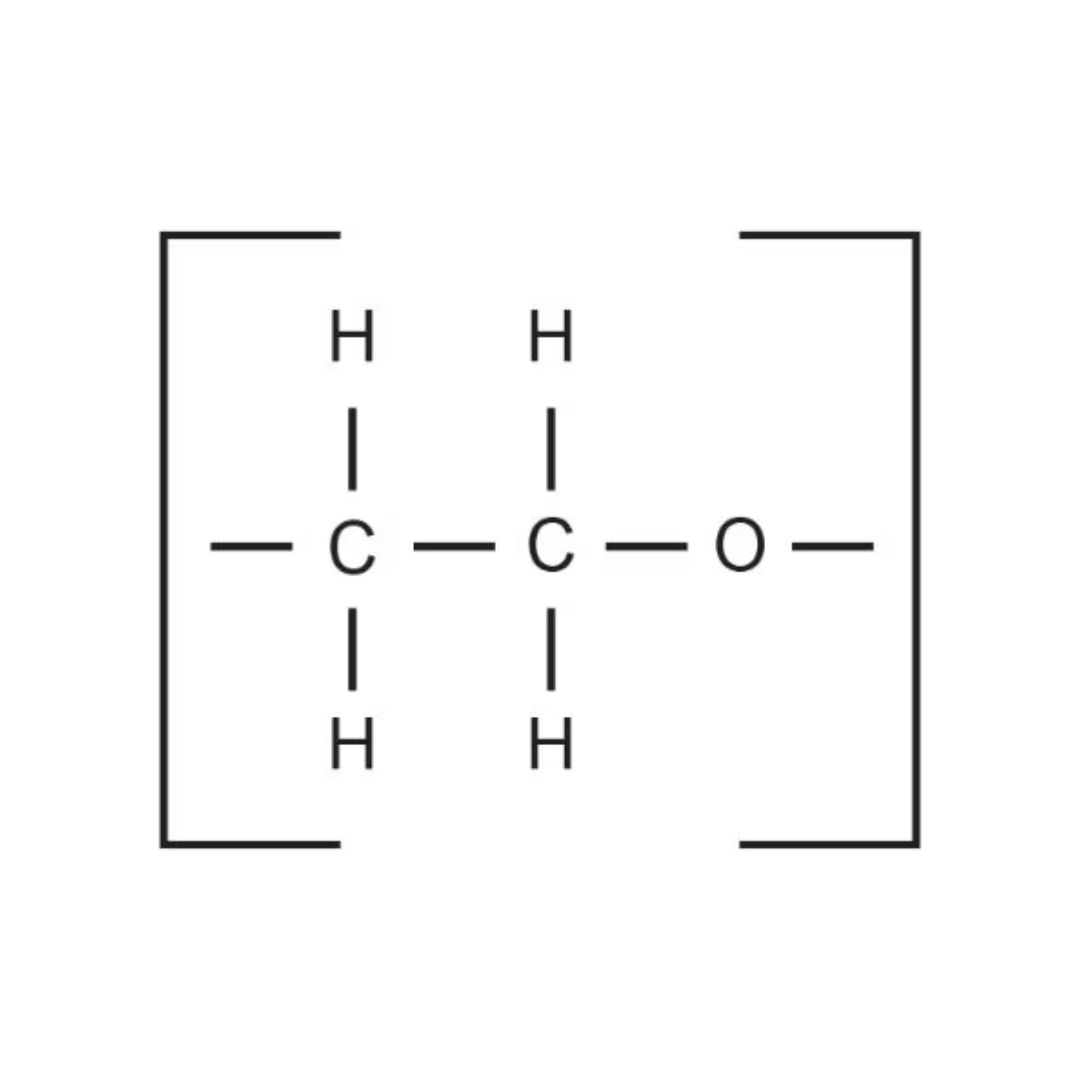

Phase compositionCrosslinked polyethylene glycol (wax phase)
PolarityPolar
Length60 m
Inner diameter0.32 mm
Film thickness1.00 µm
Column materialFused silica
Lower temperature limit40 °C
Upper temperature limit isothermal240 °C
Upper temperature limit programmed260 °C
USP phase classG14, G15, G16, G20, G39
Analyte groupsFAME
Comparable phases from other manufacturersAgilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW, Supelco SUPELCOWAX 10
Comparable part numbers from other manufacturersAgilent 123-7364
ApplicationsFAMEs, flavours, essential oils, solvents, aromatics, acrolein and acrylonitrile, oxygenated compounds, purity testing of chemicals, alcoholic beverages
Pack contents1 piece (single column)

Scope of delivery

One capillary column (single piece) with a length of 60 m is supplied. Part number 10657 defines length, inner diameter and film thickness.

Individual requirements and procurement service

Further Stabilwax dimensions, other phases and accessories are part of the Restek range. We procure them on request, including by Restek part number. Send us the part number, or the phase with length, inner diameter and film thickness, and we will get back to you with a quote.
