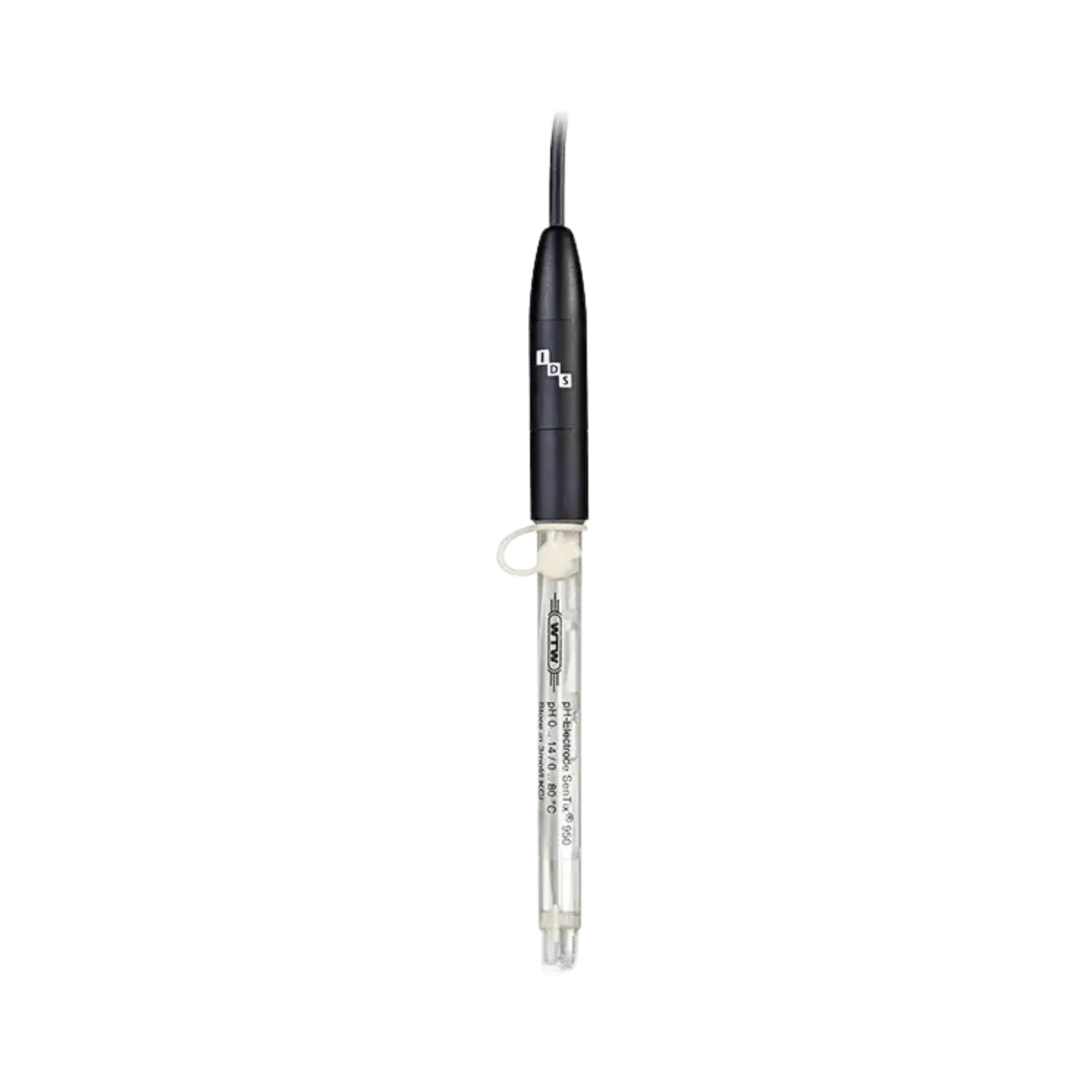

WTW SenTix 950 digital IDS pH electrode, plastic shaft, 1.5 m fixed cable, 103750

The WTW SenTix 950 digital IDS pH electrode represents a highly advanced, electrochemical system solution for precise and flexible pH measurement in demanding laboratory and field applications. Designed for direct use with WTW IDS multi-parameter analysers, this digital electrode, featuring a robust plastic shaft, ensures error-free signal transmission and comprehensive documentation. In demanding measurement series involving aqueous samples, environmental analysis or industrial quality control, the risk posed by mechanical shock loads and signal interference over long cable runs is the primary factor in ensuring highly precise, process-reliable measurement results. Thanks to its permanently attached cable, this version offers maximum watertightness and reliability in day-to-day routine operation.

Intelligent IDS sensor technology and digital signal processing

The mechatronic system architecture of the SenTix 950 is based on innovative IDS (Intelligent Digital Sensors) technology. Unlike conventional analogue probes, the sensitive analogue voltage signal is digitised and calibrated directly within the sensor. This transient signal processing completely eliminates electromagnetic interference. An integrated data memory permanently stores the sensor’s specific serial number as well as a calibration history for up to 10 calibrations. Thanks to the intelligent QSC (Quality Sensor Control) function, the sensor continuously assesses its current condition and displays this directly on the measuring instrument, guaranteeing maximum process reliability with every measurement.

Refillable liquid electrolyte and impact-resistant plastic shaft

The material design combines the outstanding mechanical resilience of an impact-resistant plastic shaft with the metrological advantages of a liquid reference system. The robust shaft provides optimum protection for the sensitive glass membrane against mechanical damage during field measurements or in the hectic day-to-day laboratory environment. A tried-and-tested liquid electrolyte (3 mol/l KCl) serves as the reference system; it can be easily refilled or completely replaced via a sealable opening. This guarantees an extremely fast response, minimises the stabilisation time and prevents measurement drifts even in changing sample media.

Integrated temperature compensation and fixed cable connection

To ensure precise measurement results, the SenTix 950 features a built-in 30 kOhm NTC temperature sensor, which provides automatic, real-time temperature compensation of the pH value. The connection to the IDS meter is via a permanently attached, 1.5-metre-long cable fitted with a waterproof, digital IDS connector. This fixed cable connection offers optimum mechanical protection against the ingress of splash water and moisture. It guarantees uninterrupted signal transmission as well as convenient and rapid handling directly at the laboratory workstation or during field measurements, without the need to manage additional connectors on the sensor.

Technical details

Measurement & Sensor Technology

• Sensor type: Digital IDS pH electrode
• Model: SenTix 950
• pH measurement range: 0 to 14 pH
• Temperature element: Integrated NTC 30 kOhm temperature sensor
• Operating temperature range: 0 to 80 °C
• Calibration memory: Integrated memory for the last 10 calibrations
• Sensor rating: QSC-compatible (Quality Sensor Control)

Design & dimensions

• Shaft material: Robust plastic shaft (POM)
• Electrolyte: Liquid electrolyte (3 mol/l KCl, refillable)
• Diaphragm: Fibre diaphragm
• Shaft length: 120 mm
• Shaft diameter: 12 mm
• Connection type: Fixed cable, length 1.5 m with waterproof, digital IDS plug
• Serial number: Stored electronically within the sensor

Operating conditions

• Maintenance: Refillable (KCl solution replaceable)
• Application: General aqueous media, laboratory and field measurements, training, quality control

Contents

• 1 x WTW SenTix 950 digital IDS pH electrode with 1.5 m fixed cable (MPN: 103750)
• 1 x storage cap with storage solution
• 1 x vial of refill electrolyte (3 mol/l KCl)
• 1 x Quality certificate / Quick start guide

Important note: pH buffer solutions, cleaning concentrates and the IDS meter itself are not included in the standard scope of delivery and must be ordered separately.

Individual requirements & accessories

To realise the full potential of the WTW SenTix 950, we recommend using it with a compatible WTW MultiLine or inoLab IDS meter. For regular recalibration and to ensure the integrity of the metrological chain, we stock certified WTW technical buffer solutions (pH 4.01, pH 7.00, pH 10.01) in our range. For proper storage and to protect the glass membrane when the meter is not in use, we recommend the original KCl storage solution. Please use our technical procurement service to put together your digital measuring station.
