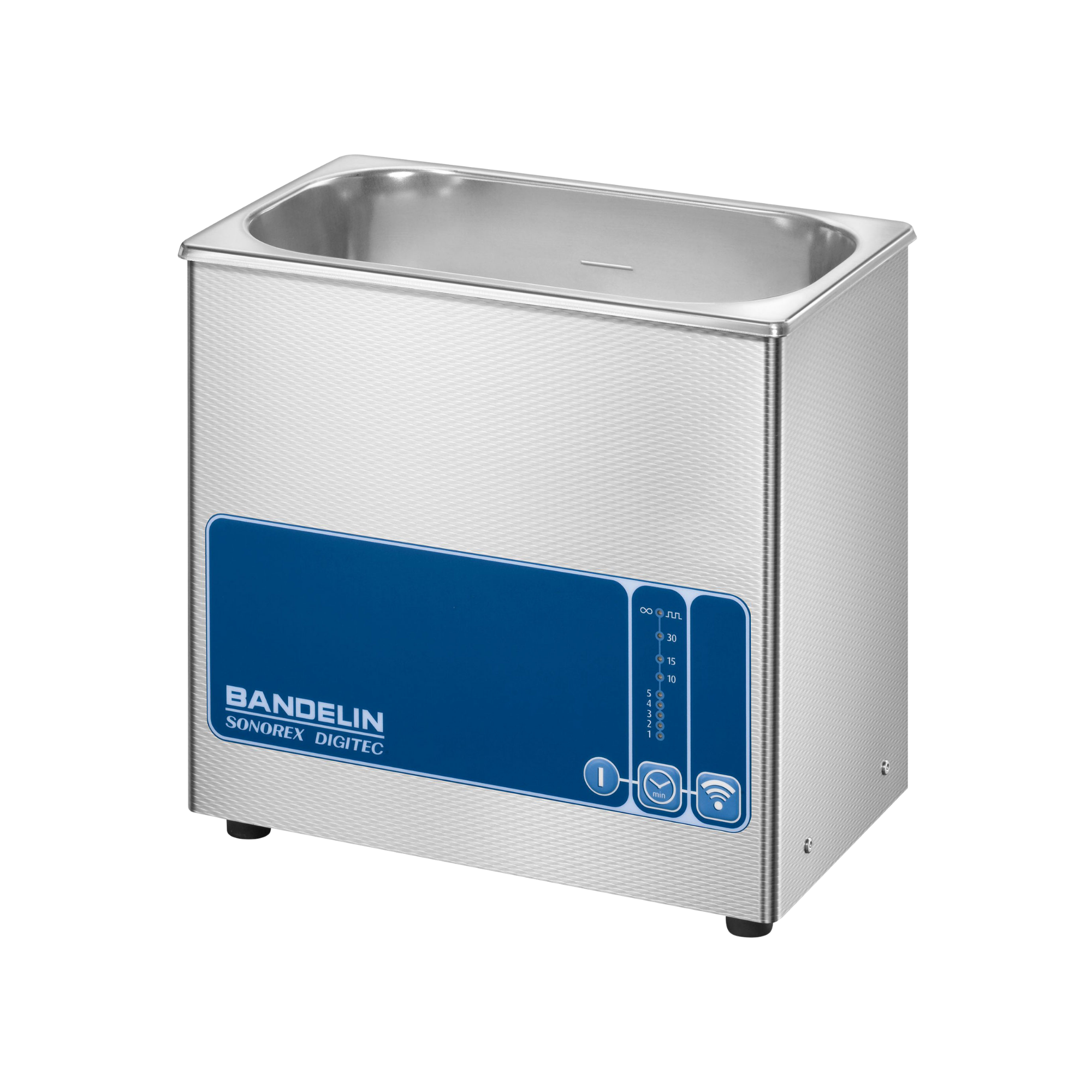

Bandelin SONOREX DIGITEC DT 100 Ultrasonic Bath, 3 litres, 3210
€578.00
% Manufacturer's RRP: €760.00 23% below manufacturer's RRP
- Class I medical device (EU 2017/745)
- SweepTec function for even cleaning
- Degas function for enhanced cleaning performance
- Pulse function for variable cleaning intensity
- LED display with remaining time indicator
- Wipe-clean button controls
- Matching lid D 100 and basket K 3 C available
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Bandelin SONOREX DIGITEC DT 100 Ultrasonic Bath, 3 litres, 3210"
Thorough ultrasonic cleaning for medical practices, laboratories and workshops
The Bandelin SONOREX DIGITEC DT 100 is an ultrasonic cleaner for medical practices, laboratories and workshops. Intense cavitation bubbles clean thoroughly yet gently, even in hard-to-reach areas of the items being cleaned. The wipe-clean button controls and the LED display showing the remaining cleaning time make it particularly easy to use.
SweepTec, pulse and degassing functions
The fully automatic SweepTec function prevents standing waves in the ultrasonic field and ensures a particularly uniform cleaning effect. The pulse function allows for variable cleaning intensity, whilst the Degas function, which can be activated at the start, degasses the cleaning fluid, thereby further enhancing the effect of the ultrasound.
Suitable accessories
Suitable baskets, lids and cleaning and disinfection concentrates are available as accessories, tailored to different items to be cleaned and areas of application.
Technical details
| Total volume | 3.0 litres |
| Working volume | 2.0 litres |
| Internal dimensions (L×W×H) | 240 × 140 × 100 mm |
| External dimensions (L×W×H) | 260 × 160 × 250 mm |
| Material | Stainless steel 1.4301, wall thickness 1.0 mm |
| Ultrasonic frequency | 35 kHz |
| Ultrasonic power | 80 W (rated), 320 W (peak) |
| Heating | Not available |
| Timer | 1/2/3/4/5/10/15/30 minutes or continuous operation (±5 %) |
| Display | LED display, remaining cleaning time |
| Voltage | 230 V~ (±10 %), 50/60 Hz |
| Mains cable | 2 m, permanently attached to the unit |
| Weight | 4.2 kg |
| Level indicator | Available |
| Degree of protection | IP 33 |
| Classification | Class I medical device (EU 2017/745) |
Scope of delivery
- 1x Bandelin SONOREX DIGITEC DT 100 ultrasonic bath
Baskets, lids and cleaning/disinfection concentrates are not included in the scope of delivery and are available separately as accessories.
Individual requirements & procurement service
Do you need suitable baskets, inserts, lids or cleaning concentrates for your SONOREX ultrasonic cleaner, or are you looking for a heated model? Our procurement service will be happy to help you select suitable accessories.
| Volume: | 3 l |
|---|
Matching accessories
The D 100 stainless steel lid is intended for ten ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT and smart ST series. It protects the bath liquid from external contamination. During operation it reduces noise emission, and condensation runs back into the tank.According to Bandelin, the lid prevents odour nuisance when cleaning or disinfecting agents are added to the bath liquid. The tanks of the compatible units hold 3 or 4 litres. The K 3 C and K 3 CL insert baskets are also available.Typical applicationsTypical uses in the compatible units:Degreasing small metal and plastic partsCleaning tasks in the laboratory or at the workbench where floor space is limitedRapid degassing of liquidsSuitable forModelVersionBandelin device no.Tank volume (l)SONOREX SUPER RK 1003 litres3013.0SONOREX SUPER RK 100 H3 litres, with heating3123.0SONOREX SUPER RK 102 H3 litres, with heating3033.0SONOREX SUPER RK 103 H4 litres, with heating3264.0SONOREX DIGITEC DT 1003 litres32103.0SONOREX DIGITEC DT 100 H3 litres, with heating32303.0SONOREX DIGITEC DT 102 H3 litres, with heating32353.0SONOREX DIGITEC DT 103 H4 litres, with heating32014.0SONOREX smart ST 102 H3 litres, with heating71003.0SONOREX smart ST 103 H4 litres, with heating71014Technical detailsMaterialStainless steelScope of delivery1 SONOREX D 100 stainless steel lidIndividual requirements & procurement serviceFor accessories for the ten ultrasonic baths and for questions about compatibility with older SONOREX units, our procurement service accepts enquiries.
The K 3 C insert basket holds the items to be sonicated in 7 ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT and smart ST series. In the basket, the parts do not lie on the tank bottom, where abrasion can occur between the items being sonicated and the oscillating tank. According to Bandelin, they are 1 to 2 cm above the bottom, in the optimum range of the cavitation field. When rinsing, the basket is taken out and there is no contact with the sonication liquid.The basket is made of stainless steel and has handles. The internal dimensions (L x W x D) are 200 x 110 x 40 mm, the mesh size is 5 x 5 mm and the payload is up to 2 kg. It belongs to the 3-litre tanks. For the RK 103 H and DT 103 H units, there is a dedicated version, the K 3 CL, with the same internal dimensions. The D 100 lid is also available.Typical applicationsTypical uses in the compatible units:Degreasing small metal and plastic partsCleaning small tools, tweezers and laboratory accessoriesCleaning of spectacles, watches and jewelleryFine cleaning of small instruments and sensor tips in the smart ST 102 HWhether an instrument is suitable for ultrasonic cleaning depends on the instrument manufacturer’s specifications.Suitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 1003013.0SONOREX SUPER RK 102 H3033.0SONOREX SUPER RK 100 H3123.0SONOREX DIGITEC DT 10032103.0SONOREX DIGITEC DT 100 H32303.0SONOREX DIGITEC DT 102 H32353.0SONOREX smart ST 102 H71003.0Technical detailsMaterialStainless steelInternal dimensions (L x W x D)200 x 110 x 40 mmMesh size5 x 5 mmPayloadup to 2 kgScope of delivery1 SONOREX K 3 C insert basketIndividual requirements & procurement serviceIf your own ultrasonic bath is missing from the table, the procurement service clarifies which basket fits.
The KD 0 sieve basket is made of stainless steel with sieve mesh. The internal diameter is 75 mm, the mesh size 1 x 1 mm according to Bandelin. It is placed in insert vessels, or fine parts can be cleaned with it directly in the ultrasonic bath. According to Bandelin, it is intended for very fine parts.The internal dimensions (L x W x D) are 75 x 75 x 40 mm; on the outside the basket measures 85 x 82 x 40 mm. It has handles. Bandelin names SD 06, SD 09, EB 05 and PD 06 as insert vessels; they are also available.Typical applicationsTypical uses in the ultrasonic baths:Fine cleaning of jewellery and small metal partsPre-cleaning of precision mechanical components and watch movementsTechnical detailsMaterialStainless steelInternal dimensions (L x W x D)75 x 75 x 40 mmExternal dimensions (L x W x H)85 x 82 x 40 mmMesh size1 x 1 mmScope of delivery1 SONOREX KD 0 stainless steel sieve basketIndividual requirements & procurement serviceThe procurement service accepts enquiries about insert vessels and further accessories for the SONOREX ultrasonic baths.
In the ultrasonic bath, insert beakers have a fixed place in the DE 100 perforated lid. It is made of stainless steel and holds several beakers at the same time, including with different liquids. According to Bandelin, chemically aggressive liquids and sample liquids are sonicated indirectly with it. For this, the surface tension of the water must decrease, which is why the ultrasonic bath needs a cleaning solution as coupling liquid. The perforated lid fits 12 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.According to Bandelin, it dampens sound and shortens the heating-up phase on heated units. The external dimensions are 264 x 132 x 11 mm. According to Bandelin, suitable insert beakers are PD 06, SD 06, SD 09 and EB 05; they are also available.Typical applicationsTypical uses:Rapid degassing of liquidsSonochemistry: radical generation and improved mass transferHomogenisation and emulsificationSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 1003013.0SONOREX SUPER RK 102 H3033.0SONOREX SUPER RK 1063065.6SONOREX smart ST 103 H71014SONOREX SUPER RK 100 H3123.0SONOREX DIGITEC DT 103 H32014.0SONOREX DIGITEC DT 10032103.0SONOREX DIGITEC DT 100 H32303.0SONOREX DIGITEC DT 102 H32353.0SONOREX SUPER RK 103 H3264.0SONOREX smart ST 102 H71003.0SONOREX DIGITEC DT 10632705.6Technical detailsMaterialStainless steelExternal dimensions (L x W x H)264 x 132 x 11 mmScope of delivery1 SONOREX DE 100 stainless steel perforated lidIndividual requirements & procurement serviceThe procurement service accepts enquiries about beakers, insert strips and questions about compatibility with older SONOREX units.
The PD 04 sieve basket is made of plastic and has a very fine mesh with a mesh size of 0.63 x 0.63 mm. It is placed in insert vessels or used to clean very fine parts directly in the ultrasonic bath. According to Bandelin, it is also intended for delicate parts.The internal dimensions (L x W x D) are 60 x 60 x 45 mm, and the sieve basket measures 75 x 75 x 50 mm on the outside. It is intended for ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series. As insert vessels into which it fits, Bandelin names KB 04, SD 04, SD 05, SD 06, SD 09, EB 05 and PD 06. The insert vessels are not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Fine cleaning of jewellery and small metal partsPre-cleaning of precision mechanical components and watch movementsCleaning of small sensor tips, cannulas and needlesTechnical detailsMaterialPlasticInternal dimensions (L x W x D)60 x 60 x 45 mmExternal dimensions (L x W x H)75 x 75 x 50 mmMesh size0.63 x 0.63 mmScope of delivery1 SONOREX PD 04 plastic sieve basketIndividual requirements & procurement serviceThe procurement service accepts enquiries about insert vessels and other accessories for the SONOREX ultrasonic baths, as well as questions about compatibility with older units.
The SD 09 insert beaker is made of glass, with the GR ring and the DD lid. Its internal dimensions are 91 x 91 x 180 mm. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids, abrasive contaminants and sample liquids. The beaker is also intended for cleaning agents or solvents that are aggressive towards stainless steel. The ultrasound acts indirectly; a cleaning solution serves as the coupling liquid.The beaker holds 1,000 ml and measures 95 x 95 x 180 mm on the outside. According to Bandelin, suitable holders are the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4. According to Bandelin, the KD 0 sieve basket fits into the beaker. These parts are also available.Typical applicationsTypical uses:Sonication of sample liquids in the beakerRemoval of chemically aggressive or abrasive contaminantsSonication of cleaning agents or solvents that are aggressive towards stainless steel in the beakerTechnical detailsMaterialGlassInternal dimensions (L x W x D)91 x 91 x 180 mmExternal dimensions (L x W x H)95 x 95 x 180 mmWorking volume1,000 mlScope of delivery1 SONOREX SD 09 glass insert beaker with GR ring and DD lidIndividual requirements & procurement serviceThe procurement service accepts enquiries about perforated lids, insert strips and suitable sieve baskets.
The SD 06 glass insert beaker holds 600 ml. The scope of delivery includes the GR ring and the DD lid. The beaker hangs in a DE perforated lid or an insert strip. Bandelin names insert beakers for chemically aggressive liquids, for abrasive contaminants and for sonicating sample liquids; the ultrasound acts indirectly in this case. It is also intended for cleaning agents or solvents that are aggressive towards stainless steel.The external dimensions are 90 x 90 x 125 mm. According to Bandelin, suitable holders are the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4. According to Bandelin, the KD 0 sieve basket also fits into the beaker. All the parts mentioned are also available.Typical applicationsTypical uses:Sonication of sample liquids in the beakerCleaning of very fine parts in the KD 0 sieve basket, which is placed in the beakerRemoving dental cement in one beaker and, at the same time, cleaning and disinfecting dental instruments in a second beaker (example according to Bandelin)Technical detailsMaterialGlassExternal dimensions (L x W x H)90 x 90 x 125 mmCapacity600 mlScope of delivery1 SONOREX SD 06 glass insert beaker with GR ring and DD lidIndividual requirements & procurement servicePerforated lids, insert strips and sieve baskets for this beaker can be requested via the procurement service.
The RG 2 test tube holder positions samples securely in the ultrasonic bath. It holds up to 6 test tubes with a diameter of 25 mm at most or, alternatively, 8 test tubes with a diameter of 16 mm. It fits 14 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.The holder is made of stainless steel and measures 132 x 99 x 88 mm on the outside. The tanks of the compatible units hold 1.8 to 4 litres.Typical applicationsTypical uses in the compatible units:Sonicating samples in test tubes with the suitable holderSample preparation for analysisHomogenisation and emulsificationSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 52 H1641.8SONOREX SUPER RK 1003013.0SONOREX SUPER RK 102 H3033.0SONOREX smart ST 103 H71014SONOREX SUPER RK 523111.8SONOREX SUPER RK 100 H3123.0SONOREX DIGITEC DT 103 H32014.0SONOREX DIGITEC DT 5232051.8SONOREX DIGITEC DT 10032103.0SONOREX DIGITEC DT 52 H32251.8SONOREX DIGITEC DT 100 H32303.0SONOREX DIGITEC DT 102 H32353.0SONOREX SUPER RK 103 H3264.0SONOREX smart ST 102 H71003.0Technical detailsMaterialStainless steelExternal dimensions (L x W x H)132 x 99 x 88 mmScope of delivery1 SONOREX RG 2 test tube holderIndividual requirements & procurement serviceThe procurement service accepts enquiries about test tube racks, baskets and other accessories for SONOREX ultrasonic baths.
The GH 1 instrument holder is used to clean particularly large individual parts in the SONOREX ultrasonic bath. Compared with using a basket, a larger cleaning volume is available. It fits 16 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series with a tank volume of 1.8 to 6 litres.The holder is made of stainless steel, the basket brackets are partly covered with polyolefin heat-shrink tubing. According to Bandelin, the tubing protects against damage to the tank rim and dampens noise. The internal dimensions (L x W x D) are 129 x 117 x 90 mm, the payload up to 1 kg.Typical applicationsTypical uses in the compatible units:Cleaning of objects of various shapes, types and sizesPre-cleaning of individual components prior to assembly or further processingSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 52 H1641.8SONOREX SUPER RK 1003013.0SONOREX SUPER RK 102 H3033.0SONOREX SUPER RK 1563056SONOREX smart ST 103 H71014SONOREX SUPER RK 523111.8SONOREX SUPER RK 100 H3123.0SONOREX DIGITEC DT 103 H32014.0SONOREX DIGITEC DT 5232051.8SONOREX DIGITEC DT 10032103.0SONOREX DIGITEC DT 52 H32251.8SONOREX DIGITEC DT 100 H32303.0SONOREX DIGITEC DT 102 H32353.0SONOREX SUPER RK 103 H3264.0SONOREX DIGITEC DT 15632756.0SONOREX smart ST 102 H71003.0Technical detailsMaterialStainless steelInternal dimensions (L x W x D)129 x 117 x 90 mmPayloadup to 1 kgCovering of the basket bracketspartly polyolefin heat-shrink tubingScope of delivery1 SONOREX GH 1 stainless steel instrument holderIndividual requirements & procurement serviceFor baskets, lids and accessories for the compatible ultrasonic baths and for questions about compatibility with older SONOREX units, our procurement service accepts enquiries.
The EG 1 insert grid protects delicate parts in the stainless steel basket. According to Bandelin, it prevents the parts from resting on the bottom of the basket, touching one another or damaging one another. The grid is made of polypropylene (PP) and is cut to size. The scope of delivery includes 10 fastening buttons.The grid measures 600 x 500 mm and has a mesh size of 3 x 3 mm. According to Bandelin, it protects the items being cleaned from scratches and is resistant to Bandelin cleaning agents. It fits into insert baskets of SONOREX ultrasonic baths, for example K 1 C, K 14 and K 28 C, which are also available.Typical applicationsTypical uses in the compatible units:Fine cleaning of jewellery and small metal partsCleaning of spectacles, watches and jewelleryPre-cleaning of precision mechanical components and watch movementsTechnical detailsMaterialPolypropylene (PP)Dimensions (L x W)600 x 500 mmMesh size3 x 3 mmScope of delivery1 SONOREX EG 1 insert grid made of polypropylene (PP), to be cut to size, 10 fastening buttonsIndividual requirements & procurement serviceThe procurement service accepts enquiries about baskets that fit the insert grid and further accessories.
The EB 05 stainless steel beaker holds 600 ml and has a lid and rubber ring. As an insert beaker, it is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids and when sonicating sample liquids; the ultrasound then acts indirectly. The internal dimensions are 88 x 88 x 110 mm. For this, the ultrasonic bath needs a cleaning solution as coupling liquid.The beaker measures 90 x 90 x 110 mm on the outside. According to Bandelin, suitable holders are the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4. According to Bandelin, the KD 0 sieve basket fits into the beaker. These parts are also available.Typical applicationsTypical uses:Sonication of chemically aggressive liquids in the beakerSonication of sample liquidsCleaning of very fine parts in the KD 0 sieve basket, which is placed in the beakerTechnical detailsMaterialStainless steelInternal dimensions (L x W x D)88 x 88 x 110 mmExternal dimensions (L x W x H)90 x 90 x 110 mmWorking volume600 mlScope of delivery1 SONOREX EB 05 stainless steel beaker with lid and rubber ringIndividual requirements & procurement serviceThe procurement service accepts enquiries about perforated lids, insert strips and further insert beakers.
The PD 06 plastic beaker holds 600 ml and is supplied with a lid and rubber ring. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used when liquids are chemically aggressive, when contaminants are abrasive or when sample liquids are sonicated. The ultrasound then acts indirectly. The internal dimensions are 86 x 86 x 125 mm. A cleaning solution serves as the coupling liquid in the ultrasonic bath.According to Bandelin, the beaker fits the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4, which are also available. With a cleaning agent or solvent that is aggressive towards stainless steel, the beaker is required, according to Bandelin, to protect the cleaning unit.Typical applicationsTypical uses:Sonication of sample liquids in the insert beakerUse of cleaning agents or solvents that are aggressive towards stainless steel, to protect the ultrasonic bathRemoving dental cement in one beaker and cleaning and disinfecting instruments in a second beaker without changing the liquid in the ultrasonic bath (example according to Bandelin)Technical detailsMaterialPlasticInternal dimensions (L x W x D)86 x 86 x 125 mmExternal dimensions (L x W x H)90 x 90 x 125 mmWorking volume600 mlScope of delivery1 SONOREX PD 06 plastic beaker with lid and rubber ringIndividual requirements & procurement serviceThe procurement service accepts enquiries about perforated lids, insert strips and further insert beakers for SONOREX ultrasonic baths.
The KW 3 hanging tray is made of polyethylene and is supplied with a lid. Its internal dimensions are 195 x 115 x 88 mm. Because nothing may lie on the tank bottom during operation, there are plastic hanging trays with lids for this purpose. According to Bandelin, the tray is temperature-resistant up to 80 °C with water and up to 60 °C with acids. A cleaning solution serves as the coupling liquid. It is suitable for 10 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.The tanks of these units hold 3 or 4 litres; the external dimensions of the hanging tray are 310 x 170 x 88 mm. According to Bandelin, it protects the stainless steel tank and is intended for chemically aggressive liquids.Typical applicationsTypical uses:Homogenisation and emulsificationRapid degassing of liquidsIndirect sonication of chemically aggressive liquidsSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 1003013.0SONOREX SUPER RK 102 H3033.0SONOREX smart ST 103 H71014SONOREX SUPER RK 100 H3123.0SONOREX DIGITEC DT 103 H32014.0SONOREX DIGITEC DT 10032103.0SONOREX DIGITEC DT 100 H32303.0SONOREX DIGITEC DT 102 H32353.0SONOREX SUPER RK 103 H3264.0SONOREX smart ST 102 H71003.0Technical detailsMaterialPolyethylene (PE)Internal dimensions (L x W x D)195 x 115 x 88 mmExternal dimensions (L x W x H)310 x 170 x 88 mmScope of delivery1 SONOREX KW 3 polyethylene hanging tray with lidIndividual requirements & procurement serviceThe procurement service accepts enquiries about suitable insert vessels and accessories for small SONOREX ultrasonic baths.
The EK 250 holding clamp is made of stainless steel and intended for laboratory flasks up to d = 85 mm. It is used for tip-proof sonication of laboratory flasks in the SONOREX ultrasonic bath. It is fastened in insert baskets and instrument holders. Bandelin states that laboratory flasks do not float up or tip over with the clamp.For smaller flasks, the clamps EK 100 (up to d = 65 mm), EK 50 (up to d = 52 mm), EK 25 (up to d = 42 mm) and EK 10 (up to d = 31 mm) are also available. The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Sample preparation for analysis in the DT 510 HRapid degassing of liquids in the DT 514 HHomogenisation and emulsification in the DT 255Suitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 85 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 250 stainless steel holding clampIndividual requirements & procurement serviceFor clamps of other sizes, insert baskets and instrument holders, our procurement service accepts enquiries.
According to Bandelin, the GR 06 rubber ring fits the SD 06, SD 09, EB 05 and PD 06. Bandelin lists it as a rubber ring for insert beakers. The model table shows the SONOREX ultrasonic baths in which these parts are intended. These are 47 models of the SUPER RK, DIGITEC DT and smart ST series. The insert beakers are not included in the scope of delivery.Typical applicationsAccording to Bandelin, insert beakers are used for indirect sonication in these cases:when using chemically aggressive liquidswhen removing chemically aggressive or abrasive contaminantswhen sonicating sample liquidsSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 1050 CH327190.0DT 10632705.6DT 15632756.0DT 156 BH32219.0DT 25532155.5DT 255 H32405.5DT 51032459.7DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 105032358.0RK 1050 CH18490.0RK 1063065.6RK 1563056RK 156 BH6469.0RK 25530665.5RK 255 H3165.5RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Scope of delivery1 SONOREX GR 06 rubber ringIndividual requirements & procurement serviceFor insert beakers, further rubber rings and questions about assignment to a particular SONOREX unit, our procurement service accepts enquiries.
According to Bandelin, the RG 2.2 stainless steel test tube holder positions the samples securely in the SONOREX ultrasonic bath. It is suitable for 6 centrifuge tubes of 50 ml (Ø 30 mm, height 115 mm) and 6 centrifuge tubes of 15 ml (Ø 17 mm, height 120 mm).It fits 10 models of the SUPER RK and DIGITEC DT series. The tubes and samples are not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Sonication of samples in test tubes or centrifuge tubes with the matching holder in the DT 52Sample preparation for analysis in the DT 102 HHomogenisation and emulsification of samples in the DT 52 HSuitable forModelBandelin device no.Tank volume (l)DT 5232051.8DT 52 H32251.8DT 10032103.0DT 100 H32303.0DT 102 H32353.0RK 523111.8RK 52 H1641.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0Technical detailsMaterialStainless steelCentrifuge tubes 50 ml6 pieces, Ø 30 mm, height 115 mmCentrifuge tubes 15 ml6 pieces, Ø 17 mm, height 120 mmScope of delivery1 SONOREX RG 2.2 stainless steel test tube holderIndividual requirements & procurement serviceFor centrifuge tubes, further sample holders and questions about compatibility with units not listed in the table, our procurement service accepts enquiries.
The EK 10 holding clamp is intended for laboratory flasks up to d = 31 mm. It is made of stainless steel and is used for tip-proof sonication in the SONOREX ultrasonic bath. It is fastened in insert baskets and instrument holders. According to Bandelin, the clamp prevents laboratory flasks from floating up or tipping over.For larger flasks, the EK 25 (up to d = 42 mm), EK 50 (up to d = 52 mm), EK 100 (up to d = 65 mm) and EK 250 (up to d = 85 mm) are also available. The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Homogenisation and emulsification of small quantities in the DT 31Sample preparation for analysis in the DT 31 HUniform indirect sonication of samples, including in laboratory flasks, in the DT 510 F SetSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 31 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 10 stainless steel holding clampIndividual requirements & procurement serviceFor insert baskets, instrument holders and clamps for larger flasks, our procurement service accepts enquiries.
The EK 100 stainless steel holding clamp is available for laboratory flasks up to d = 65 mm. It allows tip-proof sonication of laboratory flasks in the SONOREX ultrasonic bath. The clamp is fastened in insert baskets and instrument holders. According to Bandelin, it prevents laboratory flasks from floating up or tipping over.For larger flasks there is the EK 250 (up to d = 85 mm), for smaller ones the EK 50 (up to d = 52 mm), EK 25 (up to d = 42 mm) and EK 10 (up to d = 31 mm). All are also available. The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Uniform indirect sonication of samples, including in laboratory flasks, in the DT 510 F SetSonochemical applications in the DT 52 HSample preparation for analysis in the DT 102 HSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 65 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 100 stainless steel holding clampIndividual requirements & procurement serviceFor clamps of other sizes and for questions about compatibility with older SONOREX units, our procurement service accepts enquiries.
The GV 3 handle adjuster sets the immersion depth of insert baskets continuously. According to Bandelin, it is easy to retrofit, and sample containers can then be sonicated at the optimum immersion depth. The scope of delivery includes 2 pieces. Bandelin lists them as suitable for the K 1 C, K 3 C, K 3 CL/L and K 6 L/BL insert baskets. The assignment applies to 16 models of the SUPER RK, DIGITEC DT and smart ST series.Bandelin describes the handle adjuster for insert baskets and instrument holders. The baskets are not included in the scope of delivery.Typical applicationsThe depth of the sample containers in the ultrasonic bath can be adjusted. Typical uses in the compatible units:Sample preparation for analysis in the DT 103 HRapid degassing of liquids in the DT 52Homogenisation and emulsification in the DT 52 HSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 103 H32014.0DT 156 BH32219.0DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 103 H3264.0RK 156 BH6469.0RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014Technical detailsCompatible basketsK 1 C, K 3 C, K 3 CL/L, K 6 L/BLScope of delivery2 piecesScope of delivery2 SONOREX GV 3 handle adjustersIndividual requirements & procurement serviceFor the insert baskets and for questions about compatibility with older SONOREX units, our procurement service accepts enquiries.
The EK 50 is a stainless steel holding clamp for laboratory flasks up to d = 52 mm. It holds laboratory flasks tip-proof in the SONOREX ultrasonic bath and is fastened in insert baskets or instrument holders. According to Bandelin, the clamp prevents laboratory flasks from floating up and tipping over.Larger flasks are taken by the EK 100 (up to d = 65 mm) and the EK 250 (up to d = 85 mm), smaller ones by the EK 25 (up to d = 42 mm) and the EK 10 (up to d = 31 mm). These sizes are also available. The insert basket and instrument holder are not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Homogenisation and emulsification in the DT 52 HRapid degassing of liquids in the DT 52Sonochemistry, for example radical generation or improved mass transfer, in the DT 103 HSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 52 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 50 stainless steel holding clampIndividual requirements & procurement serviceIf you need clamps for several flask sizes, you can enquire with the procurement service, as you can about insert baskets and instrument holders.
The FT 4 foil test frame measures 160 x 200 mm and is made of stainless steel. Bandelin lists it as suitable for tanks with internal dimensions from 240 x 140 x 80 mm to 300 x 150 x 150 mm. It is intended for 16 models of the SUPER RK, DIGITEC DT and smart ST series.The foil test according to IEC 886 is used to test an ultrasonic cleaner. An aluminium foil is inserted for this purpose, and cavitation perforates or destroys it to a certain degree, depending on the duration. The suitable FL 4 aluminium foil with a thickness of 15 µm is also available. It is not included in the scope of delivery.Typical applicationsBandelin names the foil test in these cases:Testing at the first commissioning of the ultrasonic cleanerRepetition at regular intervals after a corresponding period of operation, for example every three monthsProcess verification, for example during the reprocessing of medical devicesThe foils can be scanned or photographed and archived. This keeps a comparison over time possible.Suitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 103 H32014.0DT 10632705.6DT 25532155.5DT 255 H32405.5RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 103 H3264.0RK 1063065.6RK 25530665.5RK 255 H3165.5ST 102 H71003.0ST 103 H71014Technical detailsMaterialStainless steelFrame dimensions (L x W)160 x 200 mmCompatible internal tank dimensions (L x W x D)240 x 140 x 80 mm to 300 x 150 x 150 mmCompatible foilFL 4, thickness 15 µmScope of delivery1 SONOREX FT 4 stainless steel foil test frameIndividual requirements & procurement serviceFor the suitable foil, further foil test frames and questions about which frame belongs to a particular tank, our procurement service accepts enquiries.
The DD 06 plastic lid closes an insert vessel. It fits the SD 06, EB 05 and PD 06. The assignment to the ultrasonic baths results from these insert vessels; there are 47 models of the SUPER RK, DIGITEC DT and smart ST series. The insert vessels are not included in the scope of delivery.According to Bandelin, it protects the cleaning liquid from contamination from outside and prevents odour nuisance caused by added cleaning or disinfection preparations. Bandelin states that the lid directs any condensation that forms back into the tank.Typical applicationsTypical cases in which the lid sits on the insert vessel:Sonication with added cleaning or disinfection preparations when odour is to be avoidedSonication in the insert vessel when the liquid is to stay protected from contamination from outsideSonication in which condensation forms and is to run back into the tankSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 1050 CH327190.0DT 10632705.6DT 15632756.0DT 156 BH32219.0DT 25532155.5DT 255 H32405.5DT 51032459.7DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 105032358.0RK 1050 CH18490.0RK 1063065.6RK 1563056RK 156 BH6469.0RK 25530665.5RK 255 H3165.5RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialPlasticScope of delivery1 SONOREX DD 06 plastic lidIndividual requirements & procurement serviceFor the matching insert vessels and for questions about which insert vessel belongs in which SONOREX unit, our procurement service accepts enquiries.
The EK 25 stainless steel holding clamp takes laboratory flasks up to d = 42 mm. It is meant for tip-proof sonication in the SONOREX ultrasonic bath and is fastened in insert baskets and instrument holders. Bandelin states that laboratory flasks do not float up or tip over with the clamp.For larger flasks, the EK 50 (up to d = 52 mm), EK 100 (up to d = 65 mm) and EK 250 (up to d = 85 mm) are also available, for smaller ones the EK 10 (up to d = 31 mm). The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Small-scale sonochemical applications in the DT 31Sample preparation for analysis in the DT 52Homogenisation and emulsification in the DT 31 HSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 42 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 25 stainless steel holding clampIndividual requirements & procurement serviceFor insert baskets, instrument holders and clamps of other sizes, our procurement service accepts enquiries.
The SM 3 silicone studded mat belongs in the K 3 C insert basket. It measures 170 x 97 mm. Bandelin states that instruments rest on the mat in the basket easily and without scratching.As CE conformity, Bandelin lists Class I medical devices according to Regulation (EU) 2017/745. The mat fits 7 models of the SUPER RK, DIGITEC DT and smart ST series. The K 3 C insert basket is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Cleaning of smaller tools and tweezers in the DT 100 HHeat-assisted cleaning of small instruments in practices and laboratories in the RK 100 HPrecision cleaning of small instruments in the smart ST 102 HWhether an instrument is suitable for ultrasonic cleaning depends on the instrument manufacturer’s specifications.Suitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0RK 1003013.0RK 100 H3123.0RK 102 H3033.0ST 102 H71003.0Technical detailsMaterialSiliconeDimensions (L x W)170 x 97 mmCompatible insert basketK 3 CScope of delivery1 SONOREX SM 3 silicone studded matIndividual requirements & procurement serviceFor the K 3 C insert basket and for questions about compatibility with older SONOREX units, our procurement service accepts enquiries.
