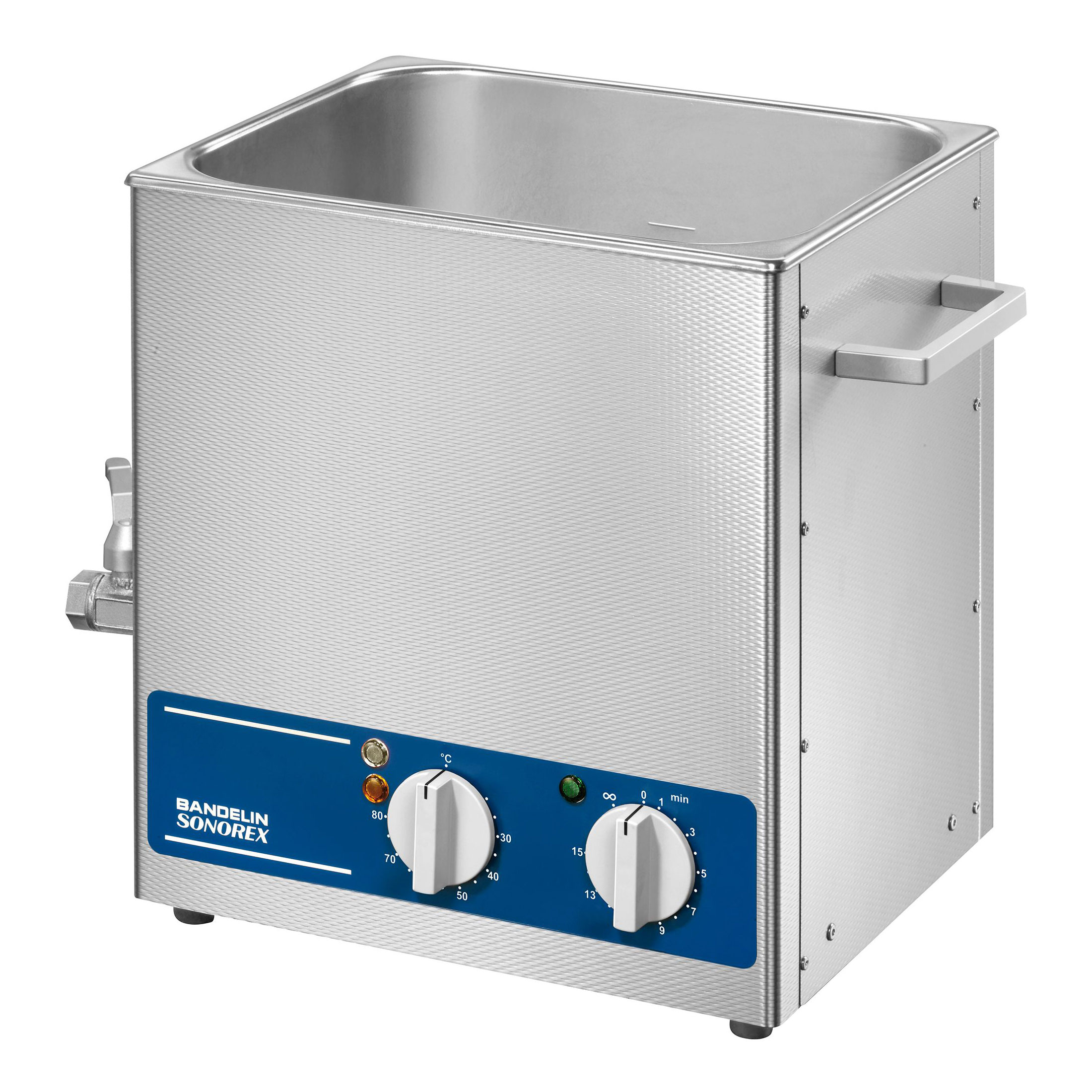

Bandelin SONOREX SUPER RK 512 H ultrasonic bath with heating, 13 litres, 795
€1,669.00
% Manufacturer's RRP: €2,196.00 24% below manufacturer's RRP
- Ultrasonic bath with heating, 13-litre total capacity / 8.7-litre working capacity
- 35 kHz ultrasonic frequency, 860 W peak power, 215 W nominal power
- Heating with adjustable temperature range of 30 to 80 °C, 400 W heating power
- Timer from 1 to 15 minutes (±5 %) plus continuous operation, set via a rotary knob
- Tank and housing made of 1.4301 stainless steel
- G 1/2 ball valve drain with hose (packed separately, for mounting) for easy emptying
- CE-marked as a Class I medical device (Regulation (EU) 2017/745)
- Matching lid D 510 and basket K 10 B available
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Bandelin SONOREX SUPER RK 512 H ultrasonic bath with heating, 13 litres, 795"
SONOREX SUPER RK 512 H ultrasonic bath with heating for everyday laboratory use
The SONOREX SUPER RK 512 H is an ultrasonic bath with heating designed for cleaning tasks in everyday laboratory and practice work. With a total volume of 13 litres and a usable working capacity of 8.7 litres, the stainless steel tank offers sufficient space for laboratory glassware, small parts and instruments. The ultrasonic cleaning operates at a frequency of 35 kHz with a peak power of 860 W and an effective nominal power of 215 W, reliably and gently removing adhering dirt, residues and deposits. Thanks to its compact external dimensions of 325 x 265 x 350 mm, the ultrasonic bath can be flexibly positioned on laboratory benches, workbenches or in smaller cleaning stations without taking up much space. Thanks to the combination of powerful ultrasonic cleaning and adjustable heating, the SONOREX SUPER RK 512 H is suitable both for occasional use at a single workstation and for regular use in laboratories with a higher throughput of small parts and glassware requiring cleaning.
Laboratory applications
Typical applications for this ultrasonic bath include the cleaning of laboratory glassware and small parts, the pre-cleaning and preparation of instruments, and the degassing of solvents prior to analytical applications. Thanks to its comparatively large working capacity of 8.7 litres, the unit is also suitable for the routine cleaning of pipettes, sample vessels and other small parts used in everyday laboratory work. The integrated heater allows temperature control from 30 to 80 °C, which further enhances the cleaning effect on more stubborn residues and enables a process temperature tailored to the specific application and cleaning agent. The cleaning duration and bath temperature can be set directly and easily on the unit using the rotary knob; the timer covers a range of 1 to 15 minutes (±5 %) as well as continuous operation, so that both short cleaning cycles and longer applications can be carried out. A fill-level mark inside the tank facilitates correct and repeatable filling with cleaning fluid.
Robust construction for continuous use
The tank and housing of the ultrasonic bath are made of 1.4301 stainless steel; the ultrasonic tank itself has a wall thickness of 1.0 mm. A G 1/2 ball valve on the side, with a hose (packed separately, for mounting), allows the cleaning fluid to be drained easily and cleanly without having to lift or tilt the tank. Handles on the sides make it easy to move the unit, whilst the fixed, 2-metre-long mains cable ensures straightforward connection to a 230 V power supply. With an IP 32 protection rating, the housing is protected against foreign bodies larger than 2.5 mm and dripping water falling at an angle. The unit is CE-marked as a Class I medical device in accordance with Regulation (EU) 2017/745 and also complies with the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.
Technical details
| Model | SONOREX SUPER RK 512 H |
| Frequency | 35 kHz |
| Ultrasonic power | Peak power 860 W, nominal power (effective) 215 W |
| Heating power | 400 W |
| Temperature range | 30 to 80 °C, adjustable |
| Timer | 1 to 15 min (±5 %), plus continuous operation |
| Total capacity / Working capacity | 13.0 l / 8.7 l |
| External dimensions (L x W x H) | 325 x 265 x 350 mm |
| Internal dimensions (L x W x D) | 300 x 240 x 200 mm |
| Weight | 10.1 kg |
| Tank / housing material | Stainless steel 1.4301 (tank wall thickness 1.0 mm) |
| Drain | G 1/2 ball valve with hose (packed separately, for mounting), left-hand side |
| Degree of protection, housing | IP 32 |
| Operating voltage | 230 V~ (±10 %), 50/60 Hz |
| Mains cable | 2 m, permanently attached to the unit |
| Conformity | Class I medical device (Regulation (EU) 2017/745), Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU |
Scope of delivery
- 1x SONOREX SUPER RK 512 H ultrasonic bath with heating
- Operating instructions
- Fixed mains cable (2 m)
Insert baskets, lids and cleaning concentrates are not included in the scope of delivery.
Individual requirements & procurement service
Our procurement service accepts enquiries for insert baskets, lids, cleaning concentrates or another model in the SONOREX range.
| Volume: | 13 l |
|---|
Matching accessories
The D 510 stainless steel lid is intended for 7 ultrasonic baths of the SONOREX DIGITEC DT and SUPER RK series. It protects the bath fluid from external contamination. When cleaning or disinfecting agents have been added, it prevents odour nuisance, according to Bandelin. During operation, it reduces noise emission. Condensation runs back into the tank.Suitable forModelBandelin device no.SONOREX DIGITEC DT 510 H3206SONOREX SUPER RK 510 H321SONOREX DIGITEC DT 512 H3226SONOREX DIGITEC DT 510 F Set13242SONOREX DIGITEC DT 5103245SONOREX SUPER RK 510327SONOREX SUPER RK 512 H795Scope of delivery1 SONOREX D 510 stainless steel lid
The K 10 B insert basket holds the items to be sonicated in 2 ultrasonic baths of the SONOREX DIGITEC DT and SUPER RK series. Nothing may lie on the tank bottom during operation, as abrasion can occur between the items and the oscillating tank. According to Bandelin, the basket keeps the items in the optimum area of the cavitation field, 1 to 2 cm above the bottom. For rinsing, it can be lifted out without the user coming into contact with the sonication liquid. The inner dimensions (L x W x D) are 250 x 195 x 50 mm.Suitable forModelBandelin device no.SONOREX DIGITEC DT 512 H3226SONOREX SUPER RK 512 H795Scope of delivery1 SONOREX K 10 B insert basket
The KD 0 sieve basket is made of stainless steel with sieve mesh. The inner diameter is 75 mm and the mesh size is 1 x 1 mm according to Bandelin. It is placed in insert vessels, or fine parts are cleaned with it directly in the ultrasonic bath. The dimensions are 75 x 75 x 40 mm.Scope of delivery1 SONOREX KD 0 stainless steel sieve basket
The DE 510 stainless steel perforated lid holds insert beakers. According to Bandelin, such beakers are used for chemically aggressive or abrasive contamination and for sample liquids; the ultrasound then acts indirectly. As contact fluid, the ultrasonic bath needs a cleaning solution, because the surface tension of the water must be reduced. Several beakers with different liquids can be used at the same time. It fits 6 models of the SONOREX SUPER RK and DIGITEC DT series.Suitable forModelBandelin device no.SONOREX DIGITEC DT 510 H3206SONOREX SUPER RK 510 H321SONOREX DIGITEC DT 512 H3226SONOREX DIGITEC DT 5103245SONOREX SUPER RK 510327SONOREX SUPER RK 512 H795Scope of delivery1 SONOREX DE 510 stainless steel perforated lid
The PD 04 sieve basket is made of plastic and has a very fine mesh. It is placed in insert vessels or used to clean very fine parts directly in the ultrasonic bath. The dimensions are 60 x 60 x 45 mm. It is intended for ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series.Scope of delivery1 SONOREX PD 04 plastic sieve basket
The SD 09 insert beaker is made of glass, with a GR ring and a DD lid. Its inner dimensions are 91 x 91 x 180 mm. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids, abrasive contamination and sample liquids. The beaker is also intended for cleaning agents or solvents that are aggressive to stainless steel. The ultrasound acts indirectly; a cleaning solution serves as contact fluid.Scope of delivery1 SONOREX SD 09 glass insert beaker with GR ring and DD lid
The SD 06 glass insert beaker holds 600 ml. The GR ring and DD lid are included in the scope of delivery. The beaker hangs in a DE perforated lid or an insert strip. Bandelin cites insert beakers for chemically aggressive liquids, for abrasive contamination and for sonicating sample liquids; the ultrasound then acts indirectly. It is also intended for cleaning agents or solvents that are aggressive to stainless steel.Scope of delivery1 SONOREX SD 06 glass insert beaker with GR ring and DD lid
The EG 1 insert grid protects delicate parts in the stainless steel basket. According to Bandelin, it prevents the parts from lying on the bottom of the basket, touching each other or being damaged. The grid is made of polypropylene (PP) and is cut to size. 10 fastening buttons are included in the scope of delivery.Scope of delivery1 SONOREX EG 1 insert grid made of polypropylene (PP), to be cut to size, 10 fastening buttons
The EB 05 stainless steel beaker holds 600 ml and has a lid and a rubber ring. As an insert beaker, it is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids and when sonicating sample liquids; the ultrasound then acts indirectly. The inner dimensions are 88 x 88 x 110 mm. For this, the ultrasonic bath needs a cleaning solution as contact fluid.Scope of delivery1 SONOREX EB 05 stainless steel beaker with lid and rubber ring
The PD 06 plastic beaker holds 600 ml and is supplied with a lid and a rubber ring. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used when liquids are chemically aggressive, when contamination is abrasive or when sample liquids are sonicated. The ultrasound then acts indirectly. The inner dimensions are 86 x 86 x 125 mm. A cleaning solution is used as contact fluid in the ultrasonic bath.Scope of delivery1 SONOREX PD 06 plastic beaker with lid and rubber ring
