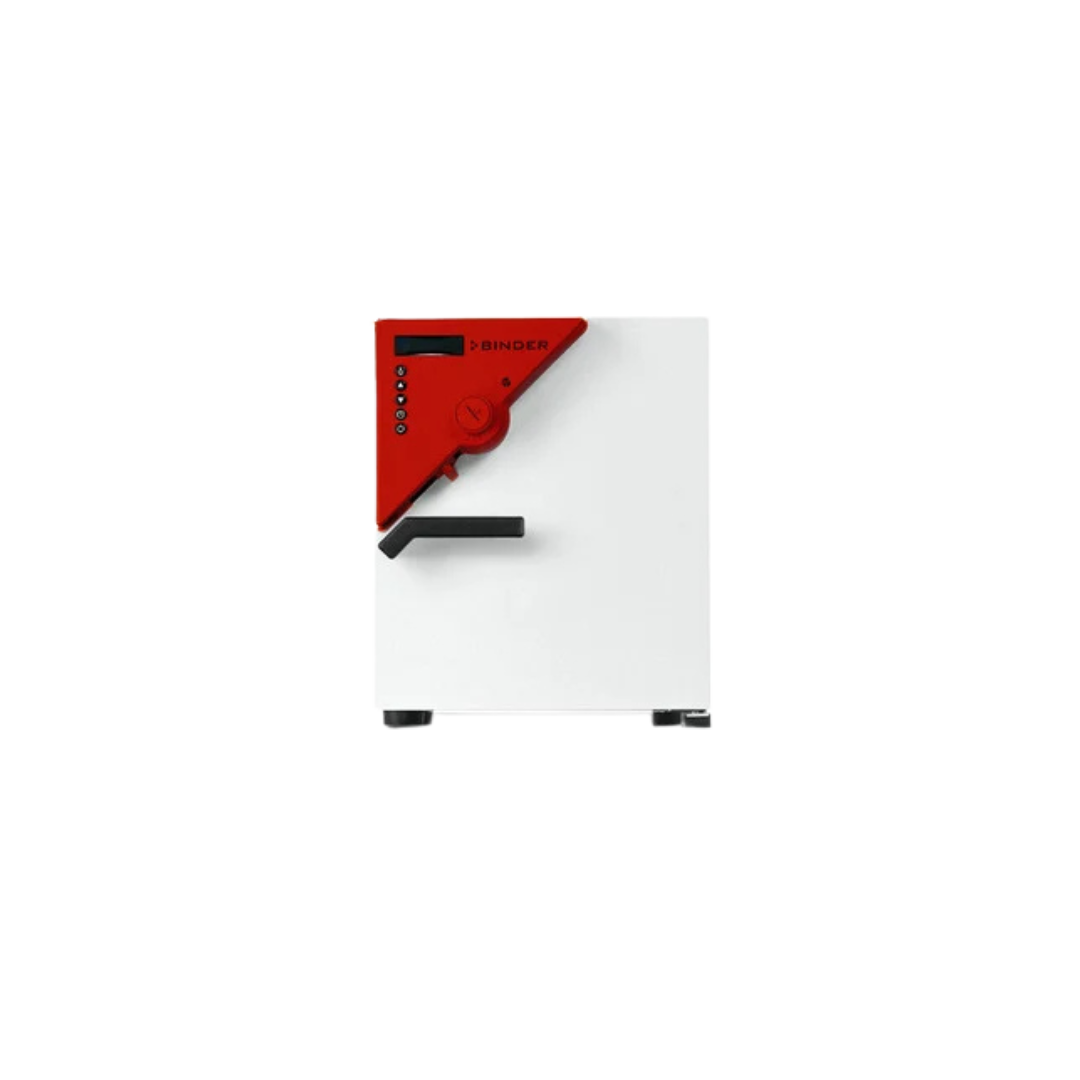

Binder ED 23 Drying Oven (20 l, natural convection), 9010-0190

The Binder ED 23 (Classic.Line series) is a compact drying and heating cabinet with natural convection, specially designed for routine thermal applications in the laboratory. With an internal volume of 20 litres and a footprint of less than 0.25 m², this model is ideal for laboratories with limited space that nevertheless require temperature control up to 300 °C.

Temperature accuracy and APT.line™

At the heart of the ED 23 is the patented APT.line™ preheating chamber technology. Unlike conventional heating systems, where heating elements are located directly inside the chamber, the air is preheated in a separate chamber and distributed evenly into the working chamber via the side walls. This guarantees extremely uniform temperature distribution (±2.8 K at 150 °C) even with natural convection and prevents hotspots that could damage sensitive samples.

Process reliability and operation

The integrated controller with a timer function (0 to 99 hours) enables defined process sequences, for example for sterilisation cycles. The exhaust air flow can be precisely controlled via a mechanically adjustable air damper on the front panel to accelerate drying processes. Safety is ensured by an independently adjustable Class 2 temperature limiter (DIN 12880) with a visual alarm, which reliably switches the unit off in the event of an overtemperature.

Technical details

• Internal volume: 20 l
• Temperature range: Room temperature +5 °C to 300 °C
• Convection type: Natural convection (forced air)
• Spatial temperature deviation (at 150 °C): ±2.8 K
• Heating time (to 150 °C): 28 min
• Air change rate (at 100 °C): 10 times per hour
• Rated power: 0.8 kW
• Mains connection: 230 V, 1N, 50/60 Hz
• Internal dimensions (W x H x D): 222 x 330 x 300 mm

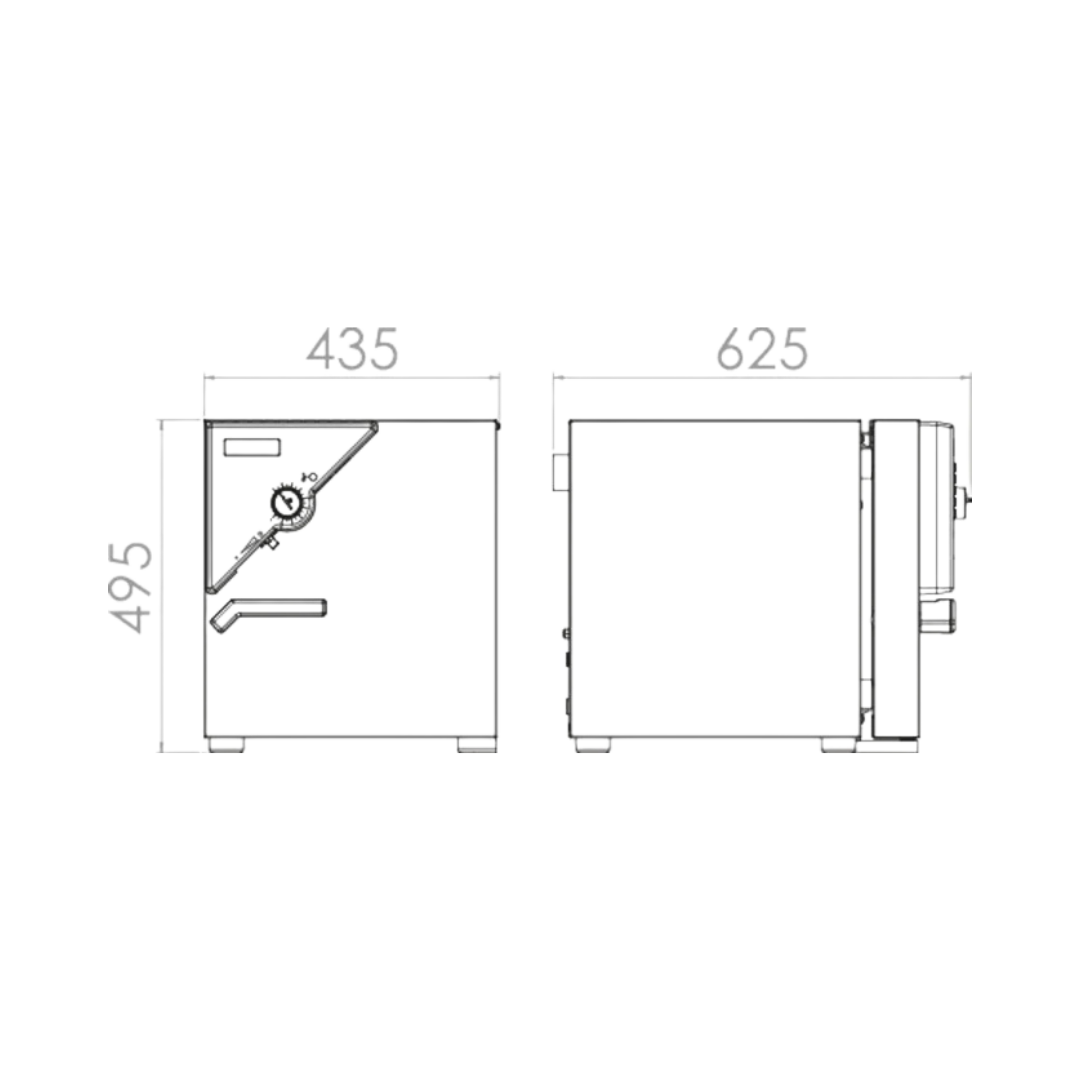

• External dimensions (W x H x D): 435 x 495 x 520 mm
• Max. load per tray: 12 kg
• Max. total load: 25 kg
• Protection class according to EN 60529: IP 20
• Weight (empty): 27 kg

Contents of delivery

• Binder ED 23 drying cabinet
• 2x wire shelves (chrome-plated)
• Connection cable with plug
• User manual

Customised requirements & procurement service

Do you require the version with an RS 422 interface (MPN 9010-0191) for software integration via APT-COM™? Or are you looking for additional shelves and stacked solutions for your laboratory workstation? We will configure your Binder cabinet precisely to your requirements.
