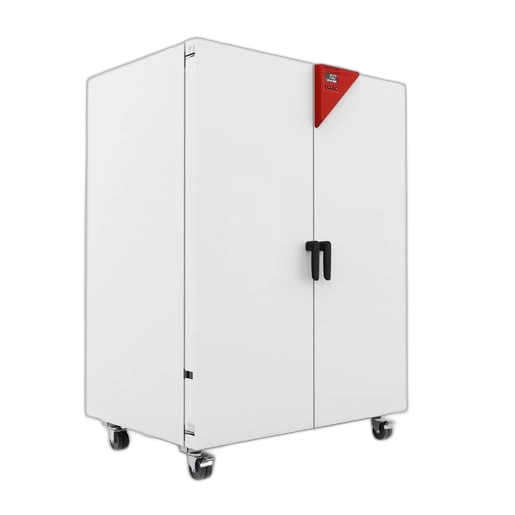

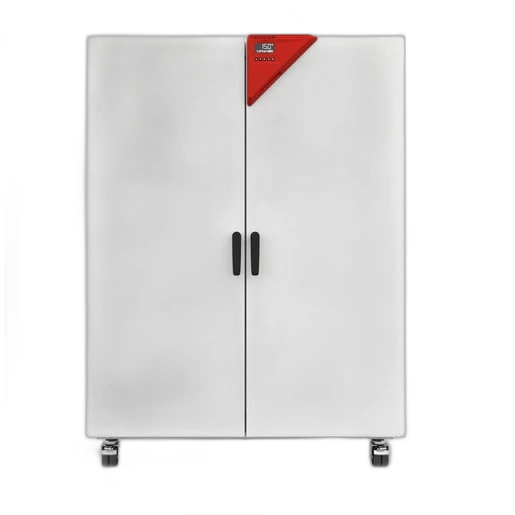

Binder FD 720 heating cabinet (741 L, 300°C, fan-assisted, 400V), 9010-0311

The Binder FD 720 (Avantgarde.Line) is a high-performance drying and heating oven designed for applications involving high sample volumes and the most stringent requirements for temperature accuracy. With a very large internal capacity of 741 litres, it is ideal for industrial use, materials testing or research.

Maximum precision thanks to APT.line™ technology

At the heart of this oven is Binder’s APT.line™ preheating chamber technology. Unlike conventional forced-air ovens, the air is preheated and blown horizontally into the chamber from both sides. This guarantees exceptional temperature accuracy and uniform heat distribution throughout the entire 741-litre chamber, even when fully loaded. This is crucial for validatable drying or heat storage processes up to 300 °C.

Powerful and robust for industrial use

This model (MPN 9010-0331) is designed for a 400 V three-phase connection. This enables a very high heating output (6.3 kW) and extremely fast heating-up and recovery times, which are essential in industrial multi-shift operation. The robust double-leaf door facilitates the loading and unloading of large or heavy batches (e.g. components, paint samples).

Simple operation and documentation

Control is via the tried-and-tested R 4 controller with a digital display and integrated timer (up to 99h 59min or continuous operation). All process data (temperatures, times) can be read out and documented in accordance with GLP/GMP via the USB interface, which is essential for quality assurance.

Technical details

• Volume (internal chamber): 741 litres
• Convection: Forced air circulation (APT.line™)
• Temperature range: +10 °C above ambient temperature to +300 °C
• Controller: R 4 (digital, timer)
• Electrical connection: 400 V, 3-phase (50/60 Hz)
• Rated power: 6.3 kW
• Doors: 2 (double-leaf door)
• Interior: Stainless steel (1.4301)
• Internal dimensions (W x H x D): 1,000 x 1,200 x 618 mm
• External dimensions (W x H x D): 1,236 x 1,530 x 925 mm
• Weight (net): 239 kg
• Interface: USB (for data logging)

Contents

• Binder FD 720 drying cabinet (basic unit)
• 2 chrome-plated wire shelves
• Mains cable (400V connection)
• Operating instructions
• Note: Additional wire shelves or reinforced shelves are accessories and are not included in the standard scope of delivery.

Customised requirements & procurement service

Do you need advice on this large cabinet, additional insert grids (chrome-plated or stainless steel) or a reinforced grid for heavy loads? Our team of experts will be happy to help. For configurations not listed here or spare parts, please use our bespoke procurement service.
