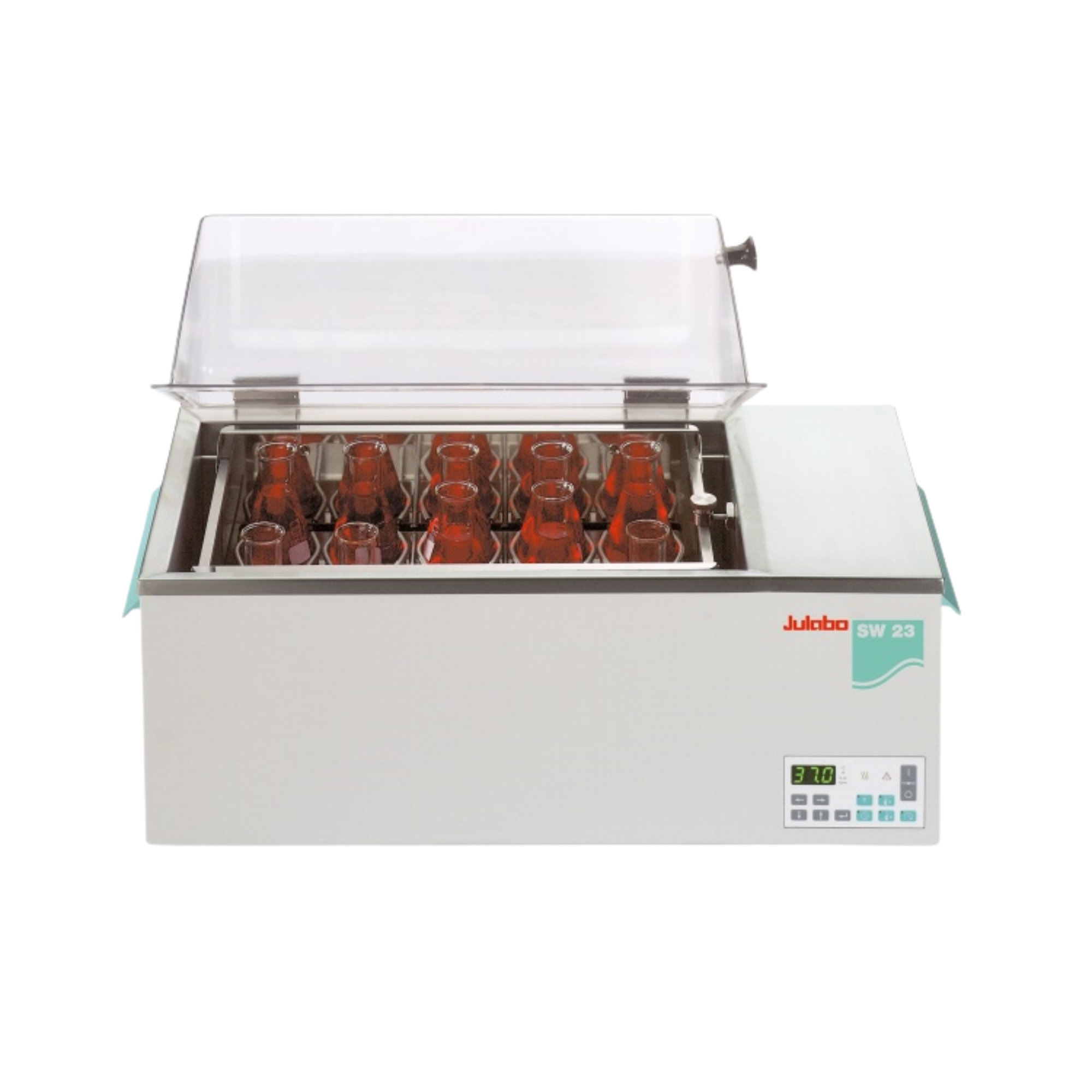

JULABO SW23 shaking water bath, 20 litres, circulation pump, +/- 0.02 °C, 9550323.03
JULABO SW23: Maximum precision thanks to integrated circulation The JULABO SW23 (MPN 9550323.03) is the top-of-the-range solution amongst shaking water baths. Whilst standard units often rely solely on the movement of the shaking mechanism for heat distribution, the SW23 goes a decisive step further: it combines the shaking function with integrated bath circulation. The result is outstanding temperature stability of ±0.02 °C and absolutely homogeneous temperature distribution throughout the entire bath vessel (8 to 20 litres). This makes the SW23 ideally suited for highly sensitive applications in research, enzymology or DNA analysis, where even minimal temperature fluctuations could affect the results. Technology for the most demanding requirements Thanks to the combination of microprocessor-based PID1 control and active circulation, the SW23 offers: Precise reproducibility: Ideal for experimental series requiring exactly the same conditions. Temperature range: +20 °C to +99.9 °C. (Note: An external cooling coil is recommended for work close to room temperature). ATC3 calibration: The 1-point calibration allows adjustment against reference thermometers for certified accuracy. Powerful shaking mechanism Despite the additional circulation technology, you do not have to compromise on shaking performance: Motion: Linear shaking stroke of 15 mm. Frequency: Continuously adjustable from 20 to 200 rpm. Handling: The shaking tray is fully removable, which makes loading and cleaning much easier. Comfort and safety in continuous operation The SW23 is ‘Made in Germany’ and built to withstand the rigours of everyday laboratory use: Timer function: An electronic timer (0:01 to 9:59 h:min) automates your processes. Safety: It features a warning system (visual/audible) for over- or under-temperature conditions, as well as dry-run protection, which switches the unit off if the water level is too low. Display: A bright LED multi-display shows all relevant parameters at a glance. Drain plug: The 20-litre stainless steel bath can be emptied cleanly and easily using the front-mounted drain plug. Areas of application Molecular biology: Hybridisation and DNA extraction. Biochemistry: Enzyme reactions with strict temperature tolerances. Cell culture: Gentle agitation of sensitive cells at a precise temperature. Analytical chemistry: Dissolving and mixing samples. Technical data Model: SW23 Order number (MPN): 9550323.03 (230V / 50Hz) Operating temperature range: +20 ... +99.9 °C Temperature stability: +/- 0.02 °C (via circulation) Display resolution: 0.1 °C Heating power: 2 kW Current consumption: 9 A Filling volume: 8 ... 20 litres Usable immersion depth: 18 cm Bath opening (W x D): 50 x 30 cm Shaking frequency: 20 … 200 rpm (linear) Shaking stroke: 15 mm Dimensions (W x D x H): 70 x 35 x 26 cm (without lid) Dimensions with lid (W x D x H): 70 x 35 x 43 cm Weight: 20.7 kg Classification (DIN 12876-1): Class I (NFL) IP rating: IP 21 Special feature: Integrated bath circulation for homogeneity Contents 1 x JULABO SW23 shaking water bath 1 x Removable shelf 1 x mains lead (Schuko) 1 x user manual (Note: The hinged bath lid and the support trays for flasks are accessories!) Customised requirements & accessories Make the most of the SW23’s full potential with the right accessories: Bath cover: Makrolon lift-off lid for thermal insulation. Trays: Universal trays or dedicated holders for Erlenmeyer flasks (25 to 1000 ml). Cooling: Built-in cooling coil for working at 20–30 °C. We’d be happy to advise you on the optimal configuration. Please contact our procurement service.

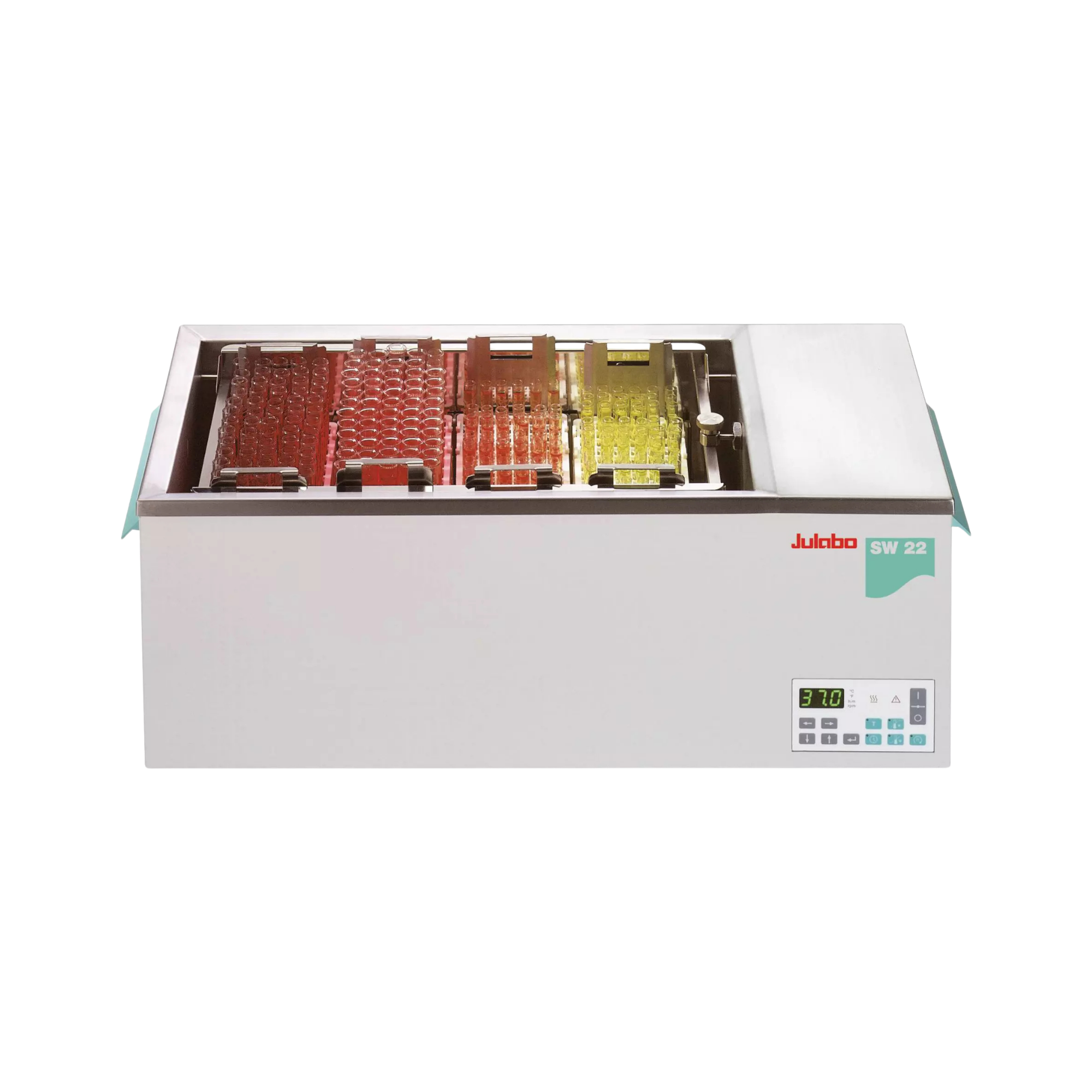

JULABO SW22 shaking water bath, 20 litres, +99.9 °C, 9550322.03
JULABO SW22: Precision and motion in perfect harmony The JULABO SW22 (MPN 9550322.03) is a robust shaking water bath for everyday laboratory use, combining temperature control and shaking processes in a single unit. With a capacity of 8 to 20 litres and a usable immersion depth of 18 cm, it offers sufficient space for a variety of sample vessels. Whether for routine applications, biological incubations or chemical reactions – the tried-and-tested microprocessor technology ensures consistent results. Precise temperature control thanks to PID1 regulation The unit operates within a temperature range of +20 °C to +99.9 °C. Stability: The PID1 temperature control ensures a temperature stability of ±0.2 °C. Display: The actual and setpoint values are shown on a bright LED display with a resolution of 0.1 °C. Important note: For applications at or below ambient temperature, the manufacturer recommends using a cooling coil or a JULABO immersion cooler (accessory) to counteract the unit’s self-heating. Powerful shaking function The integrated shaking mechanism ensures uniform mixing. Frequency: Continuously adjustable from 20 to 200 rpm. Motion: Linear shaking stroke of 15 mm. Flexibility: The large bath opening (50 x 30 cm) allows the use of a wide variety of support plates (accessories) to securely hold Erlenmeyer flasks or test tubes. Safety and Standards The SW22 is designed for safe continuous operation: Classification: Complies with Class I (NFL) according to DIN 12876-1 for non-flammable liquids. Protection rating: IP 21 in accordance with IEC 60529 (protection against dripping water). Warning functions: The unit features warning and shut-off functions in the event of over- or under-temperature, as well as dry-run protection. Technical Specifications Model: SW22 Order number (MPN): 9550322.03 (230V / 50Hz, Schuko plug) Operating temperature range: +20 ... +99.9 °C Temperature stability: ±0.2 °C Display resolution: 0.1 °C Heating power: 2 kW Current consumption: 9 A Filling volume: 8 ... 20 litres Usable immersion depth: 18 cm Bath opening (W x D): 50 x 30 cm Shaking frequency: 20 … 200 rpm Shaking stroke: 15 mm Dimensions (W x D x H): 70 x 35 x 26 cm (without lid) Dimensions with lid (W x D x H): 70 x 35 x 43 cm Weight: 19.7 kg Permissible ambient temperature: +5 to +40 °C Classification (DIN 12876-1): Class I (NFL) IP rating: IP 21 Control: PID1, keypad, LED display Contents of delivery 1 x JULABO SW22 shaking water bath 1 x mains cable (Schuko / Type F for DE/EU) 1 x operating instructions (Note: The bath cover, support plates and clamps are accessories and are not included in the scope of delivery!) Individual requirements & accessories To use the unit, you must have accessories for sample holding. Bath cover: Makrolon lift-off lid (recommended to prevent evaporation and heat loss). Support plates: For Erlenmeyer flasks or test tubes. Cooling: Cooling coil for work at room temperature. We will configure your shaking water bath so that it is fully ready for use. Please contact our procurement service.
