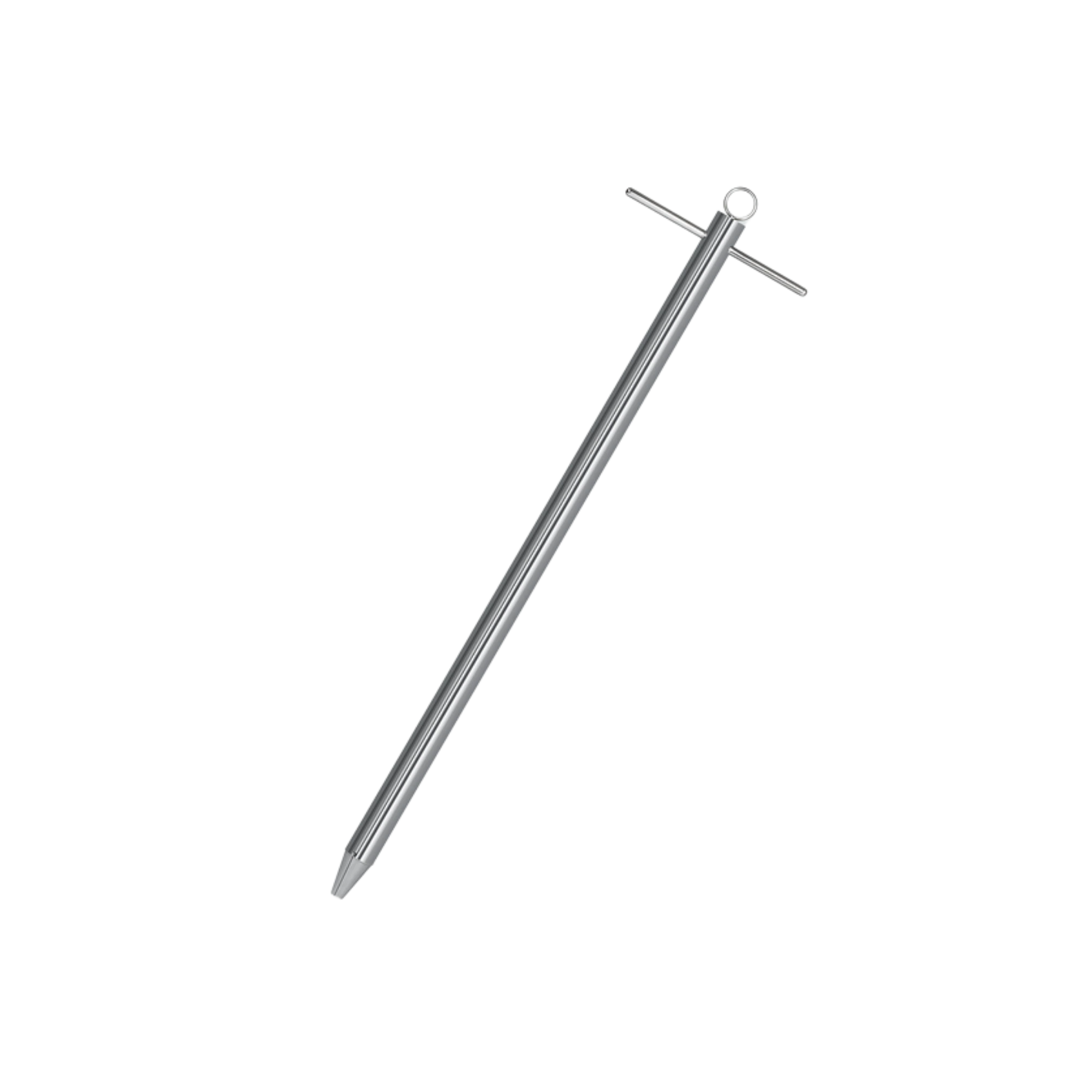

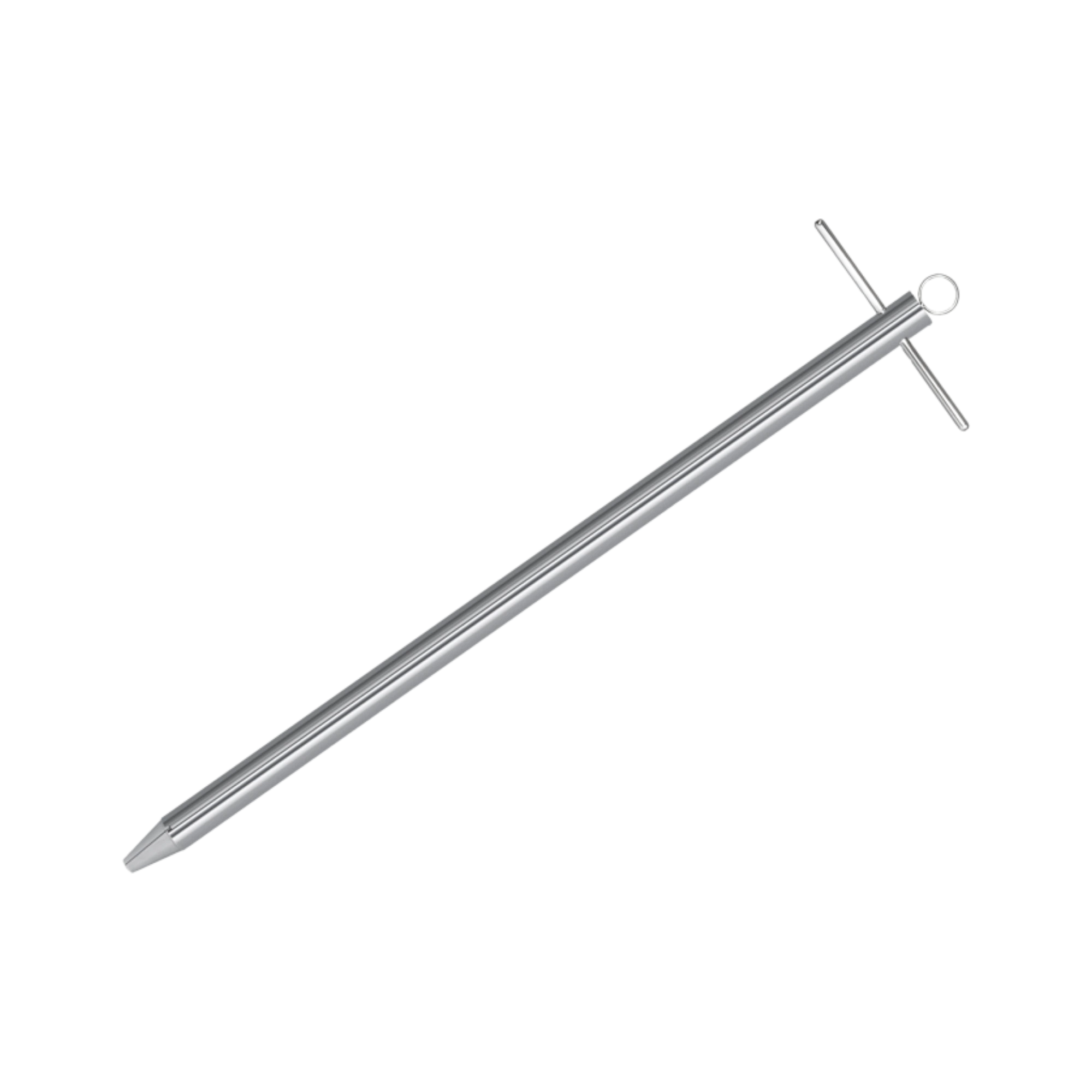

Bürkle folding corer for multi-layer samples, V4A (1.4404), overall length 833.5 mm, 5359-1800
€1,619.00
- Full-thickness sampling in accordance with DIN 51750 Part 3 & DIN EN ISO 15528
- V4A stainless steel (1.4404), corrosion-resistant
- Can be completely dismantled for easy cleaning
- Chamber volume 460 ml
- Insertion depth 750 mm
- Suitable for viscous, pasty and slurry-like substances
Product information "Bürkle folding corer for multi-layer samples, V4A (1.4404), overall length 833.5 mm, 5359-1800"
Representative samples from viscous and pasty substances
The Bürkle folding sampler for multi-layer samples takes representative samples from viscous, pasty and pulpy substances – in accordance with DIN 51750 Part 3 and DIN EN ISO 15528. The folding mechanism keeps different layers of material separate, ensuring that, particularly with pasty substances, the layers do not mix during sampling.

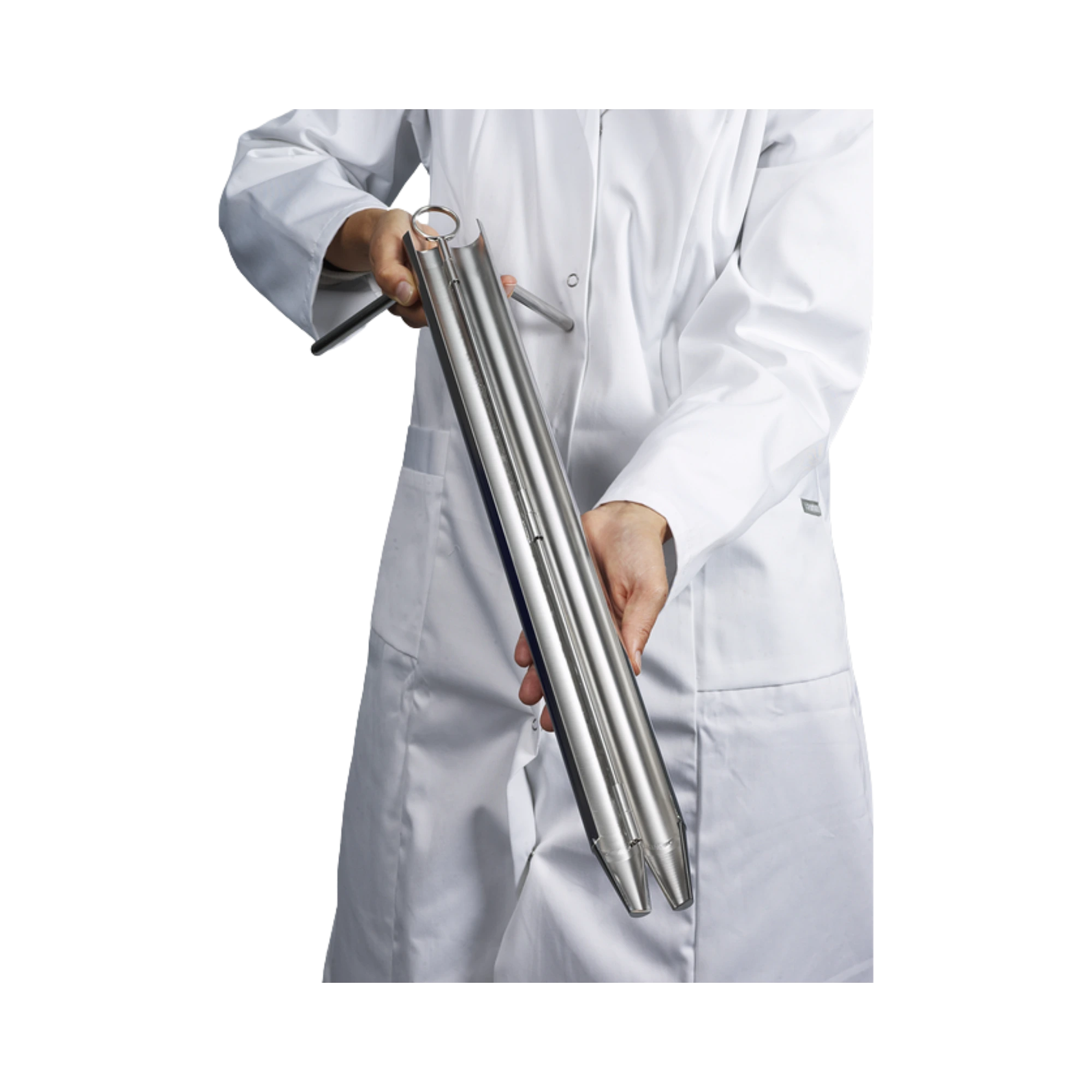

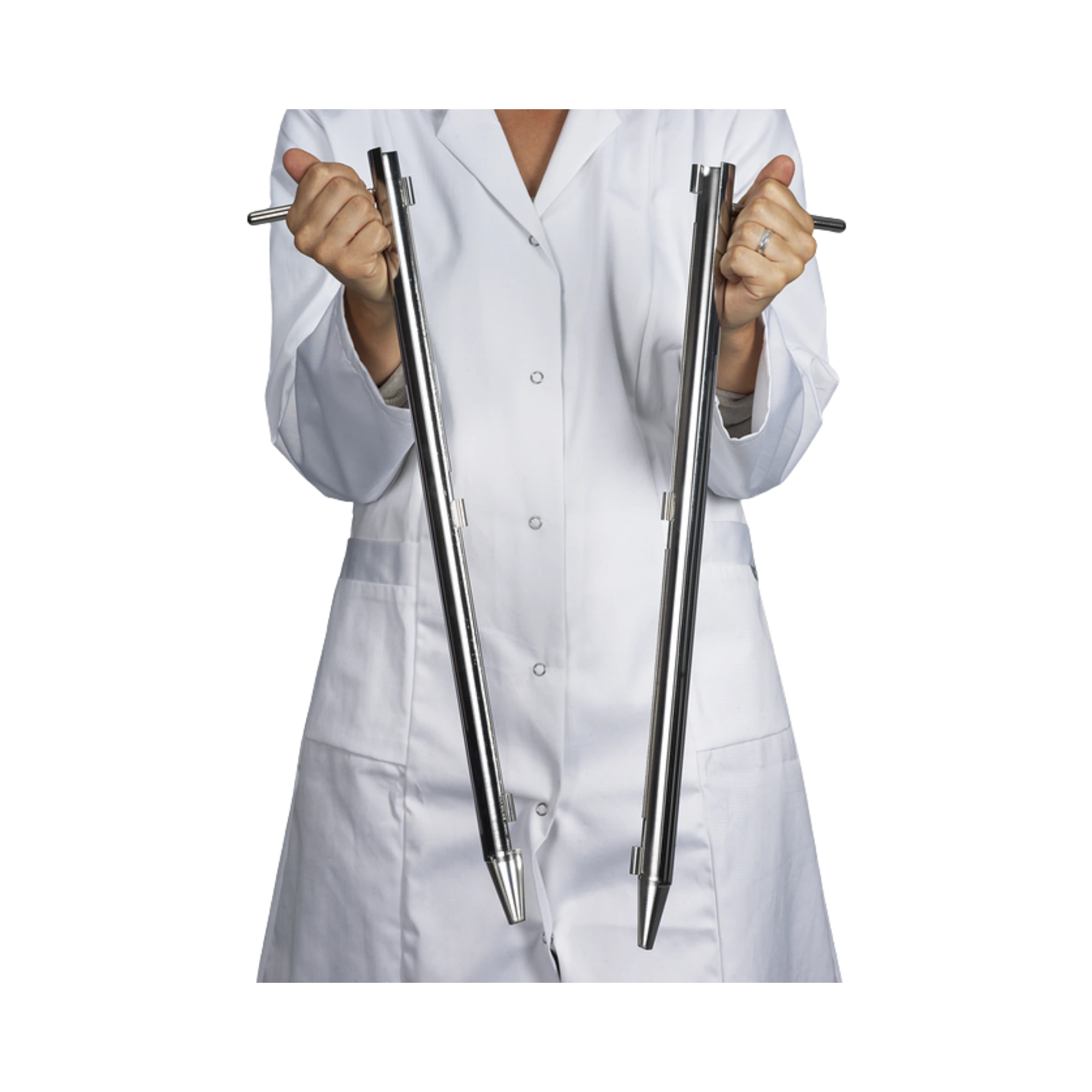

Optimised opening mechanism

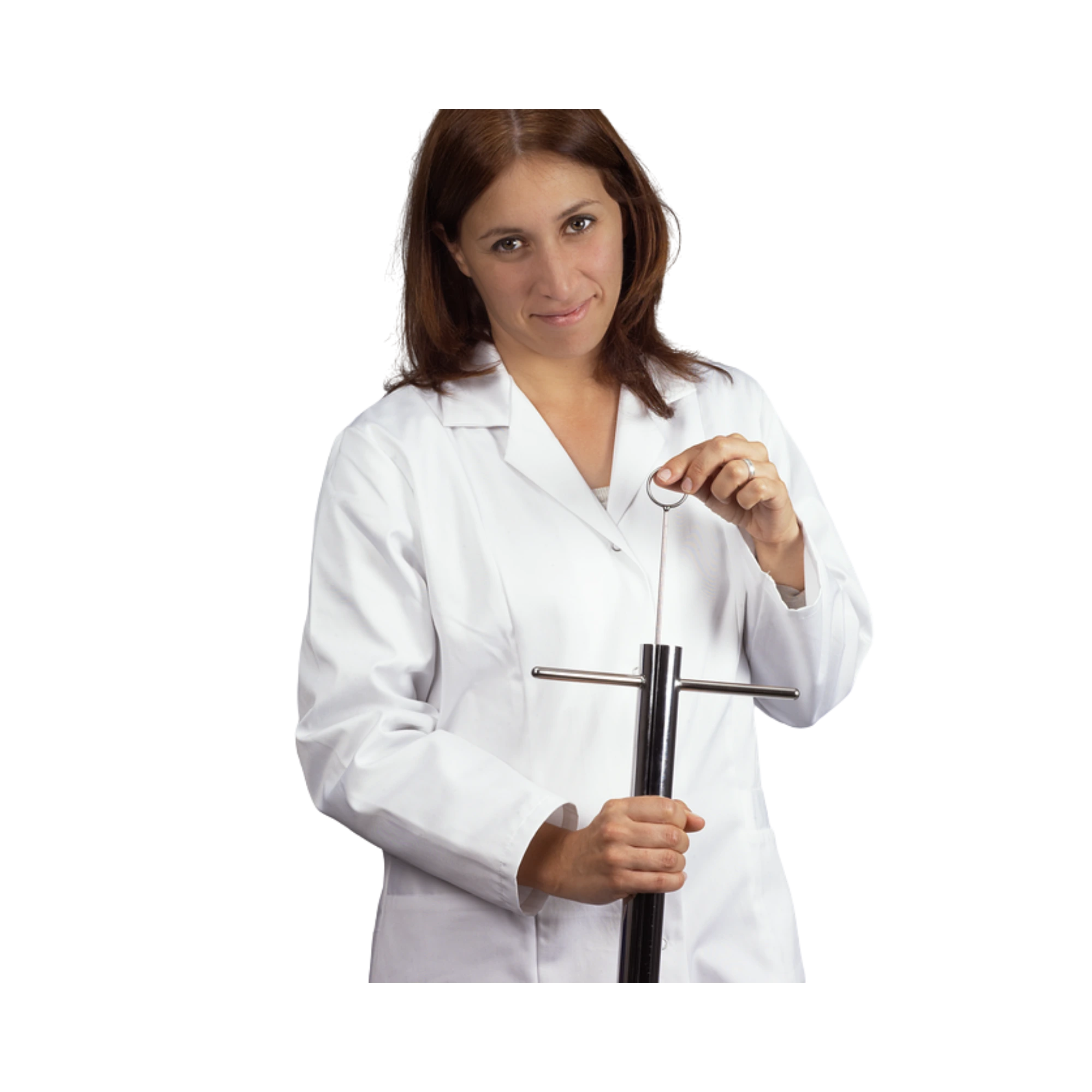

The fully dismantlable opening mechanism allows for thorough cleaning between sampling operations – essential for preventing cross-contamination when switching between different substances. Depending on the consistency of the sample material, the folding sampler is used in different ways: for viscous media, it is inserted in the closed position right down to the bottom, opened there, closed again and then removed. For paste-like substances, it is inserted in the open position right down to the bottom, followed by closing and withdrawal.
Robust design in V4A stainless steel
V4A (grade 1.4404) is corrosion-resistant and designed for repeated use in laboratory and process environments. With a chamber volume of 460 ml and an insertion depth of 750 mm, the folding sampler is suitable for sampling from deeper containers and drums.
Technical details
| Material | V4A stainless steel (grade 1.4404) |
| Total length | 833.5 mm |
| Insertion depth | 750 mm |
| Outer diameter | 34 mm |
| Chamber volume | 460 ml |
| Sampling ports | 1 |
| Sterility | No |
| Standards | DIN 51750 Part 3, DIN EN ISO 15528 |
Contents
- 1x Bürkle folding corer for multi-layer samples, V4A, 5359-1800
