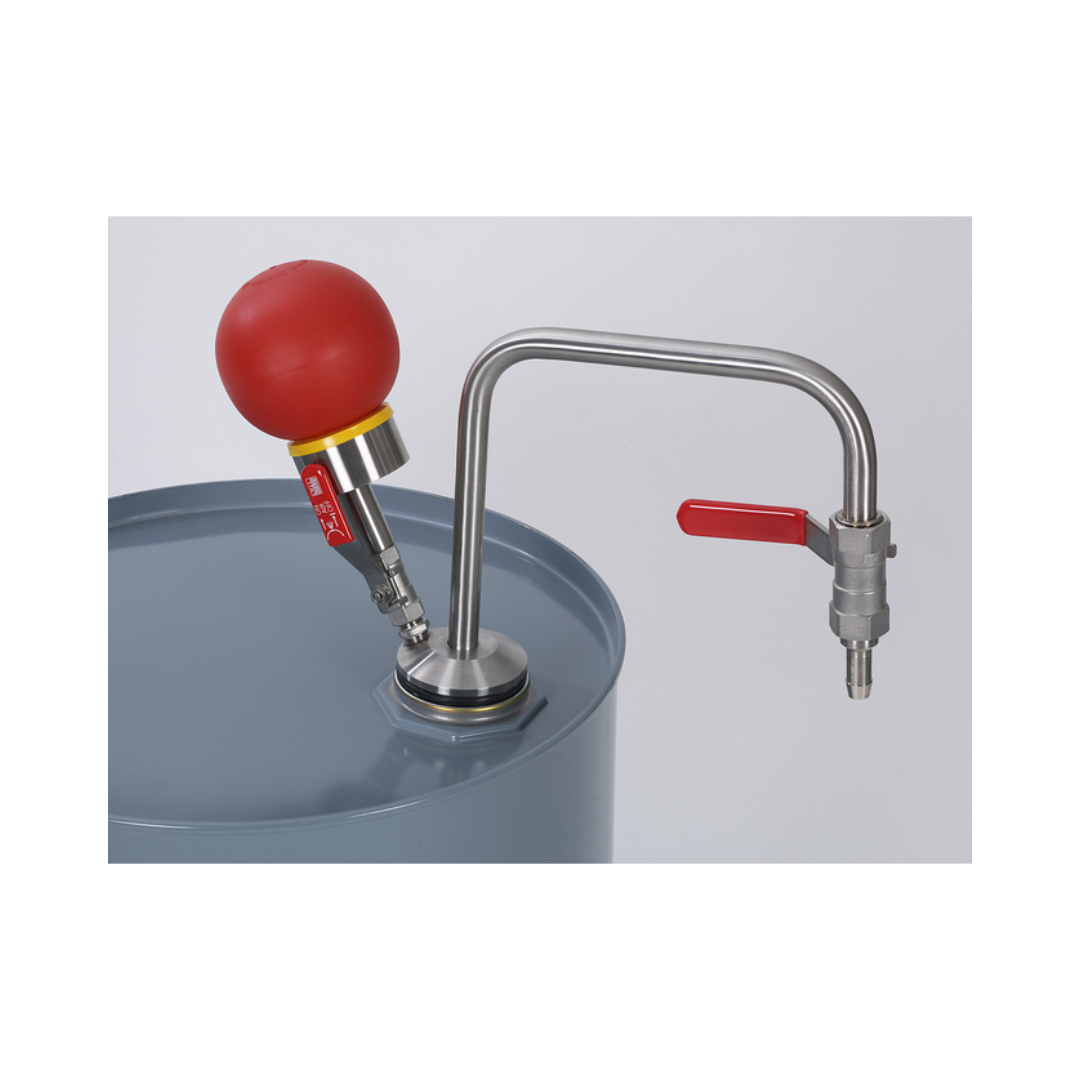

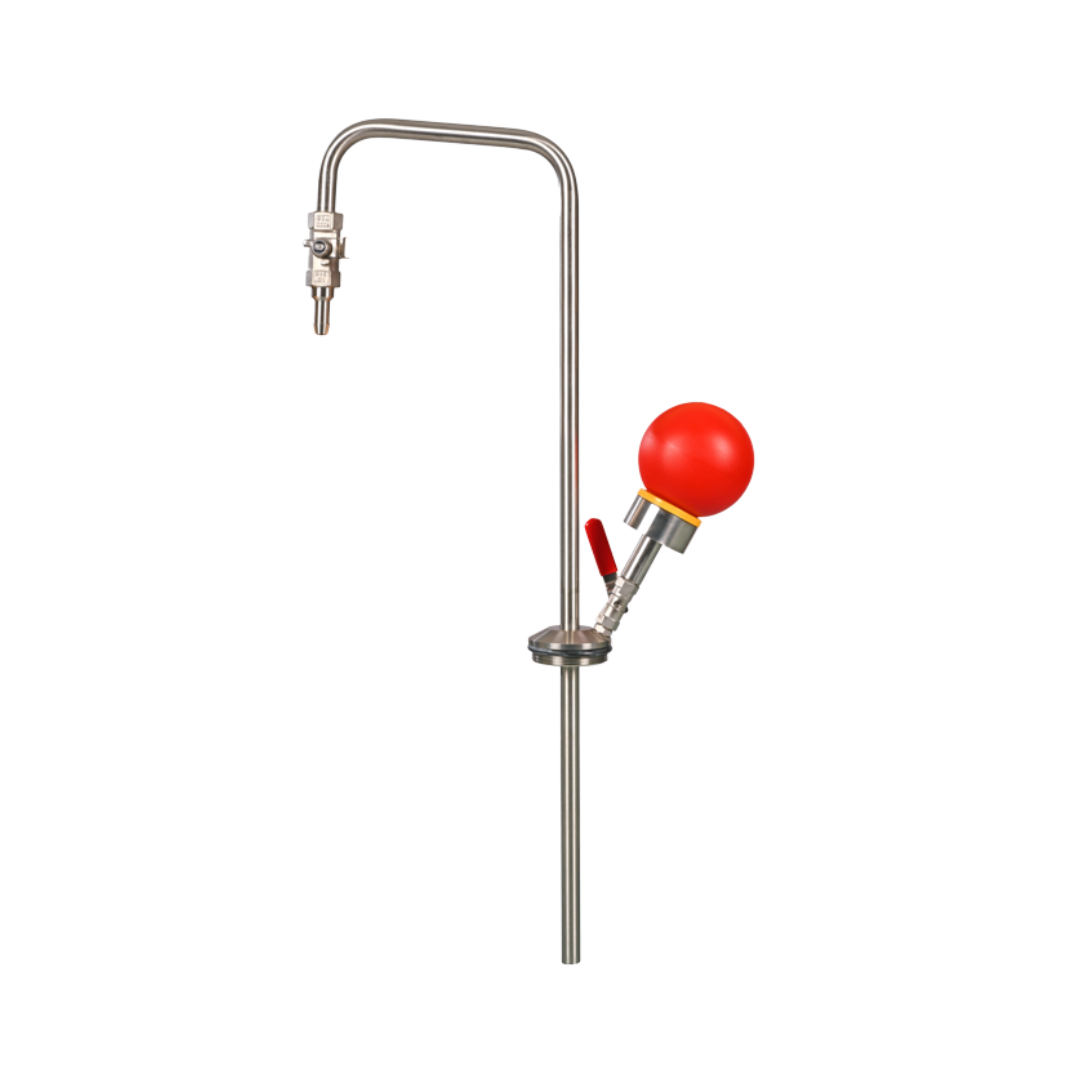

Bürkle hand pump for solvents, stainless steel, 60 cm, 5603-1000

Safe dispensing of high-purity solvents

The Bürkle hand pump for solvents has been specially developed for the contamination-free dispensing of organic solvents and flavourings. All parts in contact with the medium are made of high-quality stainless steel (1.4301/1.4404) and PTFE, ensuring excellent chemical resistance. With an immersion depth of 60 cm, this version (5603-1000) is ideal for smaller drums, canisters and containers up to approx. 60 litres.

Explosion protection and occupational safety

When handling flammable liquids such as acetone, isopropanol or ethanol, safety is the top priority. This pump meets the strict requirements for use in potentially explosive atmospheres (Zones 0 and 1). To prevent electrostatic build-up and sparking, an anti-static kit is included in the scope of delivery, enabling the pump and the container to be safely earthed.

Gas-tight system for clean air

Conventional pumps often allow dangerous vapours to escape. The Bürkle solvent pump operates on the gas displacement principle and is designed to be gas-tight. This means that no solvent vapours escape into the working environment, protecting the user from health risks and minimising odour nuisance in the laboratory or warehouse. The pump is robust, durable and designed for continuous industrial use.

Technical details

• Material (in contact with the medium): stainless steel (1.4301/1.4404), PTFE
• Immersion depth: 60 cm
• Flow rate: approx. 10 l/min
• Suitable for: Canisters and drums up to approx. 60 litres
• Operating principle: Gas-tight (protection against vapours)
• Connection thread: Drum coupling for 2" fine thread (standard steel drums)
• Special feature: Electrically conductive (for flammable liquids)

Contents

• Bürkle hand pump for solvents (60 cm)
• Drum coupling (for standard steel drum threads)
• Spout (rigid)
• Operating instructions

Customised requirements & procurement service

Do you need thread adaptors for plastic canisters (Tri-Sure, Mauser), a flexible outlet hose with a shut-off valve, or a longer version for 200-litre drums? We’ll tailor your filling solution to your exact requirements. Contact our procurement service for accessories and adaptors.
