Drum pumps
Drum pumps safely transfer solvents, acids and alkalis from drums and canisters, without the need to tip them over or decant the contents manually. LT Laborhandel offers Bürkle drum pumps that can be powered by battery, mains or foot control, made from chemical-resistant stainless steel or PP, depending on the medium and flow rate. You can find further pumping equipment in the Laboratory Pumps category and under Vacuum Pumps. We’d be happy to advise you in advance on which pump is suitable for your medium.
Bürkle stainless steel drum pump with outlet elbow, 91 cm immersion depth, for drums up to 220 l, 5601-0800
The 91-cm version of the Bürkle stainless steel drum pump with an outlet elbow delivers 540 ml per stroke. With an immersion depth suitable for drums up to approx. 220 l, it covers standard 200-litre drums. Delivery rate540 ml/stroke Max. immersion depth91 cm Outer diameter of outlet12 mm Length of outlet elbow290 mm ConnectionFor openings from 32 mm, drum screw connection For containers up toapprox. 220 l Anyone who needs to safely transfer flammable or corrosive liquids from a drum or canister requires more than just a simple hand pump. The Bürkle stainless steel drum pump is a hand-operated reciprocating piston pump, which has been developed specifically for this purpose. Thanks to its electrical conductivity and DEKRA-tested suitability for Ex zones 0, 1 and 2, it can also be used in areas where highly flammable vapours are likely to be present, such as when decanting solvents or other flammable chemicals in workshops, laboratories and production facilities. DEKRA-tested for Ex zones 0, 1 and 2 The drum pump was specially developed for use in Ex zones 0, 1 and 2 and is DEKRA-tested for explosion groups IIA and IIB. Thanks to the electrical conductivity of all parts in contact with the medium, it is suitable for highly flammable and combustible liquids. Important for safe operation: When handling flammable or highly flammable liquids, all parts of the pump must be earthed, for example using an anti-static kit. The pump is not suitable for acetone or similar dehydrating solvents. Material: 1.4301 stainless steel with PTFE seals All parts in contact with the medium are made of corrosion-resistant stainless steel 1.4301 (V2A), which, according to Bürkle, promises a long service life even in damp or aggressive environments. The PTFE seals also ensure high chemical resistance and good sliding properties during pumping, so that the pump remains smooth-running even after prolonged use. Two versions: outlet elbow or hose with tap The Bürkle stainless steel drum pump is available in two versions. The version with an outlet elbow (length 290 mm, outlet outer diameter 12 mm) is suitable for direct filling into a container placed underneath. The version with an outlet hose and tap (hose length 1.2 m, outlet outer diameter 12.8 mm) allows for metered, controlled dispensing thanks to the shut-off tap, even when the receiving vessel is not positioned directly beneath the pump. The outlet elbow and outlet hose can also be swapped, making the pump versatile for a range of filling situations. What immersion depth for which container? The pump is available in three lengths, and the immersion depth is infinitely adjustable. This makes it possible to find the suitable Bürkle stainless steel drum pump for different containers: 36 cm immersion depth: for containers up to approx. 30 l 57 cm immersion depth: for containers up to approx. 60 l 91 cm immersion depth: for containers up to approx. 220 l, such as standard drums The 91 cm version with an outlet elbow covers standard 200-litre drums with its immersion depth. Flow rate and viscosity Depending on the selected immersion depth, the pump delivers between 190 and 540 ml per stroke, which corresponds to a flow rate of 9 to 22 l/min across the entire range. The immersion tube has a consistent diameter of 32 mm, and the pump handles fluids with a viscosity of up to 500 mPa·s. Robust construction, versatile use Stainless steel drum pumps are versatile and suitable for a wide variety of drums, containers and other vessels. The robust construction from high-quality, corrosion-resistant 1.4301 stainless steel ensures, according to Bürkle, a long service life, particularly in damp or corrosive environments. Typical applications Decanting flammable or corrosive liquids and chemicals from drums, canisters and other containers Use in workshops, laboratories and production facilities Filling in Ex zones 0, 1 and 2, provided the pump is earthed in accordance with regulations Choice of immersion depth to suit the container size, from small 30-litre canisters up to 220-litre drums Handling and cleaning To operate, screw on the outlet elbow or hose, insert the pump with the drum screw connection into the drum opening and screw it in hand-tight. After removing the cap, the liquid can be pumped out using the handle on the piston rod. During the final pumping stroke, push the piston rod in as far as it will go before carefully unscrewing the pump from the drum. After use, the drum pump should be rinsed with a pH-neutral liquid. Technical details Product principleManually operated reciprocating piston pump Material of parts in contact with the mediumStainless steel 1.4301 (V2A) Seal materialPTFE Immersion tube diameter32 mm Viscosityup to 500 mPa·s Flow rate (entire range)9 to 22 l/min Immersion depthcontinuously adjustable, max. 91 cm Drive typeManually operated ColourSilver Ex zone0, 1, 2 Explosion groupsIIA, IIB Explosion protection testingDEKRA-tested Electrical conductivityYes Outlet elbow/hoseReplaceable Scope of delivery 1x Bürkle stainless steel drum pump in the selected version (with outlet elbow or with hose and tap) and immersion depth Operating instructions Not included in the scope of delivery: drum screw connection and the anti-static earthing kit required for use with flammable liquids. Individual requirements and procurement service For the mandatory earthing required when transferring flammable liquids, Bürkle offers a suitable anti-static kit (5602-1000), as well as a drum mount (5618-0200) for storing the pump in an upright position between uses. We are happy to source both on request: if you have any questions regarding suitable accessories, spare parts or specific requirements relating to your drum pump, our procurement service will be happy to assist you.
Bürkle Hand Pump for Solvents, V2A Stainless Steel, for Containers up to 60 L, 5603-1000
Anyone who scoops solvent from a 60-litre drum using a beaker or a jug risks splashes and direct skin contact with the liquid. The hand pump for solvents, on the other hand, operates on the principle of positive pressure: A pump ball forces air into the sealed drum; the resulting overpressure pushes the solvent out in a controlled manner through the fixed spout. This allows flammable solvents to be dispensed in measured quantities without having to tip the drum over or leave it open permanently.Operation without suctionUnlike a suction pump, the hand pump does not create a vacuum in the riser tube, but rather positive pressure inside the drum itself. The pump bulb is operated by hand; air flows through a tube into the drum, whilst the solvent rises separately to the spout. The shut-off valve at the end of the spout, made of stainless steel and PTFE, stops the flow immediately once the receiving container is full.For drums up to 60 l with a G2-inch threadThe pump fits containers with a G2-inch external thread and a capacity of up to approximately 60 l. The dip tube can be continuously adjusted to the actual depth of the drum; at full immersion depth, it extends up to 60 centimetres into the drum. With a flow rate of around 10 l per minute and a viscosity of up to 500 mPa·s, the pump is suitable for low- to medium-viscosity solvents. The 12-millimetre external diameter of the outlet fits standard funnels and canister openings, allowing the target container to be filled directly beneath the outlet elbow.Materials in contact with solventsAll parts in contact with the medium are made of 1.4301 (V2A) stainless steel and PTFE. Both materials are chemically resistant to organic solvents and aromatic compounds and can withstand regular cleaning after filling. Unlike a plastic pump, stainless steel does not swell when frequently exposed to more aggressive solvents and retains its fit, even after many filling cycles.Independent of mains power and compressed airThe hand pump requires neither a mains power connection nor a compressed air supply; it operates solely by means of the pump ball in the hand. This makes it a suitable option for workplaces where there is no compressed air network, such as in smaller workshops, for mobile operations or in storage areas away from the main infrastructure. Those who only open a drum occasionally can therefore manage without having to purchase a compressor.Safety when handling flammable liquidsBürkle expressly refers to the explosion protection guidelines for handling flammable, highly combustible liquids when using this pump: all parts must be earthed; in addition, the manufacturer recommends an anti-static kit. The advice is a recommendation for safe operation.If a different container or drive type is requiredFor tinplate canisters with bellows closures, the solvent pump for tinplate canisters is available as a hand pump of identical design, featuring a suitable adapter instead of a G2-inch thread. If both hands need to remain free, or if larger 220-litre drums are being used, the foot-operated solvent pump with spout is the more suitable choice. For small containers such as bottles or canisters up to 10 l with a GL45 thread, the Mini solvent pump is more suitable.Typical applicationsContamination-free dispensing of organic solvents and aromatic compounds from 60-litre drumsPrecise dispensing of flammable liquids in the laboratory, workshop or warehouseDecanting into smaller containers without tilting or opening the drumDrums with G2-inch threads in the chemical industry and in tradeTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typemanually operatedPump typePositive pressure pumpThreadG 2 inches, external threadFlow rate approx.10 l/minViscosity up to approx.500 mPa·sPipe diameter15 mmImmersion tube diameter15 mmLength of outlet bend185 mmOuter diameter of outlet12 mmMax. immersion depth60 cmFor containers up toapprox. 60 lScope of deliveryHand pump with fixed spout and shut-off valveService and procurementBusinesses with multiple drum sizes or container types often coordinate their order with the appropriate foot-operated or mini version, so that the right pump is to hand for every container. If you have any questions regarding the correct thread size, the choice between hand- and foot-operated models, or spare parts such as the shut-off valve, we will be happy to assist you directly, even for larger requirements across multiple workstations.
Bürkle foot-operated solvent pump with outlet hose and tap, V2A stainless steel, for drums up to 220 L, 5603-3000
If the receiving container is not positioned directly next to the drum, but on a shelf, in a tray or slightly to one side, a rigid discharge elbow will quickly reach its limits. The foot-operated solvent pump with discharge hose and tap solves this problem with a 1-metre-long, flexible hose: It can be routed freely and positioned precisely into a narrow canister opening or over the rim of a taller container, whilst both hands remain free because the pump is operated via a foot pedal.Flexible hose instead of a rigid elbowInstead of a fixed elbow, the delivery line here ends in a flexible PTFE hose with its own shut-off valve. The pedal is operated in the same way as with the outlet elbow version; the excess pressure in the drum forces the solvent upwards through the dip tube, but ultimately the operator decides where the hose points, rather than being constrained by the fixed geometry of an elbow. The separate shut-off valve at the end of the hose is positioned exactly where the hand needs it when aiming at the container.For steel drums up to 220 litres with a G2-inch threadThe pump fits steel drums with a G2-inch external thread and is suitable for containers up to around 220 litres. The 21-millimetre-thick dip tube can be continuously adjusted to the depth of the drum; at full immersion, it extends up to 95 centimetres into the drum. The flow rate and viscosity limit, at around 20 litres per minute and up to 500 mPa·s, are on a par with those of the elbow-outlet version; only the final metre to the target container is flexible rather than rigid. The 13-millimetre outer diameter of the outlet fits the same canister and funnel openings as the rigid version.When the hose makes the differenceA fixed outlet elbow is more stable and requires no guidance, making it well-suited when the target container is positioned directly beneath the pump. For precisely this purpose, the foot-operated solvent pump with outlet elbow is available, an identically constructed variant featuring the same pump body. The hose on this model, on the other hand, comes into its own where the distance to the drum varies, for example, when filling several containers in different positions one after the other, or when a narrow canister opening is only accessible from the side.Materials and safety when handling flammable liquidsParts in contact with the medium, made from stainless steel 1.4301 (V2A) and PTFE, are chemically resistant to high-purity solvents. Bürkle draws attention to the explosion protection guidelines for this pump when handling flammable, highly flammable liquids: all parts must be earthed; an anti-static kit is also recommended.If compressed air or another material is requiredIf compressed air or an inert gas is available and the immersion depth is to be freely selected between 60 and 95 centimetres, the solvent extraction system with discharge hose covers the same discharge type with a complete system including a pressure regulator. Where particularly aggressive or high-purity media are involved, for which stainless steel is not suitable, the Ultrapure PTFE drum pump with a hose and tap made of PTFE and FEP is the more chemically resistant alternative.Typical applicationsFilling high-purity solvents into containers positioned offset or at a higher levelWorkstations with changing target containers, which the hose can reach flexiblyFrequent, repetitive filling whilst keeping both hands free for handling the receiving containerSteel drums with G2-inch threads in laboratories, warehouses or production facilitiesTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typefoot-operatedPump typePositive pressure pumpThreadG 2 inches, external threadFlow rate approx.20 l/minViscosity up to approx.500 mPa·sPipe diameter21 mmImmersion tube diameter21 mmLength of outlet hose1 mOuter diameter of outlet13 mmMax. immersion depth95 cmFor containers up toapprox. 220 litresScope of deliveryFoot-operated solvent pump with outlet hose and tapService and procurementIf you are unsure whether the rigid elbow or the flexible hose is better suited to your particular setup, you can often order both versions initially to compare them or for different workstations with varying container arrangements. We can advise you on your choice and on spare parts such as hoses, shut-off valves or foot pedals.
Bürkle Solvent Pump for Tinplate Canisters, V2A Stainless Steel, Bellows Seal Adapter, 5603-2000
In practice, tinplate canisters with bellows caps are often simply tipped over and emptied by hand, resulting in splashes and direct contact with the contents. The solvent pump for tinplate canisters, on the other hand, fits a suitable threaded adapter directly onto the bellows cap and then operates like a standard hand pump based on the overpressure principle: The pump ball forces air into the canister; the excess pressure then forces the liquid out through the fixed spout.Adapter for the standard bellows capThe supplied threaded adapter, with a 35-millimetre, two-start internal thread, fits the bellows cap commonly used on tinplate canisters in industry. This eliminates the need for the risky manual pouring of hazardous substances; the canister remains stationary during filling, and the contents flow out in a controlled manner via the spout fitted with a shut-off valve. The adapter is screwed on once and remains attached to the canister for the duration of the transfer; afterwards, it can be removed just as easily as the original bellows cap.For canisters up to around 60 lThe pump is suitable for containers with a capacity of up to approximately 60 l; the 15-millimetre-diameter dip tube can be continuously adjusted to the depth of the canister, reaching a maximum immersion depth of 60 centimetres. With a flow rate of around 10 l per minute and a viscosity limit of up to 500 mPa·s, the performance matches that of the hand pump for drums with a G2-inch thread; only the connection itself is tailored to the canister cap.Why the adapter makes all the differenceCompared to drums with a G2-inch thread, tinplate canisters are a category of their own; the bellows cap cannot simply be converted to a standard thread. Without a suitable adapter, many businesses have no choice but to tip the canister, with all the associated risks of splashing and uncontrolled spillage. The supplied adapter bridges this gap without requiring any modifications to the canister itself, and can be removed again once filling is complete.Materials and safety when handling flammable liquidsParts in contact with the medium are made of 1.4301 (V2A) stainless steel and PTFE and are chemically resistant to organic solvents and aromatic compounds. Bürkle refers to the explosion protection guidelines when handling flammable, highly flammable liquids: all parts must be earthed; in addition, the manufacturer recommends an anti-static kit.If a different container is being usedFor drums with a G2-inch thread instead of a bellows seal, the identically constructed hand pump for solvents is the appropriate choice; for small containers with a GL45 connection up to 10 l, the Mini solvent pump is suitable. If, on the other hand, 220-litre steel drums need to be connected and both hands need to remain free, the foot-operated solvent pump in the outlet elbow or hose version covers this need.Independent of mains power and compressed airLike the other hand pumps in the range, this model requires neither a mains power connection nor a compressed air supply. This makes it particularly practical for businesses that only occasionally open tinplate canisters, such as in smaller laboratories, workshops or storage areas without their own compressed air network. The threaded adapter can also be swapped between several canisters of the same closure type, meaning a single pump is sufficient for multiple containers.Typical applicationsContamination-free decanting from tinplate canisters with bellows closuresAvoiding the manual pouring of hazardous substancesExtraction of organic solvents and aromatic compounds in the laboratoryBusinesses that routinely source raw materials in tinplate canistersGoods-in and decanting stations where several cans with the same type of closure are in circulationTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typemanually operatedPump typePositive pressure pumpConnection typeThreaded, female threadConnection35 mm, two-startFlow rate approx.10 l/minViscosity up to approx.500 mPa·sPipe diameter15 mmImmersion tube diameter15 mmLength of outlet bend185 mmOuter diameter of outlet12 mmMax. immersion depth60 cmFor containers up toapprox. 60 lScope of deliverySolvent pump with fixed outlet elbow and shut-off valveThreaded adapter for tinplate canistersService and procurementBusinesses that use both canisters with bellows closures and drums with G2-inch threads often order both pump versions together, so that the correct connection is available for every container. We can assist with selecting the correct adapter, with larger orders for multiple workstations, and with spare parts such as the shut-off valve.
Bürkle Foot-operated Solvent Pump with Outlet Elbow, V2A Stainless Steel, for Drums up to 220 L, 5603-1100
When dispensing from a 220-litre steel drum, both hands are often needed: one holds the receiving container, whilst the other is supposed to guide the spout. The foot-operated solvent pump solves this problem by being activated via a foot pedal: the operator has both hands free for the container and does not need to touch the pump itself whilst the solvent flows through the fixed spout.Foot operation instead of a hand pumpInstead of a pump ball, the operator presses a pedal at the base of the pump. Each press forces air into the drum and builds up excess pressure, which pushes the solvent through the riser pipe to the outlet elbow. This completely frees up the hands and, during repeated filling over several minutes, is noticeably more comfortable than a hand pump that has to be held down continuously. Even with larger 220-litre drums, which require more strokes, the effort required is distributed more evenly when using the foot.For drums up to 220 l with a G2-inch threadThe pump is designed for steel drums with a G2-inch external thread and is suitable for containers up to around 220 l. The 21-millimetre-diameter dip tube can be continuously adjusted to the depth of the drum; at full immersion, it extends up to 95 centimetres into the drum. With a flow rate of around 20 l per minute and a viscosity of up to 500 mPa·s, it fills a container noticeably faster than the smaller hand pump for 60-litre drums.Fixed spout for stationary fillingThe 300-millimetre-long outlet elbow with shut-off valve is fixed in place and not flexible. This is well suited when the target container is positioned directly beneath or next to the pump, as the short, rigid path from the drum to the spout, with an outer diameter of 13 millimetres, allows for stable, easily controllable flow. If, on the other hand, a container needs to be filled that is further away, raised or offset, the identically constructed foot-operated solvent pump with discharge hose and tap is the more suitable option: It has the same pump body and the same flow rate, but replaces the rigid elbow with a 1-metre-long, flexible hose fitted with its own shut-off valve.Materials and safety when handling flammable liquidsParts in contact with the medium are made of stainless steel 1.4301 (V2A) and PTFE, which are resistant to high-purity solvents. Bürkle also draws attention to the explosion protection guidelines for this pump: all parts must be earthed, and an anti-static kit is recommended for use with flammable liquids.Who will benefit from foot operationAnyone who fills containers from the same drum several times a day will quickly notice the difference compared to manual operation: with foot-operated control, one hand remains on the receiving container whilst the other can guide the spout or operate the shut-off valve without having to touch the pump itself. This also reduces direct hand contact with a potentially contaminated pump surface, an aspect that is particularly important when dealing with sensitive solvents.When a smaller or compressed-air-powered pump is requiredFor smaller 60-litre drums, the more compact manual pump for solvents is usually sufficient. If compressed air or inert gas is available and the immersion depth needs to remain adjustable between 60 and 95 centimetres, the solvent dispensing system with discharge elbow covers the same depth range with a complete system including a pressure regulator.Typical applicationsFilling high-purity solvents from 220-litre steel drumsWorkstations where both hands are needed to handle the target containerFrequent, repetitive filling over extended periodsDrums with G2-inch threads in laboratories, warehouses or production facilitiesTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typefoot-operatedPump typePositive pressure pumpThreadG 2 inches, external threadFlow rate approx.20 l/minViscosity up to approx.500 mPa·sPipe diameter21 mmImmersion tube diameter21 mmLength of outlet bend300 mmOuter diameter of outlet13 mmMax. immersion depth95 cmFor containers up toapprox. 220 lScope of deliveryFoot-operated solvent pump with outlet elbowService and procurementThose who, in addition to stationary filling operations, occasionally need to fill containers located further away often order both the spout and the hose versions together, so that both situations are covered. We can advise on choosing between the two versions, selecting the appropriate drum size and spare parts such as shut-off valves or foot pedals.
Bürkle solvent pump Mini, stainless steel V2A, GL45 connection, 5603-4000
A 500-millilitre bottle of solvent or a 5-litre canister does not require a 220-litre drum pump, but it does need a way to dispense the contents in a controlled manner without direct contact. The Mini solvent pump is designed precisely for these small containers: compact, with a GL45 thread for bottles and canisters, and operating on the same overpressure principle as the larger Bürkle solvent pumps, but on a scale suited to bottles rather than drums.Compact design for small containersInstead of a long dip tube for drums, the Mini has a short delivery tube that can be replaced and shortened as required. This allows it to adapt to bottles and canisters of varying heights, without a tube that is too long hitting the bottom or one that is too short failing to reach the remaining liquid. The GL45 internal thread screws directly onto standard laboratory bottles and small containers with this connection; no additional adapter is required.For containers up to around 10 litresWith a maximum immersion depth of 40 centimetres and a 104-millimetre-long outlet elbow, the Mini is designed for containers up to around 10 litres. At around 1 litre per minute, it pumps significantly more slowly than the larger models; however, this allows for more precise dosing in smaller increments, for example when preparing reagents or decanting in portions. As with the other solvent pumps in the series, the viscosity limit of up to 500 mPa·s applies, meaning that even slightly thicker solvents can still be pumped without any problems.Earthing is included in the scope of deliveryA 2-metre-long earthing cable is supplied with the pump, along with a 0.4-metre-long PTFE hose with a diameter of 6 by 8 millimetres. Bürkle also highlights the explosion protection guidelines for the Mini when handling flammable, highly flammable liquids: all parts must be earthed, and an anti-static kit is additionally recommended. As the earthing cable is already included in the scope of delivery, the basic equipment for safe operation is ready for immediate use without the need to procure suitable accessories first.Precision rather than speedAt around 1 litre per minute, the Mini is not a pump designed for high throughput, but rather for controlled, incremental work. Anyone loading an analytical balance, preparing a buffer solution or filling a series of small sample vessels one after the other will benefit more from the precise dosing capability than from high flow rates. The adjustable delivery tube can be set so that it ends just above the bottom of the respective bottle, ensuring it reaches even the last few millilitres.When larger containers are in useFor drums up to 60 litres with a G2-inch thread, the hand pump for solvents is the suitable addition; for tinplate canisters with bellows closures, the identically constructed solvent pump for tinplate canisters is suitable. If 220-litre drums are also regularly tapped, the compressed-air-powered dispensing system for solvents with a discharge hose meets this requirement without the need for a separate pump type for each container size. This allows the Mini to be used specifically for small quantities and the larger pump for the rest of the drum stock.Typical applicationsPrecise dosing of small quantities of reagents in the laboratorySafe handling of solvents, even in potentially explosive atmospheresEmptying bottles and small containers with GL45 threadsComplement to larger solvent pumps for drums and canistersFilling small sample vessels or reaction mixtures in batchesTechnical detailsMaterialStainless steel 1.4301 (V2A)Drive typemanually operatedPump typeOverpressure pumpConnection typeThreaded, female threadThreadGL 45Flow rate approx.1 l/minViscosity up to approx.500 mPa·sLength of outlet elbow104 mmMax. immersion depth40 cmAdjust immersion depthImmersion tube can be shortened as requiredFor containers up toapprox. 10 litresScope of deliveryMini solvent pumpEarthing cable, 2 mPTFE hose (6 x 8 mm), length 0.4 mService and procurementBusinesses that fill both small laboratory bottles and larger drums or canisters often coordinate their order for the Mini with one of the larger solvent pumps, so that the right model is available for every container size. We can advise on the right combination and on spare parts such as the delivery tube, PTFE hose or earthing cable.
Bürkle, drum pump for concentrated acids/alkalis, 100 cm, 80 rpm, #5762-0200
Sulphuric acid, nitric acid, hydrofluoric acid and sodium hypochlorite corrode most plastics more severely than diluted acids. The drum pump for concentrated acids and alkalis is therefore built in the same way as the drum pump for acids and alkalis, but has a pump body made of PVDF rather than polypropylene. Two immersion depths, 100 and 120 centimetres, are suitable for standard drums of up to 220 litres.PVDF instead of polypropylene for highly corrosive mediaPolyvinylidene fluoride (PVDF) is more chemically resistant than polypropylene and makes the pump suitable for use with media that would, over time, corrode a pump made solely of PP. Bürkle cites sulphuric acid, nitric acid, hydrofluoric acid and sodium hypochlorite as typical applications. This version is also expressly unsuitable for hydrochloric acid; chemical resistance must be checked before use by referring to the manufacturer’s resistance list.Electric centrifugal pump with a slightly lower flow rateAt around 80 litres per minute, the flow rate is just below that of the PP version, which is 85 litres per minute; the difference is due to the PVDF pump body. The 2-metre-long outlet hose and the 41-millimetre-thick immersion tube are standard features of the drum pump range.Two immersion depths for standard drumsThe 100-centimetre version and the 120-centimetre version differ only in terms of immersion depth; all other technical specifications are identical for both. The immersion tube can be adjusted continuously to the actual depth of the drum.When the standard version is sufficientFor low-viscosity acids such as phosphoric acid, chromic acid or battery acid, where polypropylene offers sufficient chemical resistance, the drum pump for acids and alkalis is the more cost-effective choice, offering a slightly higher flow rate. The PVDF version is worthwhile where more concentrated or aggressive media are used.Thread and connectionLike the PP version, this pump also uses a G 1 1/4-inch thread for the drum connection, rather than the G 2-inch thread commonly found on other Bürkle drum pumps. Before ordering, it is therefore worth checking the existing drum connection so that the pump will fit without the need for an additional adapter. The yellow colour scheme is identical for both versions in the range and allows for quick visual differentiation from the other drum pump series on the shelf.Chemical protection for the workplace and staffConcentrated acids and sodium hypochlorite are among the media where a material failure in the pump can quickly pose a risk to staff and the surrounding area. The PVDF pump body reduces this risk compared with a PP version, but does not replace the standard personal protective equipment or the other requirements for handling the relevant hazardous substances in the workplace.Resistance list as the final checkEven within the group of highly corrosive acids and alkalis, there are differences in concentration which determine the actual material resistance. Before using a new medium for the first time, it is therefore advisable to consult the manufacturer’s resistance list to avoid misjudgements between acids that sound similar but differ in their chemical aggressiveness.Electric drive for continuous conveyingEven in the concentrated version, the centrifugal pump’s electric motor runs continuously as long as the fluid continues to flow, rather than delivering individual strokes as with a hand pump. This is particularly suitable for businesses that regularly transfer large quantities of a specific concentrated acid or alkali between drums and process vessels.Typical applicationsPumping highly corrosive acids such as sulphuric, nitric or hydrofluoric acidDecanting sodium hypochlorite and similarly corrosive alkalisLarger transfer volumes from standard drums of up to 220 litresOperations in which polypropylene is not chemically suitable as a pump materialTechnical detailsConnection typeDrum screw connectionThreadG 1 1/4 inch, external threadFlow rate approx.80 l/minViscosity up to approx.500 mPa·sImmersion tube diameter41 mmColouryellowLength of the outlet hose2 mFor containers up toapprox. 220 lDrive typeelectricPump typeCentrifugal pumpImmersion depth adjustmentcontinuously adjustableMaterialPolyvinylidene fluoride (PVDF), polypropylene (PP)Overview of variantsItem numberMaximum immersion depth5762-0200100 cm5762-0201120 cmScope of deliveryDrum pump for concentrated acids/alkalis at the selected immersion depthRegulatory informationThe drum pump for concentrated acids and alkalis is an electrical appliance within the meaning of the ElektroG. Information on returns can be found under ‘Environment and Disposal’.Service and procurementFor low-viscosity, less corrosive acids, the drum pump for acids and alkalis with a PP pump body is often sufficient. For smaller quantities where there is no mains power supply, the Ultrarein PTFE drum pump is a hand-operated alternative. We order both immersion depths separately and can advise on the selection based on the medium to be transferred.
Bürkle, EnergyOne mains-powered drum pump with spout, 50 cm, #5900-2050
At a fixed dispensing station, where small quantities of cleaning agent or diluted acid are repeatedly drawn from canisters throughout the day, one thing is paramount: the pump must not stop because the battery is flat. The EnergyOne is the mains-powered version of the centrifugal pump for small quantities; it is connected via a 230 V power supply unit and is ready for continuous use without any charging time.Mains operation without charging breaksThe power supply is provided by a 230 V power supply unit. Three international plug adaptors are included (plug types EU, UK, US and AU), so that the pump is ready for immediate use even in locations with different plug types. There is no charging time whatsoever, unlike with the battery-powered model; the pump runs as long as it is connected to the mains.When mains operation is worthwhileWhen used at a fixed workstation with a power socket within easy reach, the EnergyOne means you never have to worry about the battery level. Particularly when carrying out frequent, closely spaced filling operations throughout the day, this makes the process much smoother than having to change the battery in between.Same drive system as on the AccuOneThe EnergyOne’s pump unit and drive system are identical in design to those of the battery-operated AccuOne; the power supply unit and battery can be swapped between the two devices. If you need to use the pump in different locations without a mains socket, for example, in another part of the building, you are better off with the AccuOne.Performance data for small quantitiesAs with the AccuOne, the flow rate ranges from 0 to around 12 l/min at a head of approximately 4 m water column. The 25 mm diameter immersion tube can be adjusted continuously, whilst the outlet elbow has an external diameter of 16 mm and a length of 203 mm. The pump is suitable for low-viscosity to aqueous acids, alkalis, chemicals and cleaning agents up to approximately 200 mPa·s.Materials for corrosive mediaAs with the AccuOne, the parts in contact with the medium are made of polypropylene (PP), polytetrafluoroethylene (PTFE) and Hastelloy 2.4610 (AISI Alloy C-4). The IP 20 protection rating is designed for indoor use.Three immersion depths for different containersFor containers up to around 30 litres, the model with a 50 cm immersion depth is sufficient. For containers up to around 60 litres, the 70 cm model is suitable, whilst for drums up to around 220 litres, the 100 cm model is suitable.A fixed place at the filling stationAs there is no need to change or charge a battery, the EnergyOne is particularly well suited to a fixed installation at a filling or dosing station where the pump is used several times a day. The international plug adaptors make installation straightforward even at sites outside Germany.Scope of delivery and connectionThe scope of delivery includes the pump unit, drive, power supply unit with plug, three plug adaptors and the fixed outlet elbow. Once plugged into the mains, the pump is ready for use without any further preparation; there is no need to charge or replace a battery.Degree of protection and operating environmentThe IP 20 protection rating indicates that the pump is designed for indoor use, without any special protection against water jets or dust from outside. This is sufficient for use in warehouses and laboratories with a normal indoor environment.Typical applicationsFixed filling and dosing stations with a permanent mains connectionDecanting and transferring small quantities of acids, alkalis, chemicals and cleaning agentsLocations abroad thanks to international plug adaptorsSmall quantities in laboratory settingsTechnical detailsPump typeCentrifugal pumpDrive typeElectric (mains), 230 VFlow rate0 to 12 l/minHead approx.4 m water columnViscosity up to approx.200 mPa·sImmersion tube diameter25 mm, infinitely adjustableOutlet typeOutlet elbow, 203 mm, external diameter 16 mmPlugEU, UK, US, AUDegree of protectionIP 20Materials (in contact with media)Polypropylene (PP), polytetrafluoroethylene (PTFE), Hastelloy 2.4610ColourgreyOverview of variantsItem numberMaximum immersion depthFor containers up to5900-205050 cmapprox. 30 litres5900-207070 cmapprox. 60 litres5900-2100100 cmapprox. 220 litresScope of deliveryPump unitDrivePower supply unit with plug3x plug adaptorsFixed outlet elbowRegulatory informationThe EnergyOne is an electrical appliance within the meaning of the ElektroG. Information on returning old appliances can be found under ‘Environment and Disposal’.Service and procurementThe suitable immersion depth depends on the height of the container at the specific location, not solely on the container’s volume. We order all three models individually and, if required, can also recommend the battery-powered AccuOne or, for higher flow rates, the mains-powered laboratory pump as an alternative. Our team will be happy to help with any queries regarding a suitable pump for your specific medium.
Bürkle, dispensing system for solvent outlet elbow, 60 cm, #5603-5001
To transfer solvents from a steel drum or canister, a system is required that does not involve handling the liquid in the open. The solvent dispensing system with an outlet elbow operates using compressed air or an inert gas such as nitrogen. The gas pressure forces the liquid upwards through the dip tube and through the fixed outlet elbow into the receiving container. Two immersion depths, 60 and 95 centimetres, cater for canisters and standard drums up to 220 litres.Compressed air or inert gas instead of a motorInstead of an electric or manually operated drive, the system uses pure compressed air or an inert gas. This also makes it suitable for high-purity liquids, where a motor-driven pump would be undesirable. A supplied pressure regulator adjusts the delivery pressure; the flow rate is around 10 litres per minute, and the viscosity of the medium may be up to approximately 500 mPa·s. Three adaptors for the pressure supply (G 1/4 inch) included in the scope of delivery cater for different compressors and gas cylinders.Fixed outlet elbow for a fixed workstationThe outlet elbow is rigidly mounted and is suitable when the receiving container is positioned directly beneath or next to the drum, for example when filling laboratory bottles at a fixed workstation. According to Bürkle, the outlet elbow and outlet hose are interchangeable, meaning that the same basic system can be retrofitted with a flexible hose if required.Two immersion depths for different container sizesThe 60-centimetre version is designed for canisters and smaller drums up to approximately 60 litres; the dip tube has a diameter of 15 millimetres. The 95-centimetre version, with a 21-millimetre immersion tube diameter, is suitable for standard 220-litre drums. In both cases, the immersion tube can be continuously adjusted to the actual drum depth, so that it does not rest on the drum base and that the final residual quantity can still be reached.Safety when handling flammable solventsBürkle expressly points out that the pump and pressure regulator must be earthed and that an anti-static kit must also be used when decanting flammable or highly flammable solvents. The system can be used with UN containers and drums with a test pressure of at least 150 kPa. An earthing cable for the pressure regulator unit is included in the scope of delivery, as is a transport stand that keeps the system stable even when not positioned directly next to the drum.Compact system with accessories for mobile useThe transport stand supplied holds the pressure regulator unit and connecting hose together when the system is moved between different drums or workstations. Two protective plugs seal the connections during transport or when the system is not in use, preventing any medium from dripping out or dirt from entering. Bürkle also labels the system with a pictogram indicating suitability for food contact, without specifically referring to a particular standard such as (EC) No 1935/2004. It is therefore advisable to consult the manufacturer for final approval in food-contact applications.Typical applicationsDecanting solvents from drums and canisters into smaller containersDirect dispensing at the point of use in laboratories or chemical productionFilling of high-purity liquids without a motorised pumpAccording to Bürkle, use with UN containers and drums from a test pressure of 150 kPaTechnical detailsConnection typeDrum screw connectionThreadG 2 inch, external threadFlow rate approx.10 l/minViscosity up to approx.500 mPa·sOutlet typeElbow outletDrive typepneumatic (compressed air or inert gas)Pump typeOverpressure pumpAdjust immersion depthInfinitely adjustableMaterialV2A stainless steel (1.4301), PTFE inner parts of the immersion tubeOverview of variantsItem numberMax. immersion depthFor vessels up toImmersion tube ØLength of outlet elbowOuter outlet diameter5603-500160 cmapprox. 60 l15 mm185 mm12 mm5603-500395 cmapprox. 220 l21 mm280 mm13 mmScope of deliverySolvent dispensing system with outlet elbowPressure regulator unitTransport stand2x protective plugsEarthing cable for pressure regulatorConnecting hoseKey for pressure supply3x pressure supply adaptors (G 1/4 inch)Service and procurementThe appropriate immersion depth depends on the drum size at the workplace. For smaller canisters up to 10 litres with a GL45 connection, the Mini solvent pump is often the more practical choice; for simple manual operation without a compressed air connection, the hand pump for solvents is the more practical choice. When dealing with particularly pure media in a manually operated version, the Ultrarein PTFE drum pump is more suitable. We order both versions of the dispensing system individually and can advise on selecting the appropriate immersion depth and pressure supply.
Bürkle, Petro electric drum pump, with standard dispensing nozzle, #5780-0040
A depot that regularly transfers diesel from a drum of up to 220 litres into vehicles or EL heating oil into a tank needs a pump that does not have to be operated manually every time it is used. The Petro electric drum pump does exactly that: it dispenses diesel, EL heating oil, undiluted radiator antifreeze and other liquids with a high flash point via a dispensing nozzle, powered by a 230 V mains supply.Anti-siphon protection against leaksAn integrated anti-siphon protection system stops the flow if the hose is damaged or comes away, thereby preventing fuel from leaking uncontrollably. This is an essential safety feature for day-to-day use on vehicles and machinery.Standard or automatic fuel nozzleThe pump is available with two types of fuel nozzle. The standard fuel nozzle is switched off manually and delivers a flow rate of around 38 l/min. The self-shutting automatic nozzle stops automatically as soon as the target tank is full, making it practical for frequent refuelling without constant supervision, and has a flow rate of around 32 l/min. Which variant is more suitable depends on whether one person is supervising the refuelling process throughout or is carrying out other tasks at the same time.Range and connectivityWith an immersion depth of 160 cm, the pump can reach the bottom of a 220-litre drum. The 4-metre-long outlet hose bridges the distance to the receiving container, whilst the suction lift is approximately 2 m water column. The connection is made via an M 64x4 external thread, suitable for standard drum openings.Not suitable for liquids containing waterThe pump is expressly not suitable for liquids containing water or diluted liquids. Anyone who needs to transfer aqueous media as well as fuels will require a second, suitable pump unit for this purpose.Flow meter as an accessoryFor businesses wishing to record the quantities dispensed, an electronic flow meter with a totaliser and calibration function is available as an accessory. The meter is not verified and is therefore suitable for internal quantity monitoring, but not for billing subject to mandatory verification.Use in day-to-day workshop operationsWhether refuelling construction machinery in the yard, topping up EL heating oil in the fuel storage room or decanting radiator antifreeze in the workshop: The pump remains mounted on its stand and is immediately ready for use via the nozzle, without having to fetch a device for every task.Electric drive instead of a pump handleCompared with a hand-operated pump, the electric drive eliminates the need for repeated manual pumping, which makes a noticeable difference, particularly when refuelling several times a day. The operator simply holds the fuel nozzle; the pump itself handles the flow via the electric motor.Threaded connection instead of a hose connectionThe connection via the M 64x4 external thread sits securely on the drum and prevents it from slipping during operation, unlike a simple push-fit connection. The thread is compatible with standard drums, such as those commonly used for diesel and EL heating oil.Limitations of the scope of applicationThis pump is suitable for fuels and mineral oils, but is expressly not suitable for acids, alkalis or other chemicals. Anyone transferring both types of fluid in the same facility will need two separate pumps so that no residual fluid from one application enters the other.Typical applicationsRefuelling vehicles and machinery with diesel from the storage drumTransferring EL heating oil into tanksPumping of undiluted radiator antifreezeDepots, workshops and warehouses with regular fuel handlingTechnical detailsPump typeCentrifugal pumpDrive typeelectric, 230 VMaximum immersion depth160 cmLength of the outlet hose4 mSuction lift approx.2 m water columnConnection typeThread, M 64x4 external threadFor containers up toapprox. 220 litresColourgreyOverview of variantsItem numberDispensing nozzleFlow rate approx.5780-0040Standard (manual)38 l/min5780-0041Automatic (self-shutting)32 l/minScope of deliveryPetro electric drum pump with the selected dispensing nozzleThe electronic flow meter is not included in the scope of delivery and must be ordered separately.Regulatory informationThe Petro electric drum pump is an electrical appliance within the meaning of the ElektroG. Information on returning old appliances can be found under ‘Environment and Disposal’.Service and procurementWhich fuel nozzle is best suited to a particular application depends on the workflow at the workplace: if one person is in charge of monitoring the process at all times, this speaks for the standard fuel nozzle; if the team changes frequently, the automatic version is more suitable. We order both models individually, along with the appropriate flow meter, and can also discuss alternatives if required, such as the electric drum pump for mineral oils or the mains-powered laboratory pump for acids and alkalis. If you have any queries about which pump is suitable for your specific medium, our team will be happy to help.
Bürkle Gas-tight PP Drum Pump, 2 Threaded Adaptors 3/4 Inch, Telescopic Dip Tube 40 to 67 cm, 5610-1040
Two 3/4-inch threaded adaptors with lock nuts distinguish the Bürkle 5610-1040 drum pump from its sister model: the hose connection on the dispensing container is securely screwed in place. The pump itself is a hand-operated reciprocating piston pump made of PP with a gas balancing line, which delivers 220 ml per stroke. The telescopic tube extends continuously to a depth of between 40 and 67 cm into the container, and the outlet hose is 1.2 m long.Tightly screwed connection with 3/4-inch adaptorsThe adaptors with lock nuts are designed for openings from 28 mm; a universal plug for openings from 34 to 70 mm is included for the original container. This variant is useful if you do not want the hose connection on the container to consist of a plug. Those who prefer the flexibility to switch between different opening sizes should take a look at the 5610-1030 drum pump with a variable universal plug.Gas and liquid linesGas return takes place via the gas balancing line; the gas and liquid lines each have a shut-off valve. Bürkle intends the pump for the low-odour transfer of volatile, strong-smelling or harmful liquids, such as strong-smelling substances like ammonia, as well as acids and alkalis. For acids and alkalis, the resistance of the materials PP, PE and PVC is crucial; the outlet hose is made of soft PVC.Displacement volume and dip tubeThe pump dispenses 220 ml per stroke. The dip tube has a diameter of 32 mm, whilst the tube above it is 22 mm in diameter. As the telescopic tube can be extended continuously from 40 to 67 cm, the pump is suitable for drums and canisters of various heights. The handle is attached to the piston.Not suitable for flammable liquidsThe instructions for use explicitly exclude the filling of flammable liquids. The material is non-conductive. For handling acids, alkalis or liquids harmful to health, the SafetyBox 2507-9000 from Bürkle is available, complete with safety goggles and protective gloves.Operating limitationsPumping is carried out manually; continuous operation is not intended. The permissible temperature range is 0 to 40 °C, and the unit is for indoor use only. Contaminated media are excluded, and the pump is not dishwasher-safe. When the piston is extended, it requires space above the container plus 20 cm. No maintenance is required.Typical applicationsThe 5610-1040 is suitable for tasks where the filling container is connected via a screw-on hose connection:Decanting strong-smelling substances such as ammoniaFilling volatile or harmful liquids in laboratories, production facilities and warehousesAcids and alkalis from drums and canisters, provided PP, PE and PVC are resistantFirmly screwed hose connection to the filling container (3/4 inch)Technical detailsConnection optionsTwo 3/4-inch threaded adaptors with lock nuts for the filling container (openings from 28 mm), universal plug 34 to 70 mm for the original containerPump typeReciprocating piston pump, hand-operated, not suitable for continuous useFlow rate220 ml per strokeTube diameter22 mmImmersion tube diameter32 mmImmersion depth40 to 67 cm, infinitely adjustableOutlet1.2 m outlet hose with shut-off valveGas returnGas balancing line, gas and liquid lines, each with a shut-off valveMaterialsPP, PE, PVCColourgrey/blueOperating temperature0 to 40 °CLimitationsNot suitable for flammable liquids, for indoor use only, not suitable for contaminated media, not dishwasher-safePackaging unit1 pieceScope of deliveryGas-tight PP drum pump with infinitely extendable telescopic dip tube (40 to 67 cm) and reciprocating piston with handle1.2 m outlet hose with shut-off valveGas balancing line with shut-off valvePlug for the original containerTwo 3/4-inch threaded adaptors with lock nuts for the dispensing containerInstructions for useFrequently asked questionsIs the pump approved for use with flammable liquids?No. The operating instructions expressly exclude flammable liquids.What size openings do the adapters require?The 3/4-inch threaded adapters are designed for openings of 28 mm or larger.Can I use the pump with containers that have different immersion depths?The telescopic tube can be extended continuously from 40 to 67 cm.Is there a version with a universal plug?Yes, the 5610-1030 features a variable universal plug for openings from 34 to 70 mm instead of the threaded adaptors.Individual requirements and procurement serviceThe SafetyBox 2507-9000, complete with safety goggles and protective gloves, goes with this pump. If a different connection would be better suited to your container, we can clarify this via our procurement service. You can also enquire about drum fittings and other Bürkle accessories through this service. The opening width of the filling container and the thread size will help you make your selection.
Bürkle, AccuOne battery-powered drum pump with spout, 50 cm 5900-1050
Anyone who needs to draw cleaning solutions or diluted acids several times a day from different containers, often in places where there is no nearby power socket, will benefit from a cordless pump. The AccuOne is a battery-powered centrifugal pump for small volumes, designed to deliver low-viscosity to aqueous acids, alkalis, chemicals and cleaning agents up to approximately 200 mPa·s, without the need for a power socket.Lithium-ion battery with no memory effectThe battery is lightweight, powerful and has no memory effect, so recharging it mid-use does not reduce its subsequent runtime. An auto-stop function protects against deep discharge. According to Bürkle, a full charge is sufficient for a delivery volume of around 1,500 litres, with a charging time of approximately 4 hours. The plugs are designed for use in the EU and the UK.Hybrid system with mains power supplyThe AccuOne’s drive and pump unit can also be operated using a mains power supply. The identically constructed EnergyOne, which runs on mains power, is available as a standalone product from us; the battery and mains power supply are interchangeable. Those who mainly use the pump at a fixed workstation with a mains socket and do not wish to wait for the battery to charge are often better served by the EnergyOne.Performance data for small volumesThe flow rate ranges from 0 to around 12 l/min, whilst the head is approximately 4 m water column. The 25 mm diameter immersion tube can be continuously adjusted in terms of immersion depth and fits through container openings from 25 mm. The connection is via a drum adapter; the outlet elbow has an external diameter of 16 mm and a length of 203 mm. The IP 20 protection rating is designed for indoor use.Materials for aggressive mediaThe parts in contact with the medium are made of polypropylene (PP), polytetrafluoroethylene (PTFE) and Hastelloy 2.4610 (AISI Alloy C-4), three materials with high chemical resistance. Before use with a specific medium, however, it is still worth consulting a chemical resistance table, as Bürkle itself recommends on the product page.Three immersion depths for different containersThe shortest version, with a 50 cm immersion depth, is suitable for containers up to approximately 30 litres. The medium version, with a 70 cm immersion depth, is suitable for containers up to approximately 60 litres, whilst the longest version, with a 100 cm immersion depth, is suitable for drums up to approximately 220 litres.Mobile use without a power cableAs it has no mains cable, the pump can be taken between different locations, for example if several canisters need to be emptied in different storage areas in the course of a morning. The lithium-ion battery can be swapped for a charged spare battery in just a few simple steps.Scope of delivery and initial commissioningThe scope of delivery includes the pump unit, drive unit, battery, charger with plug, a plug adapter set and the fixed outlet elbow. Before first use, charge the battery using the supplied charger; the pump is then ready for immediate use.Protection rating and operating environmentThe IP 20 protection rating indicates that the pump is designed for indoor use, without any special protection against water jets or dust from outside. This is sufficient for use in warehouses and laboratories with a normal indoor environment.Typical applicationsDecanting and transferring small quantities of acids, alkalis, chemicals and cleaning agentsMobile use at different workstations without a nearby power socketRegular filling of containers with narrow openingsSmall quantities in laboratory settingsTechnical detailsPump typeCentrifugal pumpDrive typeElectric (battery-powered)Flow rate0 to 12 l/minHead approx.4 m water columnViscosity up to approx.200 mPa·sImmersion tube diameter25 mm, infinitely adjustableFor openings from25 mmConnection typeDrum adapterOutlet typeOutlet elbow, 203 mm, 16 mm external diameterBattery charging time approx.4 hoursPlugEU, UKDegree of protectionIP 20Materials (in contact with the medium)Polypropylene (PP), polytetrafluoroethylene (PTFE), Hastelloy 2.4610ColourgreyOverview of variantsItem numberMax. immersion depthFor containers up to5900-105050 cmapprox. 30 litres5900-107070 cmapprox. 60 litres5900-1100100 cmapprox. 220 litresScope of deliveryPump unitDriveBatteryCharger with plugPlug adapterFixed outlet elbowRegulatory informationThe AccuOne is an electrical appliance within the meaning of the ElektroG. Information on returning old appliances can be found under ‘Environment and Disposal’. The lithium-ion battery must not be disposed of with household waste and must be disposed of separately when returning the appliance.Service and procurementThe appropriate immersion depth depends on the height of the container at the specific location. We order all three models individually and, if required, can also recommend the mains-powered EnergyOne or, for higher flow rates, the mains-powered laboratory pump as an alternative. If you have any queries regarding the appropriate pump for your specific medium, please contact us for assistance.
Bürkle, gas-tight V2A drum pump with hose, depth 91 cm, #5611-0090
It is difficult to transfer outgassing or strong-smelling media using an open drum pump without odours or vapours escaping. The V2A gas-tight drum pump returns the displaced vapours to the original container via a gas recirculation system using the gas balancing method, rather than releasing them into the workspace. The pump body is made of V2A stainless steel and PTFE; two immersion depths of 57 and 91 centimetres cater for drums up to 220 litres.Gas recirculation using the gas balancing methodWhen filling the receiving vessel, the inflowing liquid displaces air and vapours from the container. The Gas-Tight V2A Drum Pump returns these vapours to the original container via a gas balancing line, rather than releasing them into the surrounding environment. This reduces workplace exposure to solvent vapours and protects against odour nuisance in the case of strong-smelling media.Two ball valves for a tightly sealed systemA shut-off system comprising two ball valves seals the flow paths tightly when the pump is not in operation. In combination with the universal adapter, which fits container openings from 16 to 49 millimetres, the system can be connected to various types of drums and canisters without vapours escaping from the connection.V2A stainless steel instead of plasticWhilst the structurally identical ‘Gasdicht’ drum pump in PP design is sufficient for media compatible with plastic, the V2A version made of 1.4301 stainless steel with PTFE internal parts offers greater mechanical robustness and is also suitable for media that would corrode plastic. However, Bürkle expressly warns against using the pump with acetone or similarly dehydrating solvents.Safety and earthingWhen handling flammable or highly flammable liquids, according to Bürkle, the explosion protection guidelines must be observed; all parts must be earthed and an anti-static kit must also be used. The immersion depth can be continuously adjusted to the actual drum depth for both sizes.Two sizes for different drumsThe 57-centimetre version is designed for smaller drums up to approximately 60 litres and delivers around 330 millilitres per stroke. The 91-centimetre version is suitable for standard 220-litre drums and delivers significantly more per pump stroke, around 540 millilitres, because the longer dip tube covers a greater distance. The same universal adapter is used for both sizes, so changing the drum size does not require an additional adapter.Differences compared to the open drum pumps in the rangeMost other drum pumps in the range, such as the Ultrarein PTFE drum pump, release vapours into the surrounding environment during dispensing, which is not a problem for odourless or non-critical media. Only when odour nuisance, health and safety or emission regulations come into play is the additional cost of a gas-tight system with gas recirculation justified. For media where neither vapour recirculation nor stainless steel is required, a simpler design is often sufficient.Maintenance of ball valves and sealsThe two ball valves and the seals on the adapter connections are the points where a gas-tight system is most likely to fail. Regular checks for leaks, particularly after switching between different container openings, keep the gas recirculation system reliably functional and prevent vapours from escaping unnoticed into the environment.Typical applicationsDecanting outgassing or strong-smelling media in laboratories, production facilities and warehousesBusinesses prioritising emission control and health and safety at the decanting stationConnection to various container openings ranging from 16 to 49 millimetresDecanting from smaller and larger drums, depending on the selected immersion depthTechnical detailsConnection typeDrum screw connectionThreadG 2 inches, external threadViscosity up to approx.500 mPa·sImmersion tube diameter32 mmColoursilverOuter outlet diameter15 mmLength of outlet hose1 mOutlet typeOutlet hoseFor openings16 to 49 mm (universal adapter)Drive typemanually operatedPump typeReciprocating piston pumpSpecial featuresGas recirculation via gas balancing line, 2 ball valvesMaterialV2A stainless steel (1.4301), polytetrafluoroethylene (PTFE)Overview of variantsItem numberMax. immersion depthFlow rate approx.For containers up to5611-109057 cm330 ml/strokeapprox. 60 l5611-009091 cm540 ml/strokeapprox. 220 lScope of deliveryGas-tight stainless steel drum pump with outlet hose at the selected immersion depthService and procurementIf a plastic-compatible medium is sufficient, the gas-tight PP drum pump is the lighter and more cost-effective alternative, operating on the same principle. For high-purity media without gas recirculation, the Ultrarein PTFE drum pump is more suitable. We order both immersion depths individually and can advise on the selection based on the drum size and the medium to be transferred.
Bürkle, Ultrarein PTFE drum pump with spout, 40 cm, #5606-0400
Acids, alkalis and other media that corrode polypropylene or PVC require a pump made from an even more resistant material. The Ultrarein PTFE drum pump with outlet elbow is a hand-operated reciprocating piston pump whose parts in contact with the medium are made of PTFE and FEP; it is highly chemically resistant and also suitable for high-purity liquids. Three immersion depths ranging from 40 to 95 centimetres cater for canisters and drums up to 220 litres.PTFE and FEP materials for aggressive mediaAccording to Bürkle, PTFE and FEP resist almost all aggressive chemicals with the exception of elemental fluorine, even in applications where polypropylene or PVC would be corroded. This makes the pump a suitable option for acids and alkalis as well as for high-purity liquids in analytical applications, where metal or plastic abrasion from the pump could contaminate the sample.Hand-operated reciprocating piston pump without compressed air connectionUnlike the compressed-air-operated dispensing system for solvents, this drum pump does not require a compressor or gas cylinder. A single pump stroke of the handle is sufficient to deliver the medium through the 32-millimetre-thick immersion tube, at a rate of between 180 and 400 millilitres per stroke, depending on the size. This means the pump can also be used where there is no compressed air supply.Fixed outlet elbow for the workplaceThe 170-millimetre-long outlet elbow is rigidly mounted and is suitable for applications where the receiving vessel is positioned directly beneath the outlet. According to Bürkle, the shut-off tap is also made of PTFE. For those who wish to fill a vessel located further away using a flexible connection, the structurally identical drum pump with hose and shut-off valve offers a suitable alternative; here, an additional tap at the end of the hose also ensures drip-free shut-off after filling.Three immersion depths, three flow ratesThe shortest version, with a 40-centimetre immersion depth, is designed for canisters of up to approximately 30 litres and delivers around 180 millilitres per stroke. The medium size, with a 60-centimetre immersion depth, is suitable for containers of up to 60 litres, delivering approximately 270 millilitres per stroke. The longest version, with a 95-centimetre immersion depth, is suitable for standard 220-litre drums and delivers around 400 millilitres per stroke; the immersion tube can be infinitely adjusted to the drum depth on all three sizes.Equally suitable for analytical work and chemical handlingIn analytical applications, the most important consideration is that no metal or plastic abrasion enters the sample. In chemical dispensing, on the other hand, resistance to aggressive media over many filling cycles is key. The Ultrarein PTFE drum pump meets both requirements with the same PTFE/FEP pump body, eliminating the need to source different materials for different applications. Simply changing the size is sufficient to scale up from small laboratory containers to standard drums.Cleaning and reuseThe PTFE pump body can be flushed relatively easily between two different media, as the material itself absorbs hardly any residues. This is an advantage over pumps made of polypropylene or PVC, where some media remain on the surface and may continue to have an effect during the next use. Nevertheless, when switching between significantly different chemicals, it is advisable to use a separate pump for each type of medium to ensure that carry-over is completely ruled out.Typical applicationsFilling with acids and alkalis that would corrode polypropylene or PVCDecanting of high-purity liquids in analytical work and sample preparationUse at workstations without a compressed air supplyDecanting from small to large containers, depending on the selected immersion depthTechnical detailsImmersion tube diameter32 mmOuter outlet diameter12 mmLength of outlet elbow170 mmOutlet typeOutlet elbowViscosity up to approx.500 mPa·sColourwhiteDrive typemanually operatedPump typeReciprocating piston pumpAdjust immersion depthcontinuously adjustableMaterialPolytetrafluoroethylene (PTFE), Fluoroethylene-propylene (FEP)Overview of variantsItem numberMax. immersion depthFlow rate approx.For containers up to5606-040040 cm180 ml/strokeapprox. 30 l5606-060060 cm270 ml/strokeapprox. 60 l5606-100095 cm400 ml/strokeapprox. 220 lScope of deliveryUltrapure PTFE drum pump with outlet elbow at the selected immersion depthService and procurementFor corrosive media in larger quantities and with an electric drive, the drum pump for acids and alkalis is suitable for flow rates of up to 85 litres per minute. For media that outgas or have a strong odour, where vapours must also be contained, the gas-tight V2A drum pump is the more suitable choice. We order each immersion depth individually and advise on the selection based on the actual drum size and the medium to be transferred.

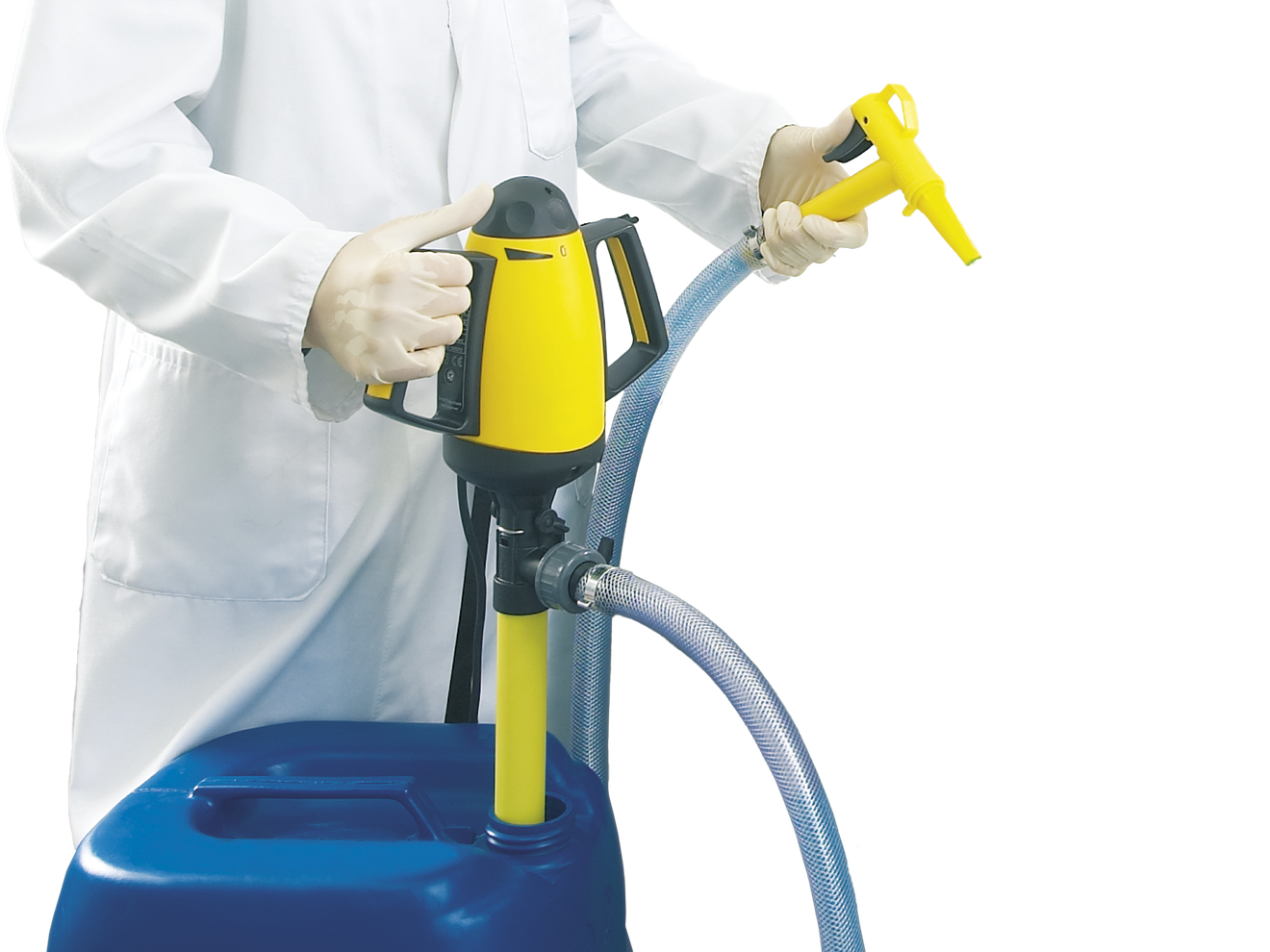

Bürkle, mains-powered laboratory pump, PP/PVC, 70 cm, 75 l/min, #5700-2200
Anyone who needs to quickly transfer an acid or alkali from a canister or drum without a seal in the pump coming into contact with the fluid requires a seal-less pump. The mains-powered laboratory pump is designed precisely for this purpose: an electric centrifugal pump made of PP/PVC that delivers aqueous media up to 300 mPa·s at a flow rate of around 75 l/min, whilst operating without a shaft seal.Seal-less pump unit for corrosive mediaIn conventional centrifugal pumps, the shaft seal is usually the weak point when pumping acids or alkalis. This laboratory pump does away with this seal entirely; the pump is therefore specifically designed for contact with acids and alkalis. The casing and impeller are made of polypropylene (PP) and polyvinyl chloride (PVC), two materials offering broad chemical resistance in everyday laboratory use.Flow rate and viscosity rangeWith a flow rate of around 75 l/min, the pump can quickly transfer even larger volumes from the container. The viscosity limit is approximately 300 mPa·s, which corresponds to the range of thin to moderately viscous aqueous liquids. The outlet hose is 1 m long; the immersion tube has a diameter of 32 mm and fits through container openings of 32 mm or larger.Two immersion depths for different containersThe shorter version, with a 70 cm immersion depth, is suitable for canisters and containers up to approximately 60 litres. For larger drums up to approximately 220 litres, the version with a 100 cm immersion depth is the suitable choice. Which variant is required depends on the height of the container at the workplace, regardless of its actual volume.Striking yellow, highly visibleThe pump is finished in high-visibility yellow. In a workplace with several decanting devices, this is a clear advantage: the laboratory pump can be distinguished from other pumping units at a glance, making it easier to avoid confusion when selecting the correct pump.Electric drive instead of a hand pumpCompared to a hand pump, the electric drive saves time and effort when handling larger quantities. Anyone who regularly decants several canisters or an entire drum does not have to pump manually several times, but simply starts the pump and monitors the fill level in the receiving container.Everyday use with acids and alkalisIn chemical stores or at decanting stations, a wide variety of media are frequently used. As the pump unit has no seals that could be corroded by aggressive substances, the pump remains functional even with frequent changes of medium, provided that PP and PVC are compatible with the respective medium.Set-up and operationThe immersion tube is inserted into the container, whilst the outlet hose directs the medium into the destination container. As the pump is designed for container openings from 32 mm, it also fits through the narrower openings of some canisters and drums without the need for an additional funnel or adapter.Power supply and locationAs the pump is connected to a mains socket, it is best suited to workstations with a fixed power supply near the canister or drum. If no mains power supply is available, a battery-powered or manual alternative is the more practical choice.Typical applicationsDecanting acids and alkalis from canisters and drumsFilling with aqueous media with a viscosity of up to 300 mPa·sChemical storage facilities and hazardous substance transfer stationsLaboratory workstations involving repeated transfer from narrow container openings from 32 mm upwardsTechnical detailsPump typeCentrifugal pump, seal-lessDrive typeElectricFlow rate approx.75 l/minViscosity up to approx.300 mPa·sImmersion tube diameter32 mmOutlet typeOutlet hoseLength of outlet hose1 mMaterialPolypropylene (PP), polyvinyl chloride (PVC)ColouryellowOverview of variantsItem numberMax. immersion depthFor containers up to5700-220070 cmapprox. 60 litres5700-4400100 cmapprox. 220 litresScope of deliveryMains-powered laboratory pump at the selected immersion depthRegulatory informationThe mains-powered laboratory pump is an electrical appliance within the meaning of the ElektroG. Information on the return of old appliances can be found under ‘Environment and Disposal’.Service and procurementBoth the 70 cm and 100 cm versions can be reordered individually if the same pump is required at additional workstations. The appropriate immersion depth depends on the height of the standard containers used at the workstation. Both versions are available individually and, if required, we can also recommend an alternative, such as the electric drum pump for acids and alkalis or the battery-powered AccuOne for smaller quantities. If you have any queries regarding the appropriate pump for your specific medium, please contact us for assistance.

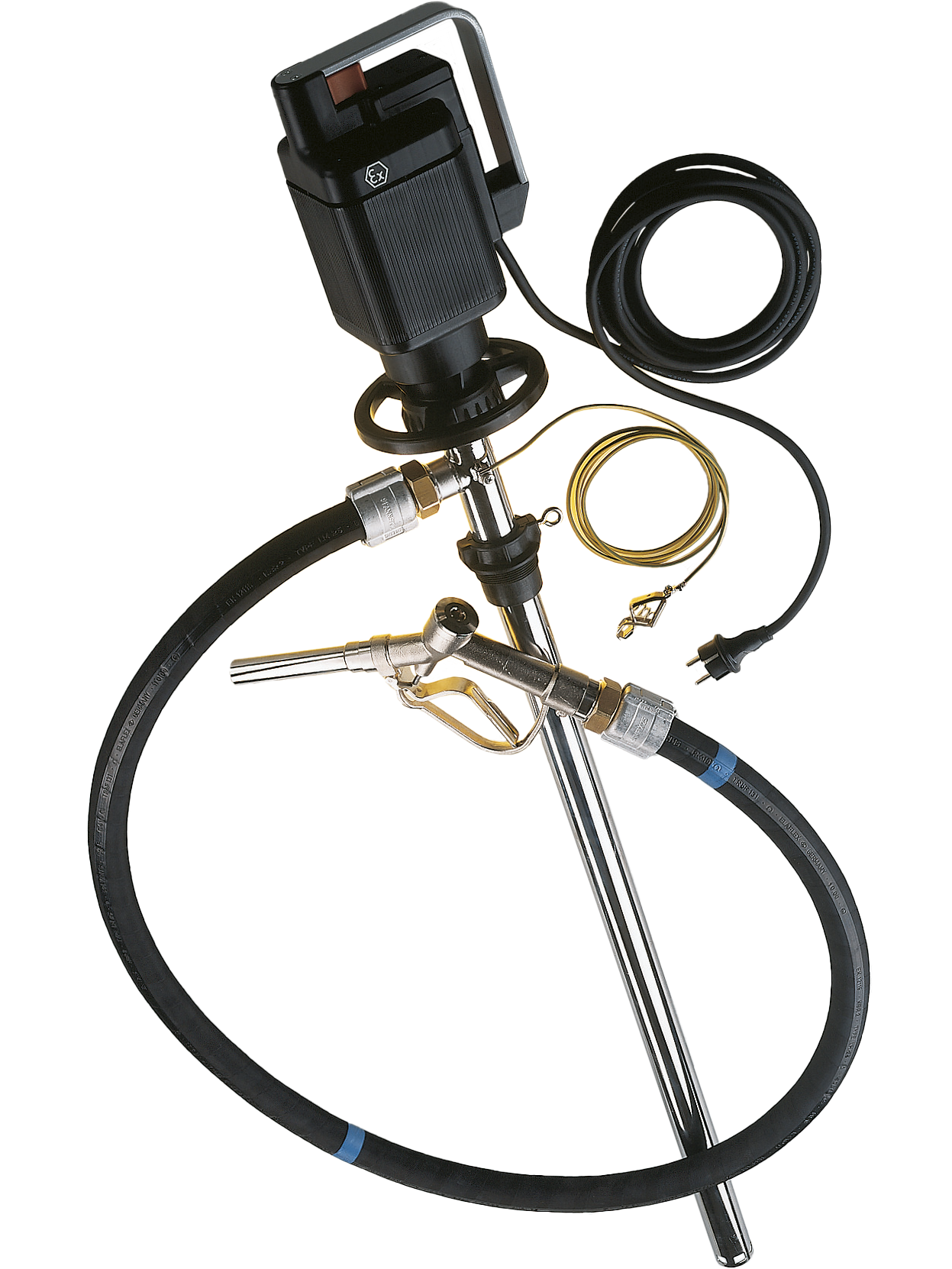

Bürkle Drum Pump for Solvents, Electric Centrifugal Pump, Brass/Stainless Steel, 5763-0301
Decanting large quantities of ethanol, petrol, methanol or isopropanol from a 220-litre drum using a hand pump is time-consuming and, in the case of highly flammable liquids, also raises safety concerns. The drum pump for solvents is an electrically powered centrifugal pump that delivers these fluids at a rate of around 95 l per minute; the scope of delivery includes an earthing cable, as electrostatic charging poses a real risk when handling flammable liquids.Electric centrifugal pump for highly flammable liquidsAn electric motor continuously drives the pump impeller, rather than building up excess pressure in pulses as with a hand pump. This is suitable for fluids such as ethanol, petrol, butanol, isopropanol, kerosene or methanol, which need to be moved in large quantities on a regular basis in workshops, laboratories or industrial settings, without each drum having to be pumped by hand for several minutes.For drums up to 220 l, infinitely adjustableThe 41-millimetre-diameter dip tube can be infinitely adjusted to the depth of the drum; at full immersion, it extends up to 100 centimetres into the drum. The 2-metre-long outlet hose provides reach and distance from the drum during filling, which, in the case of flammable liquids, also helps to minimise contact between the operator and the outlet. With a viscosity limit of up to 500 mPa·s, the pump is suitable for common low-viscosity solvents and fuels.Materials and chemical resistanceParts in contact with the medium are made of brass (MS), stainless steel 1.4301 (V2A) and polypropylene. Before use with a specific solvent, the chemical resistance of these materials to the respective medium should be checked, particularly in the case of aromatic or halogenated compounds, which can attack plastic parts more severely than pure alcohols. The black colour scheme visually distinguishes the pump from the yellow drum pump for mineral oils, making it easier to assign it to the correct medium in the warehouse or workshop.Safety when handling flammable liquidsAn earthing cable is included in the scope of delivery so that the pump is ready for immediate use. Bürkle also draws attention to the explosion protection guidelines when handling flammable, highly flammable liquids: all parts must be earthed; in addition, the manufacturer recommends an anti-static kit. The information provided is intended as guidance for safe operation.Regulatory informationThe drum pump for solvents is an electrical appliance within the meaning of the ElektroG. Information on the proper return of waste electrical and electronic equipment can be found under ‘Environment and Disposal’.If a different medium is used or no mains supply is availableFor mineral oil products that are not potentially explosive such as diesel or hydraulic oil, the structurally identical drum pump for mineral oils, made from aluminium and stainless steel, is the more suitable and specifically designed choice. For acids and alkalis, drum pumps made of PP, PVC, Hastelloy or PVDF are suitable, such as the drum pump for concentrated acids and alkalis. If no mains power supply is available, or if an electric drive is deliberately avoided in the Ex zone, the compressed-air-operated dispensing system for solvents with a discharge hose covers comparable drum sizes without the need for an electric motor.Typical applicationsFilling highly flammable liquids such as ethanol, petrol or methanolDecanting isopropanol, butanol or kerosene from 220-litre drumsBusinesses with regular, high-volume solvent handlingApplications where a hand pump is no longer sufficient to achieve the required flow rateWorkstations with a permanently installed power supply and existing earthingLaboratory supply and chemical storage facilities with regular drum handlingTechnical detailsMaterialBrass (MS), stainless steel 1.4301 (V2A), polypropylene (PP)Drive typeElectricPump typeCentrifugal pumpConnection typeDrum screw fittingFlow rate approx.95 l/minViscosity up to approx.500 mPa·sImmersion tube diameter41 mmImmersion depth adjustmentcontinuously adjustableMax. immersion depth100 cmLength of outlet hose2 mSpout typeOutlet hoseColourblackSpecial featuresIncludes earthing cableFor containers up toapprox. 220 lScope of deliveryDrum pump for solvents, including earthing cableService and procurementFor businesses that transfer not only solvents but also mineral oils or acids, we put together the suitable combination of several drum pump variants, rather than having to enquire about each pump individually. If you have any questions regarding material compatibility for a specific solvent, explosion protection or spare parts such as earthing cables or discharge hoses, please contact us directly for assistance.

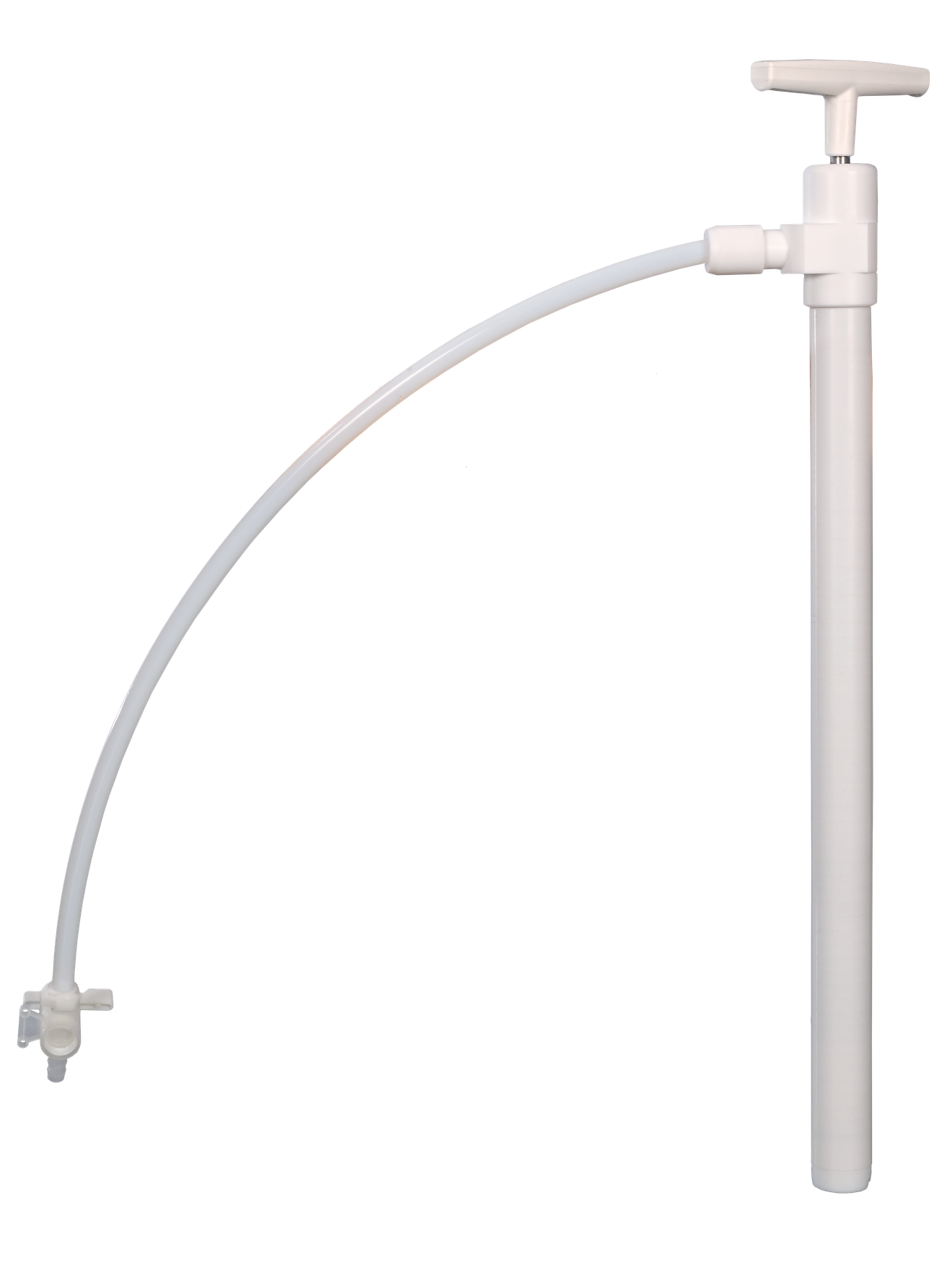

Bürkle, Ultrarein PTFE drum pump with hose & tap, 40 cm, #5606-0401
Anyone wishing to transfer a corrosive acid or a high-purity liquid not directly beneath the drum but into a vessel situated further away or at a lower level will need room to manoeuvre at the outlet. The Ultrarein PTFE drum pump with hose and tap is the flexible counterpart to the drum pump with fixed outlet elbow, identical in construction with a pump body made of PTFE and FEP, but with a flexible outlet hose and a PVDF shut-off valve at the end.A flexible hose instead of a rigid elbowThe PTFE discharge hose feeds the medium to the desired point regardless of the position of the drum; depending on the size, the length ranges from around 60 centimetres to 1.2 metres. This also allows containers to be filled that are not positioned directly beneath the pump, such as on a set of scales next to the drum or on a second shelf.PVDF shut-off valve to prevent drippingA shut-off valve made of solid PVDF is fitted at the end of the hose. It prevents the fluid from continuing to drip after the valve has been closed and contains vapours that are hazardous to health whilst the valve remains closed. This makes it easier to fill several smaller containers in batches without having to put the pump down in between.PTFE, FEP and PVDF materials for corrosive mediaLike the outlet elbow version, the pump body is made of PTFE and FEP, which are chemically resistant to almost all corrosive liquids except elemental fluorine. The additional shut-off valve made of PVDF adds a third highly resistant fluoroplastic to the list of materials, without compromising the system’s fundamental suitability for acids, alkalis and high-purity media.Three immersion depths for different containersThe shortest version, with an immersion depth of 40 centimetres, is suitable for canisters of up to around 30 litres and delivers approximately 180 millilitres per stroke. The medium size, at 60 centimetres, is suitable for containers up to 60 litres, whilst the longest version, at 95 centimetres, is suitable for standard 220-litre drums, delivering around 400 millilitres per stroke. On the 60- and 95-centimetre versions, the outlet hose is 1.2 metres long.When the hose and tap make all the differenceWhether there is a gap between the drum and the receiving vessel, a shelf blocking direct access, or several smaller vessels to be filled one after the other: in all these cases, the extra effort involved in fitting a hose and tap is well worth it compared to the simpler design with a fixed outlet elbow. If, on the other hand, the receiving vessel is always in the same position directly beneath the drum, the more compact version without a movable hose is often sufficient.Three immersion depths for the same designAs with the outlet elbow version, the choice of immersion depth depends on the size of the drum at the workplace. The 40-centimetre version is suitable for canisters, the 60-centimetre version for medium-sized drums, and the 95-centimetre version for standard 220-litre drums. The flow rate and dip tube diameter are identical for both outlet types at each immersion depth; the only difference lies in the outlet.Typical applicationsFilling acids and alkalis into a vessel situated at a distance or at a lower levelDecanting high-purity liquids in small batches using a shut-off tap to prevent drippingWorkstations where the receiving vessel cannot be positioned directly beneath the pumpDecanting from small to large containers, depending on the selected immersion depthTechnical detailsImmersion tube diameter32 mmOuter diameter of outlet10 mmOutlet typeOutlet hose with shut-off valveViscosity up to approx.500 mPa·sColourwhiteDrive typemanually operatedPump typeReciprocating piston pumpAdjust the immersion depthcontinuously adjustableMaterialPolytetrafluoroethylene (PTFE), fluorinated ethylene propylene (FEP), shut-off valve made of polyvinylidene fluoride (PVDF)Overview of variantsItem numberMaximum immersion depthFlow rate approx.For containers up to5606-040140 cm180 ml per strokeapprox. 30 l5606-060160 cm270 ml per strokeapprox. 60 l5606-100195 cm400 ml per strokeapprox. 220 lThe length of the outlet hose is 1.2 metres for both the 60-cm and 95-cm versions. For the 40-cm version, Bürkle gives approximately 60 to 65 centimetres (not included in the table).Scope of deliveryUltrapure PTFE drum pump with outlet hose and shut-off valve at the selected immersion depthService and procurementIf the workplace does not require a flexible hose, the identical version with a fixed outlet elbow is the simpler and slightly more compact choice. For larger volumes with an electric drive, the drum pump for acids and alkalis is more suitable. We order each immersion depth individually and advise on the selection based on the drum size and the medium.

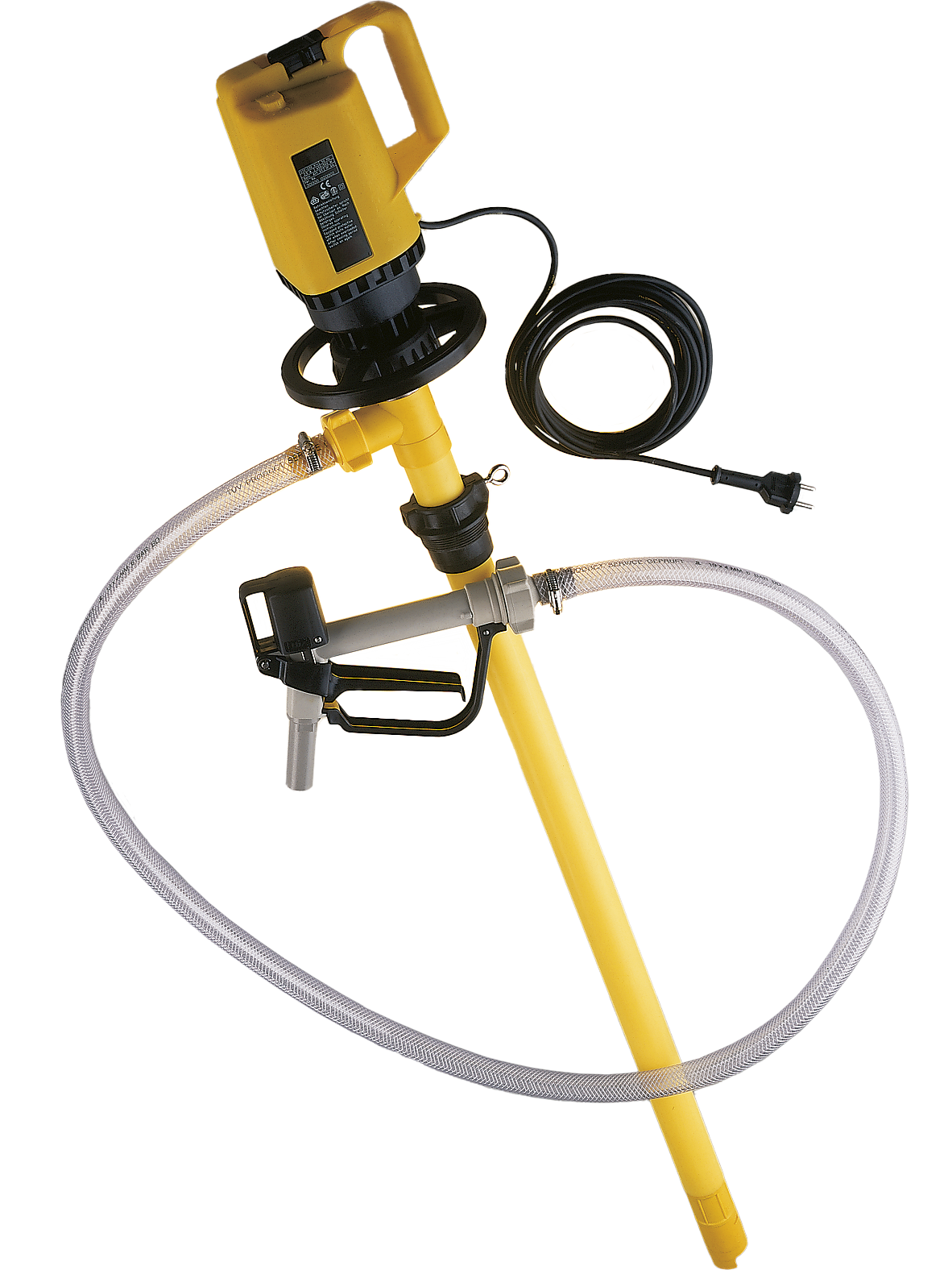

Bürkle, drum pump for acids and alkalis, 100 cm, 85 l/min, #5762-0100
Pumping large quantities of low-viscosity acid from a drum using a hand pump is, at some point, simply a matter of time. The drum pump for acids and alkalis is an electrically driven centrifugal pump made of polypropylene, PVC and Hastelloy C-4, which delivers up to 85 litres per minute. Two immersion depths, 100 and 120 centimetres, are suitable for standard drums of up to 220 litres.An electric centrifugal pump instead of manual labourInstead of one pump stroke per portion, an electric motor drives the centrifugal pump continuously. With a flow rate of around 85 litres per minute and a head of approximately 19 metres of water column, the pump is designed for larger transfer volumes, where a hand-operated pump such as the Ultrarein PTFE drum pump would reach its limits. The 2-metre-long outlet hose provides additional manoeuvring space at the receiving vessel.Materials for low-viscosity acidsThe pump body is made of polypropylene and PVC, whilst the internal parts in contact with the fluid are made of Hastelloy C-4 (2.4610). Bürkle lists phosphoric acid, chromic acid, battery acid and citric acid as typical media for use. The pump is expressly not suitable for hydrochloric acid, and chemical resistance should be checked against the manufacturer’s resistance list before use.Two immersion depths for standard drumsThe 100-centimetre version and the 120-centimetre version differ solely in terms of immersion depth; all other technical specifications, such as flow rate, immersion tube diameter and hose length, are identical for both. The immersion tube can be adjusted continuously to the actual depth of the drum.Differences from the version for concentrated acidsFor highly corrosive media such as concentrated sulphuric acid, nitric acid or hydrofluoric acid, the PP pump body in this design is not chemically suitable. For such applications, there is the structurally identical drum pump for concentrated acids and alkalis with a pump body made of PVDF.G 1 1/4-inch thread instead of the usual G 2-inchUnlike most other drum pumps in the range, which fit standard drum fittings with a G 2-inch thread, this series uses a G 1 1/4-inch thread. Before ordering, it is therefore worth checking the existing drum fitting at your workplace so that the pump will fit without the need for an additional adapter.Check the resistance list before useAcids with similar names can vary considerably in terms of concentration and temperature, and it is precisely these factors that determine whether polypropylene, PVC and Hastelloy C-4 remain resistant in the long term. Bürkle therefore expressly refers to its own resistance list, which should be consulted before using a new medium for the first time. This is particularly important if an acid has previously only been transferred using a different pump model.Yellow colour scheme for quick identificationThe pump’s yellow colour makes it stand out clearly on the shelf from the stainless steel and PTFE drum pumps in the other series. In workplaces where several types of drum pumps are used simultaneously, this makes it easy to distinguish at a glance between the correct pump for acids and alkalis and those designed for solvents or gas-tight applications.Electric drive instead of a pump strokeWhilst a hand-operated reciprocating pump will eventually run out of steam when dealing with larger volumes, the electric motor of the centrifugal pump runs continuously for as long as the drum supplies medium. This makes the pump the more practical choice when regularly decanting several drums in succession, rather than single small portions.Typical applicationsPumping low-viscosity acids such as phosphoric acid, chromic acid or battery acidLarger transfer volumes from standard drums of up to 220 litresLaboratory areas and production facilities where acids are regularly handledDecanting citric acid and other low-viscosity organic acidsTechnical detailsConnection typeDrum screw connectionThreadG 1 1/4 inch, external threadFlow rate approx.85 l/minHead approx.19 m water columnViscosity up to approx.500 mPa·sImmersion tube diameter41 mmColouryellowLength of the outlet hose2 mFor containers up toapprox. 220 lDrive typeelectricPump typeCentrifugal pumpAdjust the immersion depthcontinuously adjustableMaterialPolypropylene (PP), polyvinyl chloride (PVC), Hastelloy C-4 (2.4610)Overview of variantsItem numberMaximum immersion depth5762-0100100 cm5762-0101120 cmScope of deliveryDrum pump for acids and alkalis at the selected immersion depthRegulatory informationThe drum pump for acids and alkalis is an electrical appliance within the meaning of the ElektroG. Information on returns can be found under ‘Environment and Disposal’.Service and procurementIf a hand-operated solution is sufficient for smaller quantities, the Ultrarein PTFE drum pump is the more compact alternative that does not require a mains connection. For highly corrosive, concentrated acids and alkalis, the PVDF version is chemically more suitable. We order both immersion depths separately and can advise on the selection based on the medium and drum size.

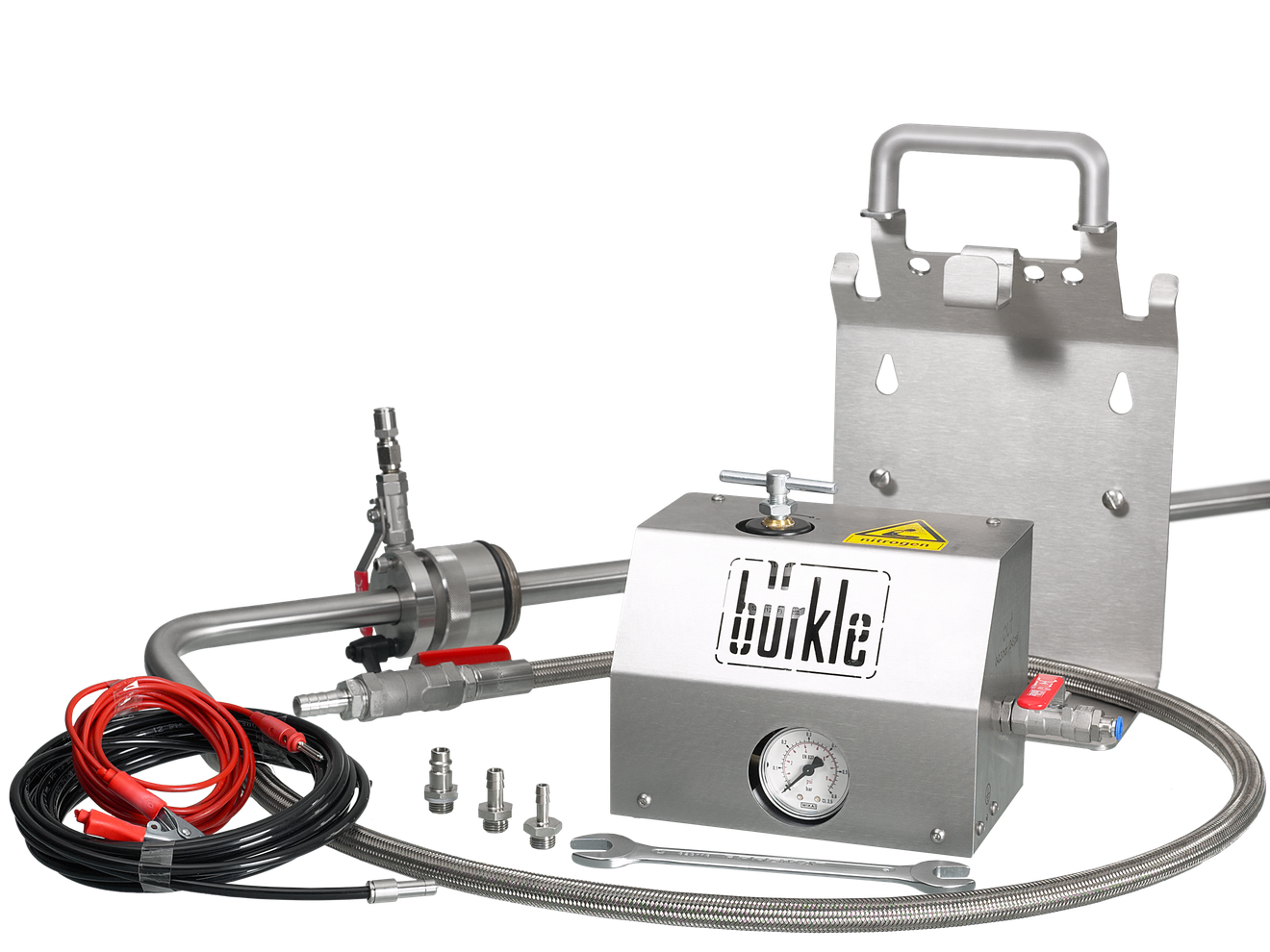

Bürkle dispensing system for solvents with outlet hose, compressed-air operated, for drums up to 220 L, 5603-5004
Anyone who regularly fills containers from 220-litre drums will eventually reach the limits of their physical strength when using a hand or foot pump. The solvent dispensing system with a discharge hose replaces manual labour with compressed air or an inert gas such as nitrogen, and provides a complete system including a pressure regulator, transport stand and accessories, rather than just a single pump.Compressed air or inert gas instead of muscle powerThe pressure control unit builds up the delivery pressure in the drum in a controlled manner; the solvent then rises through the dip tube to the outlet hose. As there is no longer any need to tread or pump, the flow rate of around 10 litres per minute remains constant throughout the entire filling process, regardless of how many drums are emptied in a day. The system is therefore particularly suitable for businesses with a high, recurring volume of filling work.Flexible discharge hose for various types of containersThe 1-metre-long discharge hose, with an external diameter of 13 millimetres, can be freely positioned and thus adapts to different target containers without the need to reposition the drum itself. The dip tube, with a diameter of 21 millimetres, can be continuously adjusted to the depth of the drum; when fully submerged, it extends up to 95 centimetres into the drum. For containers with a G2-inch external thread and a viscosity of up to 500 mPa·s, the system is designed for container sizes of up to around 220 litres.Suitable for use with UN drums with a test pressure of 150 kPa or moreThe system is suitable for use with UN containers and drums with a test pressure of at least 150 kPa. This specification is relevant when setting up the pressure-regulating unit, as the delivery pressure must remain within the pressure resistance limit of the respective container. For a wide range of media, including high-purity liquids, operation is possible using either compressed air or an inert gas such as nitrogen.Materials and safety when handling flammable liquidsParts in contact with the medium are made primarily of 1.4301 (V2A) stainless steel, supplemented with PTFE. Bürkle expressly points out that the pump and pressure regulator must be earthed; the pump must also be fitted with an anti-static kit. The information provided consists of general recommendations for safe operation with flammable liquids.A complete system rather than a single pumpThe scope of delivery includes more than just the pump: a pressure regulator unit, a transport stand, two protective plugs, an earthing cable for the pressure regulator unit, a connecting hose, a key for the pressure supply and three adaptors for the pressure supply with a G1/4-inch connection. This reduces the effort involved in setting up the system for the first time, as it is not necessary to procure each individual part separately to make the system operational.If a fixed outlet elbow or another type of drive is requiredIf the solvent is to be dispensed via a fixed, non-flexible spout, the identically constructed solvent dispensing system with outlet elbow is the suitable variant, which is also available there in a shorter version for 60-litre containers. If compressed air is not available on site, the mechanical foot-operated solvent pump with outlet hose covers the same immersion depth range. For particularly aggressive or high-purity media, for which stainless steel is not suitable, the Ultrapure PTFE drum pump with hose and tap made of PTFE and FEP is the more chemically resistant alternative.Typical applicationsFrequent, high-volume filling of solvents from 220-litre drumsSafe and accurate dispensing in laboratories and the chemical industryUN containers and drums with a test pressure of at least 150 kPaOperates using compressed air or an inert gas such as nitrogen for high-purity mediaTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typepneumaticPump typePositive pressure pumpConnection typeDrum screw fittingThreadG 2 inches, external threadFlow rate approx.10 l/minViscosity up to approx.500 mPa·sImmersion tube diameter21 mmSpout typeOutlet hoseLength of the outlet hose1 mOuter diameter of outlet13 mmMaximum immersion depth95 cmFor containers up toapprox. 220 litresScope of deliveryDispensing system for solvents with outlet hosePressure control unitTransport stand2x protective plugsEarthing cable for pressure regulator unitConnecting hoseKey for the pressure supply3x pressure supply adaptors (G 1/4 inch)Service and procurementBusinesses with larger facilities or multiple filling stations are welcome to discuss the configuration and accessories, such as compressed air adaptors or spare hoses, with us in advance, so that the system arrives ready for immediate use. A comparison with the fixed outlet elbow version or with mechanical alternatives without a compressed air connection is also available on request.

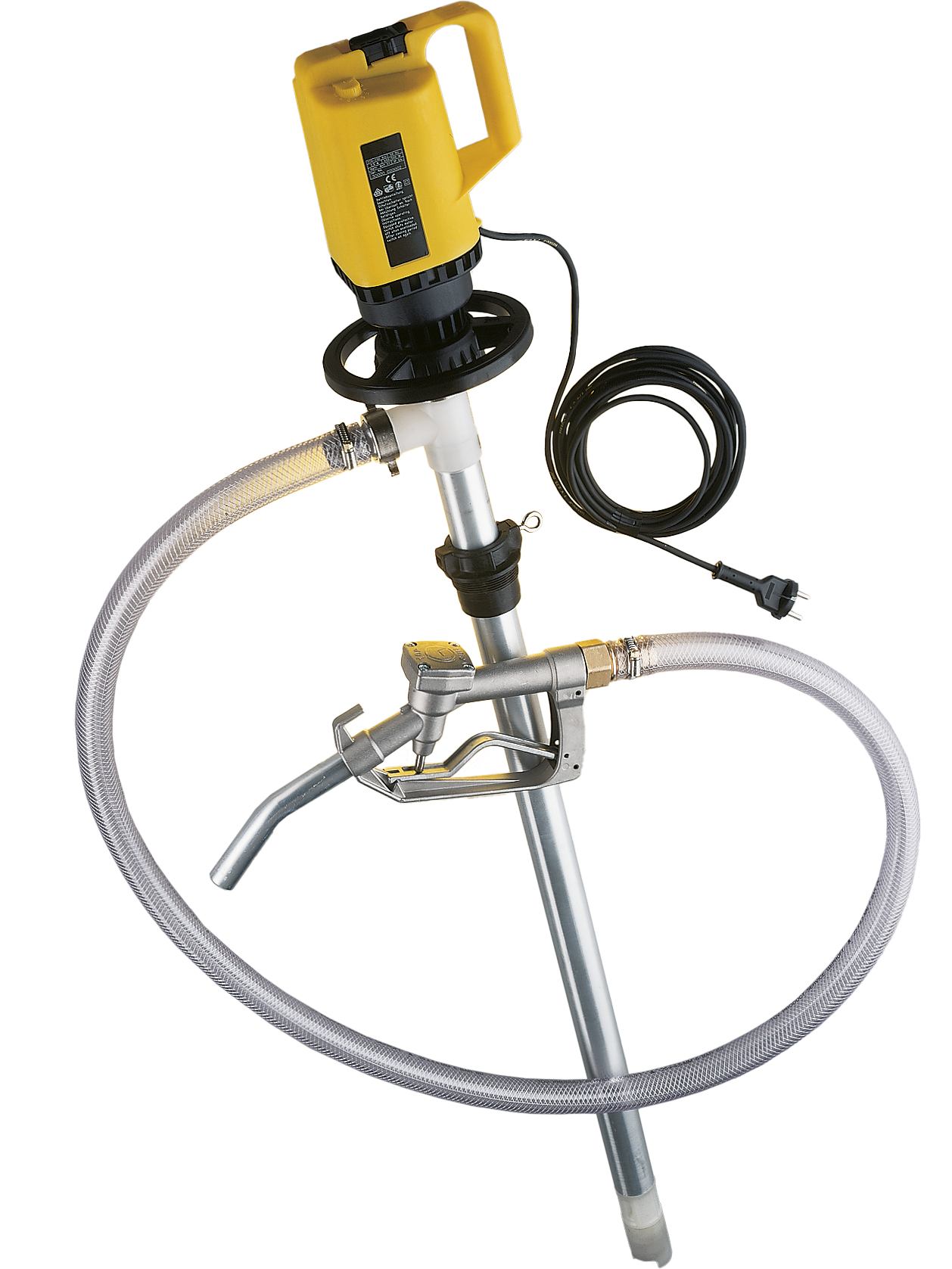

Bürkle Drum Pump for Mineral Oils, Electric Centrifugal Pump, Aluminium/Stainless Steel, 5763-0100
Using a hand pump to transfer diesel, heating oil, hydraulic oil or engine oil from a 220-litre drum takes quite a while. The drum pump for mineral oils is an electrically driven centrifugal pump and, at around 85 l per minute, delivers a significantly higher flow rate; it is designed for low-viscosity mineral oil products that are regularly handled in large quantities, such as in vehicle fleets, workshops or maintenance operations.Electric centrifugal pump for high flow ratesInstead of a pump ball or pedal, an electric motor drives the pump impeller; the oil is delivered continuously, rather than in strokes as with a reciprocating piston pump. With a delivery head of around 19 metres of water column, the pump’s capacity remains sufficient even if the receiving container is positioned at a higher level or the hose needs to be routed over a longer distance, for example to a higher-level collection tank.For drums up to 220 l, infinitely adjustableThe 41-millimetre-diameter immersion tube can be infinitely adjusted to the depth of the drum; at full immersion depth, it extends up to 100 centimetres into the drum. The 2-metre-long outlet hose provides the necessary distance and reach to the target container during filling, for example when a collection vessel is positioned slightly away from the drum. With a viscosity limit of up to 500 mPa·s, the pump covers common low-viscosity mineral oil products, from diesel to hydraulic oil.Materials for mineral oil productsThe pump is manufactured from aluminium and stainless steel 1.4571 (AISI 316Ti), supplemented by polypropylene. Before use with a specific medium, the chemical resistance of these materials to the relevant oil should be checked, particularly in the case of additives or blended products that differ from pure mineral oils. The yellow colour scheme also makes the pump instantly distinguishable from other drum pumps in a vehicle fleet or warehouse, which makes it easier to match it to the correct medium in day-to-day use.Continuous rather than reciprocating operationUnlike a reciprocating piston pump, which delivers liquid in batches with each stroke, the centrifugal pump runs continuously as long as the motor is switched on. This is particularly advantageous when several drums need to be emptied in succession, for example when filling larger storage tanks or refuelling machinery and vehicles directly from the drum, without having to interrupt the pumping action manually in between.Regulatory informationThe drum pump for mineral oils is an electrical appliance within the meaning of the ElektroG. Information on the proper return of waste electrical and electronic equipment can be found under ‘Environment and Disposal’.If a different medium or drive type is requiredFor highly flammable liquids such as ethanol, petrol or methanol, the drum pump for solvents with earthing cable and explosion protection notes is the more suitable choice, as this drum pump for mineral oils is not designed for handling potentially explosive media. For acids and alkalis, drum pumps made of PP, PVC, Hastelloy or PVDF are suitable alternatives, such as the drum pump for acids and alkalis. If no mains power supply is available, the compressed-air-powered dispensing system for solvents with a discharge hose can handle comparable drum sizes without an electric drive.Typical applicationsFilling with diesel, heating oil and hydraulic oil from 220-litre drumsDecanting machine and engine oil in workshops and vehicle fleetsBusinesses with regular, high-volume oil handlingApplications where a hand pump is no longer sufficient to achieve the required flow rateRefuelling machinery and vehicles directly from the storage drumTransfer stations with a permanently installed power supplyTechnical detailsMaterialAluminium, stainless steel 1.4571 (AISI 316Ti), polypropylene (PP)Drive typeElectricPump typeCentrifugal pumpConnection typeDrum screw fitting, external threadFlow rate approx.85 l/minHead approx.19 m H₂OViscosity up to approx.500 mPa·sImmersion tube diameter41 mmAdjust immersion depthcontinuously adjustableMax. immersion depth100 cmLength of outlet hose2 mSpout typeOutlet hoseColouryellowFor containers up toapprox. 220 lScope of deliveryDrum pump for mineral oilsService and procurementFor businesses that transfer solvents or acids as well as mineral oils, we put together the suitable combination of several drum pump variants, rather than you having to enquire about each pump individually. If you have any questions regarding material compatibility for a specific oil or spare parts, please contact us directly for assistance.

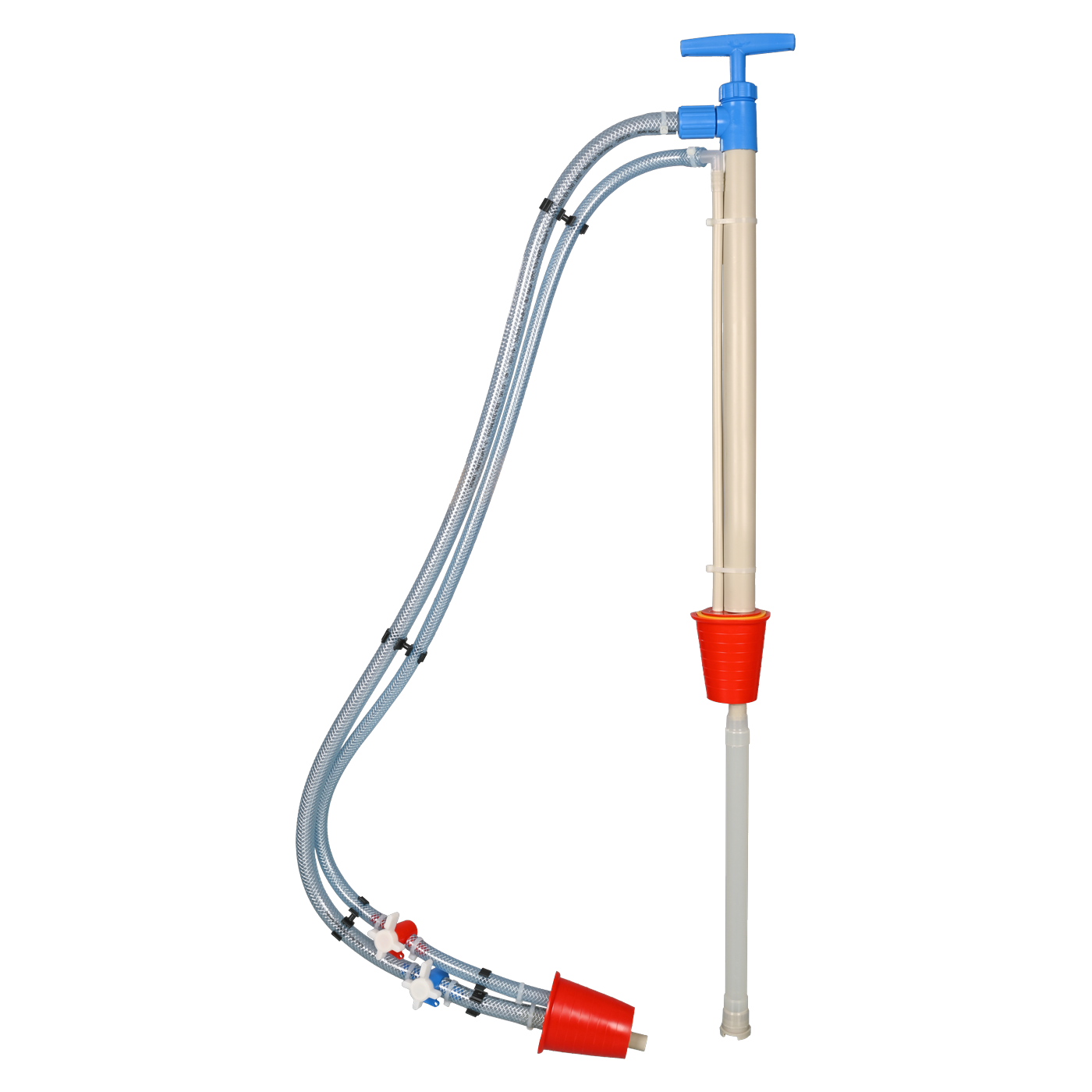

Bürkle Gas-tight PP Drum Pump, Universal Plug 34 to 70 mm, Telescopic Dip Tube 40 to 67 cm, 5610-1030
The Bürkle gas-tight PP drum pump, reference number 5610-1030, is a hand-operated reciprocating piston pump designed for decanting from drums or canisters. It connects to the container via a variable universal plug that fits openings ranging from 34 to 70 mm. A gas balancing line returns the gas phase; both lines are fitted with a shut-off valve. The pump delivers 220 ml per stroke and, via a telescopic tube, extends 40 to 67 cm into the container.Universal stopper for openings from 34 to 70 mmThis version is the choice for containers with openings of varying widths. The stopper fits variably into openings ranging from 34 to 70 mm. If you require a securely screwed hose connection on the container, compare this with the 5610-1040 drum pump, which features 3/4-inch threaded adaptors.Gas balancing method for low-odour transferIn the gas-balancing method, the displaced gas returns via a separate line, which, like the liquid line, is fitted with a shut-off valve. The pump is designed for the low-odour transfer of volatile, strong-smelling or harmful liquids in laboratories, production facilities and warehouses. One example of a strong-smelling substance is ammonia. Acids and alkalis can also be transferred, although the compatibility of the materials PP, PE and PVC with the medium must be taken into account. The outlet hose is made of soft PVC and is 1.2 m long.Stroke, tube and immersion depthEach stroke dispenses 220 ml. The tube has a diameter of 22 mm, whilst the immersion tube is 32 mm in diameter. The immersion depth can be adjusted continuously between 40 and 67 cm, allowing the length to be adapted to the container. The piston has a handle.Flammable liquids are excludedThe operating instructions exclude the transfer of flammable liquids; the pump is not suitable for this purpose. The material is non-conductive. The Bürkle SafetyBox 2507-9000, complete with safety goggles and protective gloves, goes with this pump.Operation and installationThe pump is operated manually and is not intended for continuous use. It may be operated at temperatures between 0 and 40 °C and only indoors; it is not dishwasher-safe and is not intended for use with contaminated media. There must be space above the container for the extended piston plus 20 cm. The pump is maintenance-free.Typical applicationsDecanting volatile, strong-smelling or harmful liquids in the laboratoryFilling strong-smelling substances such as ammoniaDecanting acids and alkalis from drums and canistersFilling in production and storage into containers with openings ranging from 34 to 70 mmTechnical detailsConnection optionsAdjustable universal stopper for container openings from 34 to 70 mmPump typeReciprocating piston pump, manually operated, not suitable for continuous useFlow rate220 ml/strokeTube diameter22 mmImmersion tube diameter32 mmImmersion depth40 to 67 cm, infinitely adjustableOutlet1.2 m outlet hose with shut-off valveGas returnGas balancing line, gas and liquid lines, each with a shut-off valveMaterialsPP, PE, PVCColourgrey/blueOperating temperature0 to 40 °CLimitationsNot suitable for flammable liquids, for indoor use only, not suitable for contaminated media, not dishwasher-safePackaging unit1 pieceScope of deliveryGas-tight PP drum pump with infinitely extendable telescopic dip tube (40 to 67 cm) and reciprocating piston with handle1.2 m outlet hose with shut-off valveGas balancing line with shut-off valvePlug for the original containerUniversal adapter (adjustable plug) for the dispensing containerInstructions for useFrequently asked questionsMay I transfer flammable liquids? No. The operating instructions exclude flammable liquids.How much does the pump deliver per stroke?220 ml per stroke. The dip tube can be extended continuously from 40 to 67 cm.Is the pump suitable for continuous operation?No. It is hand-operated and not designed for continuous use.What is the difference between the 5610-1030 and the 5610-1040?The 1030 has a variable universal plug for openings from 34 to 70 mm. The 1040 has two 3/4-inch threaded adaptors with lock nuts for a securely screwed hose connection.Individual requirements and procurement serviceIn addition to the pump, the Bürkle SafetyBox 2507-9000 is available, complete with safety goggles and protective gloves. Please enquire via our procurement service about drum fittings and other accessories from the Bürkle range, for example for alternative connection types. For containers with an opening outside the range of 34 to 70 mm, we will clarify a suitable solution with you.
