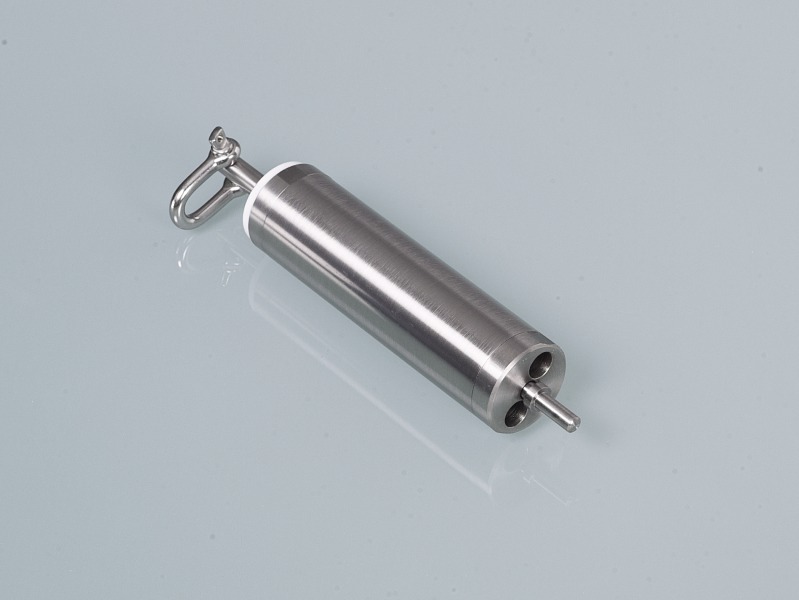

Bürkle, mini immersion bomb, V2A, 50 ml, HxØ 180x32 mm, 0.33 kg, #5365-5000

For sampling liquids in hard-to-reach, confined spaces. Can also be used in curved sounding pipes or drums with narrow openings. Immersion containers are used in a wide variety of sectors to collect liquids for sampling. Bürkle produces by far the most comprehensive range of immersion containers – the right product for every application, so to speak.

Bürkle offers immersion bottles and immersion bombs for sediments, for environmental applications, for chemically aggressive products, for the petrochemical industry, for explosion-proof applications and much more. The immersion bottles for explosion-proof applications are made of nickel-plated brass, which prevents them from oxidising.

Submersible containers can be used for spot samples, full-depth samples and soil samples.

Submersion containers are heavy. Special hand-operated rope reels with large winding diameters are required for lowering them. Other rope reels place a heavy strain on the user’s wrists and can lead to health problems. Lowering ropes and chains in a wide variety of materials, as well as hand-operated rope reels – including those for explosion-protected areas – are available as accessories.

Diameter: just 32 mm

Weight 330 g

V2A stainless steel (1.4301)

Removable top section allows for easy cleaning

Tested for use in Ex protection zone 0, explosion groups IIA and IIB

Please order the required sampling cable separately.

When sampling flammable, highly flammable liquids, the explosion protection guidelines must be observed. Only electrically conductive lowering cables made from non-sparking materials and electrically conductive hand-reel cables (with earth connection) may be used.

Sterility: No
