Bürkle PharmaPicker Case, complete set, V4A stainless steel, 0.1 to 2.5 ml, 5346-0010

An active ingredient powder, measured in milligrams, cannot be sampled using a standard scoop; every excess millilitre costs money or alters the analysis result. Bürkle’s PharmaPicker system covers precisely this range: sample volumes from 0.1 to 2.5 millilitres, taken using a set of tools from a carrying case, fully equipped for immediate use.

Two collection cylinders for two volume ranges

At the heart of the system are two interchangeable collection cylinders: one for 0.1 to 1.2 millilitres, and one for 1.25 to 2.5 millilitres. Each collection cylinder is attached to the handle and adjusted to the required sample volume using the appropriate volumetric tips. The case contains ten volumetric tips ranging from 0.4 to 2.5 millilitres, allowing the sample volume to be fine-tuned to the specific powder in small increments, without having to order a different device for each batch. Which of the two collection cylinders is fitted at any given time depends solely on the required sample volume, not on the type of powder.

From 60 centimetres up to 2.10 metres

In its standard configuration, the PharmaPicker measures 60 centimetres. Two extension rods, 50 and 100 centimetres long, can be inserted individually or together between the handle and the collection cylinder, extending the tool to 2.10 metres. For the PharmaPicker system, Bürkle states a maximum length of 3.50 metres, which can only be reached with further extension rods that are not part of the scope of delivery of the case. This covers both reaching into a small laboratory container and taking samples from a tall IBC, without the need for two separate devices. The appropriate length can therefore be assembled before each sampling to suit the depth of the container in question.

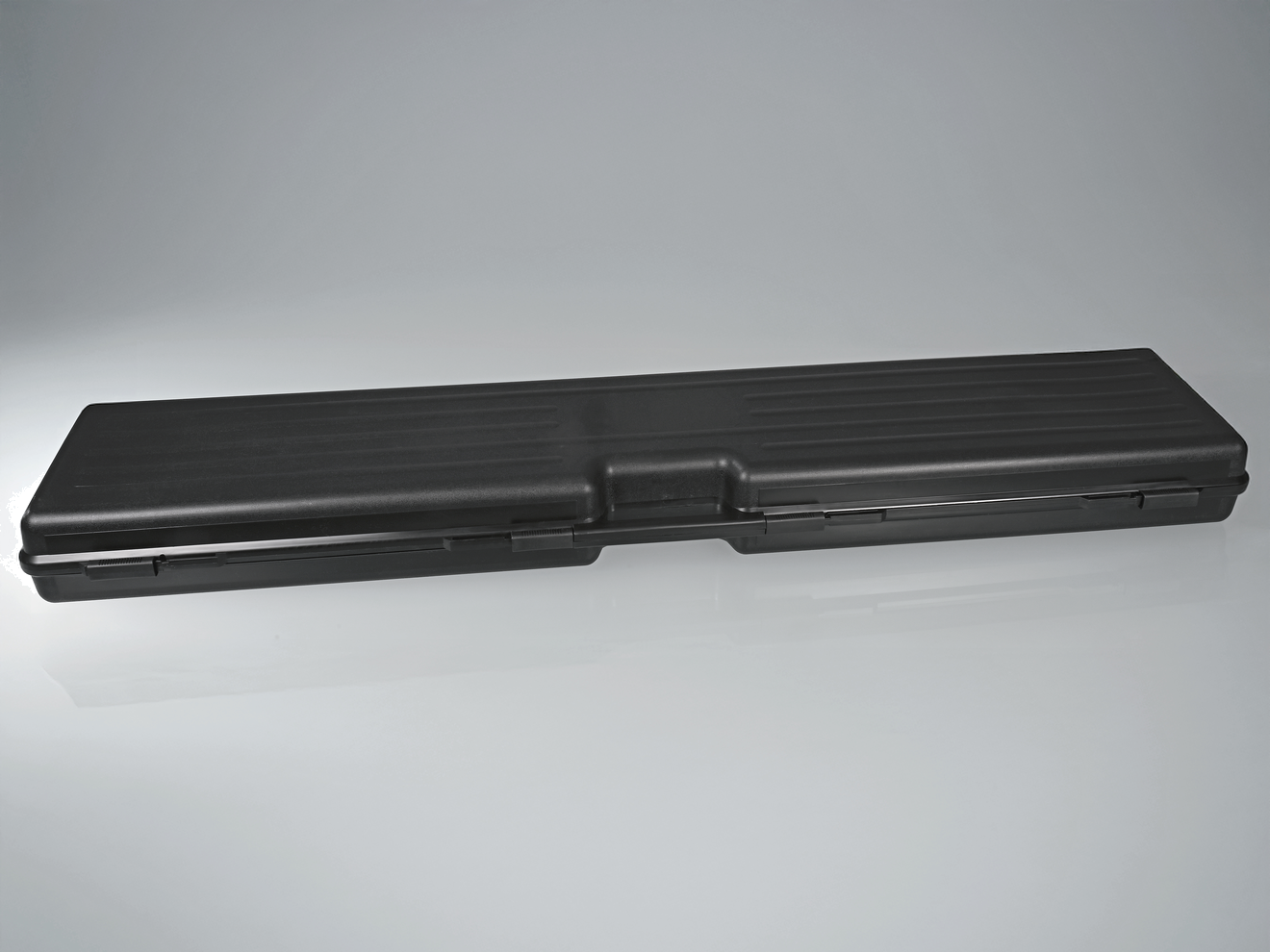

A case for the complete system

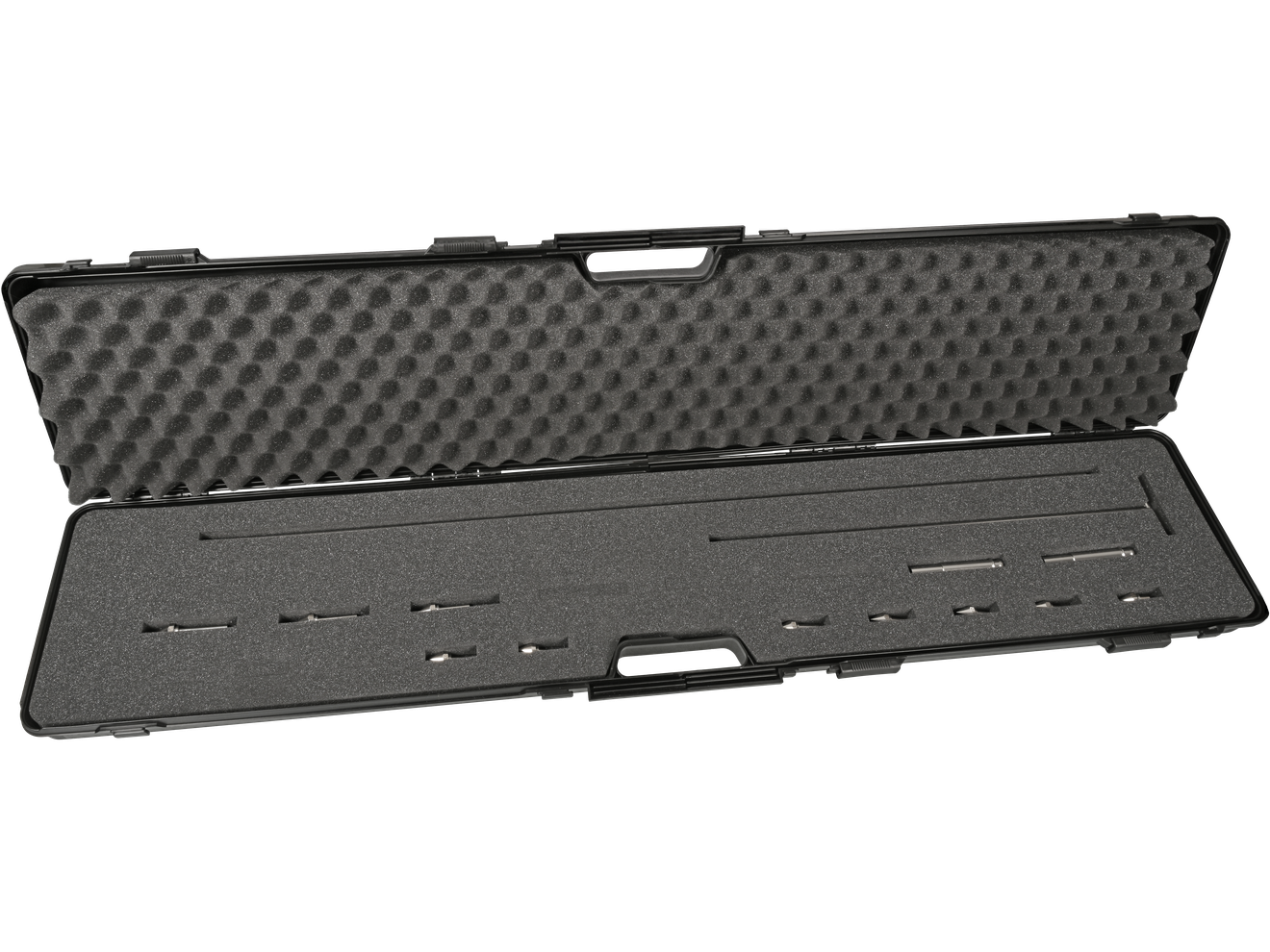

Both collection cylinders, the handle, both extension rods and all volumetric tips are stored together in the carrying case. This keeps the small parts together during transport between the goods reception area and production areas and makes it easier to trace which components belong to which batch. For a single set at a fixed workstation, only one order needs to be placed, and during stock-taking, the case can be used to quickly check whether all parts are present.

Manufactured for contact with active ingredients

The parts in contact with the medium are made of V4A stainless steel (1.4404, AISI 316L), tested according to Regulation (EC) No 1935/2004 for food contact. This choice of material withstands frequent cleaning between different active substances, which is necessary in pharmaceutical sampling to prevent cross-contamination, and can also withstand more aggressive cleaning agents without corrosion.

When only one collection cylinder is required

If a collection cylinder is lost or a second one is required for a parallel workstation, there is no need to order a whole new case straight away. The collection cylinder for 0.1 to 1.2 millilitres and the collection cylinder for 1.25 to 2.5 millilitres are also available from us as standalone items, each with its own item number.

Typical applications

• Sampling of highly potent, expensive or active ingredient powders in minute quantities
• Quality control during the formulation of pharmaceutical preparations and recipes
• Retention samples, where every excess millilitre is to be avoided
• Sampling from containers of varying depths thanks to the extension rods
• Equipment for a complete sampling station in a case
• Initial set-up of a new site for pharmaceutical micro-volume sampling
• Training of new staff using a complete, clearly visible set of tools

Technical details

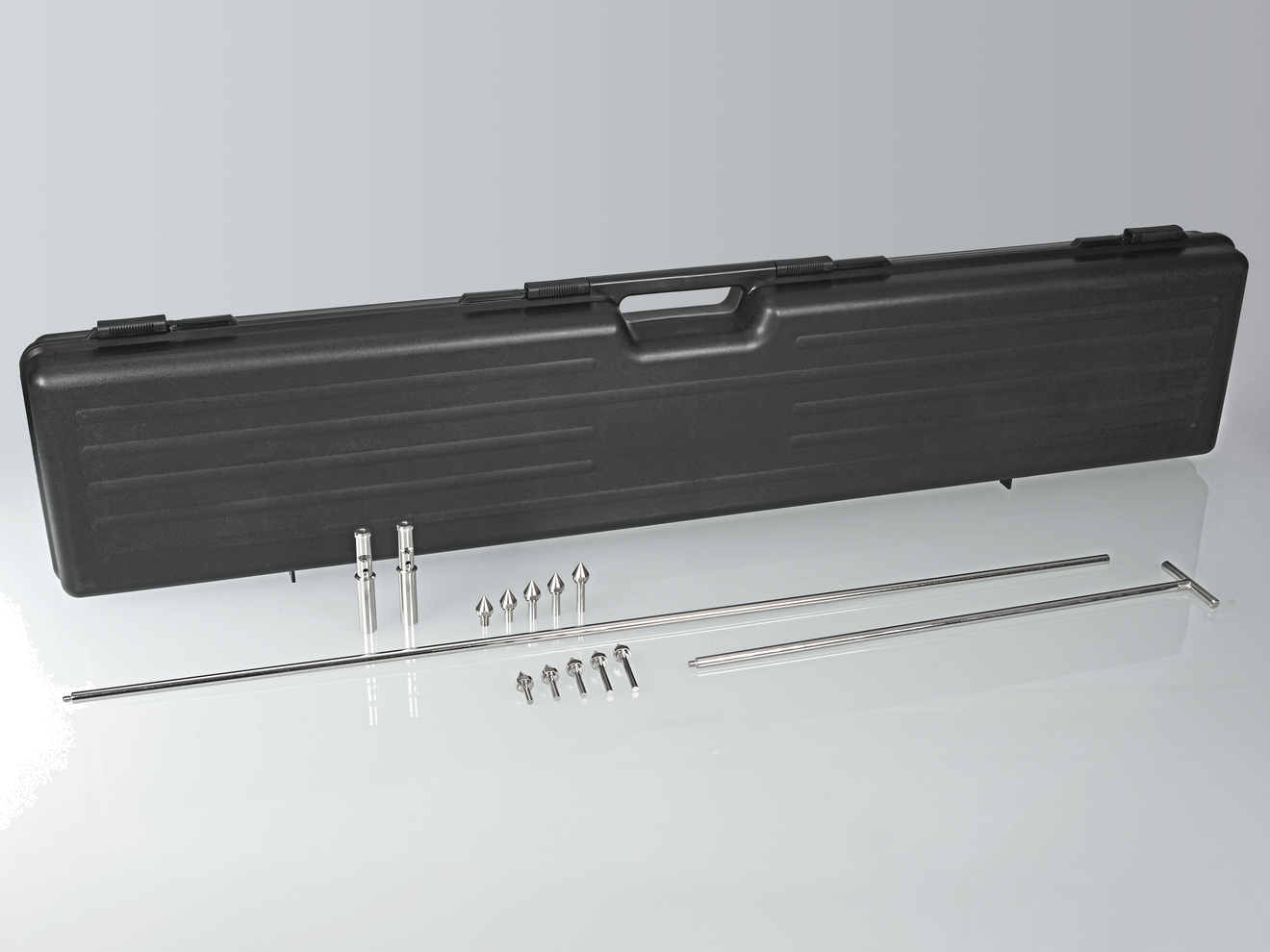

Scope of delivery

• Collection cylinder 0.1 to 1.2 ml
• Collection cylinder 1.25 to 2.5 ml
• Extension rod 50 cm
• Extension rod 100 cm
• Handle
• Volumetric tips 0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.4 / 1.8 / 2.0 / 2.3 / 2.5 ml
• Carry case

Service and procurement

For organisations with multiple sampling points, we can arrange orders for several cases or individual spare parts such as collection cylinders and volumetric tips, including as additions to existing individual models and in combination with other Bürkle samplers for larger sample volumes within the same organisation. If you have any questions about the appropriate volumetric tip for a specific powder, please contact us directly for assistance.
