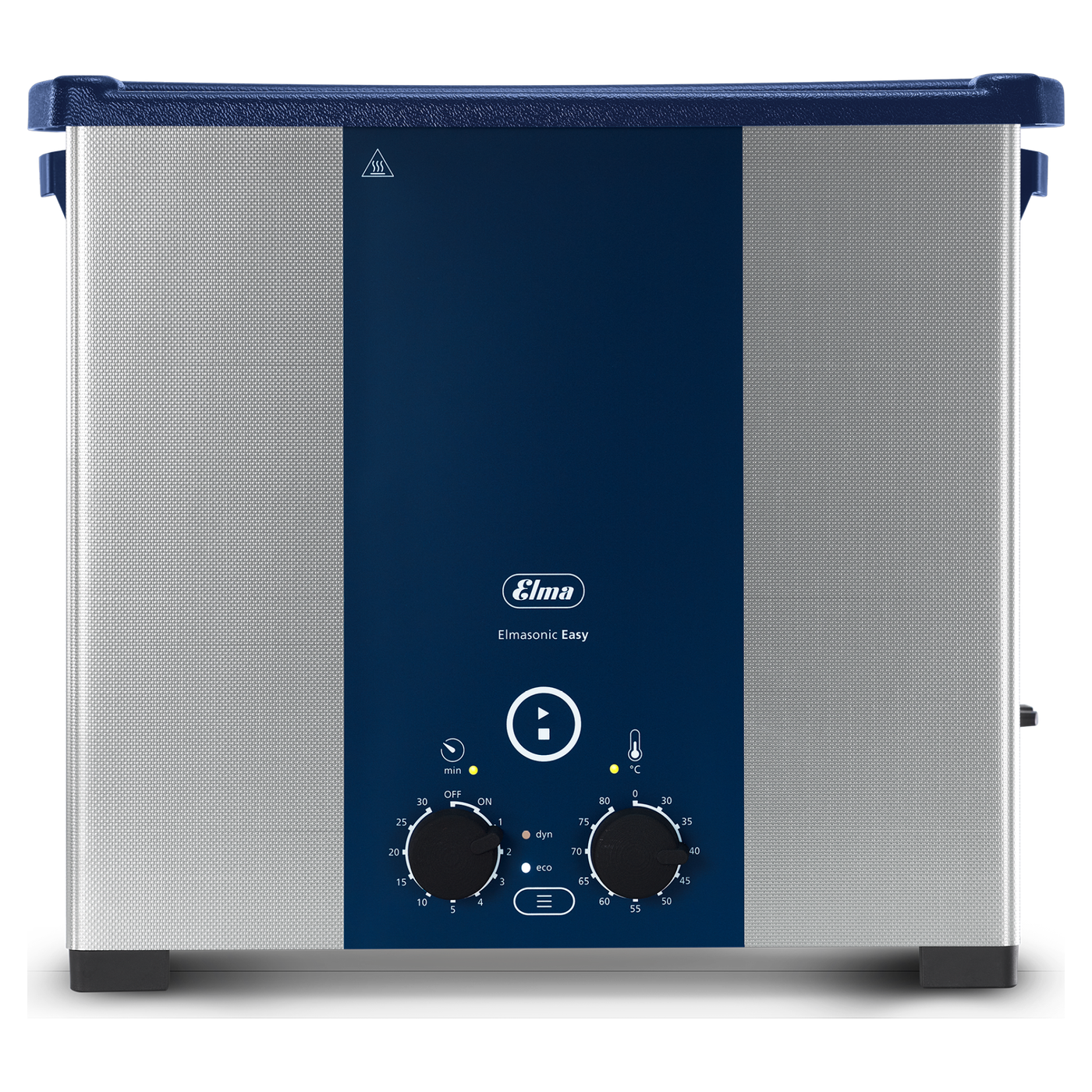

Elma Elmasonic Easy 180H Ultrasonic Bath with Heating, 17.8 Litre, 37 kHz, 1118900

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Elma Elmasonic Easy 180H Ultrasonic Bath with Heating, 17.8 Litre, 37 kHz, 1118900"

Industrial parts, filters and laboratory glassware are among the items to be cleaned that Elma names for the Easy series. For this, the Elma Elmasonic Easy 180H has a tank with internal dimensions of 300 x 270 x 195 mm and 17.8 litres total volume, with 14.2 litres recommended as working volume. It operates at 37 kHz and 200 W effective ultrasonic power, and the heater has 800 W. The target groups of the series include workshops, metalworking companies and manufacturers of industrial parts.

Tank area and basket

The fill level is 165 mm. The modular cleaning basket 180 (item no. 1113404) measures 280 x 255 x 135 mm internally and may be loaded with up to 8.0 kg, and it is 130 mm from the basket floor to the liquid level. On the Easy 120H the basket is 250 x 195 mm, so with the 180H you gain 30 mm in width and 60 mm in depth. The tank height of 195 mm and the ultrasonic and heating power are the same on both models.

Heating and electrics

The temperature is adjustable between 25 and 80 °C, and at a bath temperature of 90 °C the unit switches off for safety reasons. In total the 180H draws 1,000 W. It has a fan, an IEC power connector for 220 to 240 V~ and 50/60 Hz, as well as protection rating IP20 and protection class I. With lid at a distance of 1 m, the sound pressure level stays below 80 dB(A).

Drain and accessories for the tank

The G 3/8 inch drain is opened with a rotary knob, the hose goes onto the connection with 12 mm internal diameter, and the hose nozzle is included in the scope of delivery. Accessories available are the stainless steel lid 180 (item no. 1111934), plastic lid 180 (item no. 1003286 ultramarine blue, 1101141 cobalt blue, 1071698 silver grey), the insert lid 1 for four cleaning glasses or beakers (item no. 1111921), the drain strainer (item no. 1045648) and the cooling coil (item no. 1037515).

Two rotary knobs, two modes

Duration and temperature are set with rotary knobs, the mode button selects Eco and Dynamic, and the unit is started and stopped with the start/stop button. The time steps run from 1 to 30 minutes, and in the ON position the unit stops by itself after 6 hours at most. Eco is quieter, Dynamic more intensive. After 8 hours without operation the unit switches off, and LED indicators replace a display.

Placement within the series

At 8.5 kg (with lid) and external dimensions of 405 x 375 x 330 mm, the 180H needs more space than the 120H (380 x 315 x 330 mm). The tank gets longer on the Easy 300H: 475 x 270 x 195 mm at 27.5 litres and 300 W effective power. The tank depth of 270 mm and the tank height of 195 mm are the same as on the 180H.

Typical applications

  • Cleaning of industrial components and parts in workshops
  • Cleaning of carburettors and filters
  • Removal of grinding and polishing pastes, chips and flux
  • Cleaning of laboratory instruments and laboratory glassware

Technical details

Total volume17.8 litres (recommended working volume 14.2 litres)
Internal dimensions of tank (W x D x H)300 x 270 x 195 mm
Fill level165 mm
Distance from basket floor to liquid level130 mm
Basket 180 (accessory), internal dimensions280 x 255 x 135 mm, load max. 8.0 kg
External dimensions with lid (W x D x H)405 x 375 x 330 mm
Weight with lid8.5 kg
Ultrasonic frequency37 kHz
Ultrasonic power200 W effective, 800 W peak
Heating power800 W
Temperature range25 to 80 °C
Total power consumption1,000 W
Ultrasonic modesEco, Dynamic
Time steps1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes, ON up to max. 6 hours
Fanyes
Sound pressure level< 80 dB(A) with lid at 1 m
Tank and housing materialStainless steel
DrainG 3/8 inch with rotary knob open/closed, hose connection internal Ø 12 mm
Power connectionIEC power connector 220 to 240 V~, 50/60 Hz
Protection ratingIP20, protection class I

Scope of delivery

  • 1x Elma Elmasonic Easy 180H Ultrasonic Bath
  • Plastic lid, can be turned upside down and used as a drip tray for a basket
  • Power cable
  • Hose nozzle for the drain
  • Operating instructions

Basket, stainless steel lid, insert lid, drain strainer and cooling coil are not included in the scope of delivery and are available separately.

Regulatory information

The Easy 180H is an electrical device. The manufacturer is ELMA Schmidbauer GmbH in Singen, and the WEEE registration number is DE 45649814. Notes on take-back and disposal can be found on the page Environment and disposal. It bears the CE marking, and the EU declaration of conformity is available from the manufacturer.

Individual requirements and procurement service

For the cleaning basket 180, the insert lid, the stainless steel lid, the drain strainer or the cooling coil, our procurement service takes your enquiry.
