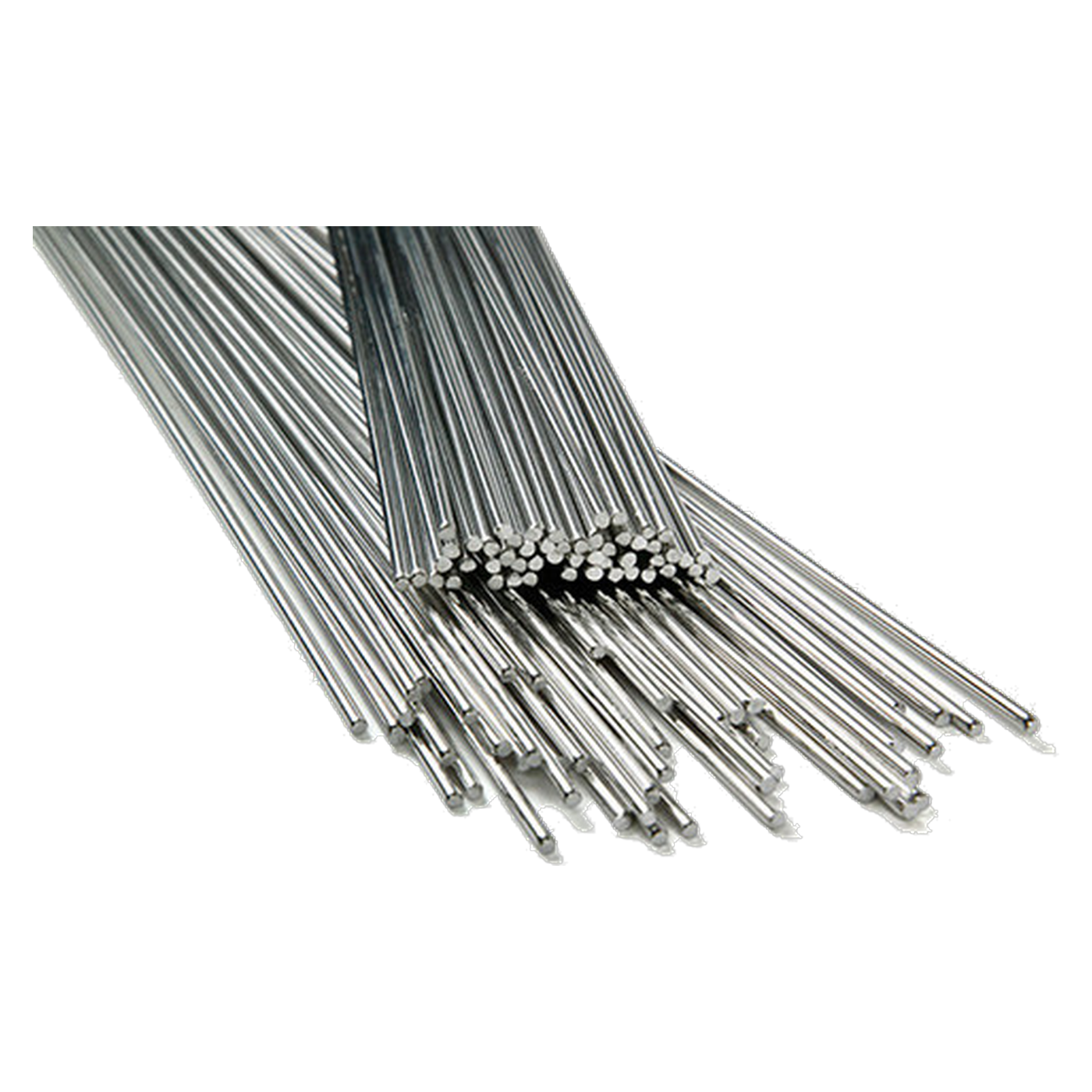

ESAB OK Tigrod 12.64 TIG Welding Rod, G4Si1 / ER70S-6, Ø 3.2 x 1000 mm, 5 kg, 126432R150
€36.30
Available, delivery time: 1-3 days
- Copper-clad TIG rod, Ø 3.2 mm, 1000 mm long
- G4Si1 / ER70S-6 for unalloyed and low-alloy steels
- 5 kg per pack
- EN ISO 636-A: Wire W 4Si1, weld metal W 46 5 4Si1
- Tensile strength 595 MPa (EN) and 610 MPa (AWS), untreated
- Notched impact energy 150 J at -40 °C
- Approvals by production site, including DB 42.039.48 and VdTÜV 05260
Product information "ESAB OK Tigrod 12.64 TIG Welding Rod, G4Si1 / ER70S-6, Ø 3.2 x 1000 mm, 5 kg, 126432R150"
3.2 mm in diameter, 1,000 mm in length, 5 kg: this is how the OK Tigrod 12.64, with the reference number 126432R150, is packaged. It is the same TIG filler metal as in the 1.6 mm, 2.0 mm and 2.4 mm versions, but with a larger diameter. It is intended for unalloyed and low-alloy steels.
Filler metal in detail
The rod is copper-clad and classified as G4Si1 / ER70S-6. The wire is a carbon-manganese steel containing 0.074% C, 1.68% Mn and 0.95% Si. Analysis shows that the weld metal contains 0.08% C, 1.28% Mn, 0.80% Si, 0.013% S and 0.015% P. Argon (I1, EN ISO 14175) is specified as the shielding gas. The rods are each 1,000 mm long and are supplied in packs of 5 kg.
Selection criteria
According to EN, the yield strength of the untreated weld metal is 525 MPa (AWS 510 MPa), the tensile strength is 595 MPa (AWS 610 MPa) and the elongation at break is 26 per cent (AWS 30 per cent). At -40 °C, the notched impact energy is 150 J, and at -50 °C it is still 90 J. The classification according to EN ISO 636-A is W 4Si1 for the wire and W 46 5 4Si1 for the weld metal.
Typical applications
- Root and fillet welds on unalloyed and low-alloy steels
- General structural steels and fine-grained structural steels
- Pressure vessel steels, grades such as P235/S235 to P460/S460, type-tested down to -40 °C
Classification, analysis and characteristic values are the same for all four diameters in the range. The 2.4 mm version has the same values, but a smaller rod diameter. The diameter best suited to the task depends on the weld preparation and welding current.
Approvals by plant location
ESAB holds the following approvals: ABS 3Y (I1), BV 3YM, CE EN 13479, DB 42.039.48, DNV-GL III YM (I1), LR 3Y H15 (I1), UKCA EN 13479 and VdTÜV 05260. The list depends on the manufacturing site.
Technical details
| Wire type | Copper-clad TIG rod, G4Si1 / ER70S-6 |
| Diameter | 3.2 mm |
| Rod length | 1000 mm |
| Pack size | 5 kg |
| Classification EN ISO 636-A | Wire W 4Si1, weld metal W 46 5 4Si1 |
| Classification SFA/AWS A5.18 | ER70S-6 |
| Alloy type | Carbon-manganese steel |
| Shielding gas | I1 (argon, EN ISO 14175) |
| Yield strength, untreated | EN 525 MPa, AWS 510 MPa |
| Tensile strength, untreated | EN 595 MPa, AWS 610 MPa |
| Elongation at break, untreated | EN 26 %, AWS 30 % |
| Notched impact energy (EN) | 150 J at -40 °C, 90 J at -50 °C |
| Wire composition C / Mn / Si | 0.074 / 1.68 / 0.95 % |
Scope of delivery
- 1 pack of OK Tigrod 12.64, 5 kg, rods Ø 3.2 mm, length 1000 mm
Individual requirements and procurement service
If you require other diameters, larger quantities or filler metals for other steel grades, please enquire via our procurement service. We stock the Rogue ET 200iP PRO as our TIG welder.
