Welding equipment and accessories
ESAB welding equipment and accessories ensure precision and safety in professional welding – whether in workshops, industrial settings or trades businesses. LT Laborhandel stocks ESAB welding equipment, electrodes, safety helmets and other accessories for efficient, clean working. You can find out more about the brand on the ESAB manufacturer’s website. If you have any questions about the right equipment for your needs, please feel free to contact our team.
ESAB Sentinel A60 Clear Outer Protective Lens, Standard, Pack of 2, 0700600880
The ESAB Sentinel A60 comes with four clear outer protective lenses. Once these have been used up, this pack containing two further lenses serves as a replacement. It is the standard clear version without a hard coating, listed under item number 0700600880.Compatible with the Sentinel A60In the spare parts list for the Sentinel A60 (helmet 0700600860), the clear outer protective visor is listed in position 1. For other Sentinel models, please check the part number before ordering.Variants of this visorESAB supplies the A60 outer protective visor in four versions. The standard clear visor is the one offered here. In addition, there are:ColourVersionPart numberClear (this lens)Standard0700600880AmberStandard0700600881clearHC0700600882AmberHC0700600883Further spare parts for the Sentinel A60In addition to the outer protective screen, the following parts are listed for the A60:Inner visor 0700600866 (121.5 x 74.5 mm)ADF cartridge 0700600865 and helmet shell 0700600863Halo headband 0700600867, neck pad 0700600884 and front sweatband 0700600869Prescription lenses +1.0 to +2.5 dpt (0700600872 to 0700600875)Safety helmet adapter 0700600871Typical applicationsThe visor fits the Sentinel A60, which is designed for manual arc welding, TIG, MIG/MAG, plasma welding, grinding, and oxy-fuel and plasma cutting. It replaces a damaged or worn outer lens, ensuring the helmet remains operational for these tasks. The helmet has a field of view of 118 x 71 mm; the shade level varies from DIN 3 (light) to 5 to 13 (dark).Technical detailsProduct typeReplacement outer protective lens (front cover lens)ColourClearSpecificationStandard, without hard coatingCompatible withESAB Sentinel A60Position in the spare parts list1Packaging unit2 piecesScope of delivery1 packaging unit containing 2 clear outer protective screens for the ESAB Sentinel A60Individual requirements and procurement serviceDo you need the visors in amber or the HC version, another spare part, or several helmets in a single order? Through our procurement service, we can source the right accessories for your Sentinel A60 on request.

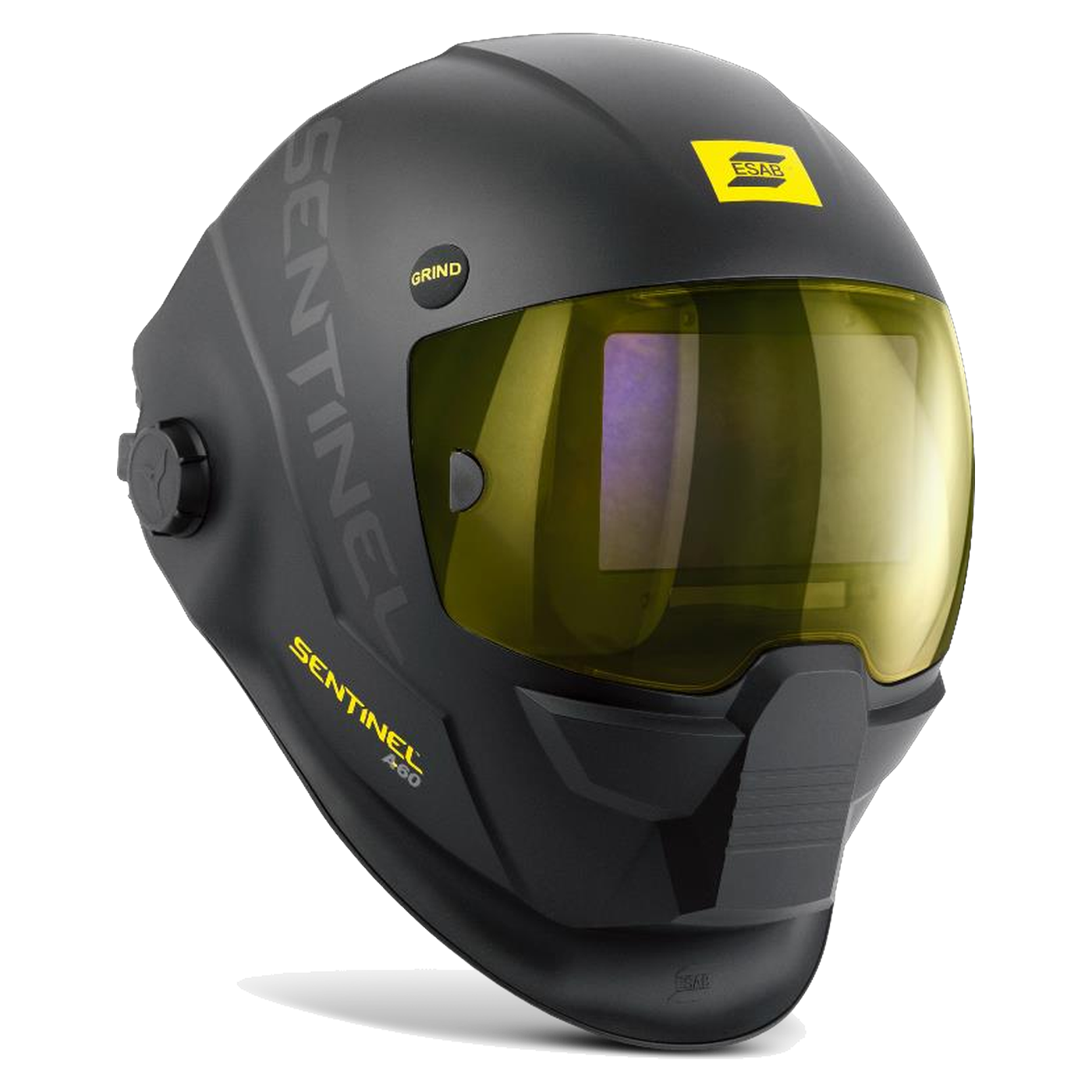

ESAB Sentinel A60 Automatic Welding Helmet, Viewing Area 118 x 71 mm, Protection Levels 5 to 13, 0700600860
The ESAB Sentinel A60 is an automatic welding helmet suitable for a range of processes, from manual metal arc welding through TIG and MIG/MAG to plasma welding. It can also be used for grinding, as well as oxy-fuel and plasma cutting. A button on the outside of the helmet switches it to grinding mode. The viewing area measures 118 x 71 mm, and the Halo headband supports a helmet weighing 644 g.Field of view and optical classThe anti-glare cassette (ADF) measures 132 x 121 mm; the usable viewing area is 118 x 71 mm. The optical class is 1/1/1/1. Features include OpTCS True Colour. The inner protective visor measures 121.5 x 74.5 mm.Protection levels and switching behaviourIn the light state, the protection level is DIN 3. During welding, the dark level can be adjusted from 5 to 13 in increments of 0.5. Four arc sensors control the darkening; the switching time from light to dark is 1/25,000 s (0.04 ms). The helmet switches back to light after 0.1 to 0.9 s, which is digitally adjustable. UV and IR protection is provided continuously up to DIN 16. For TIG welding, the helmet also operates at low currents from 3 A. The operating instructions, which are included in the Scope of delivery, specify which shade level is suitable for which process and current.Settings and powerUp to 9 settings can be saved. LED indicators on the helmet show the current status. Power is supplied by a solar cell, and the helmet also contains two replaceable CR2450 lithium cells. It operates at temperatures between -10 and +65 °C and can be stored at temperatures between -20 and +85 °C.Comfort and fitThe helmet sits on a Halo headband and weighs 644 g. A Durag is included in the scope of delivery. Accessories include a spare headband, a neck pad and a front sweatband. Those who require corrective lenses can fit lenses ranging from +1.0 to +2.5 dpt. A safety helmet adapter is available for use with a safety helmet.Visors and maintenanceThe helmet is supplied with four clear outer visors and two inner visors. Both types of visor are spare parts; the outer visor is available in clear, amber and an HC version. The ADF cartridge and helmet shell are also available separately.Typical applicationsManual arc welding and plasma arc welding (PAW)TIG and MIG/MAG welding, low-current TIG from 3 AGrinding in the helmet’s grinding modeOxy-fuel and plasma cuttingStandards and testingThe helmet bears the CE mark in accordance with EN 175, EN 379 and EN 166. The helmet is also certified to ISO 16321 with the +TIG supplement, ANSI Z87.1, CSA Z94.3 and AS/NZS 1338.1. A UKCA mark is available for the UK.Technical detailsADF field of view118 x 71 mmADF dimensions (w x h)132 x 121 mmActive protection level (dark)5 to 13, in 0.5 incrementsLight / passive protection levelDIN 3Optical class1/1/1/1Arc sensors4Switchover time from light to dark1/25,000 s (0.04 ms)Switchover time from dark to light0.1 to 0.9 s, digitally adjustableUV/IR protectionup to DIN 16, continuousLow-current TIGfrom 3 AMemory slotsup to 9 settingsPower supplySolar cell plus 2 x CR2450 lithium batteries, replaceableOperating temperature-10 to +65 °CStorage temperature-20 to +85 °CWeight644 gHeadbandHaloSpecial featuresOpTCS True Colour, grinding mode via external button, LED indicatorsOuter protective lensclear, 4 suppliedInner protective screen121.5 x 74.5 mmStandards and testingCE (EN 175, EN 379, EN 166), ISO 16321 + TIG, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1, UKCAScope of deliverySentinel A60 helmet complete with Halo headband2 inner protective visors4 clear outer visorsCarry bagDuragUser manualSpare parts and accessoriesThe following parts are listed for the Sentinel A60:Outer protective visor: clear 0700600880, amber 0700600881, clear HC 0700600882, amber HC 0700600883Inner visor 0700600866, ADF cartridge 0700600865, helmet shell 0700600863Halo headband 0700600867, neck pad 0700600884, front sweatband 0700600869Safety helmet adapter 0700600871Prescription lenses +1.0 / +1.5 / +2.0 / +2.5 dpt (0700600872 to 0700600875)Frequently asked questionsWhat protection levels does the helmet cover? In light mode, the helmet complies with DIN 3; in welding mode, the dark level can be adjusted from 5 to 13 in 0.5-step increments.How is the helmet powered? Via a solar cell and two replaceable CR2450 lithium batteries.How many outer protective lenses are included? Four clear outer protective lenses are supplied with the helmet. As a replacement, clear lenses in packs of 2 are available.Is the helmet suitable for low-current TIG welding? Yes, low-current TIG welding is possible from 3 A.Individual requirements and procurement serviceWe can source spare parts, corrective lenses or multiple helmets for a workshop on request. Please contact us via the procurement service.

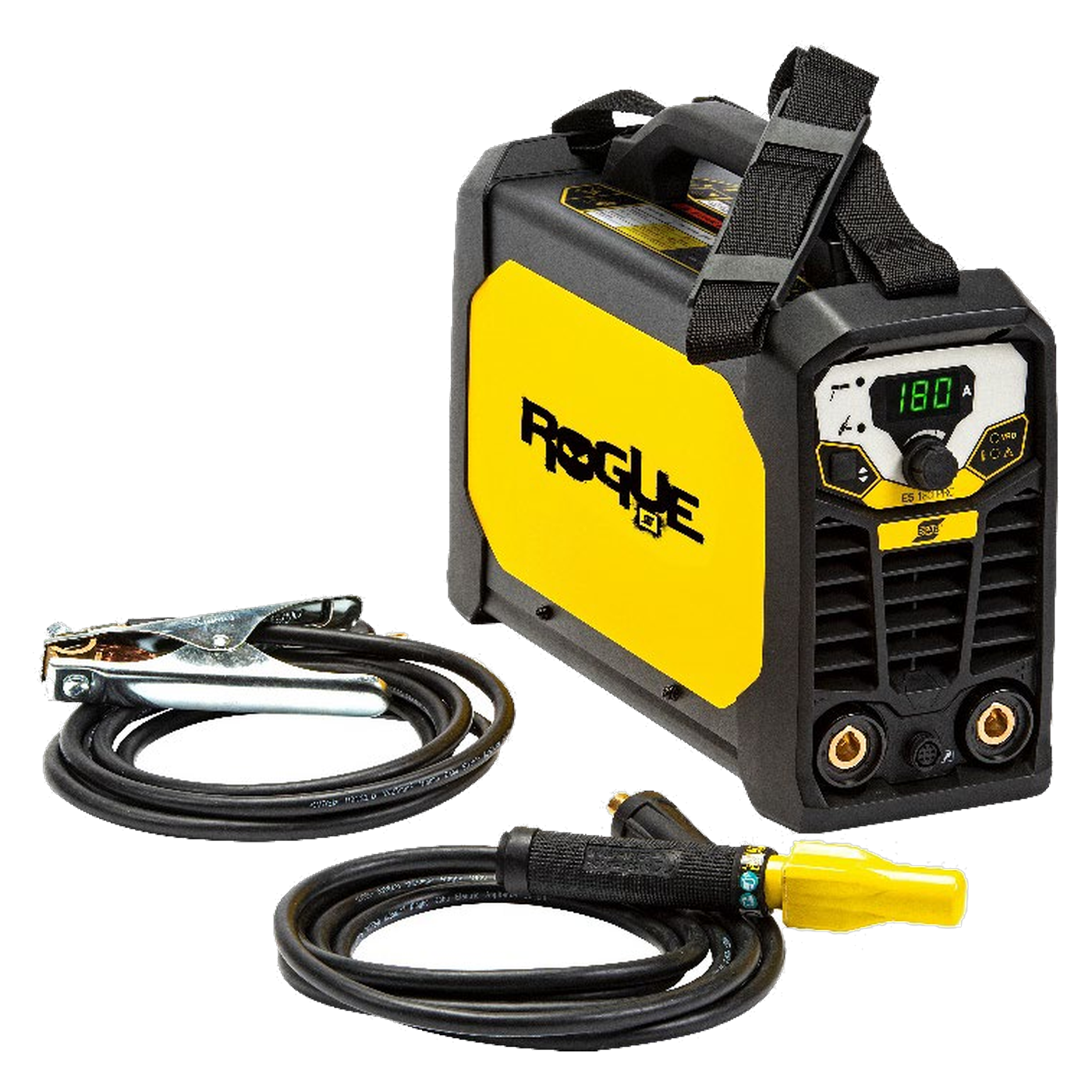

ESAB Rogue ES 200i PRO Inverter Welder, Manual Metal Arc (MMA) and Live-TIG, 200 A, 115/230 V, 0700500079
The ESAB Rogue ES 200i PRO operates at 115 V and 230 V, weighs 8.4 kg and comes with a shoulder strap. It is capable of manual metal arc (MMA) welding and Live-TIG welding, with a maximum output current of 200 A.MMA and Live-TIG with up to 200 AIn MMA mode, the current can be set from 20 to 200 A; in Live-TIG mode, from 10 to 200 A, in both cases at 230 V. Electrodes are available up to 4.0 mm in diameter. The open-circuit voltage is 78 V DC; the VRD function is active below 30 V. The scope of delivery includes an electrode holder and a 3 m return lead cable with a clamp.Mains, generator and power requirementsThe unit accepts 115/230 V AC with a tolerance of ±15 per cent at 50 or 60 Hz. The primary current in MMA mode at Imax is 30 A at 230 V and 29 A at 115 V; the apparent power is 6.9 kVA. The power factor is 0.99, and the efficiency is 82 per cent. In energy-saving mode, the unit consumes 50 W. The unit is suitable for generator operation; a 7 kW generator is recommended. The mains cable is 3 m long.Operation and arcOn the PRO model of the ES series, Hot Start and Arc Force can be adjusted; the unit also features a PFC circuit. A remote control is available as an option; ESAB supplies it as the MMA 4 with a 10 m cable under part number 0700500084. The remote control is not included in the Scope of delivery. In Live-TIG mode, the same setting range applies as in MMA mode up to 200 A, but it starts at 10 A instead of 20 A.Dimensions, weight and environmental conditionsThe housing measures 403 x 153 x 264 mm. Weighing 8.4 kg and fitted with the supplied shoulder strap, the unit can be carried to the site of operation. A plastic case (0700500085) is available as an accessory. The protection rating is IP23S; the permissible operating temperature range is -10 to +40 °C.Differences compared to the Rogue ET 200iP PROBoth units have a maximum output current of 200 A, a mains voltage of 115/230 V and the same duty cycles. The ES 200i PRO is a manual arc welder with Live-TIG mode and weighs 8.4 kg. The ET 200iP PRO is a TIG inverter with HF ignition and a pulse function (0.2 to 500 Hz); it weighs 9.6 kg and has a 4 m TIG torch as part of the scope of delivery. If you mainly weld with stick electrodes, the ES is the right choice; if you mainly weld with TIG, the ET is the right choice.Duty cycleThe length of time the machine can be operated continuously depends on the current. The specifications for both processes:CurrentDuty cycleMMA voltageTIG voltage200 A25 %28.0 V18.0 V129 A60%25.2 V15.2 V100 A100%24.0 V14.0 VTypical applicationsRepair and maintenanceBuilding and civil engineeringAgricultural machineryGeneral manufacturingManual arc welding of alloyed and unalloyed steel, stainless steel and cast ironTechnical detailsProcessManual metal arc (MMA), Live-TIGMains voltage115/230 V AC ± 15 %, 1-phase, 50/60 HzMaximum output current200 AMMA adjustment range20 to 200 A (230 V)Live-TIG adjustment range10 to 200 A (230 V)Duty cycle (MMA)200 A / 28.0 V at 25 per cent; 129 A / 25.2 V at 60 per cent; 100 A / 24.0 V at 100 per centDuty cycle TIG200 A / 18.0 V at 25 per cent; 129 A / 15.2 V at 60 per cent; 100 A / 14.0 V at 100 per centOpen-circuit voltage78 V DC (VRD active below 30 V)Apparent power6.9 kVAPrimary current Imax MMA30 A (230 V), 29 A (115 V)Power consumption in energy-saving mode50 WEfficiency82 %Power factor0.99Electrode diameterup to 4.0 mmGenerator operationsuitable, 7 kW recommendedMains lead length3 mProtection classIP23SOperating temperature-10 to +40 °CDimensions (L x W x H)403 x 153 x 264 mmWeight8.4 kgCertificationCEScope of deliveryPower supply unit with 3 m mains cable and plugShoulder strapElectrode holder3 m return lead cable with clampOptional accessoriesThe following items are not included in the scope of delivery: remote control, case, TIG torch and foot pedal. These items are listed as accessories:Plastic case 0700500085MMA 4 remote control with 10 m cable 0700500084Handy 200 A electrode holder 0700006900Return lead cable, 3 m 0700006901 or 5 m 0700006885TIG torch SR-B 17V 0700025514 or SR-B 26V 0700025522, foot pedal W4014450Frequently Asked QuestionsWhich electrodes are compatible? The electrode diameter ranges up to 4.0 mm. The rutile electrodes OK GoldRox 2.5 mm (60 to 90 A) and 3.2 mm (90 to 140 A) fall within the machine’s operating range.Does the unit operate at 115 V? Yes, the mains voltage is 115/230 V AC. The specified setting ranges apply to 230 V.Is a TIG torch included? No, the Scope of delivery includes an electrode holder and a return cable. The SR-B 17V and SR-B 26V TIG torches are listed as accessories.Can I run the unit on a generator? Yes, generator operation is possible; 7 kW is recommended.Individual requirements and procurement serviceWe can supply accessories such as carrying cases, remote controls, TIG torches or return cables on request, as well as electrodes in other diameters. Please contact us via the procurement service if you would like to enquire about the unit as a package with suitable accessories.
ESAB Sentinel A50 external attachment disc, yellow (amber), HC scratch-resistant, 0700600881
Optimised visibility and maximum protection: the yellow attachment lens for your ESAB Sentinel A50 With the external ‘Amber’ (yellow) lens (MPN 0700600881), you not only enhance the look of your ESAB Sentinel A50 welding helmet, but also specifically improve your visibility. This genuine ESAB replacement lens has been specially developed for the iconic, spherical shape of the Sentinel A50 and A50 Air. It replaces the standard clear lens and offers experienced welders a decisive advantage in terms of contrast perception and detail recognition. Why a yellow overlay lens? The contrast advantage Whilst clear protective lenses are the standard, many professionals swear by yellow-tinted overlay lenses. The ‘Amber’ tint filters out certain components of blue light. This results in a subjective increase in contrast and depth of field. This can be a huge help, particularly in workshop environments with diffuse lighting or when positioning the electrode with precision. The contours of the workpiece stand out more clearly, and the transition between the molten pool and solidified slag can often be distinguished more easily. Even in the helmet’s Grind Mode, the yellow tint ensures a brighter, more pleasant perception of the surroundings and can relieve eye strain during long shifts. Spherical design for a reflection-free view A hallmark of the ESAB Sentinel A50 is its futuristic design featuring a strongly curved, spherical visor. This design is not merely for aesthetic purposes. Technically speaking, the curvature prevents spatter and soot marks from becoming trapped in the corners – they slide off the smooth surface more easily. Furthermore, the spherical shape reduces internal reflections and ensures that the view remains undistorted, even at the edges. This yellow replacement lens matches this geometry exactly and fits seamlessly into the helmet’s flush-fit design. Robust protection for expensive technology The main purpose of the outer attachment visor is to protect the sensitive anti-glare filter (ADF) located behind it. In tough everyday working conditions, the helmet is constantly exposed to flying sparks, metal spatter, heat and smoke. The ESAB attachment visor is made of highly impact-resistant polycarbonate, which effectively prevents particles from penetrating as far as the filter. A special hard-coat (HC) finish makes the surface more resistant to scratches (“scratch-resistant”), which significantly extends the visor’s service life and guarantees you a clear view for longer. Easy to replace and a perfect fit A worn or scratched visor is not only a safety hazard, but also strains the eyes and leads to poorer welding results. Replacing the visor on the Sentinel A50 is remarkably simple: thanks to the “quick-release” button on the outside of the helmet, the visor can be changed in a matter of seconds without the need for tools. Simply press the button, remove the old visor, click the new yellow visor into place – and you’re done. This minimises downtime and gives you a clear view straight away. Technical Specifications and Compatibility Product type: External front cover lens Colour/Tint: Yellow / Amber (contrast-enhancing) Compatibility: Exclusively for ESAB Sentinel A50 and Sentinel A50 Air Material: Polycarbonate (impact-resistant) Coating: Hard Coat (scratch-resistant) Shape: Spherical (curved) Standards: CE certified, complies with EN166 / EN175 standards Contents 1 x ESAB outer protective lens, yellow (for Sentinel A50) (Note: Please check the required quantity; the price is usually per item) Custom requirements & accessories Do you also need the inner lenses, clear versions or spare parts for the Sentinel’s headband? We stock the full range of spare parts for ESAB welding helmets. Contact our procurement service for personalised advice on personal protective equipment (PPE).
ESAB OK GoldRox Welding Rod, Rutile-cellulose, E 42 0 RC 11, Ø 2.5 x 350 mm, 1 kg, 46592535Z0
The OK GoldRox, measuring 2.5 x 350 mm, is the slim version of this rutile-cellulose electrode. The current range is 60 to 90 A at 25 V. The coating is yellow and features an ignition aid.Properties of the electrodeThe GoldRox is classified as E 42 0 RC 11 in accordance with EN ISO 2560-A, and as E6013 in accordance with SFA/AWS A5.1. The alloy type is carbon-manganese. The weld metal has a tensile strength of 520 MPa and a notched impact energy of 60 J at 0 °C. Welding is carried out using direct current on both poles or alternating current; ESAB recommends the negative pole. For alternating current, the transformer requires a no-load voltage of at least 50 V. It can be used in all positions, including vertical down (PG) and overhead (PE) welds.Primer and scale have little effect on the electrode; the slag is easy to remove and there is minimal spatter.Typical applicationsTacking and assembly welding in metal constructionLight steel constructionTank construction and shipbuildingMelt-off data for a diameter of 2.5 mmAt 90 per cent of the maximum current, an electrode burns out in 49 seconds; the deposition rate is 0.8 kg/h. The deposition efficiency is 62 per cent; 91 electrodes are required to produce 1 kg of weld metal. The operating voltage is 25 V. For those requiring a higher current, the electrode is also available with a diameter of 3.2 mm.Ø 2.5 mm (this electrode)Ø 3.2 mmCurrent range60 to 90 A90 to 140 AVoltage25 V24 VMelting capacity0.8 kg/h1.1 kg/hOutput62 %59 %Electrodes per kg of weld metal9159Melt-off time at 90 per cent of Imax49 s57 sApprovalsDepending on the plant location, ESAB lists ABS 2, BV 2, CE EN 13479, DB 10.039.48, LR 2, UKCA EN 13479 and VdTÜV 19622. Which of these applies to a particular delivery depends on the production site. The electrodes are 350 mm long and are supplied in 1-kg packs.Technical detailsElectrode typeRutile-cellulose-coated rod electrode, yellow coating, with ignition aidClassificationEN ISO 2560-A: E 42 0 RC 11; SFA/AWS A5.1: E6013Alloy typeCarbon-manganeseDiameter2.5 mmElectrode length350 mmPack size1 kgCurrent range60 to 90 AVoltage25 VWelding currentDC+-, ACWelding positionsall, including vertical down (PG) and overhead (PE)Tensile strength (ISO)520 MPaNotched impact energy (ISO)60 J at 0 °CYield62 %Electrodes per kg of weld metal91Melt-down time per electrode at 90 per cent of Imax49 sDeposition rate0.8 kg/hScope of delivery1 kg OK GoldRox rod electrodes, Ø 2.5 x 350 mmIndividual requirements and procurement serviceWe stock the ESAB Rogue ES 200i PRO as a manual arc welding power source with a current range of 20 to 200 A. Please enquire via our procurement service regarding other diameters, larger quantities or electrodes for other materials.

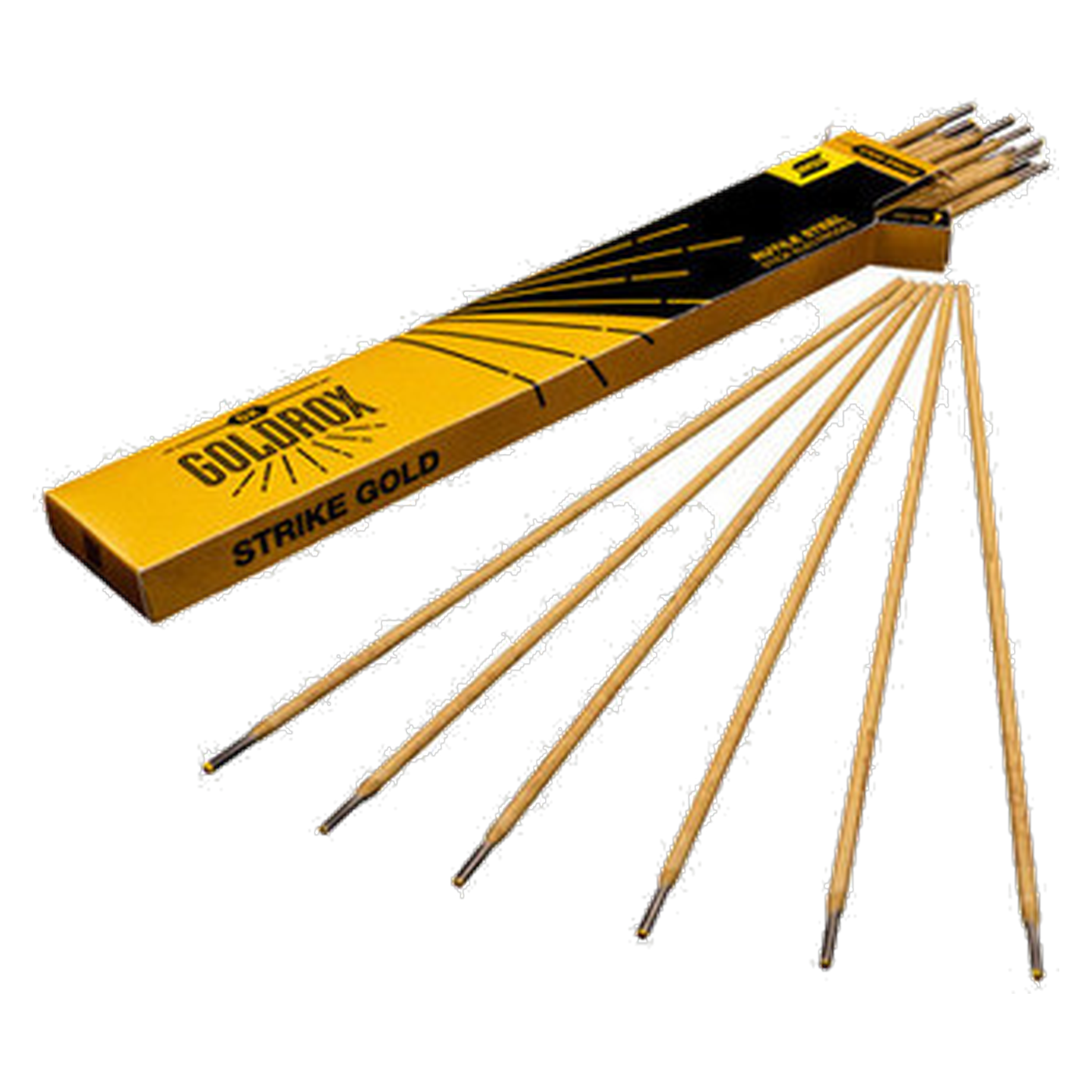

ESAB OK GoldRox Welding Rod, Rutile-cellulose, E 42 0 RC 11, Ø 3.2 x 350 mm, 1 kg, 46593235Z0
90 to 140 A at 24 V and a melting rate of 1.1 kg/h: these are the key specifications of the OK GoldRox with a diameter of 3.2 mm. The electrode is 350 mm long and the pack weighs 1 kg. It is the version designed for higher currents, alongside the 2.5 mm electrode (60 to 90 A). Both have a yellow coating with an ignition aid.Welding dataAt 90 per cent of the maximum current, each electrode takes 57 s to burn out. The deposition rate is 59 per cent; 59 electrodes are consumed to produce 1 kg of weld metal. The welding current is DC+ or AC. ESAB recommends direct current at the negative terminal; the positive terminal is also suitable. For alternating current, the transformer must have a no-load voltage of at least 50 V.Classification and weld metalEN ISO 2560-A classifies the electrode as E 42 0 RC 11; SFA/AWS A5.1 classifies it as E6013, carbon-manganese alloy type. The tensile strength of the weld metal is 520 MPa, and the notched impact energy is 60 J at 0 °C. Welding can be carried out in all positions, including vertical down (PG) and overhead (PE).Difference compared to the 2.5 mm electrodeWith the larger diameter, the current range and deposition rate increase, whilst the output decreases slightly.Ø 2.5 mmØ 3.2 mm (this electrode)Current range60 to 90 A90 to 140 AVoltage25 V24 VMelting capacity0.8 kg/h1.1 kg/hOutput62 %59 %Electrodes per kg of weld metal9159Melt-off time at 90 % Imax49 s57 sTypical applicationsGoldRox is described as a tack and assembly electrode for metal construction, light steel construction, tank construction and shipbuilding. It is not affected by primers or scale; the slag is easy to remove and spatter formation is minimal.ApprovalsDepending on the manufacturing site: ABS 2, BV 2, CE EN 13479, DB 10.039.48, LR 2, UKCA EN 13479 and VdTÜV 19622.Technical detailsDiameter3.2 mmElectrode length350 mmPack size1 kgCurrent range90 to 140 AVoltage24 VMelting capacity1.1 kg/hMelting time per electrode at 90 per cent of Imax57 sYield59 %Electrodes per kg of weld metal59Electrode typeRutile-cellulose-coated, yellow coating, with ignition aidClassificationEN ISO 2560-A: E 42 0 RC 11; SFA/AWS A5.1: E6013Alloy typeCarbon-manganeseWelding currentDC+-, ACWelding positionsall, including PG and PETensile strength (ISO)520 MPaNotched impact energy (ISO)60 J at 0 °CScope of delivery1 kg of OK GoldRox rod electrodes, Ø 3.2 x 350 mmIndividual requirements and procurement serviceFor inverter-based manual metal arc welding with electrodes up to 4.0 mm in diameter, we stock the ESAB Rogue ES 200i PRO, which has a current range of up to 200 A. For other electrodes or larger quantities, please use our procurement service.

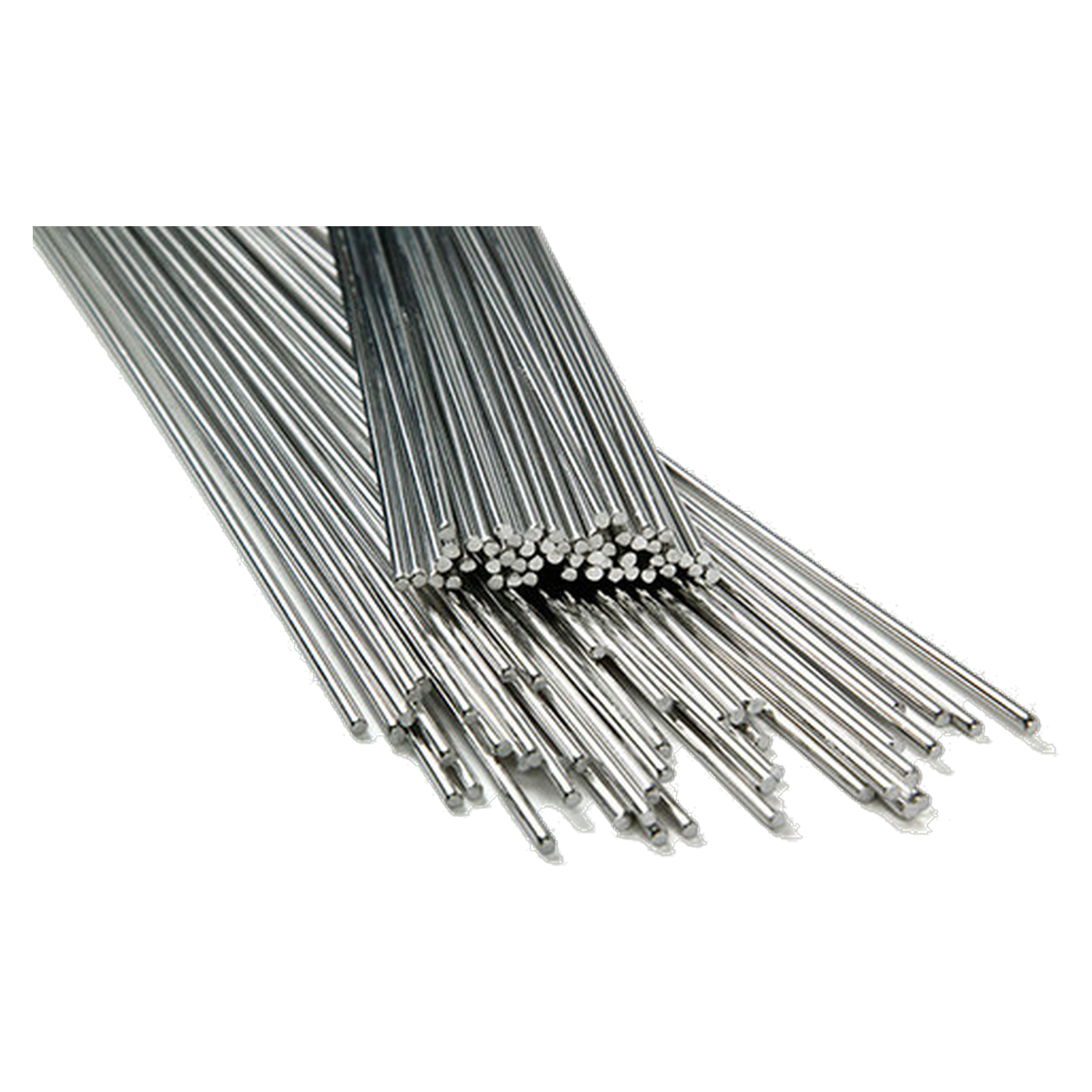

ESAB OK Tigrod 12.64 TIG Welding Rod, G4Si1 / ER70S-6, Ø 2.0 x 1000 mm, 5 kg, 126420R150
126420R150 is the OK Tigrod 12.64 with a diameter of 2.0 mm. The rods are 1000 mm long and come in packs of 5 kg. This filler metal belongs to the carbon-manganese steel group and is used for TIG welding of unalloyed and low-alloy steels. It is also available in thinner 1.6 mm versions, and thicker 2.4 mm and 3.2 mm versions.Which steels are suitableThe rod is intended for root and fillet welds on unalloyed and low-alloy steels. These include general-purpose structural steels, fine-grained structural steels and pressure vessel steels. ESAB cites grades ranging from P235/S235 to P460/S460 as examples, with suitability tested down to -40 °C.Typical applicationsRoot welds on unalloyed and low-alloy steelsJoint welds on general structural steels and fine-grained structural steelsWelds on pressure vessel steels with requirements down to -40 °CWhether 2.0 mm is the correct diameter depends on the weld geometry and the current at the welding machine. Anyone wishing to carry out the same task with a different diameter will find the relevant series numbers in the table.1.6 mm126416R1502.0 mm (this variant)126420R1502.4 mm126424R1503.2 mm126432R150Approvals and classificationIn accordance with EN ISO 636-A, the wire is designated W 4Si1 and the weld metal W 46 5 4Si1. The AWS designation in accordance with SFA A5.18 is ER70S-6. The following approvals are listed, depending on the plant location: ABS 3Y (I1), BV 3YM, CE EN 13479, DB 42.039.48, DNV-GL III YM (I1), LR 3Y H15 (I1), UKCA EN 13479 and VdTÜV 05260.Mechanical propertiesAccording to EN, the untreated weld metal has a yield strength of 525 MPa, a tensile strength of 595 MPa and an elongation at break of 26 per cent. The notched impact energy is 150 J (-40 °C) and 90 J (-50 °C). According to AWS testing, the values are 510 MPa, 610 MPa and 30 per cent. Welding is carried out using argon (I1, EN ISO 14175).Technical detailsDiameter2.0 mmBar length1000 mmPack size5 kgWire typeCopper-clad TIG rod, G4Si1 / ER70S-6Alloy typeCarbon-manganese steelShielding gasI1 (argon, EN ISO 14175)Wire classificationEN ISO 636-A: W 4Si1; SFA/AWS A5.18: ER70S-6Weld metal classificationEN ISO 636-A: W 46 5 4Si1Yield strength / Tensile strength / Elongation at break (EN)525 MPa / 595 MPa / 26 %Yield strength / Tensile strength / Elongation at break (AWS)510 MPa / 610 MPa / 30 %Notched impact energy (EN)150 J at -40 °C; 90 J at -50 °CWire composition C / Mn / Si0.074 / 1.68 / 0.95 %Weld metal C / Mn / Si / S / P0.08 / 1.28 / 0.80 / 0.013 / 0.015 %Scope of delivery1 pack of OK Tigrod 12.64, 5 kg, rods Ø 2.0 mm, length 1000 mmIndividual requirements and procurement serviceWe also stock the ESAB Rogue ET 200iP PRO inverter for setting up a TIG welding workstation. Please enquire via our procurement service regarding other diameters, larger quantities or filler metals for other steels.
ESAB OK Tigrod 12.64 TIG Welding Rod, G4Si1 / ER70S-6, Ø 2.4 x 1000 mm, 5 kg, 126424R150
The OK Tigrod 12.64 is designed for TIG welding of structural steel, fine-grained structural steel and pressure vessel steel; its notched impact energy is 150 J at -40 °C. This version has a diameter of 2.4 mm, a rod length of 1,000 mm and comes in a 5 kg pack. The rod is also available in a thinner version (2.0 mm) and a thicker version (3.2 mm).Typical applicationsThe rod is intended for root and fillet welds on unalloyed and low-alloy steels, including general-purpose structural steels, fine-grained structural steels and pressure vessel steels. The steel grades listed range from P235/S235 to P460/S460 and similar, with type testing carried out down to -40 °C. The rods are welded in an argon atmosphere (I1). At -50 °C, the notched impact energy is still 90 J.Construction and classificationIt is a copper-clad solid rod, wire type G4Si1 / ER70S-6, alloy type carbon-manganese steel. According to EN ISO 636-A, the wire is designated W 4Si1 and the weld metal W 46 5 4Si1; according to SFA/AWS A5.18, it is designated ER70S-6. The wire contains 0.074% C, 1.68% Mn and 0.95% Si. The classification, analysis and characteristic values are the same for all four diameters in this range; only the rod diameter differs.Test values according to EN and AWSEN, untreated: yield strength 525 MPa, tensile strength 595 MPa, elongation at break 26 %AWS, untreated: yield strength 510 MPa, tensile strength 610 MPa, elongation at break 30 %Notched impact energy according to EN: 150 J at -40 °C and 90 J at -50 °CAnalysis of the pure weld metal: 0.08% C, 1.28% Mn, 0.80% Si, 0.013% S, 0.015% P.ApprovalsDepending on the plant location, the following apply: ABS 3Y (I1), BV 3YM, CE EN 13479, DB 42.039.48, DNV-GL III YM (I1), LR 3Y H15 (I1), UKCA EN 13479 and VdTÜV 05260.Technical detailsDiameter2.4 mmBar length1000 mmPack size5 kgWire typeG4Si1 / ER70S-6, copper-cladWeld metal classificationEN ISO 636-A: W 46 5 4Si1Wire classificationEN ISO 636-A: W 4Si1; SFA/AWS A5.18: ER70S-6Alloy typeCarbon-manganese steelShielding gasI1 (argon, EN ISO 14175)Yield strength EN525 MPaTensile strength EN595 MPaElongation at break EN26 %Notched impact energy EN150 J at -40 °C, 90 J at -50 °CYield strength AWS510 MPaTensile strength AWS610 MPaElongation at break AWS30 %Weld metal C / Mn / Si / S / P0.08 / 1.28 / 0.80 / 0.013 / 0.015 %Scope of delivery1 pack of OK Tigrod 12.64, 5 kg, rods Ø 2.4 mm, length 1000 mmIndividual requirements and procurement serviceFor TIG welding on structural steel, we stock the ESAB TIG torch holder and the Rogue ET 200iP PRO inverter. Other diameters and quantities are available on request via the procurement service.
ESAB Eco Holder Handy 300 Electrode Holder, Screw-on Head, 300 A at 35% Duty Cycle, 0700006016
The ESAB Eco Holder Handy 300 is a screw-head electrode holder for manual metal arc welding, rated for 300 A at a 35 per cent duty cycle. The head and handle are fully insulated. The holder is connected to the cable via a crimp connection.Which Handy model is suitable for which current ratingThe Handy range from ESAB is available in several current ratings. The Handy 300 sits between the Handy 200 and the Handy 400. The Handy 400 is rated at 400 A at a 35 per cent duty cycle and has the part number 0700006013.ModelRated currentHandy 200 (0700006003)200 AHandy 300 (this holder)300 A at 35% duty cycleHandy 400 (0700006013)400 A at 35% duty cycleTypical applicationsThe holder is designed for welding with stick electrodes. The rated current of 300 A applies at a duty cycle of 35 per cent.Technical detailsDesignScrew-type head; head and handle fully insulatedRated current300 A at a duty cycle of 35 per centCable connectionCrimp connection to the welding cableMarkingCE markScope of delivery1 Eco Holder Handy 300 electrode holderIndividual requirements and procurement serviceWe can supply welding cables, return clamp sets or power sources for manual metal arc welding, such as the Rogue ES 200i PRO, on request. Please use our procurement service for this.
ESAB OK AlSi5 welding rod, pack of 10, 96022430U0
ESAB OK AlSi5 welding rod – for aluminium welding The ESAB OK AlSi5 (96022430U0) is a high-quality welding rod for welding aluminium alloys with a silicon content of up to 7 per cent. It is supplied in a convenient pack of 10 and is ideal for repair, maintenance and fabrication. Thanks to its silicon content, the electrode improves fluidity and reduces the susceptibility to hot cracking. This results in clean, low-porosity welds with high corrosion resistance and good mechanical properties. Typical applications include vehicle manufacturing, shipbuilding, aerospace engineering, and repair and maintenance work on aluminium structures. Key features: Welding of aluminium alloys up to 7 % Si Clean, low-porosity welds with high resistance Very good fluidity, low susceptibility to hot cracking Suitable for repair, maintenance and fabrication Used in vehicle manufacturing, shipbuilding and aerospace engineering Technical data (extract): Manufacturer: ESAB Model: OK AlSi5 Item number: 96022430U0 Type: Rod electrode for aluminium Welding current: Direct current (DC+) Silicon content: approx. 5 % Packaging unit: 10 pieces Applications: Aluminium structures and repairs Contents: 10 × ESAB OK AlSi5 welding rods
ESAB Sentinel A50 Inner Protective Screen, 100 x 64 mm, Pack of 5, 0700000808
The inner protective lens 0700000808 is a spare part for the ESAB Sentinel A50. It measures 100 x 64 mm and is supplied in packs of 5. In the parts list of the ESAB manual for the A50, it is listed as item 5, ‘Inside Cover Lens’.Compatible with the Sentinel A50This lens is for the Sentinel A50. The Sentinel A60 has its own internal protective lens with different dimensions (121.5 x 74.5 mm, part number 0700600866). The parts are therefore not interchangeable; if you own a Sentinel A60, you will need the A60 lens. Please check the model and part number on your helmet before ordering.Typical applicationsThe inner protective visor replaces the existing visor on the Sentinel A50. With 5 visors in the pack, you’ll have enough for several replacements on the same helmet. The Sentinel A50 also includes the outer protective visor on the front of the helmet.Technical detailsProduct typeReplacement inner protective lens (Inside Cover Lens)Compatible withESAB Sentinel A50Dimensions100 x 64 mmPosition in the parts list5Packaging unit5 piecesScope of delivery1 packaging unit containing 5 internal protective screens for the ESAB Sentinel A50Individual requirements and procurement serviceDo you need further spare parts for the Sentinel A50, other visors or accessories for several helmets? Please enquire via our procurement service.

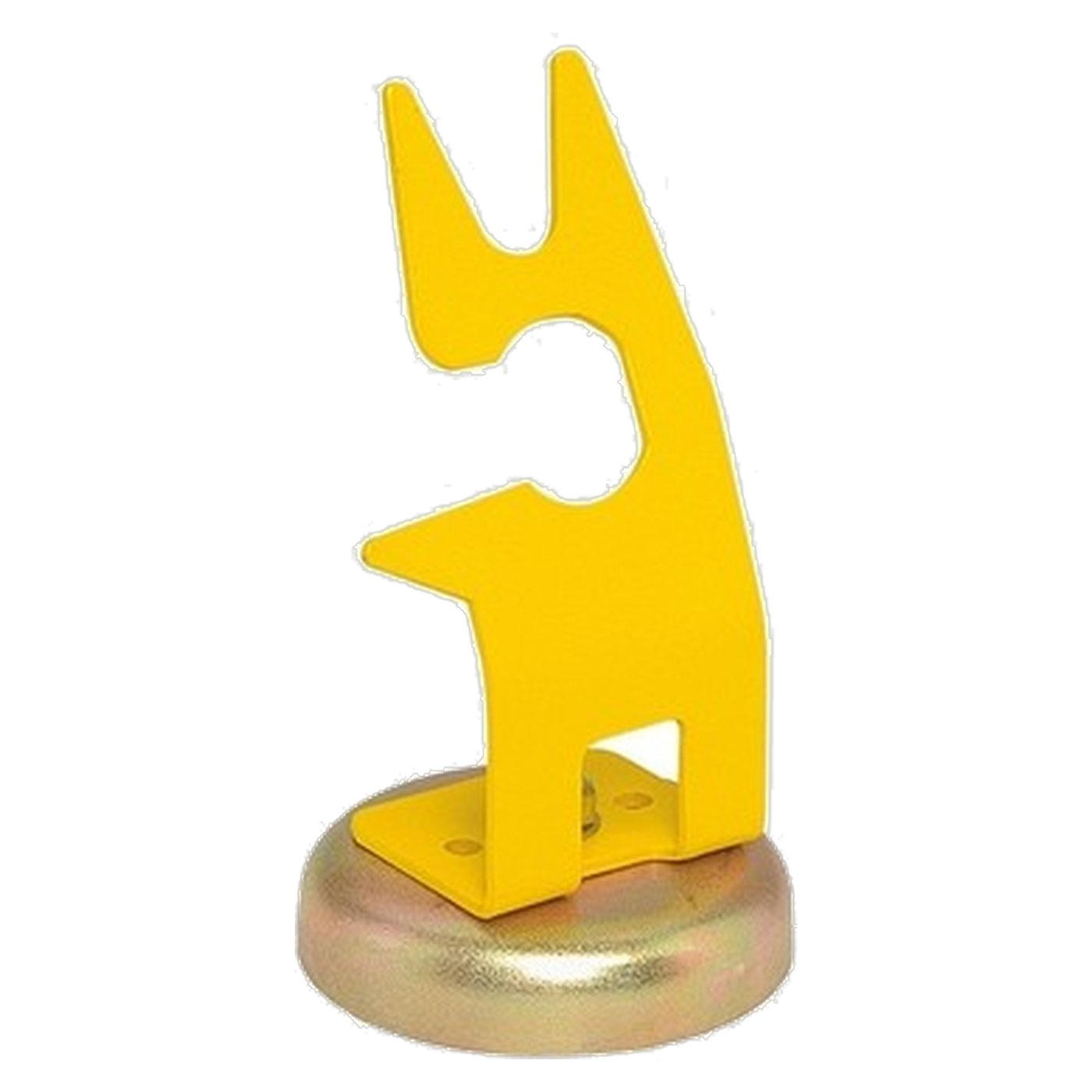

ESAB TIG Torch Holder with Magnetic Base, Torch Rest Suitable for Most TIG Torches, 0760022400
If the TIG torch is set down anywhere on the workpiece whilst welding is paused, it may cause a short circuit. This will destroy the tungsten tip and may cause the ceramic nozzle to burst. The ESAB TIG torch holder 0760022400 provides a secure place for the torch at the workstation.Safe storage during welding breaksESAB describes the holder as a workstation accessory for the safe storage of the TIG torch when welding is paused. The torch rests in the holder rather than on the workpiece, where the tungsten tip could come into contact with it.Magnetic baseThe holder has a magnetic base. This allows it to adhere to magnetisable surfaces in the workplace. It is suitable for most TIG torches. For torches with unusual shapes, please check before ordering whether the holder is compatible with your torch. The holder is yellow in colour.Typical applicationsStoring the TIG torch during welding breaksProtection of the tungsten tip and ceramic nozzle between two weldsKeeping the TIG workstation tidyFor TIG work, we also stock the ESAB Rogue ET 200iP PRO (TIG inverter, 10 to 200 A) and suitable filler metals such as OK Tigrod 12.64 in 2.0 mm.Technical detailsProduct typeTorch holder for TIG torchesMountingMagnetic baseSuitable formost TIG torchesColouryellowScope of delivery1 TIG torch holderIndividual requirements and procurement serviceDo you need wear parts for the TIG torch, several holders for a workshop or accessories for other welding processes? Please enquire via our procurement service.
ESAB OK Tigrod 12.64 TIG Welding Rod, G4Si1 / ER70S-6, Ø 1.6 x 1000 mm, 5 kg, 126416R150
The OK Tigrod 12.64, 1.6 mm, is a copper-clad solid rod for TIG welding of unalloyed and low-alloy steels. The rods are 1,000 mm long and come in 5 kg packs. In addition to this version (126416R150), LT Laborhandel stocks the rod in diameters of 2.0 mm, 2.4 mm and 3.2 mm.Classification of the filler metalAccording to EN ISO 636-A, the wire is classified as W 4Si1 and the weld metal as W 46 5 4Si1. According to SFA/AWS A5.18, the classification is ER70S-6; the wire type is specified as G4Si1 / ER70S-6. The alloy type is carbon-manganese steel; the wire composition is 0.074% carbon, 1.68% manganese and 0.95% silicon. The shielding gas specified is I1 in accordance with EN ISO 14175, i.e. argon.Characteristic values of the weld metalIn its untreated state, the weld metal has a yield strength of 525 MPa, a tensile strength of 595 MPa and an elongation at break of 26 % in accordance with EN. The notch impact energy is 150 J at -40 °C and still 90 J at -50 °C. According to AWS, the yield strength is 510 MPa, the tensile strength 610 MPa and the elongation at break 30 per cent. The chemical analysis of the weld metal is 0.08 per cent C, 1.28 per cent Mn, 0.80 per cent Si, 0.013 per cent S and 0.015 per cent P.The classification and characteristic values are the same for all four diameters. The appropriate diameter depends on the weld preparation and the welding current.Typical applicationsRoot and fillet welds on unalloyed and low-alloy steelsGeneral structural steels and fine-grained structural steelsPressure vessel steels, e.g. from P235/S235 to P460/S460, type-tested down to -40 °CApprovalsDepending on the plant location, the following approvals are available: ABS 3Y (I1), BV 3YM, CE EN 13479, DB 42.039.48, DNV-GL III YM (I1), LR 3Y H15 (I1), UKCA EN 13479 and VdTÜV 05260. Which of these applies to a particular delivery depends on the plant location.TIG power source in the rangeLT Laborhandel stocks the ESAB Rogue ET 200iP PRO as its TIG power source, with a setting range of 10 to 200 A.Technical detailsProduct typeTIG welding rod (solid rod), copper-cladWire typeG4Si1 / ER70S-6Diameter1.6 mmRod length1000 mmPack size5 kgWeld metal classificationEN ISO 636-A: W 46 5 4Si1Wire classificationEN ISO 636-A: W 4Si1; SFA/AWS A5.18: ER70S-6Alloy typeCarbon-manganese steelShielding gasI1 (argon, EN ISO 14175)Yield strength (EN, untreated)525 MPaTensile strength (EN, untreated)595 MPaElongation at break (EN, untreated)26 %Notched impact energy (EN)150 J at -40 °C, 90 J at -50 °CYield strength (AWS, untreated)510 MPaTensile strength (AWS, untreated)610 MPaElongation at break (AWS, untreated)30 %Wire composition C / Mn / Si0.074 / 1.68 / 0.95 %Weld metal C / Mn / Si / S / P0.08 / 1.28 / 0.80 / 0.013 / 0.015 %Scope of delivery1 pack of OK Tigrod 12.64, 5 kg, rods Ø 1.6 mm, length 1000 mmIndividual requirements and procurement serviceWe can source other diameters, larger quantities or filler metals for other steel grades on request. Please contact us via the procurement service.
ESAB Rogue ET 200iP PRO TIG Inverter with HF Ignition, Manual Metal Arc (MMA) and Pulse Modes, 200 A, 115/230 V, 0700500081
The ESAB Rogue ET 200iP PRO uses HF to strike the arc and allows adjustment of gas pre-flow, start current, up-slope, down-slope, end current and gas post-flow, in either 2-stroke or 4-stroke mode. The PRO version also features a pulse function ranging from 0.2 to 500 Hz. The machine also supports manual metal arc (MMA) welding.TIG with HF ignition and pulsingThe adjustment range is 10 to 200 A. The scope of delivery includes a 4-metre-long SR-B 26 TIG torch, a set of consumables with a tungsten electrode and a 3-metre-long return lead cable with a clamp. The current control can be expanded in several ways: there are torches with remote control (SR-B 26FX-R) and a foot pedal available as accessories; the part numbers are listed under ‘Optional Accessories’.Manual arc welding with Hot Start and Arc ForceFor welding with stick electrodes, Hot Start and Arc Force can be set; the current is adjustable from 10 to 200 A. The unit may operate continuously at 100 A (24.0 V), at 129 A (25.2 V) with a 60 per cent duty cycle, and at 200 A (28.0 V) with a 25 per cent duty cycle. An electrode holder is not included in the scope of delivery; the Handy 200 A electrode holder (0700006900) is listed as an accessory.Differences from the Rogue ES 200i PROThe Rogue ES 200i PRO is an E-Hand machine with Live-TIG mode, weighing 8.4 kg, with a current range in MMA mode of 20 to 200 A. The ET 200iP PRO starts at 10 A, weighs 9.6 kg and comes with HF ignition, a pulse function and the torch included in the scope of delivery. Both machines have the same mains voltage, the same maximum output current and the same duty cycles at 200 A, 129 A and 100 A.Mains, generator and duty cycleThe unit operates on 115/230 V AC with a tolerance of ±15 per cent at 50 or 60 Hz; the apparent power is 7 kVA. In energy-saving mode, it draws 50 W. The unit is suitable for generator operation (7 kW). The duty cycle applies to both operating modes as follows:CurrentDuty cycleMMA voltageTIG voltage200 A25 %28.0 V18.0 V129 A60 %25.2 V15.2 V100 A100%24.0 V14.0 VHousing and dimensionsThe housing measures 403 x 153 x 264 mm and weighs 9.6 kg. The scope of delivery includes a shoulder strap. The protection rating is IP23S, and the operating temperature range is between -10 and +40 °C. The mains cable is 3 m long.Typical applicationsFood and drinkRepair and maintenanceBuilding constructionAgricultural machineryGeneral manufacturingAccessories for the TIG workstationLT Laborhandel stocks the OK Tigrod 12.64 TIG rod (G4Si1 / ER70S-6, argon shielding gas I1) in diameters of 1.6 mm and 2.0 mm, 1,000 mm in length. The weld metal achieves a notched impact energy of 150 J at -40 °C. For breaks, the TIG torch holder with magnetic base is available. It protects the tungsten tip from short circuits when the torch is set down between two welds.Technical detailsProcessTIG with HF ignition, manual metal arc (MMA)Mains voltage115/230 V AC ± 15 %, 1-phase, 50/60 HzMaximum output current200 AAdjustment range10 to 200 ADuty cycle (MMA)200 A / 28.0 V at 25 per cent; 129 A / 25.2 V at 60 per cent; 100 A / 24.0 V at 100 per centDuty cycle (TIG)200 A / 18.0 V at 25 per cent; 129 A / 15.2 V at 60 per cent; 100 A / 14.0 V at 100 per centPulse (PRO)0.2 to 500 HzTIG parametersGas pre-flow, start current, up-slope, down-slope, end current, gas post-flow, 2-stroke/4-strokeMMAAdjustable Hot Start and Arc ForceOpen-circuit voltage78 V DCApparent power7 kVAPower consumption in energy-saving mode50 WSuitable for generator operationsuitable, 7 kWMains cable length3 mExtension cableup to 100 m (PRO only)Protection classIP23SOperating temperature-10 to +40 °CDimensions (L x W x H)403 x 153 x 264 mmWeight9.6 kgCertificationCEScope of deliveryPower supply unit with 3 m mains cable and plugShoulder strap4 m SR-B 26 TIG torchSet of consumables including tungsten electrode3 m return lead cable with clampOptional accessoriesMMA 4 remote control with 10 m cable 0700500084Handy 200 A electrode holder 0700006900Return lead cable, 3 m 0700006901 or 5 m 0700006885SR-B 26 TIG torch with 4 m 0700025580 or 8 m 0700025581SR-B 26FX-R with remote control 0700025589 or 0700025590, foot pedal W4014450Frequently Asked QuestionsWhich welding processes does the machine support? TIG with HF ignition and manual metal arc (MMA) welding; the current range is 10 to 200 A.Is a TIG torch included in the scope of delivery? Yes, a 4 m long SR-B 26 torch with a wear parts kit and a tungsten electrode.Is an electrode holder included? No; for MMA operation, the Handy 200 A electrode holder (0700006900) is listed as an accessory.Can I run the unit on a generator? Yes, the unit is suitable for generator operation (7 kW). The mains voltage is 115/230 V AC.Individual requirements and procurement serviceWe can supply torches, remote controls, foot pedals or cables on request, including as a bundle with the unit. Please contact us via the procurement service.
ESAB OK Tigrod 12.64 TIG Welding Rod, G4Si1 / ER70S-6, Ø 3.2 x 1000 mm, 5 kg, 126432R150
3.2 mm in diameter, 1,000 mm in length, 5 kg: this is how the OK Tigrod 12.64, with the reference number 126432R150, is packaged. It is the same TIG filler metal as in the 1.6 mm, 2.0 mm and 2.4 mm versions, but with a larger diameter. It is intended for unalloyed and low-alloy steels.Filler metal in detailThe rod is copper-clad and classified as G4Si1 / ER70S-6. The wire is a carbon-manganese steel containing 0.074% C, 1.68% Mn and 0.95% Si. Analysis shows that the weld metal contains 0.08% C, 1.28% Mn, 0.80% Si, 0.013% S and 0.015% P. Argon (I1, EN ISO 14175) is specified as the shielding gas. The rods are each 1,000 mm long and are supplied in packs of 5 kg.Selection criteriaAccording to EN, the yield strength of the untreated weld metal is 525 MPa (AWS 510 MPa), the tensile strength is 595 MPa (AWS 610 MPa) and the elongation at break is 26 per cent (AWS 30 per cent). At -40 °C, the notched impact energy is 150 J, and at -50 °C it is still 90 J. The classification according to EN ISO 636-A is W 4Si1 for the wire and W 46 5 4Si1 for the weld metal.Typical applicationsRoot and fillet welds on unalloyed and low-alloy steelsGeneral structural steels and fine-grained structural steelsPressure vessel steels, grades such as P235/S235 to P460/S460, type-tested down to -40 °CClassification, analysis and characteristic values are the same for all four diameters in the range. The 2.4 mm version has the same values, but a smaller rod diameter. The diameter best suited to the task depends on the weld preparation and welding current.Approvals by plant locationESAB holds the following approvals: ABS 3Y (I1), BV 3YM, CE EN 13479, DB 42.039.48, DNV-GL III YM (I1), LR 3Y H15 (I1), UKCA EN 13479 and VdTÜV 05260. The list depends on the manufacturing site.Technical detailsWire typeCopper-clad TIG rod, G4Si1 / ER70S-6Diameter3.2 mmRod length1000 mmPack size5 kgClassification EN ISO 636-AWire W 4Si1, weld metal W 46 5 4Si1Classification SFA/AWS A5.18ER70S-6Alloy typeCarbon-manganese steelShielding gasI1 (argon, EN ISO 14175)Yield strength, untreatedEN 525 MPa, AWS 510 MPaTensile strength, untreatedEN 595 MPa, AWS 610 MPaElongation at break, untreatedEN 26 %, AWS 30 %Notched impact energy (EN)150 J at -40 °C, 90 J at -50 °CWire composition C / Mn / Si0.074 / 1.68 / 0.95 %Scope of delivery1 pack of OK Tigrod 12.64, 5 kg, rods Ø 3.2 mm, length 1000 mmIndividual requirements and procurement serviceIf you require other diameters, larger quantities or filler metals for other steel grades, please enquire via our procurement service. We stock the Rogue ET 200iP PRO as our TIG welder.

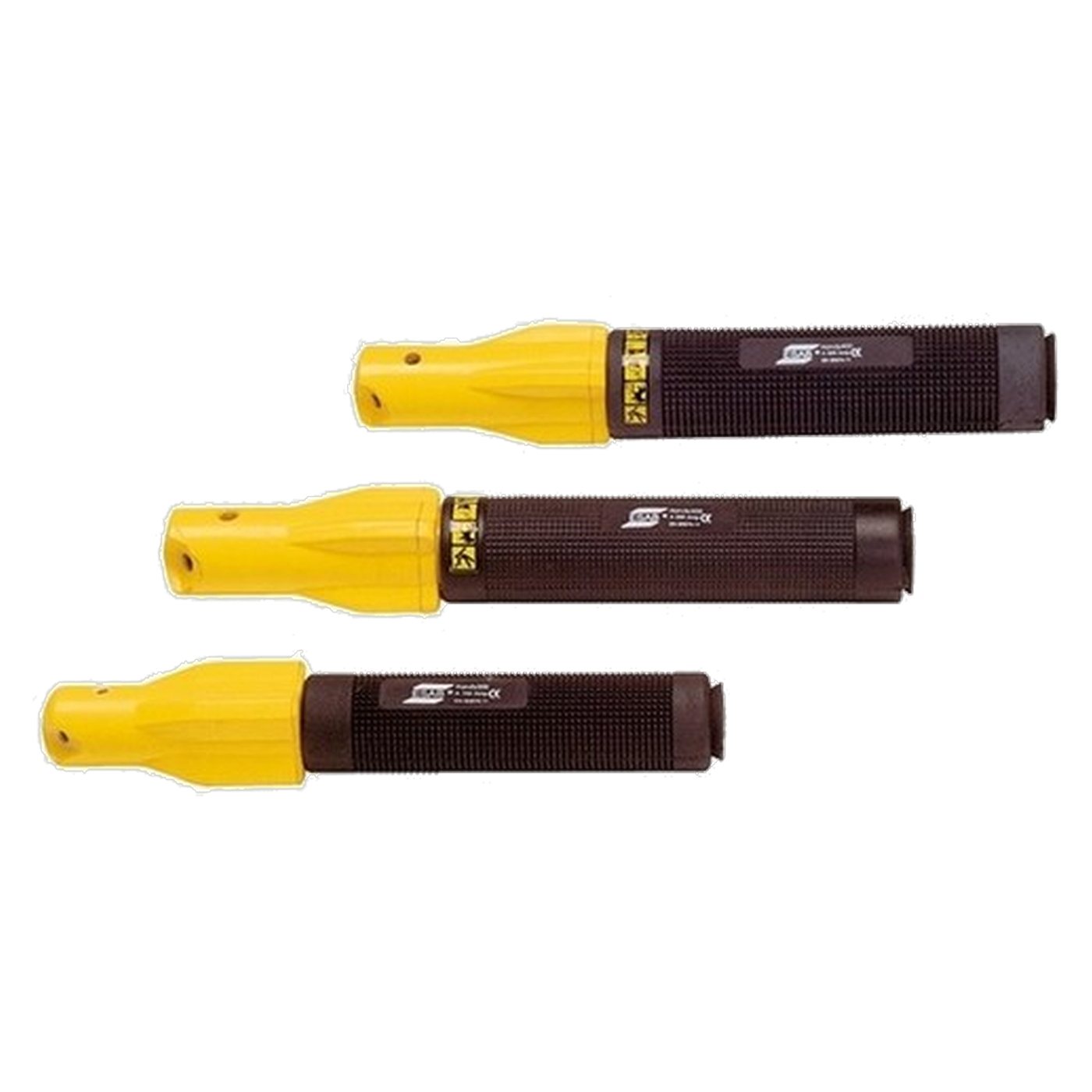

ESAB Eco Holder Handy 200 Electrode Holder, Screw-on Head, 200 A, Fully Insulated, 0700006003
The ESAB Eco Holder Handy 200 is a screw-head electrode holder rated for 200 A, with a fully insulated head and handle. The welding cable is connected via a crimp connection. The holder also bears the CE mark.Position within the Handy rangeFor higher currents, the Handy 300 is available, rated at 300 A with a 35 per cent duty cycle, and the Handy 400, rated at 400 A with a 35 per cent duty cycle (0700006013).Typical applicationsThe holder is designed for manual metal arc welding with stick electrodes.Technical detailsDesignScrew-type head; head and handle fully insulatedRated current200 ACable connectionCrimp connection to the welding cableMarkingCE markScope of delivery1 Eco Holder Handy 200 electrode holderIndividual requirements and procurement serviceWe can supply power sources for manual arc welding, such as the Rogue ES 200i PRO, welding cables or electrodes, on request. Please contact us via the procurement service.
