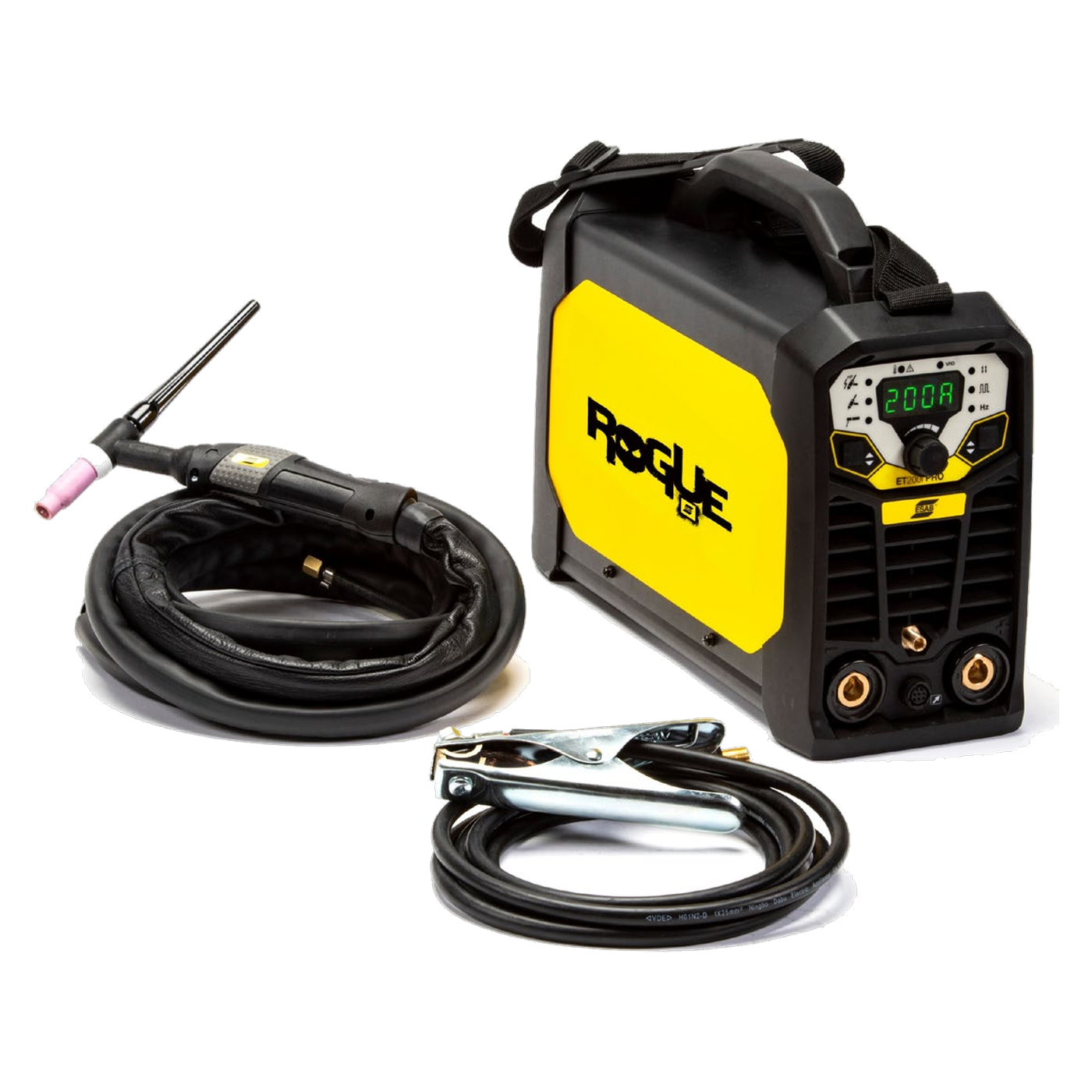

ESAB Rogue ET 200iP PRO TIG Inverter with HF Ignition, Manual Metal Arc (MMA) and Pulse Modes, 200 A, 115/230 V, 0700500081
€749.00
- TIG inverter with HF ignition and manual metal arc (MMA) welding, 10 to 200 A
- Pulse function 0.2 to 500 Hz (PRO)
- Mains voltage 115/230 V AC, generator operation possible (7 kW)
- TIG parameters: gas pre-flow, start, end and slope currents, gas post-flow, 2-stroke/4-stroke
- Duty cycle: 200 A at 25 per cent, 129 A at 60 per cent, 100 A at 100 per cent
- 4 m SR-B 26 TIG torch with wear parts kit and tungsten electrode included in the scope of delivery
- 9.6 kg, 403 x 153 x 264 mm, with shoulder strap
Product information "ESAB Rogue ET 200iP PRO TIG Inverter with HF Ignition, Manual Metal Arc (MMA) and Pulse Modes, 200 A, 115/230 V, 0700500081"
The ESAB Rogue ET 200iP PRO uses HF to strike the arc and allows adjustment of gas pre-flow, start current, up-slope, down-slope, end current and gas post-flow, in either 2-stroke or 4-stroke mode. The PRO version also features a pulse function ranging from 0.2 to 500 Hz. The machine also supports manual metal arc (MMA) welding.
TIG with HF ignition and pulsing
The adjustment range is 10 to 200 A. The scope of delivery includes a 4-metre-long SR-B 26 TIG torch, a set of consumables with a tungsten electrode and a 3-metre-long return lead cable with a clamp. The current control can be expanded in several ways: there are torches with remote control (SR-B 26FX-R) and a foot pedal available as accessories; the part numbers are listed under ‘Optional Accessories’.
Manual arc welding with Hot Start and Arc Force
For welding with stick electrodes, Hot Start and Arc Force can be set; the current is adjustable from 10 to 200 A. The unit may operate continuously at 100 A (24.0 V), at 129 A (25.2 V) with a 60 per cent duty cycle, and at 200 A (28.0 V) with a 25 per cent duty cycle. An electrode holder is not included in the scope of delivery; the Handy 200 A electrode holder (0700006900) is listed as an accessory.
Differences from the Rogue ES 200i PRO
The Rogue ES 200i PRO is an E-Hand machine with Live-TIG mode, weighing 8.4 kg, with a current range in MMA mode of 20 to 200 A. The ET 200iP PRO starts at 10 A, weighs 9.6 kg and comes with HF ignition, a pulse function and the torch included in the scope of delivery. Both machines have the same mains voltage, the same maximum output current and the same duty cycles at 200 A, 129 A and 100 A.
Mains, generator and duty cycle
The unit operates on 115/230 V AC with a tolerance of ±15 per cent at 50 or 60 Hz; the apparent power is 7 kVA. In energy-saving mode, it draws 50 W. The unit is suitable for generator operation (7 kW). The duty cycle applies to both operating modes as follows:
| Current | Duty cycle | MMA voltage | TIG voltage |
| 200 A | 25 % | 28.0 V | 18.0 V |
| 129 A | 60 % | 25.2 V | 15.2 V |
| 100 A | 100% | 24.0 V | 14.0 V |
Housing and dimensions
The housing measures 403 x 153 x 264 mm and weighs 9.6 kg. The scope of delivery includes a shoulder strap. The protection rating is IP23S, and the operating temperature range is between -10 and +40 °C. The mains cable is 3 m long.
Typical applications
- Food and drink
- Repair and maintenance
- Building construction
- Agricultural machinery
- General manufacturing
Accessories for the TIG workstation
LT Laborhandel stocks the OK Tigrod 12.64 TIG rod (G4Si1 / ER70S-6, argon shielding gas I1) in diameters of 1.6 mm and 2.0 mm, 1,000 mm in length. The weld metal achieves a notched impact energy of 150 J at -40 °C. For breaks, the TIG torch holder with magnetic base is available. It protects the tungsten tip from short circuits when the torch is set down between two welds.
Technical details
| Process | TIG with HF ignition, manual metal arc (MMA) |
| Mains voltage | 115/230 V AC ± 15 %, 1-phase, 50/60 Hz |
| Maximum output current | 200 A |
| Adjustment range | 10 to 200 A |
| Duty cycle (MMA) | 200 A / 28.0 V at 25 per cent; 129 A / 25.2 V at 60 per cent; 100 A / 24.0 V at 100 per cent |
| Duty cycle (TIG) | 200 A / 18.0 V at 25 per cent; 129 A / 15.2 V at 60 per cent; 100 A / 14.0 V at 100 per cent |
| Pulse (PRO) | 0.2 to 500 Hz |
| TIG parameters | Gas pre-flow, start current, up-slope, down-slope, end current, gas post-flow, 2-stroke/4-stroke |
| MMA | Adjustable Hot Start and Arc Force |
| Open-circuit voltage | 78 V DC |
| Apparent power | 7 kVA |
| Power consumption in energy-saving mode | 50 W |
| Suitable for generator operation | suitable, 7 kW |
| Mains cable length | 3 m |
| Extension cable | up to 100 m (PRO only) |
| Protection class | IP23S |
| Operating temperature | -10 to +40 °C |
| Dimensions (L x W x H) | 403 x 153 x 264 mm |
| Weight | 9.6 kg |
| Certification | CE |
Scope of delivery
- Power supply unit with 3 m mains cable and plug
- Shoulder strap
- 4 m SR-B 26 TIG torch
- Set of consumables including tungsten electrode
- 3 m return lead cable with clamp
Optional accessories
- MMA 4 remote control with 10 m cable 0700500084
- Handy 200 A electrode holder 0700006900
- Return lead cable, 3 m 0700006901 or 5 m 0700006885
- SR-B 26 TIG torch with 4 m 0700025580 or 8 m 0700025581
- SR-B 26FX-R with remote control 0700025589 or 0700025590, foot pedal W4014450
Frequently Asked Questions
Which welding processes does the machine support? TIG with HF ignition and manual metal arc (MMA) welding; the current range is 10 to 200 A.
Is a TIG torch included in the scope of delivery? Yes, a 4 m long SR-B 26 torch with a wear parts kit and a tungsten electrode.
Is an electrode holder included? No; for MMA operation, the Handy 200 A electrode holder (0700006900) is listed as an accessory.
Can I run the unit on a generator? Yes, the unit is suitable for generator operation (7 kW). The mains voltage is 115/230 V AC.
Individual requirements and procurement service
We can supply torches, remote controls, foot pedals or cables on request, including as a bundle with the unit. Please contact us via the procurement service.
