Heidolph Instruments, Hei-PLATE Mix'n'Heat Core+Ø135 -- EU cable #506-22100-00

Hei-PLATE Mix'n'Heat Core+Ø135 -- EU cable

Stirring and heating with Pt1000 – simple and precise

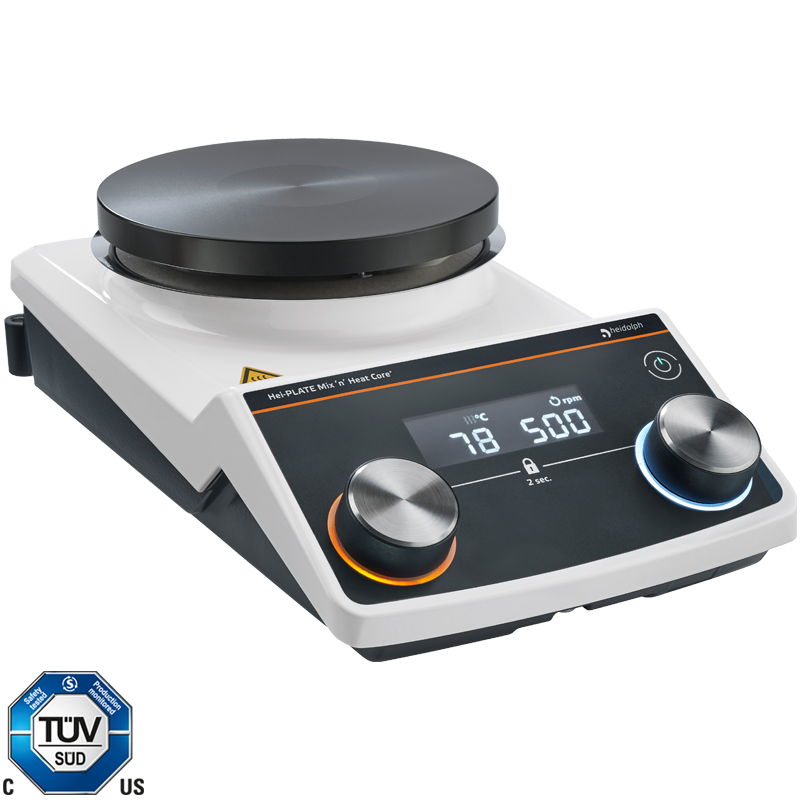

The Hei-PLATE Mix 'n' Heat Core+ is the classic choice among magnetic stirrers. It enables users to stir gently at speeds of up to 1,400 rpm and also – with a high degree of precision – to heat up to a temperature of 300 °C. It also impresses with its robust construction and sophisticated features, such as its illuminated buttons and controls, which provide information on active functions at all times. The dynamic rotary controls respond to the stirring speed – slow for precise adjustment, or fast for larger increments. The lock function prevents accidental adjustment of the settings. That is exactly what ‘Research made easy!’ means!

This magnetic stirrer is equipped with the most important safety features. The generous safety clearance between the heating plate and the control panel, as well as the visual residual heat warning at temperatures > 50 °C, protect against burns. A carrying handle on the underside ensures safe transport.

The patented Kera-Disk ^® work surface, made of anodised aluminium, is chemical-resistant, scratch-resistant and has a diameter of 135 mm (also available in 145 mm on request). With this unique size, it is suitable for using a wide range of accessories and samples within a small footprint. The material used also enables extremely fast heating times.

The Hei-PLATE Mix 'n' Heat Core+ magnetic stirrer features a digital display for setting your desired temperature to the nearest degree. Precise temperature control without overshoot is achieved via two selectable heating modes (FAST/PRECISE) and the optional external Pt1000 temperature sensor.
