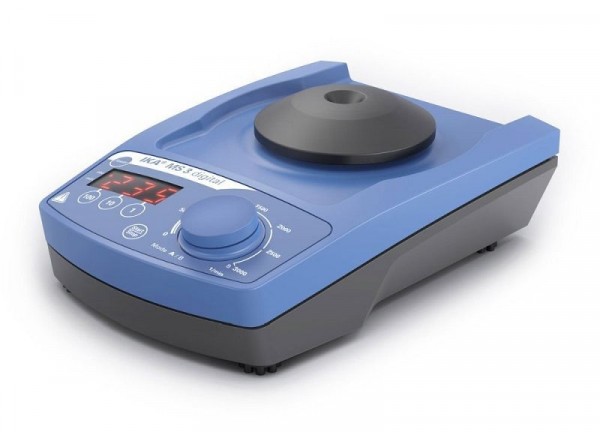

IKA Circular Shaker, MS 3 digital, 0003319000

MS 3 digital
Compact, universal micro-shaker suitable for shaking applications
with all small vessels and microtitre plates
Wide range of attachments
Attachment recognition
Timer with countdown function
Continuous operation or touch operation (when used with the standard attachment)
Two operating modes:
Mode A (safe operation with attachment recognition)
The maximum speed of 3,000 min⁻¹ is only achieved with the standard attachment in touch mode.
When using the other attachments, the speed is limited to 1,300 rpm.
Mode B (without attachment recognition)
Depending on the application, a speed of 3,000 rpm can be achieved with all attachments (see the list of accessories in the operating instructions).
Stable operation across all speed ranges
Robust die-cast zinc housing

Technical data
Type of motion: circular
Shaking stroke: 4.5 mm
Permissible shaking weight (incl. attachment): 0.5 kg
Motor power input: 10 W
Motor power output: 8 W
Permissible duty cycle: 100%
Speed min. (adjustable) 200 rpm
Speed range 0 – 3,000 rpm
Speed display Scale
Timer Yes
Timer display 7-segment LED
Time setting min. 1 s
Time setting range 1 – 999 min
Operating modes Timer and continuous operation
Touch function Yes
Operation with microtitre plates Yes
Number of microtitre plates 1
Dimensions (W x H x D) 148 x 63 x 205 mm
Weight 2.9 kg
Permissible ambient temperature range 5–40 °C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 21
Voltage 100–240 V
Frequency 50/60 Hz
Power consumption 20 W
DC voltage 24 V=Current
consumption 800 mA

Accessories and spare parts available on request
