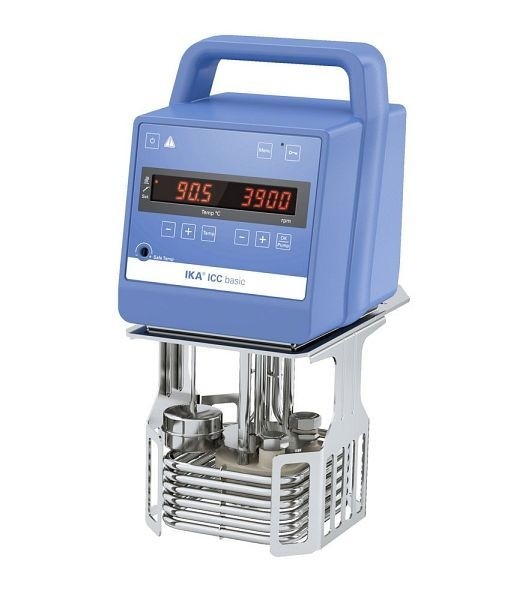

IKA Compact Immersion Thermostat, ICC basic, 0004134400

ICC basic
Compact immersion thermostat ICC basic for liquid temperature control in open or semi-open bath vessels up to a temperature of 150 °C.
The integrated pressure and suction pump allows it to be used for internal or external applications. Optionally, a cooling coil can be connected to the unit for temperature control at or near ambient temperature.
The ICC is the first thermostat in its class that can be conveniently transported using the practical carrying handle and securely stored thanks to the integrated stand.
Temperature range: RT – 150 °C
Temperature stability: ± 0.02 K
Integrated, powerful and adjustable pressure/suction pump
Retaining clip for securing to the bath vessel included
in the scope of delivery Practical carrying handle and integrated stand
Temperature setting and pump speed are displayed
on a large, easy-to-read LED display Intuitive menu navigation via pushand rotary knobs
Adjustable safety circuit
Visual and audible warning functions
USB / RS 232 interface for controlling and monitoring the units via labworldsoft® and for online updating of the unit software

Technical data
Device type Compact immersion thermostats
Class designation according to DIN 12876 III
Marking according to DIN 12876 FL
Heating power 2000 W
Operating temperature Room temp. +10K @1000rpm – 150 °C
Operating temperature min. (with external cooling) –20 °C
Temperature display: yes
Temperature control: PID
Operating temperature sensor: PT 100
Safety temperature sensor: PT 1000
Operating temperature display: LED
Safety temperature display: LED
Temperature stability: DIN 12876 ±0.02 K
Display resolution: 0.1 K
Display of operation with external sensor: yes
Setpoint accuracy: ±0.1 K
Visual warning function: yes
Audible warning function: yes
Overtemperature warning function: yes
Safety circuit adjustable: 0–160 °C
Low-level protection: yes
High-level protection: yes
Pump type: Pressure/suction pump
Adjustable pump output: yes
Maximum pump pressure: (0 litres flow rate) 0.3 bar
Pump pressure (suction side) max. (0 litres flow rate) 0.2 bar
Flow rate max. (0 bar back pressure) 18 l/min
Bath depth min. 150 mm
Calibration option yes
Device mounting clamp
Technical data in accordance with DIN 12876
Permissible duty cycle 100 %
Dimensions (W x H x D) 145 x 340 x 200 mm
Weight 3.75 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class in accordance with DIN EN 60529 IP 21
RS-232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 2100 W

Accessories and spare parts available on request
