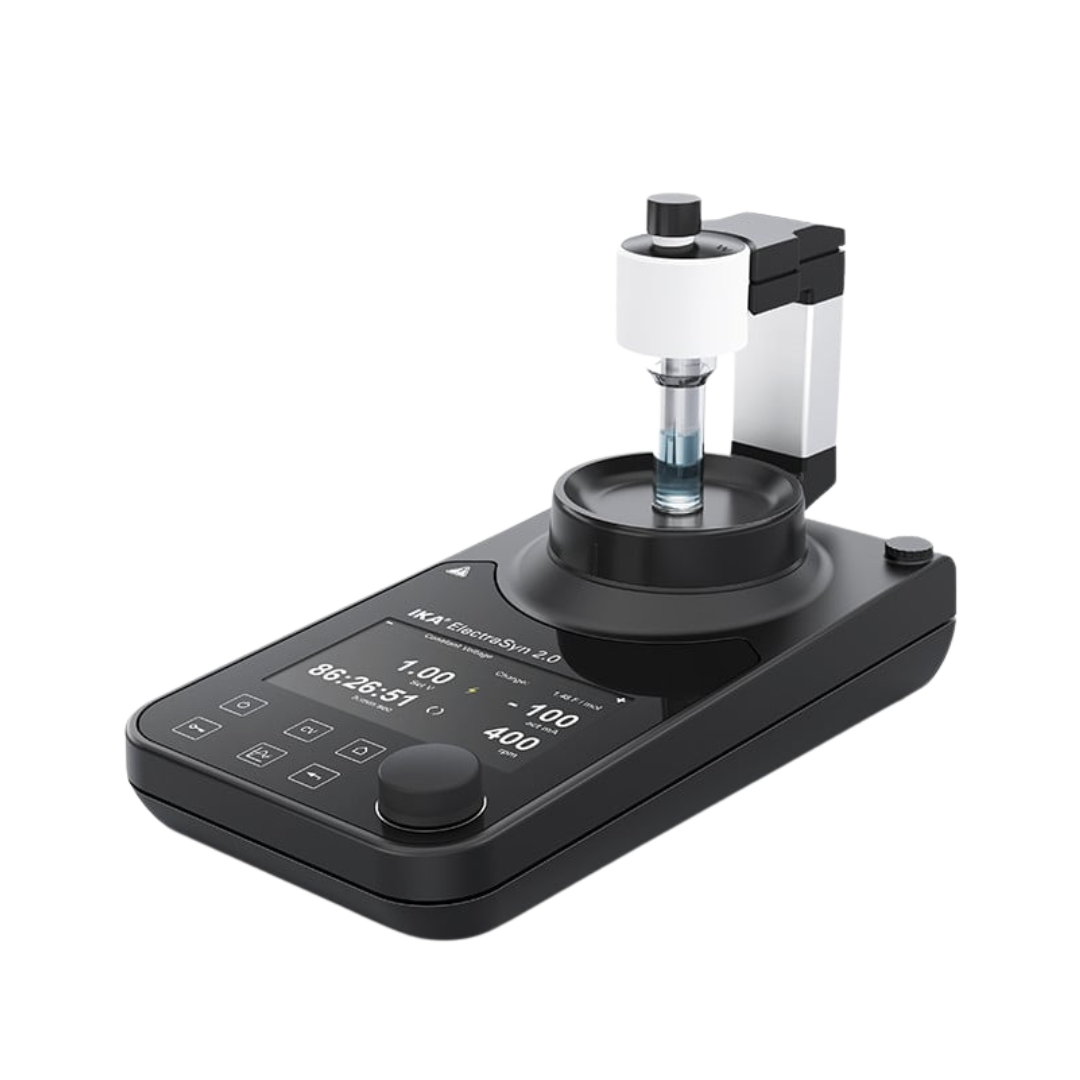

IKA ElectraSyn 2.0 Package Electrochemistry System, 0020008980

The IKA ElectraSyn 2.0 is a revolutionary ‘three-in-one’ system that standardises and makes electrochemical synthesis accessible to organic chemists. Developed in close collaboration with Phil S. Baran (Scripps Research Institute), this compact benchtop instrument replaces the makeshift, ‘tangled cable’ set-ups of traditional potentiostats with a defined, reproducible geometry. It combines a potentiostat for preparative electrosynthesis, an analytical tool for cyclovoltammetry (CV) and a high-quality magnetic stirrer in a single unit.

Standardisation and reproducibility

The ElectraSyn 2.0 solves the core problem of electrosynthesis – the transferability of results. By maintaining defined distances between the electrodes and precise stirring profiles, the system eliminates variables that often lead to errors in homemade cells. Chemists can intuitively run reactions in either constant-current (galvanostat) or constant-voltage (potentiostat) mode, whilst the TFT display visualises all relevant parameters in real time.

Smart features and connectivity

The system is not just hardware, but a platform. The IKA ElectraSyn app (iOS/Android) allows experiments to be monitored and data to be exported. Features such as ‘SmartAssist’ analyse the reaction before it starts to rule out common sources of error. Although the optional CV package is recommended for advanced mechanistic studies, the base unit already supports basic CV functions for quickly screening the electrochemical properties of substrates (redox potentials).

Technical details

• Nominal input voltage: 48 VDC
• Voltage range (output): 0–30 V (or 10 V depending on mode)
• Current range (output): up to 100 mA
• Resolution (measurement): 0.1 mA / 0.01 V
• Speed range: 50 – 1500 rpm
• Max. stirring volume (H₂O): 100 ml
• Display: TFT display
• Interfaces: USB, micro-USB, Wi-Fi (via app control)
• Protection class according to DIN EN 60529: IP 40
• Dimensions (W x H x D): 130 x 150 x 250 mm

Contents of delivery

• ElectraSyn 2.0 base unit (station)
• Single Vial Holder (holder for single vials)
• Single vial 10 ml, complete (reaction vessel)
• 2x electrodes (graphite)
• Stir plate attachment
• Mains power supply

Customised requirements & procurement service

Would you like to increase your throughput with the 6-well carousel attachment, or do you require specific electrode materials such as glassy carbon, platinum or zinc/magnesium sacrificial anodes? Our procurement service will put together the exact setup for your reduction or oxidation chemistry, including all available vial sizes (1 ml to 20 ml).
