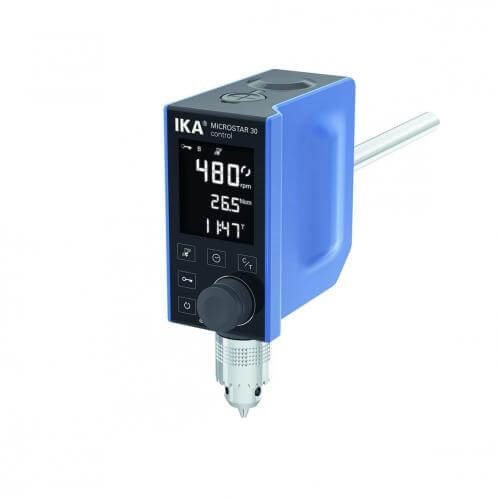

IKA electronic stirrer, MICROSTAR 30 control, 0025001987

MICROSTAR 30 control
The new MICROSTARS series from IKA: Developed as a state-of-the-art, high-tech stirrer with an ultra-compact design for use in specialist applications.
Combines high performance with attention to detail in the smallest of spaces, backed by a lifetime guarantee. See for yourself:

‘The Powerhouse’ in the smallest high-tech class, reaching 500 RPM!
Highly legible, top-quality glass display
; vibration detection with automatic shut-off in the event of stirrer
imbalance; USB interface, e.g. for documenting all parameters or firmware updates
; Bluetooth functionality, allowing the unit to be linked to an app
; easy connection to labworldsoft®
; temperature measurement with on-screen
display; viscosities up to 20,000 mPas and volumes up to 20 l
Chemical-resistant housing
Infinitely adjustable speed between 0/30 – 500 min⁻¹
Microprocessor-controlled regulation for constant speed, even with changes in viscosity
Key lock (Keylock button)
Timer

Technical data
: Maximum stirring volume per stirring point (H₂O) 20 l
; Motor power input 32 W
; Motor power output 22 W
; Motor type: brushless DC
; Speed display: LCD
; Speed range: 0/30 – 500 rpm
; Maximum viscosity 20,000 mPas
; Maximum power at the stirring shaft 15.7 W
Permissible duty cycle 100 %
Maximum torque at the stirring shaft 30 Ncm
Speed adjustment method: rotary knob
Speed adjustment accuracy ±1 rpm
Speed measurement deviation: n > 300 rpm ±1 %
Speed measurement deviation: n < 300 rpm ±3 rpm
Stirring tool mounting: collet
Connection for external temperature sensor PT1000
Temperature display yes
Collet clamping range 0.5 – 8.2 mm
Hollow shaft, inner diameter 8.5 mm
hollow shaft (through-shaft – when stationary) yes
Mounting on stand: extension
arm; extension arm diameter 13 mm
; extension arm length 160 mm
Torque display yes
Speed control: electronic
; nominal torque 0.3 Nm
Torque measurement trend
Deviation in torque measurement I ±3 Ncm
Timer Yes
Timer display LCD
Time setting range 0–6000 min
Temperature measurement range –10–350 °C
Temperature measurement resolution 0.1 K
Temperature measurement accuracy ±0.5 + PT1000 tolerance (DIN EN 60751 Class A) K
Maximum permissible deviation of temperature sensor ≤ ± (0.15 + 0.002 × ITI) K
Housing material: coated cast aluminium / thermoplastic
Dimensions (W × H × D) 60 × 173 × 136 mm
Weight 1.26 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
USB interface yes
Bluetooth interface yes
Voltage 100 – 240 V
Frequency 50/60 Hz
Power consumption 32 W
DC voltage 24 V=Current
consumption 1300 mA

Accessories and spare parts available on request
