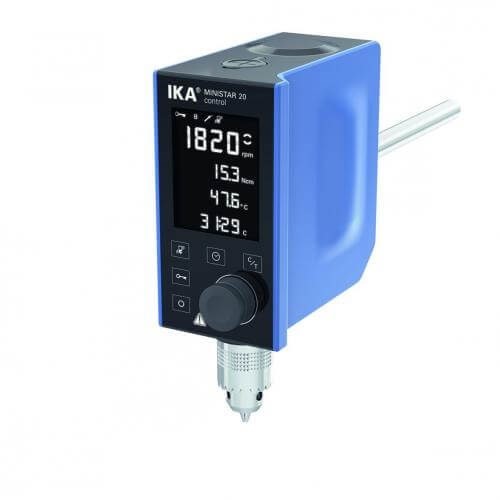

IKA electronic stirrer, MINISTAR 20 control, 0025001988

MINISTAR 20 control
The new MINISTARS series from IKA: Developed as a state-of-the-art, high-tech stirrer with a compact design for use in specialist applications.
Combines high performance with attention to detail in the smallest of spaces, backed by a lifetime guarantee. See for yourself:

‘The Fast One’ in the high-tech mini-class, perfect for low viscosities!
Highly legible, top-quality glass display
; vibration detection with automatic shut-off in the event of stirrer
imbalance; USB interface, e.g. for documenting all parameters or firmware updates
; Bluetooth functionality, enabling easy integration with an app
; simple connection to labworldsoft®
; temperature measurement with on-screen
display; viscosities up to 10,000 mPas and volumes up to 15 l
Chemical-resistant housing
Infinitely variable speed control between 0/30 – 2,000 min⁻¹
Microprocessor-controlled regulation for constant speed, even with changes in viscosity
Key lock (Keylock button)
Timer

Technical data
: Maximum stirring capacity per stirring point (H₂O) 15 l
Motor power input 60 W
Motor power output 46 W
Motor type Brushless DC
Speed display LCD
Minimum speed 50 rpm
Minimum speed 0–50 rpm
Maximum speed 2,000 rpm
Maximum viscosity 10,000 mPas
Maximum power at the stirring shaft 42 W
Permissible duty cycle 100 %
Max. torque at the stirring shaft 20 Ncm
Speed adjustment method: rotary knob
Speed adjustment accuracy ±1 rpm
Speed measurement deviation at n > 300 rpm ±1 %
Speed measurement deviation at n < 300 rpm ±3 rpm
Stirring tool mounting: collet
Connection for external temperature sensor PT1000
Temperature display yes
Chuck clamping range 0.5 – 8.2 mm
hollow shaft, inner diameter 8.5 mm
hollow shaft (through-shaft – when stationary) yes
Mounting on stand: extension
arm; extension arm diameter 13 mm
; extension arm length 160 mm
Torque display yes
Speed control: electronic
; nominal torque 0.2 Nm
Torque measurement trend
Deviation in torque measurement I ±3 Ncm
Timer Yes
Timer display LCD
Time setting range 0–6000 min
Temperature measurement range –10–350 °C
Temperature measurement resolution 0.1 K
Temperature measurement accuracy ±0.5 + PT1000 tolerance (DIN EN 60751 Class A) K
Maximum permissible deviation of temperature sensor ≤ ± (0.15 + 0.002 × ITI) K
Housing material: coated cast aluminium / thermoplastic
Dimensions (W x H x D) 70 x 193 x 154 mm
Weight 1.56 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
USB interface yes
Bluetooth interface yes
Voltage 100 – 240 V
Frequency 50/60 Hz
Power consumption 69 W
DC voltage 24 V=Current
consumption 2900 mA

Accessories and spare parts available on request
