IKA R 1330 Anchor Stirrer, Ø 45 mm, Length 350 mm, for EUROSTAR and RW 20, 0002022300

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "IKA R 1330 Anchor Stirrer, Ø 45 mm, Length 350 mm, for EUROSTAR and RW 20, 0002022300"

The IKA R 1330 anchor stirrer (MPN 0002022300) is a stirring element made of stainless steel 1.4571 for overhead stirrers. It has a stirrer diameter of 45 mm and a shaft with a diameter of 8 mm and a length of 350 mm. It is intended for medium to highly viscous media that are stirred at low speeds, up to a maximum of 1,000 rpm.

A polymer batch that sits thick in the vessel, or a mixture with a high mineral content that is to stay evenly distributed: the R 1330 is intended for tasks like these.

Tangential flow of the anchor stirrer with a high shear rate at the edge

The anchor stirrer moves the medium tangentially, that is, in the circumferential direction around the stirrer axis, and not axially like a propeller stirrer. The shear rate is high at the edge of the stirrer, and few deposits are left on the vessel wall. With viscous batches this matters, because material on the wall is withdrawn from the mixing process.

It is used at low speeds. The stirrer diameter of 45 mm determines the minimum width of the opening of the stirring vessel.

Typical applications

  • Homogenising medium to highly viscous liquids in the laboratory
  • Stirring in polymer reactions
  • Evenly distributing high mineral content in liquids
  • Batches where little material should be deposited on the vessel wall
  • Working at low speeds on an overhead stirrer

Suitable for IKA overhead stirrers with an 8 mm chuck

The shaft with a diameter of 8 mm fits into chucks for an 8 mm shaft. These include the IKA overhead stirrers EUROSTAR 20, 40, 60, 100, 200 and 400 (digital and control), RW 20 digital, MINISTAR 20, 40 and 80 digital, MICROSTAR 7.5 digital and NANOSTAR 7.5 digital.

Whether a stirrer drives the anchor stirrer safely in your medium depends on the viscosity and on the torque of the stirrer. The more viscous the batch, the more torque is required. Therefore check before purchase whether your device is sufficient for your batch and whether the chuck accepts a shaft of 8 mm.

Material

The wetted parts of the R 1330 are made of stainless steel 1.4571. The weight of the stirrer is 0.151 kg.

Technical details

TypeAnchor stirrer
Stirrer diameter45 mm
Shaft diameter8 mm
Shaft length350 mm
Maximum speed1,000 rpm
Flowtangential
Suitable formedium to highly viscous media
Material, wetted partsStainless steel 1.4571
Weight0.151 kg
MountChuck for 8 mm shaft

Scope of delivery

1 x IKA R 1330 anchor stirrer (MPN 0002022300). The overhead stirrer is not included in the scope of delivery.

Individual requirements and procurement service

If your medium requires a different flow pattern, the IKA R 1342 propeller stirrer is also available for the RW 20 digital, for low to medium viscosity liquids. A stirrer shaft protector, for example the IKA R 401, also fits the overhead stirrer setup. Our procurement service helps with the choice of the suitable stirring element and the overhead stirrer for your batch.

Skip product gallery

Fits

Discount
IKA EUROSTAR 100 control overhead stirrer with TFT display, up to 100 litres, 0020105159
IKA EUROSTAR 100 control overhead stirrer with TFT display, up to 100 litres, 0020105159
Manufacturer number: 0020105159

The IKA EUROSTAR 100 control overhead stirrer (MPN 0020105159) represents the modernised, highly advanced mechatronic generation of professional laboratory stirrers. With a footprint that, according to the manufacturer, is reduced by up to 23 % compared to its predecessors, this powerhouse offers exceptional functional density in a minimal space. Designed for universal and highly demanding mixing tasks in a B2B laboratory environment, the system handles sample volumes of up to 100 litres (based on water) as well as highly viscous media up to 70,000 mPas. It is suitable for complex syntheses, viscous mixtures and fully documented processes in chemical, pharmaceutical and biotechnological research. Within the EUROSTAR series, the Model 100 control is the top-of-the-range model for large volumes: It shares the maximum stirring capacity of 100 litres with the identically dimensioned Model 100 digital, but additionally offers a TFT display, torque and temperature measurement, and full Wi-Fi connectivity. Compared with the Model 60 control, which has a capacity of 60 litres and a maximum viscosity of 50,000 mPas, the Model 100 covers the larger volume range. High-precision torque monitoring and real-time viscosity display An outstanding metrological feature of the control series is the integrated high-end torque sensor. With an absolute accuracy of ±1 Ncm, it enables continuous, transient torque monitoring throughout the entire mixing process. Based on this data, the internal microprocessor control calculates the exact viscosity of the medium in mPas and displays it in real time on the large TFT graphic display. Thanks to electronic speed control in the range of 30 to 2,000 revolutions per minute, the brushless DC motor dynamically adapts to changes in load. The stirring speed thus remains constant even during sudden changes in viscosity, which supports the reproducibility of the results. Extended functionality and process reliability The EUROSTAR 100 control offers tools that go beyond conventional stirring. The system features an integrated temperature measurement function (via a PT1000 interface), a rotation direction that can be reversed at the touch of a button (anti-clockwise/clockwise rotation) for the targeted disruption of flow patterns, and a programmable interval mode. An integrated vibration sensor continuously monitors the test setup for imbalances or critical vibrations and initiates an automatic safety shutdown in the event of danger. Mechanical blockages or thermal overloads are intercepted by independent safety circuits. An integrated lock button also prevents accidental changes to parameters during operation. Industry 4.0 connectivity and robust housing design With standard USB-C, RS232, Ethernet, wireless and Wi-Fi interfaces, the overhead stirrer can be integrated into automated networks and controlled and documented via the labworldsoft laboratory software. The housing, made from coated die-cast aluminium and robust thermoplastic, meets degree of protection IP 54. The brushless DC drive operates virtually wear-free and quietly, making the system suitable for low-maintenance continuous operation (100 % duty cycle) under laboratory conditions. Typical applications Process development and scale-up trials with comprehensive documentation of torque, viscosity and temperature Agitation and homogenisation of highly viscous media up to 70,000 mPas, such as resins, pastes or concentrated polymer solutions Batches of up to 100 litres in technical and pilot plants, where larger containers need to be handled Chemical syntheses with temperature monitoring via PT1000 and automatic safety shut-off Networked laboratory workstations connected to labworldsoft via Wi-Fi or LAN for centralised process documentation Technical details Drive & performance dataMotor principleBrushless DC motor (BLDC)Motor power consumption174 wattsMotor power output142 wattsMax. power at the mixing shaft136 wattsPower consumption186 wattsPermissible duty cycle100 % (designed for continuous operation)Voltage range100 to 240 V / frequency 50/60 HzMixing & viscosity dataMax. mixing capacity per mixing point (water)100 litresMaximum viscosity70,000 mPasMaximum torque at the stirring shaft200 NcmMaximum torque during short-term acceleration (30 to 600 rpm, up to 20 min)200 NcmMax. torque at 1,300 to 2,000 rpm100 to 60 Ncm (linear adjustment)Rated torque1 NmSpeed & time controlSpeed range30 to 2,000 rpm (revolutions per minute)Speed adjustmentContinuously variable via electronic controlSpeed adjustment & measurement accuracy±1 rpmSpeed measurement deviation (n > 300 rpm)±1 %Speed measurement deviation (n < 300 rpm)±3 rpmDirection of rotation reversibleYes (left-hand/right-hand rotation integrated)Intermittent operation / Interval modeYesTimerYes, integrated (setting range 1 to 6,000 minutes)Metrology & SensorsSpeed display & timer displayHigh-resolution TFT graphic displayTorque measurementIntegrated (accuracy ±1 Ncm)Viscosity measurementIntegrated with direct mPas calculation and on-screen displayConnection for external temperature sensorPT1000Temperature measurement range-10 to +350 °C (resolution 0.1 K)Temperature measurement accuracy±0.5 K plus the tolerance of the PT1000 sensor (Class A)Vibration sensorIntegrated for automatic imbalance detectionInterfaces & connectivityWireless interfacesWi-Fi/WLAN and WPAN (wireless)Wired interfacesUSB-C, RS232 and EthernetSoftware Compatibilitylabworldsoft (process automation and documentation)Design & GeometryStirrer tool mountingChuck (clamping range: 0.5 to 10 mm in diameter)Hollow shaft (can be inserted whilst stationary)Yes (inner diameter 11 mm)Mounting on standBoom rod (diameter 16 mm / length 220 mm)Housing materialCoated cast aluminium and special thermoplasticDegree of protection according to DIN EN 60529IP 54 (splash- and steam-proof)Dimensions (width x depth x height)89 x 191 x 237 mmNet weight3.9 kgPermissible ambient temperature+5 to +40 °C (relative humidity up to 80 %) Scope of delivery 1 x IKA EUROSTAR 100 control overhead stirrer (MPN 0020105159) 1 x Integrated boom rod for stand mounting 1 x universal mains lead 1 x Detailed operating instructions / safety guide Individual requirements and procurement service Original IKA system peripherals are available for the EUROSTAR 100 control: Stirring tools & shaft protection: Stainless steel and PTFE stirring elements (e.g. propeller stirrers, anchor stirrers, dissolver discs) as well as the matching IKA R 401 stirring shaft guard with hinge (MPN 0020122349) Stand accessories: Sturdy IKA telescopic stands (e.g. R 2723) and boss heads (e.g. R 270) for securing the 3.9-kilogram drive Temperature measurement technology: IKA PT1000 stainless steel temperature probes for utilising the integrated temperature monitoring directly within the medium Please make use of our technical procurement service when planning the digitalisation of your laboratory processes.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

Sale price: €2,293.50 Manufacturer's RRP: €3,058.00 25% below manufacturer's RRP
Discount Promo
IKA EUROSTAR 200 digital Überkopfrührwerk, bis 100 l, 200 Ncm
IKA EUROSTAR 200 digital overhead stirrer, up to 100 l, 200 Ncm, 0003990000
Manufacturer number: 0003990000

With a stirring volume of 100 l and a torque of 200 Ncm, the EUROSTAR 200 digital forms part of IKA’s classic range with a 7-segment LED display. Instead of an LCD display, a 7-segment LED display shows the speed; two switchable speed ranges cover both low-speed, high-torque applications and rapid stirring of thinner media. For anyone looking for a robust, straightforward stirrer without additional electronics, the EUROSTAR 200 digital is suitable. It shares the motor, gearbox and base housing with the EUROSTAR 200 control and can be swapped for the better-equipped model at any time if required, without altering the stability on the stand.Two speed ranges for two tasksIn Range I, the stirrer delivers a torque of up to 200 Ncm at speeds between 6 and 400 rpm, suitable for viscous media and large stirring tools. In range II, the speed increases to up to 2,000 rpm, whilst the torque drops to a maximum of 40 Ncm, making it suitable for low-viscosity samples that require rapid stirring rather than high torque. The microprocessor-controlled system maintains the set speed constantly, even if the viscosity of the sample changes during the stirring process. According to the manufacturer, viscosities of up to 100,000 mPas are possible.Mechanics and connectionThe brushless DC motor draws 130 watts and delivers up to 84 watts to the stirring shaft. Stirring shafts are mounted via a 10 mm diameter plug-in coupling and a chuck ranging from 0.5 to 10 mm; the hollow shaft, with an internal diameter of 10.3 mm, can be inserted whilst the unit is stationary. With an IP 42 rating, the degree of protection is lower than that of the newer digital LCD models, but this is sufficient for standard laboratory use. An electronic safety circuit cuts off power in the event of a fault or overload, and an error code is displayed directly on the screen. The unit is also available in a voltage version for 100 to 115 V, which is useful for locations outside the European 230 V mains supply or for replacing an older stirrer on the same circuit.Typical applicationsPowerful stirring of viscous media up to 100 l in range IRapid stirring of low-viscosity samples up to 2,000 rpm in range IIRobust continuous operation without display electronics or additional wireless functionsMixing processes with viscosities up to 100,000 mPasSelection guide: the EUROSTAR series at a glanceSix EUROSTAR models make up IKA’s current range. The EUROSTAR 200 digital and its ‘control’ counterpart share the motor, gearbox and housing of the classic platform; the ‘digital’ and ‘control’ versions differ primarily in their display and additional functions.ModelMax. stirring volume (H2O)Max. torqueMax. viscosityDisplay/FeaturesEUROSTAR 20 digital25 l40 Ncm10,000 mPasLCD, USB-C/RS232EUROSTAR 100 digital100 l200 Ncm (short-term)70,000 mPasLCD, USB-C/RS232EUROSTAR 200 digital (this product)100 l200 Ncm100,000 mPasLEDEUROSTAR 200 control100 l200 Ncm100,000 mPasTFT, WiCo, PT1000EUROSTAR 400 digital150 l400 Ncm100,000 mPasLEDEUROSTAR 400 control150 l400 Ncm100,000 mPasTFT, WiCo, PT1000For those stirring smaller volumes of up to 5 l, the MICROSTAR and MINISTAR ranges offer a suitable alternative, such as the MICROSTAR 7.5 control.Technical detailsMax. stirring volume (H2O)100 lMotor power consumption130 WMotor power output84 WSpeed range I6 to 400 rpm, max. 200 NcmSpeed range II30 to 2,000 rpm, max. 40 NcmMax. viscosity100,000 mPasChuck clamping range0.5 to 10 mmPlug-in coupling10 mmHollow shaft, internal diameter10.3 mmArm diameter / length16 mm / 220 mmHousing materialCoated cast aluminium / thermoplasticIP ratingIP 42 (DIN EN 60529)Permissible ambient temperature / humidity5 to 40 °C / 80 %Dimensions (W x H x D)91 x 274 x 209 mmWeight4.6 kgConnected load230 V, 50/60 Hz, 130 W (other voltage option: 100 to 115 V)Scope of deliveryEUROSTAR 200 digital stirrer (base unit), ID no. 0003990000Chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a manufacturer’s warranty for the EUROSTAR 200 digital: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For stirring elements, stands or any other model in the EUROSTAR series, our procurement service will handle the assembly; the full range of stirring and mixing equipment is available in the shop.

Sale price: €2,800.00 Manufacturer's RRP: €3,500.00 20% below manufacturer's RRP
Discount
Topseller
IKA EUROSTAR 100 digital Überkopfrührwerk, bis 100 l, 200 Ncm
IKA EUROSTAR 100 digital overhead stirrer, up to 100 l, 200 Ncm, 0020105157
Manufacturer number: 0020105157

One hundred litres of water and a peak torque of 200 Ncm elevate the EUROSTAR 100 digital into a performance class intended for larger-scale applications in pilot plants or process development. The housing shares the platform with the smaller EUROSTAR 20 digital; the same compact design here houses a significantly more powerful brushless motor. The LCD display shows speed, the timer and a torque trend; the device can be connected to labworldsoft via USB-C and RS232.Torque: peak value and continuous operationAccording to the manufacturer, the maximum torque of the EUROSTAR 100 digital is 200 Ncm; this value applies to short-term acceleration at 30 to 600 rpm for up to 20 minutes. In continuous operation between 600 and 1,300 rpm, the usable torque ranges from 120 to 100 Ncm; at speeds between 1,300 and 2,000 rpm, it drops further to 100 to 60 Ncm. Anyone stirring highly viscous media up to 70,000 mPas on a continuous basis should therefore base their calculations on the lower continuous value; the peak value is available for brief load peaks during start-up. The brushless DC motor draws 186 watts and delivers up to 136 watts to the stirring shaft.Operation and interfacesThe speed ranges from 30 to 2,000 revolutions per minute and can be adjusted continuously with an accuracy of ±1 rpm. The Quick Sense Keyless Chuck handles tool changes without a chuck key; stirring shafts from 0.5 to 10 mm fit into the chuck. The hollow shaft, with an internal diameter of 11 mm, can be inserted whilst the machine is stationary. With a noise level of 52 dB(A) without a mixing tool, the unit achieves ISO cleanroom class 7 at 900 rpm and class 8 at 1,800 rpm. The housing, made of coated cast aluminium and thermoplastic, is protected against dust and splashing water to IP 54; a lock button and automatic shut-off in the event of a blockage or when the torque limit is reached round off the safety features.Typical applicationsStirring large batches of up to 100 l in pilot plants and process developmentHigh-viscosity media up to 70,000 mPas in continuous operationStarting up viscous formulations with a brief increase in torqueMixing processes in ISO Class 7 or 8 cleanroomsSelection guide: the EUROSTAR series at a glanceThe table compares six models from IKA’s EUROSTAR series: ‘digital’ versions with LCD or LED displays, and ‘control’ versions with a detachable WiCo controller, TFT display and PT1000 temperature measurement. The models differ in stirring capacity, torque and viscosity. With the same performance data, the digital and control versions differ primarily in terms of their displays and interfaces.ModelMax. stirring volume (H2O)Max. torqueMax. viscosityDisplay/FeaturesEUROSTAR 20 digital25 l40 Ncm10,000 mPasLCD, USB-C/RS232EUROSTAR 100 digital (this product)100 l200 Ncm (short-term)70,000 mPasLCD, USB-C/RS232EUROSTAR 200 digital100 l200 Ncm100,000 mPasLEDEUROSTAR 200 control100 l200 Ncm100,000 mPasTFT, WiCo, PT1000EUROSTAR 400 digital150 l400 Ncm100,000 mPasLEDEUROSTAR 400 control150 l400 Ncm100,000 mPasTFT, WiCo, PT1000For those stirring smaller volumes of up to 5 l, the MICROSTAR and MINISTAR ranges offer a suitable alternative, such as the MICROSTAR 7.5 control.Technical detailsMax. stirring capacity (H2O)100 lMotor power consumption186 WMotor power output136 WSpeed range30 to 2,000 rpmMax. torque (short-term, 30 to 600 rpm, up to 20 min)200 NcmContinuous operating torque (600 to 1,300 rpm)120 to 100 NcmContinuous torque (1,300 to 2,000 rpm)100 to 60 NcmMax. viscosity70,000 mPasChuck clamping range0.5 to 10 mmHollow shaft, internal diameter11 mmArm diameter / length16 mm / 220 mmHousing materialCoated cast aluminium / thermoplasticProtection ratingIP 54 (DIN EN 60529)Cleanroom classISO 7 (900 rpm) / ISO 8 (1,800 rpm)Permissible ambient temperature / humidity5 to 40 °C / 80 %Dimensions (W x H x D)89 × 237 × 191 mmWeight3.8 kgConnected load100 to 240 V, 50/60 Hz, 186 WScope of deliveryEUROSTAR 100 digital overhead stirrer (base unit), MPN 0020105157No separate chuck key required; the Quick Sense Keyless Chuck handles tool changesRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a manufacturer’s warranty for the EUROSTAR 100 digital: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For stirring elements, stands or any other model in the EUROSTAR range, our procurement service will handle the assembly; the full range of stirring and mixing equipment is available in the shop.

Sale price: €1,758.00 Manufacturer's RRP: €2,344.00 25% below manufacturer's RRP
Discount
IKA EUROSTAR 60 control overhead stirrer with TFT display, up to 60 litres, 0020105158
IKA EUROSTAR 60 control overhead stirrer with TFT display, up to 60 litres, 0020105158
Manufacturer number: 0020105158

The IKA EUROSTAR 60 control overhead stirrer (MPN 0020105158) represents the modernised, highly advanced mechatronic generation of professional laboratory stirrers. With a footprint that, according to the manufacturer, is reduced by up to 23 % compared with previous models, this unit fits into laboratory layouts. Designed for universal and highly demanding mixing tasks in a B2B environment, the system processes sample volumes of up to 60 litres (based on water) as well as viscous media with a viscosity of up to 50,000 mPas. It is suitable for complex syntheses, mixing viscous substances and fully documented processes in chemical, pharmaceutical and biotechnological research. Within the EUROSTAR series, the Model 60 control is the more compact version of the top-of-the-range Model 100 control: It offers the same comprehensive sensor technology and connectivity, but with a capacity limited to 60 litres and 50,000 mPas, whilst the Model 60 digital, with the same volume, does not feature temperature measurement, direction-of-rotation reversal or wireless network connectivity. Real-time viscosity measurement via torque sensor A key feature of the control series is the integrated torque sensor. With an accuracy of ±1 Ncm, it enables continuous torque monitoring throughout the entire mixing process. The internal microprocessor control system uses these values to calculate the viscosity of the medium and displays it in mPas on the TFT graphic display. Coupled with automatic speed control in the range of 30 to 2,000 revolutions per minute, the brushless DC motor dynamically adapts to changes in load. Advanced process functions and safety architecture The EUROSTAR 60 control offers tools that go beyond conventional stirring. The system features an integrated temperature measurement function (via PT1000 interface), a rotation direction that can be reversed at the touch of a button (counter-clockwise/clockwise rotation), and a programmable interval mode. An integrated vibration sensor monitors the test setup for imbalances or critical vibrations and initiates an automatic safety shutdown in the event of danger. Mechanical blockages or thermal overloads are countered by self-contained safety circuits, whilst a lock button protects the control panel against unintentional parameter changes. Industry 4.0 readiness and robust housing design With USB-C, RS232, Ethernet, wireless (WPAN) and Wi-Fi interfaces, the overhead stirrer can be connected to a PC and controlled and documented via the labworldsoft laboratory software. The housing, made from coated die-cast aluminium and robust thermoplastic, meets degree of protection IP 54 (splash- and steam-proof). The brushless DC motor operates with virtually no wear, is quiet (52 dBA without tools) and is designed for a 100 % duty cycle in continuous operation. Typical applications Process development with comprehensive documentation of torque, viscosity and temperature for batches of up to 60 litres Stirring of viscous media up to 50,000 mPas, where a reversible direction of rotation specifically remixes sediments Syntheses and reactions with temperature monitoring via PT1000 and automatic safety shut-off in the event of imbalance or blockage Networked laboratory workstations connected to labworldsoft via Wi-Fi or LAN, where a smaller volume than that of the Model 100 control is sufficient Technical details Drive & performance dataMotor principleBrushless DC motor (BLDC)Motor power consumption168 wattsMotor power output131 wattsMax. power at the mixing shaft126 wattsPower consumption186 wattsPermissible duty cycle100 % (designed for continuous operation)Voltage range100 to 240 V / frequency 50/60 HzMixing & viscosity dataMaximum mixing volume per mixing point (water)60 litresMaximum viscosity50,000 mPasMaximum torque at the stirring shaft100 NcmMaximum torque at 30 to 200 rpm100 NcmMax. torque at 200 to 2,000 rpm100 to 60 Ncm (linear adjustment)Max. torque I / Max. torque II100 Ncm / 60 NcmRated torque0.6 NmSpeed & time controlSpeed range30 to 2,000 rpm (revolutions per minute)Speed adjustmentContinuously variable via electronic controlSpeed adjustment & measurement accuracy±1 rpmSpeed measurement deviation (n > 300 rpm)±1 %Speed measurement deviation (n < 300 rpm)±3 rpmDirection of rotation reversibleYes (left-hand/right-hand rotation integrated)Intermittent operation / Interval modeYesTimerYes, integrated (setting range 1 to 6,000 minutes)Metrology & SensorsSpeed display & timer displayHigh-resolution TFT graphic displayTorque measurementIntegrated (accuracy ±1 Ncm)Viscosity measurementIntegrated with direct mPas calculation and on-screen displayConnection for external temperature sensorPT1000Temperature measurement range-10 to +350 °C (resolution 0.1 K)Temperature measurement accuracy±0.5 K plus the tolerance of the PT1000 sensor (Class A)Vibration sensorIntegrated for automatic imbalance detectionInterfaces & connectivityWireless interfacesWi-Fi/WLAN and WPAN (wireless)Wired interfacesUSB-C, RS232 and EthernetSoftware compatibilitylabworldsoft (process automation and documentation)Design & GeometryStirrer tool mountingChuck (clamping range: 0.5 to 10 mm in diameter)Hollow shaft (can be inserted whilst stationary)Yes (inner diameter 11 mm)Mounting on standExtension rod (diameter 16 mm / length 220 mm)Housing materialCoated cast aluminium and special thermoplasticDegree of protection according to DIN EN 60529IP 54 (splash- and steam-proof)Noise level without tools52 dB(A)Dimensions (width x depth x height)89 x 191 x 237 mmNet weight3.9 kgPermissible ambient temperature+5 to +40 °C (relative humidity up to 80 %) Scope of delivery 1 x IKA EUROSTAR 60 control overhead stirrer (MPN 0020105158) 1 x integrated extension rod for stand mounting 1 x universal mains cable 1 x Detailed operating instructions / safety guide Individual requirements and procurement service Original IKA system peripherals are available for the EUROSTAR 60 control: Stirring tools & shaft guards: Stainless steel and PTFE stirring elements (e.g. propeller stirrers, anchor stirrers, dissolver discs) as well as the matching IKA R 401 stirring shaft guard with hinge (MPN 0020122349) Stand accessories: Sturdy IKA telescopic stands (e.g. R 2722) and boss heads (e.g. R 270) for securing the 3.9-kilogramme drive Temperature measurement technology: IKA PT1000 stainless steel temperature probes for utilising the integrated temperature monitoring directly within the medium Please make use of our technical procurement service when planning the digitalisation of your laboratory processes.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

Sale price: €1,834.50 Manufacturer's RRP: €2,446.00 25% below manufacturer's RRP
Discount
IKA EUROSTAR 40 digital overhead stirrer with LCD display, up to 25 litres, 0020105155
IKA EUROSTAR 40 digital overhead stirrer with LCD display, up to 25 litres, 0020105155
Manufacturer number: 0020105155

The IKA EUROSTAR 40 digital overhead stirrer (MPN 0020105155) represents the modernised, mechatronically optimised generation of universal laboratory stirrers for more demanding routine tasks in the higher viscosity range. With a footprint that, according to the manufacturer, is reduced by up to 23 % compared to previous models, this unit offers high functional density in a minimal space. Designed for a sample volume of up to 25 litres (based on water), the system reliably handles viscosities of up to 30,000 mPas. This makes it suitable for demanding mixing processes, homogenisation and reproducible test series in a professional B2B laboratory environment. Within the EUROSTAR series, the Model 40 digital bridges the gap between the entry-level Model 20 digital and the high-volume Model 60 digital: With the same stirring capacity of 25 litres as the Model 20 digital, it processes significantly more viscous media up to 30,000 mPas thanks to its higher torque (60 instead of 40 Ncm). Torque trend measurement for viscosity monitoring A key feature of the digital series is the integrated torque trend measurement. The system detects changes in the viscosity of the medium with an accuracy of ±6 Ncm and displays the relative viscosity trend on the LCD screen. This enables laboratory staff to draw conclusions about the status of the mixing process. Thanks to automatic speed adjustment within a range of 30 to 2,000 revolutions per minute, the stirrer maintains the selected speed even when viscosity changes. Ergonomic tool change and occupational safety The EUROSTAR 40 digital is designed for user-friendliness and process reliability in continuous operation. The integrated quick-release chuck allows one-handed changing of stirring tools without the need for additional tools. A lock button protects the system from accidental parameter changes whilst it is running. In the event of overload or blockage of the stirring element, independent safety circuits trigger an automatic shut-off. Connectivity and robust housing design With USB-C and RS232 interfaces, the overhead stirrer can be connected to a PC and controlled and documented via the labworldsoft laboratory software. The housing, made from coated die-cast aluminium and robust thermoplastic, meets degree of protection IP 54. The brushless DC motor operates with virtually no wear, is quiet (52 dBA) and is designed for a 100 % duty cycle in continuous operation. Typical applications Homogenisation of viscous media up to 30,000 mPas, for which the Model 20 digital no longer provides sufficient torque Mixing and dispersing in containers of up to 25 litres with increased viscosity, such as creams, gels or adhesive formulations Reproducible test series in research and quality control at a constant speed, even with viscous formulations Routine laboratory operation where greater stirring power is required without a larger footprint Technical details Drive & performance dataMotor principleBrushless DC motor (BLDC)Motor power consumption118 wattsMotor power output84 wattsMax. power at the mixing shaft84 wattsPower consumption186 wattsPermissible duty cycle100 % (designed for continuous operation)Voltage range100 to 240 V / frequency 50/60 HzMixing & viscosity dataMaximum mixing volume per mixing point (water)25 litresMaximum viscosity30,000 mPasMaximum torque at the stirring shaft60 NcmMaximum torque at 30 to 200 rpm60 NcmMax. torque at 200 to 2,000 rpm60 to 40 Ncm (linear adjustment)Rated torque0.4 NmSpeed & time controlSpeed range30 to 2,000 rpm (revolutions per minute)Speed adjustmentContinuously variable via electronic controlSetting accuracy for speed±1 rpmSpeed measurement deviation (n > 300 rpm)±1 %Speed measurement deviation (n < 300 rpm)±3 rpmTimerYes, built-in (setting range 1 to 6,000 minutes)Reversible direction of rotation / intermittent operationNo / NoMetrology & SensorsSpeed display & timer displayDigital LCD displayTorque measurementIntegrated viscosity trend (trend mode)Deviation in torque trend±6 NcmTemperature display / external sensor connectionNo / NoDesign & GeometryMixing tool mountingQuick-release chuck (clamping range: diameters 0.5 to 10 mm)Hollow shaft (can be inserted whilst stationary)Yes (internal diameter 11 mm)Mounting on a standExtension rod (diameter 16 mm / length 220 mm)Housing materialCoated cast aluminium and thermoplasticDegree of protection according to DIN EN 60529IP 54 (splash- and steam-proof)Noise level without tools52 dB(A)Dimensions (width x depth x height)89 x 191 x 237 mmNet weight3.8 kgPermissible ambient temperature+5 to +40 °C (relative humidity up to 80 %) Scope of delivery 1 x IKA EUROSTAR 40 digital overhead stirrer (MPN 0020105155) 1 x integrated extension rod for stand mounting 1 x universal mains cable 1 x Detailed operating instructions / safety guide Individual requirements and procurement service Original IKA system peripherals are available to equip the EUROSTAR 40 digital mixing workstation: Stirring tools & shaft guards: Stainless steel and PTFE stirring elements (e.g. propeller stirrers, anchor stirrers, paddle stirrers) as well as the matching IKA R 401 stirring shaft guard with hinge (MPN 0020122349) Stand accessories: Sturdy IKA bench stands (e.g. R 1826) and boss heads (e.g. R 182) for securing the 3.8-kilogram drive Please make use of our technical procurement service to ensure your laboratory workstations are configured to meet your specific requirements.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

Sale price: €993.00 Manufacturer's RRP: €1,324.00 25% below manufacturer's RRP
Discount
IKA EUROSTAR 60 digital overhead stirrer with LCD display, up to 60 litres, 0020105156
IKA EUROSTAR 60 digital overhead stirrer with LCD display, up to 60 litres, 0020105156
Manufacturer number: 0020105156

The IKA EUROSTAR 60 digital overhead stirrer (MPN 0020105156) represents the modernised, mechatronically optimised generation of universal laboratory stirrers for medium-duty to demanding mixing tasks. With a footprint that, according to the manufacturer, is reduced by up to 23 % compared to previous models, this unit offers a high functional density in a minimal space. Designed for a sample volume of up to 60 litres (based on water), the system reliably handles viscosities of up to 50,000 mPas. This makes it suitable for standardised mixing processes, homogenisation and reproducible test series in a professional B2B laboratory environment. Within the EUROSTAR series, the Model 60 digital covers the mid-range volume class: With a stirring capacity of 60 litres and a maximum viscosity of 50,000 mPas, it sits between the more compact Model 40 digital (25 litres, 30,000 mPas) and the large-volume Model 100 digital (100 litres). Torque trend measurement for viscosity monitoring A key feature of the digital series is the integrated torque trend measurement. The system detects changes in the viscosity of the medium with an accuracy of ±6 Ncm and displays the relative viscosity trend on the LCD screen. This enables laboratory staff to draw conclusions about the status of the mixing process. Thanks to automatic speed adjustment within a range of 30 to 2,000 revolutions per minute, the stirrer maintains the selected speed even when viscosity changes. Ergonomic tool change and occupational safety The EUROSTAR 60 digital is designed for user-friendliness and process reliability in continuous operation. The integrated quick-release chuck allows one-handed changing of stirring tools without the need for additional tools. A lock button protects the running system from accidental changes to parameters. In the event of overload or blockage of the stirring element, independent safety circuits trigger an automatic shut-off. Connectivity and robust housing design With USB-C and RS232 interfaces, the overhead stirrer can be seamlessly connected to a PC and controlled and documented via the labworldsoft laboratory software. The housing, made from coated die-cast aluminium and robust thermoplastic, meets degree of protection IP 54. The brushless DC motor operates with virtually no wear, is quiet (52 dBA) and is designed for a 100 % duty cycle in continuous operation. Typical applications Homogenisation and mixing of highly viscous media up to 50,000 mPas in larger containers of up to 60 litres Scale-up trials from beaker to pilot plant scale, where a larger volume is required than that offered by the 20 and 40 digital models Standardised mixing processes in production and quality assurance with a documentable viscosity trend Preparation of larger batches of solutions, suspensions or emulsions in the industrial laboratory Technical details Drive & performance dataMotor principleBrushless DC motor (BLDC)Motor power consumption168 wattsMotor power output131 wattsMax. power at the mixing shaft126 wattsPower consumption186 wattsPermissible duty cycle100 % (designed for continuous operation)Voltage range100 to 240 V / frequency 50/60 HzMixing & viscosity dataMaximum mixing volume per mixing point (water)60 litresMaximum viscosity50,000 mPasMaximum torque at the stirring shaft100 NcmMaximum torque at 30 to 200 rpm100 NcmMax. torque at 200 to 2,000 rpm100 to 60 Ncm (linear adjustment)Max. torque I / Max. torque II100 Ncm / 60 NcmRated torque0.6 NmSpeed & time controlSpeed range30 to 2,000 rpm (revolutions per minute)Speed adjustmentContinuously variable via electronic controlSetting accuracy for speed±1 rpmSpeed measurement deviation (n > 300 rpm)±1 %Speed measurement deviation (n < 300 rpm)±3 rpmTimerYes, built-in (setting range 1 to 6,000 minutes)Reversible direction of rotation / intermittent operationNo / NoMetrology & SensorsSpeed display & timer displayDigital LCD displayTorque measurementIntegrated viscosity trend (trend mode)Deviation in torque trend±6 NcmTemperature display / external sensor connectionNo / NoDesign & GeometryMixing tool mountingQuick-release chuck (clamping range: diameters 0.5 to 10 mm)Hollow shaft (can be inserted whilst stationary)Yes (internal diameter 11 mm)Mounting on a standExtension rod (diameter 16 mm / length 220 mm)Housing materialCoated cast aluminium and thermoplasticDegree of protection according to DIN EN 60529IP 54 (splash- and steam-proof)Noise level without tools52 dB(A)Dimensions (width x depth x height)89 x 191 x 237 mmNet weight3.8 kgPermissible ambient temperature+5 to +40 °C (relative humidity up to 80 %) Scope of delivery 1 x IKA EUROSTAR 60 digital overhead stirrer (MPN 0020105156) 1 x integrated extension rod for stand mounting 1 x universal mains cable 1 x Detailed operating instructions / safety guide Individual requirements and procurement service Original IKA system peripherals are available to equip the EUROSTAR 60 digital stirring workstation: Stirring tools & shaft guards: Stainless steel and PTFE stirring elements (e.g. propeller stirrers, anchor stirrers, paddle stirrers) as well as the matching IKA R 401 stirring shaft guard with hinge (MPN 0020122349) Stand accessories: Sturdy IKA telescopic stands (e.g. R 2722) and boss heads (e.g. R 270) for securing the 3.8-kilogramme drive unit Please make use of our technical procurement service to ensure your laboratory workstations are configured to meet your specific requirements.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

Sale price: €1,260.75 Manufacturer's RRP: €1,681.00 25% below manufacturer's RRP
Discount Promo

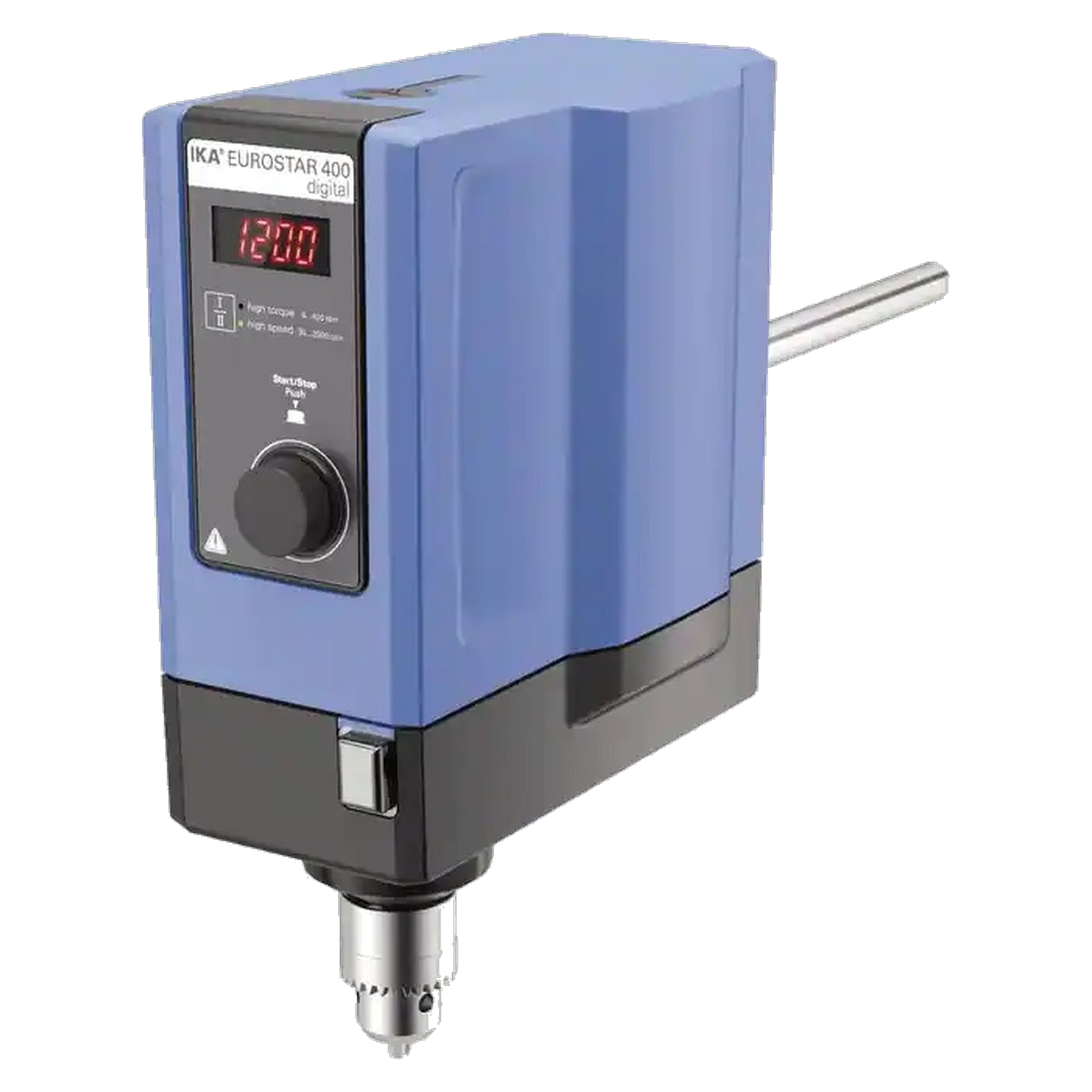

IKA EUROSTAR 400 digital Überkopfrührwerk, bis 150 l, 400 Ncm
IKA EUROSTAR 400 digital overhead stirrer, up to 150 l, 400 Ncm, 0004214000
Manufacturer number: 0004214000

With a stirring volume of 150 l and a torque of 400 Ncm, the EUROSTAR 400 digital is the most powerful digital model in the classic EUROSTAR series, designed for pilot plants and large batches involving viscous to highly viscous media. The larger chuck, wider housing and more powerful motor clearly distinguish this unit from the smaller EUROSTAR 200 models, whilst the operating logic, featuring two speed ranges and a 7-segment LED display, remains the same. Anyone who regularly runs batches of over 100 l or works with viscous, high-viscosity formulations will find this to be the most powerful version available without additional wireless functions.Power for large batchesIn low-speed range I, the stirrer delivers up to 400 Ncm of torque at speeds between 6 and 400 rpm; in the faster range II, the speed reaches up to 2,000 rpm with a maximum torque of 80 Ncm. According to the manufacturer, viscosities of up to 100,000 mPas are possible; the brushless DC motor draws 220 watts and delivers up to 176 watts to the stirring shaft. The chuck accommodates stirring shafts with diameters ranging from 3 to 16 mm, significantly more than the smaller models in the series, to suit the larger stirring tools used with batch sizes of 150 l. The speed can be adjusted continuously with an accuracy of ±1 rpm; the digital LED display shows the current value directly on the unit.Design and connectionMeasuring 114 x 325 x 245 mm and weighing 8.4 kg, the unit is noticeably larger and heavier than the 200 series models; a correspondingly sturdy stand with a 16 mm arm diameter is therefore essential. The hollow shaft, with an internal diameter of 10.3 mm, can be inserted whilst the unit is stationary; the housing, made of coated cast aluminium and thermoplastic, is protected against foreign bodies larger than 1 mm and dripping water falling at an angle in accordance with IP 42. An electronic safety circuit cuts off the power in the event of a fault or overload; additional voltage variants of 115 V and 100 V are available for locations outside the 230 V mains supply. The 16 mm arm is shorter than that of the 200 series models; but at the same diameter it supports the greater weight of the larger stirring shafts and tools more stably on the stand.Typical applicationsStirring large batches of up to 150 l in pilot plants and pilot-scale facilitiesPowerful mixing of viscous to highly viscous media up to 100,000 mPasRapid stirring of thinner samples in the higher-speed range IIContinuous operation with larger stirring tools from 3 mm shaft diameterUpgrading from a 200-series model as batch volumes increaseSelection guide: the EUROSTAR series at a glanceSix EUROSTAR models make up IKA’s current range; the EUROSTAR 400 digital, together with its ‘control’ counterpart, represents the highest performance tier. The model number gives an approximate indication of the performance class; the decisive factors are stirring volume, torque and viscosity limit.ModelMax. stirring volume (H2O)Max. torqueMax. viscosityDisplay/FeaturesEUROSTAR 20 digital25 l40 Ncm10,000 mPasLCD, USB-C/RS232EUROSTAR 100 digital100 l200 Ncm (short-term)70,000 mPasLCD, USB-C/RS232EUROSTAR 200 digital100 l200 Ncm100,000 mPasLEDEUROSTAR 200 control100 l200 Ncm100,000 mPasTFT, WiCo, PT1000EUROSTAR 400 digital (this product)150 l400 Ncm100,000 mPasLEDEUROSTAR 400 control150 l400 Ncm100,000 mPasTFT, WiCo, PT1000For those stirring smaller volumes of up to 5 l, the MICROSTAR and MINISTAR series offer a suitable alternative, such as the MICROSTAR 7.5 control.Technical detailsMax. stirring volume (H2O)150 lMotor power consumption220 WMotor power output176 WSpeed range I6 to 400 rpm, max. 400 NcmSpeed range II30 to 2,000 rpm, max. 80 NcmMax. viscosity100,000 mPasChuck clamping range3 to 16 mmHollow shaft, internal diameter10.3 mmArm diameter / length16 mm / 160 mmHousing materialCoated cast aluminium / thermoplasticIP ratingIP 42 (DIN EN 60529)Permissible ambient temperature / humidity5 to 40 °C / 80 %Dimensions (W x H x D)114 x 325 x 245 mmWeight8.4 kgConnected load230 V, 50/60 Hz, 220 W (other voltage options: 115 V / 100 V)Scope of deliveryEUROSTAR 400 digital stirrer (base unit), ID no. 0004214000Chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a manufacturer’s warranty for the EUROSTAR 400 digital: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For stirring elements, stands or any other model in the EUROSTAR series, our procurement service will handle the configuration; the full range of stirring and mixing equipment is available in the shop.

Sale price: €3,513.60 Manufacturer's RRP: €4,392.00 20% below manufacturer's RRP
Discount
Topseller
IKA EUROSTAR 20 digital Überkopfrührwerk, bis 25 l, 40 Ncm
IKA EUROSTAR 20 digital Overhead Stirrer, up to 25 l, 40 Ncm, 0020105154
Manufacturer number: 0020105154

Twenty-five litres of water at a torque of 40 Ncm characterise the lowest power setting of IKA’s current EUROSTAR digital generation. According to the manufacturer, the compact housing requires up to 23 % less floor space than its predecessors, whilst the LCD display shows speed, the timer and a torque trend simultaneously. For standard laboratories that regularly stir small to medium-sized batches and require cleanroom compatibility, the EUROSTAR 20 digital is the entry-level model in the range. The electronics are microprocessor-controlled and maintain the set speed even if the viscosity of the sample changes during the stirring process.Mechanics and tool changeThe brushless DC motor draws 70 watts and delivers up to 22 watts to the stirring shaft, with a duty cycle of 100 % in continuous operation. The speed ranges from 30 to 2,000 revolutions per minute; the maximum torque of 40 Ncm decreases linearly to 20 Ncm at higher speeds. This performance is therefore sufficient for samples up to 10,000 mPas. The Quick Sense Keyless Chuck replaces the traditional chuck key; stirring shafts from 0.5 to 10 mm can be changed with one hand. The hollow shaft, with an internal diameter of 11 mm, can be inserted whilst the unit is stationary, which is practical for stirring elements that are inserted from above.Cleanroom-compatible and protectedWith a noise level of 52 dB(A) without a stirring tool, the EUROSTAR 20 digital achieves ISO cleanroom class 7 at 900 rpm and class 8 at 1,800 rpm, which is relevant for pharmaceutical, biotech and electronics laboratories. The housing, made of coated cast aluminium and thermoplastic, is chemical-resistant and protected against dust and splashing water in accordance with IP 54. A lock button prevents accidental adjustment during cleaning; the unit switches off automatically if the stirring tool becomes blocked or when the torque limit is reached. USB-C and RS232 interfaces connect the stirrer to IKA’s labworldsoft, the measurement and control software that allows speed and time profiles to be documented.Typical applicationsHomogenisation of small to medium batches up to 25 lStirring of low- to medium-viscosity samples in Class 7 or 8 cleanroomsMixing tasks in research and development with documented speed curvesRoutine laboratory work involving frequent tool changes without the need for a chuck keySelection guide: the EUROSTAR series at a glanceThese six EUROSTAR models belong to IKA’s current range: ‘digital’ versions with LCD or LED displays, and ‘control’ versions with a detachable WiCo controller, TFT display and PT1000 temperature measurement. The model number gives an approximate indication of the performance class; the decisive factors are stirring capacity, torque and viscosity limit.ModelMax. stirring volume (H2O)Max. torqueMax. viscosityDisplay/FeaturesEUROSTAR 20 digital (this product)25 l40 Ncm10,000 mPasLCD, USB-C/RS232EUROSTAR 100 digital100 l200 Ncm (short-term)70,000 mPasLCD, USB-C/RS232EUROSTAR 200 digital100 l200 Ncm100,000 mPasLEDEUROSTAR 200 control100 l200 Ncm100,000 mPasTFT, WiCo, PT1000EUROSTAR 400 digital150 l400 Ncm100,000 mPasLEDEUROSTAR 400 control150 l400 Ncm100,000 mPasTFT, WiCo, PT1000For those stirring smaller volumes of up to 5 l, the MICROSTAR and MINISTAR series offer a suitable alternative, such as the MICROSTAR 7.5 control.Technical detailsMax. stirring capacity (H2O)25 lMotor power consumption70 WMotor power output22 WSpeed range30 to 2,000 rpmMax. torque at the stirring shaft40 Ncm (drops to 20 Ncm at 2,000 rpm)Max. viscosity10,000 mPasChuck clamping range0.5 to 10 mmHollow shaft, internal diameter11 mmArm diameter / length16 mm / 220 mmTime setting range for timer1 to 6,000 minHousing materialCoated cast aluminium / thermoplasticDegree of protectionIP 54 (DIN EN 60529)Cleanroom classISO 7 (900 rpm) / ISO 8 (1,800 rpm)Permissible ambient temperature / humidity5 to 40 °C / 80 %Dimensions (W x H x D)89 x 237 x 191 mmWeight3.8 kgConnected load100 to 240 V, 50/60 HzScope of deliveryEUROSTAR 20 digital stirrer (base unit), ID no. 0020105154No separate chuck key required; the Quick Sense Keyless Chuck handles tool changesRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a manufacturer’s warranty for the EUROSTAR 20 digital: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For stirring elements, stands or any other model in the EUROSTAR range, our procurement service will handle the assembly; the full range of stirring and mixing equipment is available in the shop.

Sale price: €763.50 Manufacturer's RRP: €1,018.00 25% below manufacturer's RRP
Discount
IKA EUROSTAR 200 P4 control stirrer, 660 Ncm, high-viscosity, 0004090000
IKA EUROSTAR 200 P4 control stirrer, 660 Ncm, high-viscosity, 0004090000
Manufacturer number: 0004090000

Maximum power for viscous media: IKA EUROSTAR 200 P4 control The IKA EUROSTAR 200 P4 control (MPN 0004090000) is a laboratory stirrer designed for applications that push conventional stirrers to their limits. A special reduction gearbox converts speed into torque. With 660 Ncm, it is suited for processing highly viscous substances such as adhesives, polymers, pastes or paints with a viscosity of up to 150,000 mPas. Wireless Control (WiCo): Safety from a distance Like all models in the “control” series, the EUROSTAR 200 P4 also features the detachable WiCo (Wireless Controller) control unit. Remote control: Control and monitor the stirrer wirelessly from a distance of up to 150 metres, depending on the building. This is helpful when the unit is located in a closed fume hood or when working with hazardous vapours. Process monitoring: The TFT display shows not only the speed but also the current torque. Changes in the sample’s viscosity are thus immediately visible. Smart functions for Laboratory 4.0 Torque trend measurement: Record relative changes in viscosity over time. Interfaces: The instrument can be connected to a PC via USB and RS 232. Using the labworldsoft® software, you can programme and document complex test sequences. Temperature measurement: A connection for a PT 1000 temperature sensor is integrated. This allows you to ensure that your temperature-sensitive samples do not overheat (limit values can be set). Powerful, yet controlled Despite its enormous power, the brushless motor operates quietly. The speed can be continuously adjusted from 4 to 530 rpm. The focus here is clearly on power in the low-speed range, not on high speed. An electronic safety cut-out protects the motor in the event of overload or blockage. Areas of application Polymer synthesis: Stirring of viscous melts. Building materials industry: Mixing mortar or cement samples on a laboratory scale. Cosmetics: Production of highly viscous creams and pastes. Adhesive development: Homogenisation of resins. Technical data Max. stirring volume (H₂O): 100 litres Max. torque at the stirring tool: 660 Ncm Max. viscosity: 150,000 mPas Speed range: 0/4 – 530 rpm Gearbox: Yes (reduction gear for high torque) Motor power input/output: 134 W / 76 W Display: TFT (detachable WiCo controller) Measurement functions: Torque trend, temperature, timer, interval Temperature measurement: Connection for PT 1000 (probe included) Chuck clamping range: 0.5 – 10 mm Arm diameter: 16 mm Interfaces: USB, RS 232 IP rating: IP 40 Dimensions (W x H x D): 91 x 379 x 231 mm Weight: 5.9 kg Scope of delivery 1 x IKA EUROSTAR 200 P4 control (drive unit) 1 x WiCo (wireless controller) 1 x PT 1000.60 temperature probe 1 x Mounting bracket for WiCo 1 x USB cable 1 x power supply unit & plug set 1 x operating instructions WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & accessories Warning: At 660 Ncm, enormous forces are exerted on the stand and the stirring blade! Stand: You must use a heavy-duty telescopic stand (e.g. IKA R 2723) with anti-rotation protection. A simple plate stand may tip over. Stirring tool: For highly viscous media, we recommend anchor stirrers or spiral stirrers that run close to the vessel wall. Software: labworldsoft® for automation. We can advise you on the safe installation of this powerhouse. Please contact our procurement service.

Sale price: €5,151.85 Manufacturer's RRP: €5,423.00 5% below manufacturer's RRP
Discount Promo
Topseller
IKA RW 20 digital mechanical stirrer, 20 litres, 2 speed ranges, LED, 0003593000
IKA RW 20 digital mechanical stirrer, 20 litres, 2 speed ranges, LED, 0003593000
Manufacturer number: 0003593000

The IKA RW 20 digital stirrer (MPN 0003593000) is the digital further development of the proven RW 20 series and combines a mechanically controlled drive with an LED digital display for the speed. Anyone who regularly has to move stirring volumes of up to 20 litres of water in the laboratory and wants to switch between powerful, low-speed and fast, high-speed stirring will find a robust working tool for daily use here.Mechanical gearbox with two speed rangesThe RW 20 digital has a gearbox with two speed ranges that is switched manually by lever. Range I covers 60 to 500 rpm and delivers a high torque of up to 150 Ncm at the stirring shaft, suitable for highly viscous media of up to 10,000 mPas, pastes or larger volumes. Range II extends from 240 to 2,000 rpm and is suitable for low-viscosity media and fast dispersing. At a mains frequency of 50 hertz, the ranges are 60 to 500 rpm (range I) and 240 to 2,000 rpm (range II), and at 60 hertz correspondingly 72 to 600 rpm and 288 to 2,400 rpm. The maximum torque at the stirring shaft is 150 Ncm at 100 rpm and falls to 24 Ncm at 1,000 rpm; for a short time, an overload of up to 300 Ncm is even permissible at 60 1/min.Precision through LED digital displayWhile power transmission is mechanical, the integrated LED digital display on the front of the unit ensures a speed that can be read at any time and is reproducible. Setting is continuous, the setting accuracy is ±1 rpm, and the deviation of the speed measurement is ±30 rpm. The nominal torque of the drive is 1.5 Nm at a power consumption of 70 watts and an output power of 35 watts. The unit is designed for continuous operation at 100 % duty cycle.Pass-through hollow shaft for flexible height adjustmentA practical detail in everyday laboratory work is the pass-through stirring shaft (hollow shaft) with an internal diameter of 10.5 millimetres. It makes it possible to adjust the height of the stirring tool in the chuck (clamping range 0.5 to 10 millimetres) without having to realign the entire stirrer on the stand. The shaft is adjusted at standstill only. The arm for mounting on the stand has a diameter of 13 millimetres and a length of 160 millimetres.Typical applicationsWith its high torque in the lower speed range and a stirring volume of up to 20 litres, the RW 20 digital is technically suited for:Universal stirring tasks in the laboratory with changing batch sizesHomogenising and dispersing medium-viscosity to higher-viscosity media of up to 10,000 mPasTeaching and industrial laboratories with frequently changing usersRoutine operation in which it is necessary to switch between powerful and fast stirringSelection guide: stirring mechanically or electronicallyWithin the IKA stirrer range, the RW 20 digital described here, with its mechanically controlled drive, stands in contrast to the compact NANOSTAR 7.5 digital with electronic BLDC control. For stirring volumes of up to 20 litres, high torque in the lower speed range and robust continuous operation, the RW 20 digital is suitable. If, on the other hand, no more than 5 litres are moved and a particularly compact, electronically controlled design is required, for example in tight space conditions in a fume hood, the NANOSTAR 7.5 digital is the more space-saving alternative.Differences from larger models of the RW seriesIf a stirring volume of 20 litres is not sufficient for the planned batch, IKA continues the mechanical RW series in larger sizes: the RW 28 digital for stirring volumes of up to 80 litres and the RW 47 digital for stirring volumes of up to 200 litres. For the majority of laboratory applications with batches of up to 20 litres, the RW 20 digital described here remains a suitable choice.Technical detailsMax. stirring volume (H2O)20 lMax. viscosity10,000 mPasSpeed controlmechanicalSpeed range I / II60 to 500 rpm / 240 to 2,000 rpm (at 50 Hz)Speed range I / II (60 Hz)72 to 600 rpm / 288 to 2,400 rpmSpeed setting methodcontinuousSetting accuracy / speed deviation±1 rpm / ±30 rpmSpeed displayLEDMotor power, input / output70 W / 35 WNominal torque1.5 NmMax. torque at the stirring shaft150 Ncm (at 100 rpm), 300 Ncm overload at 60 1/minTorque at the stirring shaft at 1,000 rpm24 NcmMax. power at the stirring shaft26 WPermissible duty cycle100 %Stirring tool mountingChuck, clamping range 0.5 to 10 mmHollow shaft, internal diameter10.5 mm, pass-through at standstillStand mountingArm, Ø 13 mm, length 160 mmIP ratingIP 20 according to DIN EN 60529Dimensions (W x H x D)88 x 294 x 212 mmWeight3.1 kgConnected load220 to 240 V, 50/60 Hz, 72 W (other voltage variants 100 to 115 V available)Scope of delivery1 x RW 20 digital1 x chuck keyA stand and a boss head for mounting as well as a suitable stirring tool are required for operation but are not included in the scope of delivery.Use, installation, maintenance and disposalAccording to degree of protection IP 20, the RW 20 digital is protected against solid foreign objects from 12.5 millimetres, and contact with splashing water must be avoided. The switching lever for the two speed ranges should only be operated with the motor stopped, as should the height adjustment of the pass-through hollow shaft in the chuck. For secure positioning, a sufficiently heavy stand with a stable boss head is recommended, especially when using the high torque in the lower speed range. At the end of its service life, the unit as electrical equipment does not belong in household waste but in the separate collection of waste electrical equipment.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement serviceOperating the RW 20 digital requires a stand (for example an IKA base plate stand), a suitable boss head and a stirring tool matched to the application, for example propeller, turbine, anchor or dissolver stirrers. A stirring shaft guard or a quick-release chuck can also be added if required. Through our procurement service, we will gladly put together a suitable stirring set-up for you from our range of stirring and mixing technology.Frequently asked questionsIs a stand included in the scope of delivery?No, a stand, boss head and stirring tool are required for operation but are not included in the scope of delivery.What is the maximum stirring volume possible with the RW 20 digital?Up to 20 litres of water, at a maximum permissible viscosity of 10,000 mPas.How do you switch between the two speed ranges?Via a mechanical lever on the front of the unit, which should only be operated with the motor stopped.Can the stirring tool be adjusted in height without moving the stand?Yes, via the pass-through hollow shaft in the chuck, adjustable at standstill.Is there an electronically controlled model as an alternative?For more compact applications of up to 5 litres, the electronically controlled NANOSTAR 7.5 digital is suitable.What happens if the stirring shaft is overloaded?For a short time, an overload of up to 300 Ncm at the stirring shaft is permissible at 60 1/min; beyond that, the load should be reduced.

Sale price: €823.50 Manufacturer's RRP: €1,098.00 25% below manufacturer's RRP
Discount
Topseller
IKA MINISTAR 80 control Überkopfrührwerk, bis 50 l, 80 Ncm
IKA MINISTAR 80 control overhead stirrer, up to 50 l, 80 Ncm, 0025001990
Manufacturer number: 0025001990

With a torque of 80 Ncm and a stirring volume of up to 50 litres of water, the MINISTAR 80 control is the most powerful model in the entire MICROSTAR/MINISTAR series, designed for samples up to 60,000 mPas at speeds ranging from 0/30 to 500 revolutions per minute. Whilst speed is the key feature of the smaller models, it is power that counts here above all else, whilst the housing and weight are virtually identical to those of the MINISTAR 40 control.LCD display with temperature measurement and timerAs with the other ‘control’ models, the difference compared to the structurally identical MINISTAR 80 digital lies in the display and additional functions. An LCD glass display shows speed, temperature and a timer ranging from 0 to 6,000 minutes; the supplied H 67.60 stainless steel temperature probe measures via PT1000 in the range from -10 to 350 °C. A torque display provides a trend value, not a calibrated absolute measurement. A micro-USB port and an integrated WPAN interface (Bluetooth) connect the device to labworldsoft.Drive for heavy loadsThe brushless DC motor draws 60 watts and delivers up to 42 watts to the stirring shaft, with a duty cycle of 100 % in continuous operation. The chuck accommodates stirring shafts from 0.5 to 8.2 mm; the hollow shaft with an 8.5 mm internal diameter can be inserted whilst the unit is stationary. On the stand, the unit is mounted on an arm with a diameter of 13 mm and a length of 160 mm. A vibration detection system switches off the drive as soon as the stirring tool becomes unbalanced, an important safeguard for both the motor and the sample, particularly at this torque level.Robustness for continuous useThe speed is adjusted via a rotary knob with an accuracy of ±1 rpm; above 300 rpm, the deviation is a maximum of ±1 %. A button lock prevents the setting from being accidentally altered whilst the unit is running, particularly with the larger, longer-running batches for which this model is typically used. The chemical-resistant housing, made of coated cast aluminium and thermoplastic, is protected against dust and splashing water in accordance with IP 54; permissible ambient temperatures range from 5 to 40 °C with up to 80 % relative humidity.Typical applicationsLarge batches of up to 50 litres in production and pilot plantsStirring of highly viscous samples up to 60,000 mPasTemperature-controlled processes with PT1000 monitoringDocumented stirring logs via labworldsoft for applications requiring high torqueBatches that would otherwise require a larger, stationary stirrerSelection guide: an overview of the MICROSTAR/MINISTAR seriesTwelve models make up the MICROSTAR and MINISTAR series from IKA: six in the ‘control’ version and six in the structurally identical ‘digital’ version. The number in the model name indicates the maximum torque in Ncm; the ‘control’ and ‘digital’ versions differ in terms of display and additional functions, but not in torque class.ModelSeriesMax. torqueDisplayTimerTemperature measurementBluetooth/WPANMICROSTAR 7.5 controlcontrol7.5 NcmLCDyesyes (PT1000)yesMICROSTAR 7.5 digitaldigital7.5 NcmLEDnononoMICROSTAR 15 controlcontrol15 NcmLCDyesyes (PT1000)yesMICROSTAR 15 digitaldigital15 NcmLEDnononoMICROSTAR 30 controlcontrol30 NcmLCDyesyes (PT1000)yesMICROSTAR 30 digitaldigital30 NcmLEDnononoMINISTAR 20 controlcontrol20 NcmLCDyesyes (PT1000)yesMINISTAR 20 digitaldigital20 NcmLEDnononoMINISTAR 40 controlcontrol40 NcmLCDyesyes (PT1000)yesMINISTAR 40 digitaldigital40 NcmLEDnononoMINISTAR 80 control (this product)control80 NcmLCDyesyes (PT1000)yesMINISTAR 80 digitaldigital80 NcmLEDnononoTechnical detailsMax. stirring volume (H₂O)50 lMax. torque at the stirring shaft80 NcmSpeed range0/30 to 500 rpmSpeed setting accuracy±1 rpmMax. viscosity60,000 mPasMotor power (input / output)60 W / 46 WChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmTime setting range for timer0 to 6,000 minTemperature measurement range-10 to 350 °CHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature / humidity5 to 40 °C / 80 %IP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)70 x 193 x 154 mmWeight1.72 kgConnected load100-240 V, 50/60 Hz, 69 WScope of deliveryMINISTAR 80 control, stirrer (base unit)R 300 stirrer shaft guardFixing screws for the stirrer shaft guard (2 pieces)Temperature probe H 67.60, stainless steel (PT1000)Chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the MINISTAR 80 control; this is extended to 10 years if the unit is registered at ika.com/register within 90 days of purchase. For additional stirring elements, temperature sensors or a stand, our procurement service will handle the assembly; the full range of stirring and mixing equipment is available in the shop.

Sale price: €1,323.00 Manufacturer's RRP: €1,764.00 25% below manufacturer's RRP
Discount Promo
IKA MICROSTAR 7.5 digital Überkopfrührwerk, bis 5 l, 7,5 Ncm
IKA MICROSTAR 7.5 digital Overhead Stirrer, up to 5 l, 7.5 Ncm, 0025004715
Manufacturer number: 0025004715

Mixing small volumes at high speed without a batch foaming up or remaining uneven: that is the core task of the IKA MICROSTAR 7.5 digital. The overhead stirrer covers stirring volumes of up to 5 litres of water per stirring position and turns at up to 2,000 revolutions per minute, with a maximum torque of 7.5 Ncm at the stirring shaft. For cell culture batches, analytical sample preparation and small reagent batches in the routine laboratory, exactly this combination of speed and small footprint is in demand.Speed reserve for low-viscosity mediaThe speed range starts at 50 rpm and extends up to 2,000 rpm, adjustable via a rotary knob with an accuracy of ±1 rpm. Up to a viscosity of 4,000 mPas, the torque remains constant over the entire range, so the unit does not noticeably drop off with thicker media. The motor power is 32 watts input and 22 watts output, and a maximum of 15.7 watts is available at the stirring shaft. For aqueous solutions, buffers and low-viscosity reagents in the laboratory, this power class is usually sufficient.Operation, display and connectionThe speed is shown on an LED display, and the digital model has no timer. The hollow shaft with an internal diameter of 8.5 mm can be passed through at standstill, and the chuck accepts tools from 0.5 to 8.2 mm. The firmware can be updated via the Micro-USB interface. At 60 x 173 x 126 mm (W x H x D) and 1.18 kg, the stirrer takes up little space on the laboratory bench, and it is mounted on a stand using a support arm of 13 mm diameter and 160 mm length. The housing made of coated cast aluminium and thermoplastic is protected to IP 54, so dust and splashing water are not a problem in everyday laboratory use.Typical applicationsMixing cell culture batches of small volumeSample preparation in analyticsPreparing reagents and buffers in the routine laboratoryFormulation and quality control work with low-viscosity mediaSelection guide: MICROSTAR and MINISTAR at a glanceThe digital and control series of MICROSTAR and MINISTAR comprises twelve models, graded by torque, stirring volume and speed range. The MICROSTAR 7.5 digital covers the smallest stirring volume at the highest speed. The difference between digital and control lies in the display and additional functions: digital shows the speed by LED, while control adds an LCD display, timer and external temperature measurement.ModelMax. torqueStirring volume (H2O)Speed rangeDisplayMICROSTAR 7.5 digital (this product)7.5 Ncm5 l50 to 2,000 rpmLEDMICROSTAR 7.5 control7.5 Ncm5 l30 to 2,000 rpmLCDMICROSTAR 15 digital15 Ncm10 l50 to 1,000 rpmLEDMICROSTAR 15 control15 Ncm10 l30 to 1,000 rpmLCDMICROSTAR 30 digital30 Ncm20 l50 to 500 rpmLEDMICROSTAR 30 control30 Ncm20 l30 to 500 rpmLCDMINISTAR 20 digital20 Ncm15 l50 to 2,000 rpmLEDMINISTAR 20 control20 Ncm15 l30 to 2,000 rpmLCDMINISTAR 40 digital40 Ncm25 l50 to 1,000 rpmLEDMINISTAR 40 control40 Ncm25 l30 to 1,000 rpmLCDMINISTAR 80 digital80 Ncm50 l50 to 500 rpmLEDMINISTAR 80 control80 Ncm50 l30 to 500 rpmLCDTechnical detailsMax. stirring volume per stirring position (H2O)5 lMotor power, input32 WMotor power, output22 WMotor principleBrushless DCSpeed displayLEDSpeed range0/50 - 2,000 rpmMax. viscosity4,000 mPasMax. power at the stirring shaft15.7 WPermissible duty cycle100 %Max. torque at the stirring shaft7.5 NcmSpeed setting accuracy±1 rpmStirring tool mountingChuckChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmStand mountingSupport armSupport arm diameter13 mmSupport arm length160 mmHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature range5 - 40 °CPermissible relative humidity80 %InterfaceUSB (Micro-USB)Connection values100 to 240 V, 50/60 Hz, device power consumption 32 W (standby 0.3 W), DC voltage 24 V=, current consumption 1,300 mA, Micro-USB interface for firmware updatesIP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)60 x 173 x 126 mmWeight1.18 kgScope of delivery1 x MICROSTAR 7.5 digital stirrer, basic unit1 x stirring shaft guard R 300, with fixing screws (2 pieces)1 x chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA grants a 2-year manufacturer's warranty on the MICROSTAR 7.5 digital, extended to 10 years when registered at ika.com/register within 90 days of purchase. For stirring elements, stands or another model from the same series, our procurement service is available. The entire range of stirring and mixing technology can be reached via the Stirring and mixing technology category.

Sale price: €654.60 Manufacturer's RRP: €1,091.00 40% below manufacturer's RRP
Discount
IKA MINISTAR 40 digital Überkopfrührwerk, bis 25 l, 40 Ncm
IKA MINISTAR 40 digital Overhead Stirrer, up to 25 l, 40 Ncm, 0025004886
Manufacturer number: 0025004886

Positioned between the entry-level MINISTAR 20 and the MINISTAR 80, which offers the highest torque, is the IKA MINISTAR 40 digital: 25 litres stirring volume, 40 Ncm torque and a speed range of 50 to 1,000 rpm, designed for media with a viscosity of up to 30,000 mPas.Mid-range model with performance reserveWith a power consumption of 60 watts and an output of 46 watts, the motor performance is in line with the rest of the MINISTAR range; the rated torque is 0.4 Nm. Compared with the MINISTAR 20 digital, the maximum torque is almost doubled, whilst the stirring volume increases by 10 litres. For formulations that become thicker during processing, the speed remains stable across the entire viscosity range.Connection and housingMeasuring 70 x 193 x 147 mm and weighing 1.72 kg, the housing is identical to that of the MINISTAR 80 digital; only the internal gear ratio distinguishes the two models. The connected load is 69 watts (0.5 watts on standby); as with the entire series, the micro-USB port is used exclusively for firmware updates. The chuck accommodates tools from 0.5 to 8.2 mm; the hollow shaft, with an internal diameter of 8.5 mm, can be inserted whilst the machine is stationary.Accessories for the MINISTAR seriesFor larger batches in plastic vessels, an anchor stirrer with a beaker scraper is available, which also picks up the medium from the vessel wall. The range of accessories also includes propeller, disc and centrifugal stirrers for different flow conditions, as well as telescopic and plate stands for mounting. For personal safety when working with an open stirring vessel, in addition to the R 300 included in the scope of delivery, a separately available R 301 stirring shaft guard with its own stand mount is provided. Those working in a regulated environment can order factory calibration certificates. The corresponding EU Declaration of Conformity is available in the downloads section of the product documentation, as are the German-language operating instructions.Typical applicationsBatches of up to 25 litres with increasing viscosity as the process progressesFormulation development on a pilot scaleHomogenisation of thicker suspensions and pastesProcesses requiring greater power reserve than the MICROSTAR series can provideSelection guide: MICROSTAR and MINISTAR at a glanceThe MINISTAR 40 digital sits in the middle of the MINISTAR range, offering twice the torque of the MINISTAR 20 digital and half that of the MINISTAR 80 digital. The housing and motor are identical to those of the MINISTAR 80 digital; only the gear ratio distinguishes the two models:ModelMax. torqueStirring volume (H2O)Speed rangeDisplayMICROSTAR 7.5 digital7.5 Ncm5 l50 to 2,000 rpmLEDMICROSTAR 7.5 control7.5 Ncm5 l30 to 2,000 rpmLCDMICROSTAR 15 digital15 Ncm10 l50 to 1,000 rpmLEDMICROSTAR 15 control15 Ncm10 l30 to 1,000 rpmLCDMICROSTAR 30 digital30 Ncm20 l50 to 500 rpmLEDMICROSTAR 30 control30 Ncm20 l30 to 500 rpmLCDMINISTAR 20 digital20 Ncm15 l50 to 2,000 rpmLEDMINISTAR 20 control20 Ncm15 l30 to 2,000 rpmLCDMINISTAR 40 digital (this product)40 Ncm25 l50 to 1,000 rpmLEDMINISTAR 40 control40 Ncm25 l30 to 1,000 rpmLCDMINISTAR 80 digital80 Ncm50 l50 to 500 rpmLEDMINISTAR 80 control80 Ncm50 l30 to 500 rpmLCDTechnical detailsMax. stirring volume per stirring position (H2O)25 lMotor power, input60 WMotor power, output46 WMotor principleBrushless DCSpeed displayLEDSpeed range0/50 - 1,000 rpmMax. viscosity30,000 mPasMax. power at the stirring shaft42 WPermissible duty cycle100 %Max. torque at the stirring shaft40 NcmSpeed setting accuracy±1 rpmStirring tool mountingChuckChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmStand mountingArmArm diameter13 mmArm length160 mmHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature range5 - 40 °CPermissible relative humidity80 %InterfaceUSB (Micro-USB)Connected load100 to 240 V, 50/60 Hz, device power consumption 69 W (standby 0.5 W), DC voltage 24 V=, current consumption 2,900 mA, Micro-USB interface for firmware updatesIP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)70 x 193 x 147 mmWeight1.72 kgScope of delivery1 x MINISTAR 40 digital stirrer, basic unit1 x stirring shaft guard R 300, with fixing screws (2 pieces)1 x chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the MINISTAR 40 digital; this is extended to 10 years upon registration at ika.com/register within 90 days of purchase. Our procurement service is available for stirring elements, stands or any other model from the same series. The full range of stirring and mixing technology can be accessed via the Stirring and mixing technology category.

Sale price: €981.75 Manufacturer's RRP: €1,309.00 25% below manufacturer's RRP
Discount
Topseller

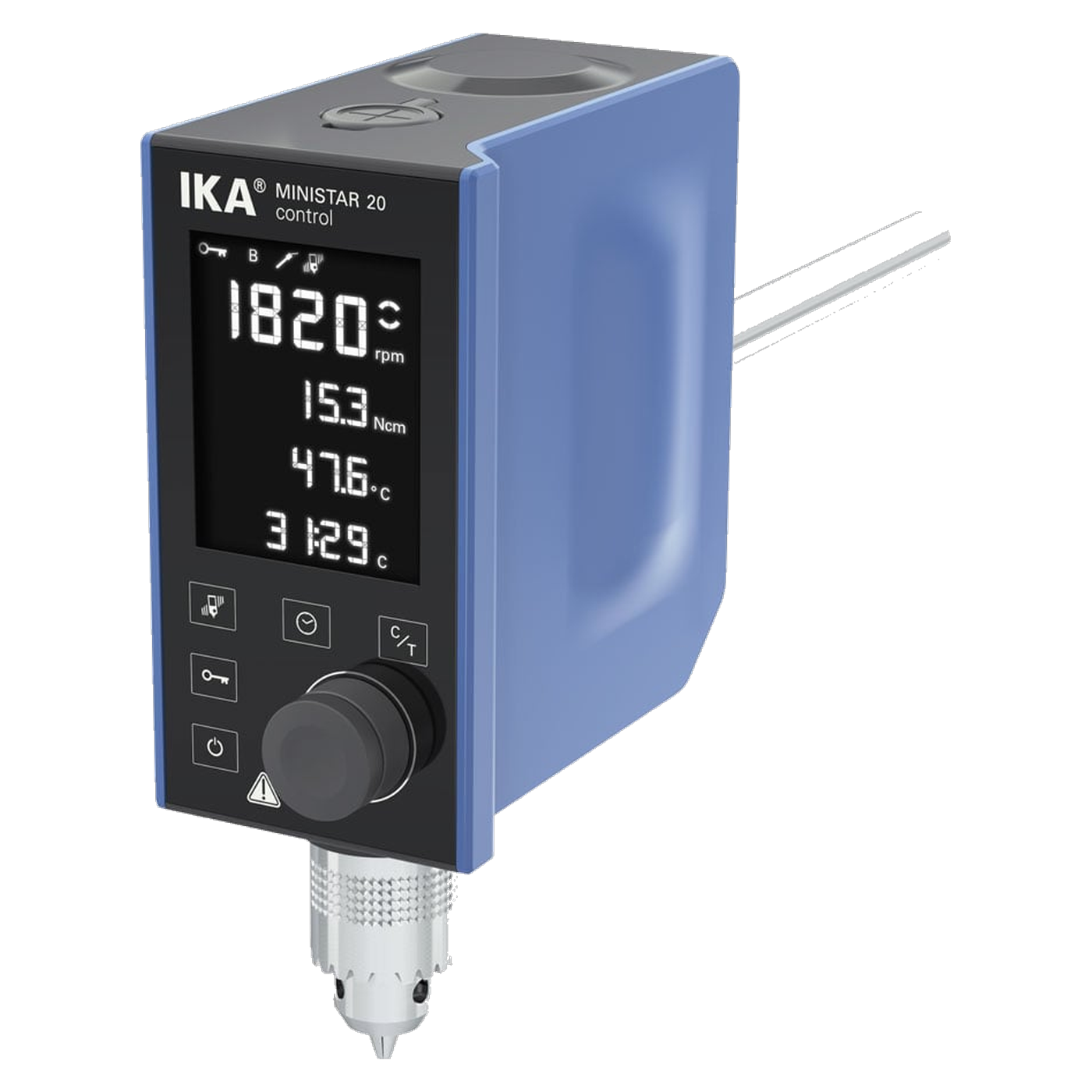

IKA MINISTAR 20 control Überkopfrührwerk, bis 15 l, 20 Ncm
IKA MINISTAR 20 control Overhead Stirrer, up to 15 l, 20 Ncm, 0025001988
Manufacturer number: 0025001988

With a more powerful motor (60 watts power consumption instead of 32 watts) and a larger housing, IKA’s MINISTAR range picks up where the MICROSTAR models reach their limits. The MINISTAR 20 control stirs up to 15 litres of water at a torque of 20 Ncm and, with speeds ranging from 0/30 to 2,000 revolutions per minute and a viscosity of up to 10,000 mPas, covers a wide range, from low-viscosity to medium-viscosity samples.LCD display, timer, PT1000 sensorAs with the other control models, the main difference between this and the structurally identical MINISTAR 20 digital lies in the display. A glass LCD display shows speed, temperature and a timer ranging from 0 to 6,000 minutes. The supplied H 67.60 stainless steel temperature probe measures temperatures in the range from -10 to 350 °C via a PT1000 sensor, with readings displayed directly on the screen. A torque reading is shown as a trend; it is not a calibrated absolute measurement. A micro-USB port and an integrated WPAN interface (Bluetooth) connect the stirrer to labworldsoft.More motor power, same operating conceptThe MINISTAR 20 control’s brushless DC motor draws 60 watts, delivers 46 watts and provides up to 42 watts at the stirring shaft, significantly more than the MICROSTAR models. The chuck accommodates stirring shafts from 0.5 to 8.2 mm; the hollow shaft with an 8.5 mm internal diameter can be inserted whilst the unit is stationary. The unit is held in place on the stand by an arm with a diameter of 13 mm and a length of 160 mm. A vibration detection system automatically switches off the motor if the stirring tool is running out of balance.Housing and permissible operating environmentThe speed can be adjusted via the rotary knob with an accuracy of ±1 rpm; the measurement deviation is a maximum of ±1 % above 300 rpm. A button lock protects the current setting from accidental adjustment, for example during cleaning. The housing, made of coated cast aluminium and thermoplastic, is chemical-resistant and protected against dust and splashing water in accordance with IP 54. Permissible ambient temperatures range from 5 to 40 °C, with a relative humidity of up to 80 %.Typical applicationsBatches of up to 15 litres requiring greater power than MICROSTAR modelsStirring of low- to medium-viscosity samples up to 10,000 mPasTemperature-controlled processes with PT1000 monitoringLaboratory tests at high speeds (up to 2,000 rpm) with documented curves via labworldsoftTransition range between compact MICROSTAR and large-volume MINISTAR applicationsSelection guide: an overview of the MICROSTAR/MINISTAR seriesTwelve models make up the MICROSTAR and MINISTAR series from IKA, six in the ‘control’ version and six in the structurally identical ‘digital’ version. The number in the model name indicates the maximum torque in Ncm; the ‘control’ and ‘digital’ versions differ in terms of display and additional functions, but not in torque class.ModelSeriesMax. torqueDisplayTimerTemperature measurementBluetooth/WPANMICROSTAR 7.5 controlcontrol7.5 NcmLCDyesyes (PT1000)yesMICROSTAR 7.5 digitaldigital7.5 NcmLEDnononoMICROSTAR 15 controlcontrol15 NcmLCDyesyes (PT1000)yesMICROSTAR 15 digitaldigital15 NcmLEDnononoMICROSTAR 30 controlcontrol30 NcmLCDyesyes (PT1000)yesMICROSTAR 30 digitaldigital30 NcmLEDnononoMINISTAR 20 control (this product)control20 NcmLCDyesyes (PT1000)yesMINISTAR 20 digitaldigital20 NcmLEDnononoMINISTAR 40 controlcontrol40 NcmLCDyesyes (PT1000)yesMINISTAR 40 digitaldigital40 NcmLEDnononoMINISTAR 80 controlcontrol80 NcmLCDyesyes (PT1000)yesMINISTAR 80 digitaldigital80 NcmLEDnononoTechnical detailsMax. stirring volume (H2O)15 lMax. torque at the stirring shaft20 NcmSpeed range0/30 to 2,000 rpmSpeed setting accuracy±1 rpmMax. viscosity10,000 mPasMotor power (input / output)60 W / 46 WChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmTime setting range for timer0 to 6,000 minTemperature measurement range-10 to 350 °CHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature / humidity5 to 40 °C / 80 %IP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)70 x 193 x 154 mmWeight1.56 kgConnected load100-240 V, 50/60 Hz, 69 WScope of deliveryMINISTAR 20 control, stirrer (basic unit)Stirring shaft guard R 300Fixing screws for the stirrer shaft guard (2 pieces)Temperature sensor H 67.60, stainless steel (PT1000)Chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the MINISTAR 20 control; this is extended to 10 years if the unit is registered at ika.com/register within 90 days of purchase. For additional stirring elements, temperature sensors or a stand, our procurement service will take care of the assembly; the full range of stirring and mixing equipment is available in the shop.

Sale price: €1,128.75 Manufacturer's RRP: €1,505.00 25% below manufacturer's RRP
Discount
IKA MICROSTAR 30 digital Überkopfrührwerk, bis 20 l, 30 Ncm
IKA MICROSTAR 30 digital Overhead Stirrer, up to 20 l, 30 Ncm, 0025004884
Manufacturer number: 0025004884

Anyone who has to stir a batch volume of 20 litres with media of up to 20,000 mPas viscosity needs more torque than speed. The IKA MICROSTAR 30 digital delivers up to 30 Ncm at the stirring shaft at a speed range of 50 to 500 rpm, making it the highest-torque version of the MICROSTAR series.Constant torque at lower speedThe speed range only extends up to 500 rpm, but in return the torque remains constant up to 20,000 mPas viscosity, considerably more than the MICROSTAR 15 digital with 8,000 mPas. The motor power is unchanged at 32 watts input and 22 watts output, and the nominal torque rises to 0.3 Nm. For thicker suspensions, pastes and higher-viscosity reaction batches in the laboratory, the MICROSTAR 30 digital is suitable within the MICROSTAR range.Same design, more powerExternally, the MICROSTAR 30 digital differs hardly at all from its smaller siblings: 60 x 173 x 126 mm, 1.26 kg weight, arm mounting with 13 mm diameter and 160 mm length. The stirring tool is attached via a chuck with a clamping range of 0.5 to 8.2 mm, and the hollow shaft with an internal diameter of 8.5 mm can be passed through at standstill. The IP 54 rating and the ambient temperature range of 5 to 40 °C apply as for all digital models of the series.Stirring elements for higher viscosityFor higher-viscosity batches, the accessories range offers above all anchor and helical stirrers, which engage the medium closer to the vessel wall than a simple propeller stirrer. For the MICROSTAR series, the helical stirrer R 3003 and the anchor stirrers R 1330 and R 1331 are available, among others. In addition, we offer base plate stands, telescopic stands and boss heads for mounting, as well as a separate stirring shaft guard R 301 with stand holder for personal protection at an open vessel. An EU declaration of conformity for the unit is available in the downloads area of the product documentation.Typical applicationsStirring batches of up to 20 litres with higher viscosityMixing pastes and suspensions in formulation developmentReaction batches that become thicker in the course of the processQuality control of viscous intermediate productsSelection guide: MICROSTAR and MINISTAR at a glanceAt 30 Ncm, this model marks the upper end of the MICROSTAR line. The MINISTAR range picks up with higher torque and larger stirring volume where the MICROSTAR series ends. The full overview of all twelve models:ModelMax. torqueStirring volume (H2O)Speed rangeDisplayMICROSTAR 7.5 digital7.5 Ncm5 l50 to 2,000 rpmLEDMICROSTAR 7.5 control7.5 Ncm5 l30 to 2,000 rpmLCDMICROSTAR 15 digital15 Ncm10 l50 to 1,000 rpmLEDMICROSTAR 15 control15 Ncm10 l30 to 1,000 rpmLCDMICROSTAR 30 digital (this product)30 Ncm20 l50 to 500 rpmLEDMICROSTAR 30 control30 Ncm20 l30 to 500 rpmLCDMINISTAR 20 digital20 Ncm15 l50 to 2,000 rpmLEDMINISTAR 20 control20 Ncm15 l30 to 2,000 rpmLCDMINISTAR 40 digital40 Ncm25 l50 to 1,000 rpmLEDMINISTAR 40 control40 Ncm25 l30 to 1,000 rpmLCDMINISTAR 80 digital80 Ncm50 l50 to 500 rpmLEDMINISTAR 80 control80 Ncm50 l30 to 500 rpmLCDTechnical detailsMax. stirring volume per stirring position (H2O)20 lMotor power, input32 WMotor power, output22 WMotor principleBrushless DCSpeed displayLEDSpeed range0/50 - 500 rpmMax. viscosity20,000 mPasMax. power at the stirring shaft15.7 WPermissible duty cycle100 %Max. torque at the stirring shaft30 NcmSpeed setting accuracy±1 rpmStirring tool mountingChuckChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmStand mountingArmArm diameter13 mmArm length160 mmHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature range5 - 40 °CPermissible relative humidity80 %InterfaceUSB (Micro-USB)Connected load100 to 240 V, 50/60 Hz, device power consumption 32 W (standby 0.3 W), DC voltage 24 V=, current consumption 1,300 mA, Micro-USB interface for firmware updatesIP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)60 x 173 x 126 mmWeight1.26 kgScope of delivery1 x MICROSTAR 30 digital stirrer, basic unit1 x stirring shaft guard R 300, with fixing screws (2 pieces)1 x chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA grants a 2-year manufacturer's warranty on the MICROSTAR 30 digital, extended to 10 years when registered at ika.com/register within 90 days of purchase. For stirring elements, stands or another model from the same series, our procurement service is available. The entire range of stirring and mixing technology can be reached via the Stirring and mixing technology category.

Sale price: €919.50 Manufacturer's RRP: €1,226.00 25% below manufacturer's RRP
Discount
IKA MINISTAR 20 digital Überkopfrührwerk, bis 15 l, 20 Ncm
IKA MINISTAR 20 digital Overhead Stirrer, up to 15 l, 20 Ncm, 0025004885
Manufacturer number: 0025004885

When the batch volume rises above 10 litres or a stirrer is to run permanently with a higher power reserve, you switch from the MICROSTAR to the MINISTAR series. The IKA MINISTAR 20 digital is the entry into this class: 60 watts motor input power, a stirring volume of up to 15 litres of water per stirring position and a speed range of 50 to 2,000 rpm at a maximum torque of 20 Ncm.More motor power than MICROSTARWith 60 watts input and 46 watts output power, the motor is almost twice as powerful as in the MICROSTAR series, and up to 42 watts are available at the stirring shaft. Up to a viscosity of 10,000 mPas, the torque remains constant. This power reserve is noticeable above all in continuous operation, when a stirrer runs under load over longer periods, for example in continuous processes in the pilot laboratory.Larger housing, same operating logicAt 70 x 193 x 147 mm and 1.56 kg, the MINISTAR 20 digital is noticeably larger and heavier than the MICROSTAR models. Operation and display remain the same: set the speed by rotary knob, the LED display shows the value, and a chuck with a clamping range of 0.5 to 8.2 mm holds the stirring tools. The current consumption rises to 2,900 mA, corresponding to the higher motor power. For batches in plastic vessels, an anchor stirrer with beaker scraper is also available for this series.Further accessories for the MINISTAR seriesIn addition to the anchor stirrer with beaker scraper, the accessories range for this series includes dissolver and disc stirrers for higher shear forces as well as telescopic and base plate stands for mounting. For work on a balance, a matching balance stand is also available. For personal protection at an open vessel, a separately available stirring shaft guard R 301 with its own stand holder is available in addition to the supplied R 300.Typical applicationsEntry to larger batch volumes above 10 litresContinuous operation in the pilot laboratory with increased power reserveProcesses with medium viscosity up to 10,000 mPasTransition from laboratory to pilot plant scaleSelection guide: MICROSTAR and MINISTAR at a glanceThe MINISTAR 20 digital is the entry-level model of the MINISTAR line, with a stirring volume of 15 instead of 10 litres for the MICROSTAR 15 digital and almost twice the motor power. Anyone who needs even larger batches or thicker media will find a suitable alternative in the MINISTAR 40 or MINISTAR 80:ModelMax. torqueStirring volume (H2O)Speed rangeDisplayMICROSTAR 7.5 digital7.5 Ncm5 l50 to 2,000 rpmLEDMICROSTAR 7.5 control7.5 Ncm5 l30 to 2,000 rpmLCDMICROSTAR 15 digital15 Ncm10 l50 to 1,000 rpmLEDMICROSTAR 15 control15 Ncm10 l30 to 1,000 rpmLCDMICROSTAR 30 digital30 Ncm20 l50 to 500 rpmLEDMICROSTAR 30 control30 Ncm20 l30 to 500 rpmLCDMINISTAR 20 digital (this product)20 Ncm15 l50 to 2,000 rpmLEDMINISTAR 20 control20 Ncm15 l30 to 2,000 rpmLCDMINISTAR 40 digital40 Ncm25 l50 to 1,000 rpmLEDMINISTAR 40 control40 Ncm25 l30 to 1,000 rpmLCDMINISTAR 80 digital80 Ncm50 l50 to 500 rpmLEDMINISTAR 80 control80 Ncm50 l30 to 500 rpmLCDTechnical detailsMax. stirring volume per stirring position (H2O)15 lMotor power, input60 WMotor power, output46 WMotor principleBrushless DCSpeed displayLEDSpeed range0/50 - 2,000 rpmMax. viscosity10,000 mPasMax. power at the stirring shaft42 WPermissible duty cycle100 %Max. torque at the stirring shaft20 NcmSpeed setting accuracy±1 rpmStirring tool mountingChuckChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmStand mountingArmArm diameter13 mmArm length160 mmHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature range5 - 40 °CPermissible relative humidity80 %InterfaceUSB (Micro-USB)Connected load100 to 240 V, 50/60 Hz, device power consumption 69 W (standby 0.5 W), DC voltage 24 V=, current consumption 2,900 mA, Micro-USB interface for firmware updatesIP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)70 x 193 x 147 mmWeight1.56 kgScope of delivery1 x MINISTAR 20 digital stirrer, basic unit1 x stirring shaft guard R 300, with fixing screws (2 pieces)1 x chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA grants a 2-year manufacturer's warranty on the MINISTAR 20 digital, extended to 10 years when registered at ika.com/register within 90 days of purchase. For stirring elements, stands or another model from the same series, our procurement service is available. The entire range of stirring and mixing technology can be reached via the Stirring and mixing technology category.

Sale price: €879.00 Manufacturer's RRP: €1,172.00 25% below manufacturer's RRP
Discount
IKA MICROSTAR 15 digital Überkopfrührwerk, bis 10 l, 15 Ncm
IKA MICROSTAR 15 digital Overhead Stirrer, up to 10 l, 15 Ncm, 0025004883
Manufacturer number: 0025004883

In everyday laboratory work the highest speed is rarely what is needed, but rather reliable stirring performance for batches between 5 and 10 litres at medium viscosity. The IKA MICROSTAR 15 digital covers exactly this window with a torque of up to 15 Ncm and a stirring volume of up to 10 litres of water per stirring position, at a speed range of 50 to 1,000 rpm. The overhead stirrer is thus the middle model of the MICROSTAR series, between the faster MICROSTAR 7.5 and the higher-torque MICROSTAR 30.Stirring performance up to 8,000 mPasUp to a viscosity of 8,000 mPas, the unit keeps its torque constant over the entire speed range. Besides aqueous solutions, this allows mixing of medium-viscosity media such as creams, emulsions or reaction mixtures of increasing consistency. The motor power of 32 watts input and 22 watts output is identical to the smaller MICROSTAR 7.5 digital.Design and operationAt 60 x 173 x 126 mm and 1.26 kg, the MICROSTAR 15 digital differs hardly at all in appearance from the MICROSTAR 7.5 digital, and its weight is only 80 grams higher. The speed is set by rotary knob with ±1 rpm accuracy and shown on an LED display. The chuck with a clamping range of 0.5 to 8.2 mm, the hollow shaft with an internal diameter of 8.5 mm and the IP 54 rating correspond to the rest of the digital series. The unit is mounted on a stand using an arm of 13 mm diameter and 160 mm length.Accessories from the current rangeFor different stirring tasks, stirring elements with axial, radial and tangential flow direction are available from the accessories range of the series, from simple propeller stirrers to anchor and disc stirrers. In addition, we offer base plate stands, telescopic stands and boss heads for mounting, as well as a separate stirring shaft guard R 301 with its own stand holder for personal protection at an open vessel, in addition to the R 300 included in the scope of delivery.Typical applicationsMixing batches of up to 10 litres in the standard laboratoryStirring creams, emulsions and reaction mixtures of medium viscosityRoutine testing in quality control and goods receivingPreparing reagents and test solutions for downstream analyticsSelection guide: MICROSTAR and MINISTAR at a glanceWithin the MICROSTAR line, the MICROSTAR 15 digital sits in the middle performance class, between the faster 7.5 and the higher-torque 30. The twelve models of the digital and control series differ in torque, stirring volume, speed range and display, and the control variants additionally offer a timer and external temperature measurement.ModelMax. torqueStirring volume (H2O)Speed rangeDisplayMICROSTAR 7.5 digital7.5 Ncm5 l50 to 2,000 rpmLEDMICROSTAR 7.5 control7.5 Ncm5 l30 to 2,000 rpmLCDMICROSTAR 15 digital (this product)15 Ncm10 l50 to 1,000 rpmLEDMICROSTAR 15 control15 Ncm10 l30 to 1,000 rpmLCDMICROSTAR 30 digital30 Ncm20 l50 to 500 rpmLEDMICROSTAR 30 control30 Ncm20 l30 to 500 rpmLCDMINISTAR 20 digital20 Ncm15 l50 to 2,000 rpmLEDMINISTAR 20 control20 Ncm15 l30 to 2,000 rpmLCDMINISTAR 40 digital40 Ncm25 l50 to 1,000 rpmLEDMINISTAR 40 control40 Ncm25 l30 to 1,000 rpmLCDMINISTAR 80 digital80 Ncm50 l50 to 500 rpmLEDMINISTAR 80 control80 Ncm50 l30 to 500 rpmLCDTechnical detailsMax. stirring volume per stirring position (H2O)10 lMotor power, input32 WMotor power, output22 WMotor principleBrushless DCSpeed displayLEDSpeed range0/50 - 1,000 rpmMax. viscosity8,000 mPasMax. power at the stirring shaft15.7 WPermissible duty cycle100 %Max. torque at the stirring shaft15 NcmSpeed setting accuracy±1 rpmStirring tool mountingChuckChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmStand mountingArmArm diameter13 mmArm length160 mmHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature range5 - 40 °CPermissible relative humidity80 %InterfaceUSB (Micro-USB)Connected load100 to 240 V, 50/60 Hz, device power consumption 32 W (standby 0.3 W), DC voltage 24 V=, current consumption 1,300 mA, Micro-USB interface for firmware updatesIP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)60 x 173 x 126 mmWeight1.26 kgScope of delivery1 x MICROSTAR 15 digital stirrer, basic unit1 x stirring shaft guard R 300, with fixing screws (2 pieces)1 x chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA grants a 2-year manufacturer's warranty on the MICROSTAR 15 digital, extended to 10 years when registered at ika.com/register within 90 days of purchase. For stirring elements, stands or another model from the same series, our procurement service is available. The entire range of stirring and mixing technology can be reached via the Stirring and mixing technology category.

Sale price: €879.00 Manufacturer's RRP: €1,172.00 25% below manufacturer's RRP
Discount
Topseller
IKA NANOSTAR 7.5 digital stirrer, overhead stirrer, 5 L, 0025004356
IKA NANOSTAR 7.5 digital stirrer, overhead stirrer, 5 L, 0025004356
Manufacturer number: 0025004356

In microchemical synthesis, during parallel sample preparation or when working under very cramped fume hoods, the space required by laboratory instruments is often the limiting factor. The IKA NANOSTAR 7.5 digital stirrer (MPN 0025004356) is a compact overhead stirrer for media with a volume of up to 5 litres (based on the viscosity of water), which it can homogenise, disperse or dissolve.Constant torque thanks to a brushless DC motorAt the heart of the NANOSTAR 7.5 digital is a brushless DC motor (BLDC technology), which operates with low wear and delivers a constant torque of 7.5 Ncm at the stirring shaft. If the viscosity of the medium changes during stirring, for example, due to an increase in viscosity during polymerisation or temperature fluctuations, the integrated electronics automatically adjust the power consumption. The set speed, within the range of 50 to 2,000 revolutions per minute, thus remains constant, which supports reproducible results. The maximum viscosity of the medium may be up to 4,000 mPas.Hollow shaft and chemical-resistant glass frontWhen changing mixing vessels or dealing with varying fill levels, the stirring tool often needs to be adjusted in height. The NANOSTAR 7.5 digital features a continuous hollow shaft with an internal diameter of 8.5 millimetres, through which the shaft of the stirring tool can be easily pushed when the unit is at a standstill, without the need to cut the stirring shafts to length. The unit is operated via a rotary knob, and an LED glass display shows the speed. The seamless real-glass front is resistant to organic solvents, acid vapours and alkalis, and can therefore be thoroughly cleaned and decontaminated.IP 54 rating and digital connection via USBThe housing of the NANOSTAR 7.5 digital is protected against dust and splashing water from all directions according to degree of protection IP 54. An electronic overload and overtemperature protection system automatically switches off the motor if the stirring element becomes blocked. The micro-USB port on the rear can be used to install firmware updates and connect the device to the Labworldsoft laboratory equipment software to document torque trends.Typical applicationsWith its compact design and constantly regulated torque, the NANOSTAR 7.5 digital is suitable for:Microchemical syntheses and reactions where space is limited within a fume hoodParallel sample preparation at several workstations simultaneouslyHomogenisation and dispersion of small volumes up to 5 litresStirring processes involving changing viscosity, such as during polymerisationSelection guide: mechanical or electronic stirringWithin the IKA range of stirrers, the NANOSTAR 7.5 digital described here, with its electronically controlled BLDC drive, is contrasted by the mechanically controlled RW 20 digital. For compact volumes up to 5 litres and confined spaces, the NANOSTAR 7.5 digital described here is suitable. If, on the other hand, volumes of up to 20 litres need to be stirred or high torque is required in the lower speed range, the RW 20 digital with its mechanical gearbox is the more suitable alternative.Distinction from larger electronic overhead stirrersIf a larger stirring volume or higher torque is required than the NANOSTAR 7.5 digital offers with its 5 litres and 7.5 Ncm, IKA offers further electronically controlled overhead stirrers in larger sizes with the Ministar and Microstar series, which can be viewed in our range of stirring and mixing technology. For compact applications with limited space, however, the NANOSTAR 7.5 digital described here remains a particularly space-saving option in IKA’s range of electronic stirrers.Technical detailsMax. stirring volume (H₂O)5 lMax. viscosity4,000 mPasMotor typebrushless DC motor (BLDC)Speed range0/50 to 2,000 rpmSpeed adjustmentRotary knobSetting accuracy for speed±1 rpmSpeed measurement deviation±1 % (n > 300 rpm) / ±3 rpm (n < 300 rpm)Speed displayLED glass displayMotor power, input / output32 W / 22 WRated torque0.075 NmMax. torque at the stirring shaft7.5 NcmMax. power at the stirring shaft15.7 WPermissible duty cycle100 %Agitator tool mountingChuck, clamping range 0.5 to 8.2 mmHollow shaft, internal diameter8.5 mm, can be inserted whilst the unit is stationaryMounting on standExtension arm, Ø 13 mm, length 160 mmHousing materialCoated cast aluminium / thermoplasticInterfaceUSB (Micro-USB)Standby power consumption0.3 WProtection ratingIP 54 in accordance with DIN EN 60529Dimensions (W x H x D)53 x 147 x 130 mmWeight0.8 kgConnected load100 to 240 V, 50/60 Hz, 32 WScope of delivery1 x NANOSTAR 7.5 digital (drive unit)1 x R 300 stirrer shaft guard2 x fixing screws for R 3001 x chuck keyA suitable stirring tool, a boss head and a stand are required for operation but are not included in the scope of delivery.Use, installation, maintenance and disposalThanks to its IP 54 rating, the NANOSTAR 7.5 digital can withstand splash water and dust in a normal laboratory environment. The seamless glass front can be decontaminated using standard solvents, acids or alkalis without cleaning agents penetrating the joints or buttons. To ensure secure, vibration-free mounting, the motor should be fitted to a sufficiently stable stand arm. At the end of its service life, as an electrical appliance, the device must not be disposed of with household waste but must be placed in the separate collection scheme for waste electrical and electronic equipment.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement serviceThe NANOSTAR 7.5 digital is a drive motor only. To achieve suitable mixing in terms of fluid dynamics within a beaker or reaction vessel, a stirring device tailored to the sample is required, such as a propeller, centrifugal or anchor stirrer from the IKA R-series. For secure attachment to the stand arm, we also recommend a sturdy plate stand with a suitable boss head. Through our procurement service, we would be happy to put together a suitable stirring setup for you from our range of stirring and mixing equipment.Frequently Asked QuestionsIs a stirring tool included in the scope of delivery?No, a stirring tool, boss head and stand are required for operation but are not included in the scope of delivery.What is the maximum stirring volume possible with the NANOSTAR 7.5 digital?Up to 5 litres of water, with a maximum permissible viscosity of 4,000 mPas.How is the speed kept constant when the viscosity changes?The integrated electronics of the brushless DC motor automatically adjust the power consumption.Can the stirring tool be fitted without shortening the shaft?Yes, via the push-through hollow shaft with an 8.5-millimetre internal diameter, which can be adjusted whilst the unit is stationary.Is the unit suitable for use with solvents?The seamless glass front is resistant to organic solvents, acid vapours and alkalis.Is there a mechanically controlled model for larger mixing volumes?For mixing volumes of up to 20 litres, the mechanically controlled RW 20 digital is a suitable option.

Sale price: €748.50 Manufacturer's RRP: €998.00 25% below manufacturer's RRP
Discount
Topseller
IKA MICROSTAR 7.5 control Überkopfrührwerk, bis 5 l, 7,5 Ncm
IKA MICROSTAR 7.5 control Overhead Stirrer, up to 5 l, 7.5 Ncm, 0025001984
Manufacturer number: 0025001984

Five litres of water at a torque of 7.5 Ncm mark the smallest power level of the IKA MICROSTAR control series, but in return the stirrer turns at up to 2,000 revolutions per minute. For low- to medium-viscosity samples of up to 4,000 mPas, such as buffers, aqueous solutions or low-viscosity emulsions, the MICROSTAR 7.5 control is suitable when speed matters more than volume.LCD display instead of indicator lightThe difference from the digital series of the same power class lies above all in the display and the additional functions. The MICROSTAR 7.5 control shows speed, time and temperature on a glass display in LCD technology, supplemented by a timer from 0 to 6,000 minutes. Using the supplied stainless steel temperature sensor H 67.60, the unit measures the sample temperature between -10 and 350 °C and shows it directly on the display, an external PT1000 measurement that the digital models lack entirely. In addition, a torque display runs on the screen, although only as a trend and not as a calibrated absolute measurement, helpful for roughly detecting a change in the viscosity of the sample during a stirring series. Micro-USB and an integrated WPAN interface (Bluetooth) connect the stirrer to labworldsoft, IKA's measurement and control software.Mechanics for daily changeoverThe unit is held on the stand by an arm with 13 mm diameter and 160 mm length, and the chuck accepts stirring shafts from 0.5 to 8.2 mm and can be changed with the supplied chuck key. The hollow shaft with an internal diameter of 8.5 mm can be passed through at standstill, which is practical with stirring elements that are inserted from above. The brushless DC motor draws 32 watts, delivers 22 watts and provides up to 15.7 watts at the stirring shaft, at a duty cycle of 100 % in continuous operation. If the stirring tool runs with imbalance, vibration monitoring detects this automatically and switches the unit off.Operation, housing and ambient conditionsThe speed is set via a rotary knob, with an accuracy of ±1 rpm and a deviation of at most ±1 % above 300 rpm. A key lock prevents a running setting from being changed accidentally, for example when cleaning the unit. The housing is made of coated cast aluminium and thermoplastic, chemical-resistant and protected against dust and splashing water to degree of protection IP 54. Permissible ambient temperatures are 5 to 40 °C at a relative humidity of up to 80 %, values that are sufficient for most laboratory and pilot plant rooms.Typical applicationsHomogenising small batches in research and developmentTemperature-controlled stirring of reaction solutions with PT1000 monitoringStirring low- to medium-viscosity samples at high speedsLaboratory experiments with documented speed and temperature curves via labworldsoftSelection guide: the MICROSTAR/MINISTAR series at a glanceTwelve models make up the IKA MICROSTAR and MINISTAR series, six in the control version and six in the identically constructed digital version. The number in the model name indicates the maximum torque in Ncm in each case, and control and digital differ in display and additional functions, not in power class.ModelSeriesMax. torqueDisplayTimerTemperature measurementBluetooth/WPANMICROSTAR 7.5 control (this product)control7.5 NcmLCDyesyes (PT1000)yesMICROSTAR 7.5 digitaldigital7.5 NcmLEDnononoMICROSTAR 15 controlcontrol15 NcmLCDyesyes (PT1000)yesMICROSTAR 15 digitaldigital15 NcmLEDnononoMICROSTAR 30 controlcontrol30 NcmLCDyesyes (PT1000)yesMICROSTAR 30 digitaldigital30 NcmLEDnononoMINISTAR 20 controlcontrol20 NcmLCDyesyes (PT1000)yesMINISTAR 20 digitaldigital20 NcmLEDnononoMINISTAR 40 controlcontrol40 NcmLCDyesyes (PT1000)yesMINISTAR 40 digitaldigital40 NcmLEDnononoMINISTAR 80 controlcontrol80 NcmLCDyesyes (PT1000)yesMINISTAR 80 digitaldigital80 NcmLEDnononoTechnical detailsMax. stirring volume (H2O)5 lMax. torque at the stirring shaft7.5 NcmSpeed range0/30 to 2,000 rpmSpeed setting accuracy±1 rpmMax. viscosity4,000 mPasMotor power (input / output)32 W / 22 WChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmTimer setting range0 to 6,000 minTemperature measuring range-10 to 350 °CHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature / humidity5 to 40 °C / 80 %IP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)60 x 173 x 136 mmWeight1.18 kgConnected load100 to 240 V, 50/60 Hz, 32 WScope of deliveryMICROSTAR 7.5 control, stirrer (basic unit)Stirring shaft guard R 300Fixing screws for the stirring shaft guard (2 pieces)Temperature sensor H 67.60, stainless steel (PT1000)Chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA grants a manufacturer's warranty of 2 years on the MICROSTAR 7.5 control, extended to 10 years when registered at ika.com/register within 90 days of purchase. For stirring elements, additional temperature sensors or a stand, our procurement service takes care of putting the order together; the entire range of stirring and mixing technology is available in the shop.

Sale price: €1,070.25 Manufacturer's RRP: €1,427.00 25% below manufacturer's RRP
Discount Promo

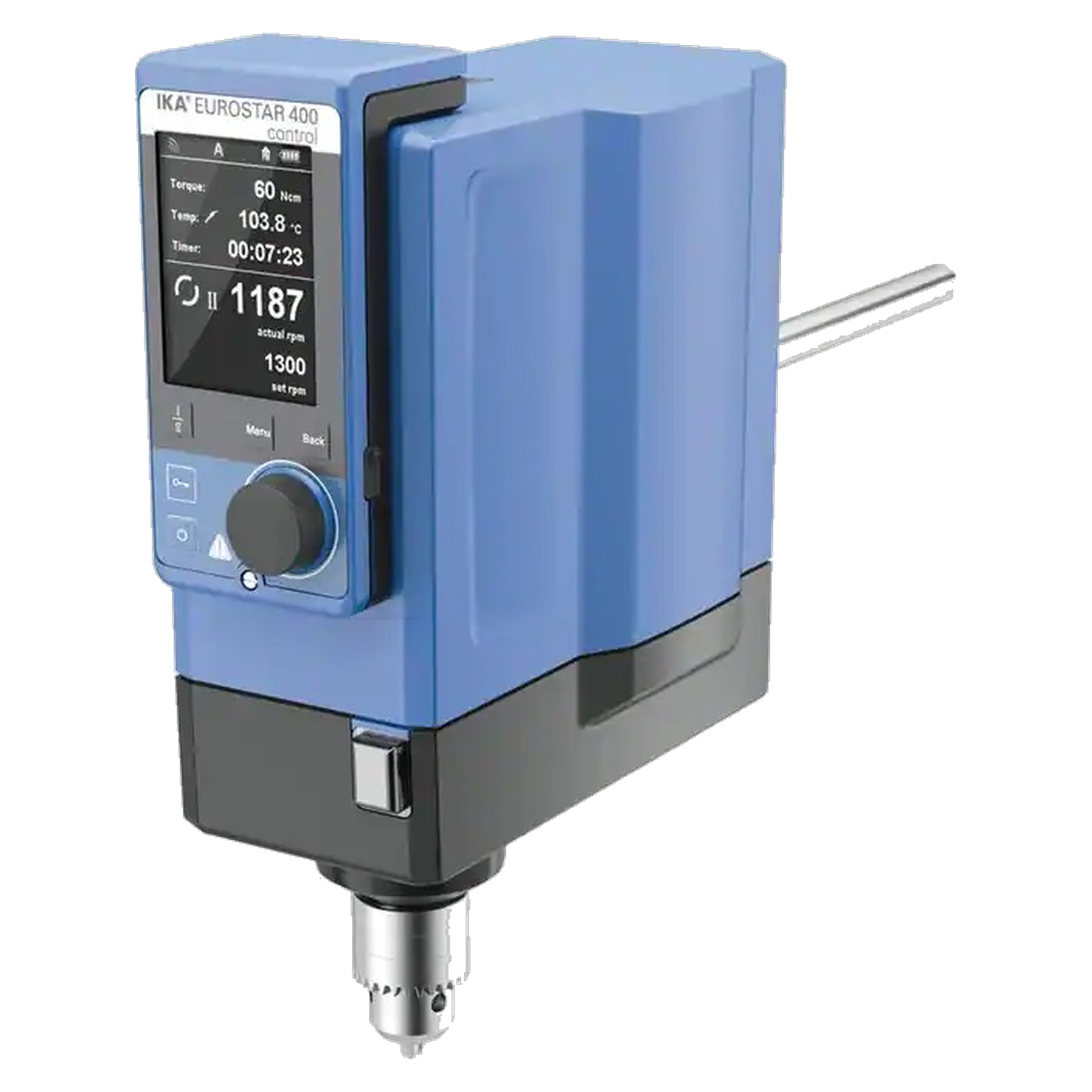

IKA EUROSTAR 400 control Überkopfrührwerk, bis 150 l, 400 Ncm
IKA EUROSTAR 400 control overhead stirrer, up to 150 l, 400 Ncm, 0004214100
Manufacturer number: 0004214100

The EUROSTAR 400 control is the fully-equipped version of the most powerful classic EUROSTAR model, with a stirring volume of 150 l and a torque of 400 Ncm, utilising the same mechanical components as its digital counterpart, plus a TFT display, a detachable WiCo controller and a connection for external PT1000 temperature measurement. For pilot plants where the temperature and torque curves of large batches need to be documented, the control model is the more suitable choice compared to the simpler digital unit. Those who do not require the WiCo controller can opt for the structurally identical EUROSTAR 400 digital and save on the additional electronics.WiCo controller and temperature measurement on a large scaleThe WiCo wireless controller transmits over a range of up to 150 metres, depending on the building layout, which is particularly useful for large stirring stations where the main unit is not directly accessible. Using the H 67.60 stainless steel temperature sensor included in the Scope of delivery, the unit measures temperatures between -10 and 350 °C with a resolution of 0.1 K; the torque display shows a trend value for monitoring changes in viscosity. RS232 and micro-USB interfaces record the parameters via labworldsoft.Power, design and batteryThe brushless DC motor draws 220 watts and delivers up to 176 watts to the stirring shaft. In range I, the stirrer delivers up to 400 Ncm at speeds between 6 and 400 rpm; in range II, the speed reaches up to 2,000 rpm with a maximum of 80 Ncm. The chuck accommodates stirring shafts from 3 to 16 mm; measuring 114 x 345 x 268 mm and weighing 8.8 kg, the unit is slightly larger and heavier than the digital model due to the additional WiCo electronics. The WiCo controller contains a permanently fitted lithium-polymer cell with 3.7 V and 7.4 Wh, which is housed within the unit and cannot be removed separately. The protection rating is IP 42. Additional voltage variants of 115 V and 100 V are available for locations outside the European 230 V mains supply.Typical applicationsDocumented stirring of large batches up to 150 l with temperature and torque curvesRemote control via the detachable WiCo controller at hard-to-reach stirring pointsPowerful mixing of viscous to highly viscous media up to 100,000 mPasProcess development in pilot plants with RS232/USB connection to labworldsoftSelection guide: the EUROSTAR series at a glanceSix EUROSTAR models make up IKA’s current range; the EUROSTAR 400 control is the fully equipped variant in the highest performance class. It shares the motor, gearbox and stirring volume with the digital model, whilst also featuring a WiCo controller, TFT display and PT1000 temperature measurement.ModelMax. stirring volume (H2O)Max. torqueMax. viscosityDisplay/FeaturesEUROSTAR 20 digital25 l40 Ncm10,000 mPasLCD, USB-C/RS232EUROSTAR 100 digital100 l200 Ncm (short-term)70,000 mPasLCD, USB-C/RS232EUROSTAR 200 digital100 l200 Ncm100,000 mPasLEDEUROSTAR 200 control100 l200 Ncm100,000 mPasTFT, WiCo, PT1000EUROSTAR 400 digital150 l400 Ncm100,000 mPasLEDEUROSTAR 400 control (this product)150 l400 Ncm100,000 mPasTFT, WiCo, PT1000For those stirring smaller volumes of up to 5 l, the MICROSTAR and MINISTAR ranges offer suitable alternatives, such as the MICROSTAR 7.5 control.Technical detailsMax. stirring volume (H2O)150 lMotor power consumption220 WMotor power output176 WSpeed range I6 to 400 rpm, max. 400 NcmSpeed range II30 to 2,000 rpm, max. 80 NcmMax. viscosity100,000 mPasConnection for external temperature sensorPT1000, measuring range -10 to 350 °CChuck clamping range3 to 16 mmWiCo communication range (depending on the building)max. 150 mWiCo controller battery1x LiPo, 3.7 V, 7.4 Wh, 55 g, permanently fitted in the deviceIP ratingIP 42 (DIN EN 60529)Permissible ambient temperature / humidity5 to 40 °C / 80 %Dimensions (W x H x D)114 x 345 x 268 mmWeight8.8 kgConnected load230 V, 50/60 Hz, 220 W (other voltage options: 115 V / 100 V)Scope of deliveryEUROSTAR 400 control stirrer (basic unit), ID no. 0004214100Temperature sensor H 67.60, stainless steel (PT1000)WiCo mounting bracket WH11WiCo power supply OS 1.0USB cable (USB-A to Micro-B), 2 mScrewdriverProtective cap for the WiCo contactChuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a manufacturer’s warranty for the EUROSTAR 400 control: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For stirring elements, stands or any other model in the EUROSTAR range, our procurement service will handle the assembly; the full range of stirring and mixing equipment is available in the shop.

Sale price: €3,924.80 Manufacturer's RRP: €4,906.00 20% below manufacturer's RRP
Discount
Topseller
IKA MINISTAR 80 digital Überkopfrührwerk, bis 50 l, 80 Ncm
IKA MINISTAR 80 digital Overhead Stirrer, up to 50 l, 80 Ncm, 0025004887
Manufacturer number: 0025004887

At the upper end of the MICROSTAR/MINISTAR series stands the IKA MINISTAR 80 digital: 50 litres stirring volume per stirring position, 80 Ncm torque and a design for media of up to 60,000 mPas viscosity, at a speed range of 50 to 500 rpm.For large and thick batchesWith a nominal torque of 0.8 Nm and a maximum stirring shaft power of 42 watts, the unit handles batches at which the smaller MICROSTAR models reach their limit. The speed range ends at 500 rpm, lower than with the entry-level MINISTAR 20 digital, because at this torque and viscosity class stirring performance is more important than speed.Identical in construction to MINISTAR 40, different gearingHousing dimensions (70 x 193 x 147 mm) and weight (1.72 kg) correspond exactly to the MINISTAR 40 digital, and the two models differ only in the internal gearing between speed and torque. The connected load of 69 watts, degree of protection IP 54 and operation via rotary knob and LED display are identical across the entire digital series. For setting up on reaction vessels of larger volume, additional stand accessories are available if required.Accessories for large batchesWith stirring volumes of up to 50 litres, suitable accessories from the current range pay off. In addition to the anchor stirrer with beaker scraper for plastic vessels, the range includes dissolver and disc stirrers for high shear forces as well as helical stirrers for thick, non-Newtonian media. Telescopic and base plate stands as well as boss heads are available for mounting, and for personal protection at an open vessel, additionally a separately available stirring shaft guard R 301 with its own stand holder. For the regulated sector, factory calibration certificates are also available. Anyone who regularly works with plastic vessels additionally secures the stability of the set-up by using a base plate stand instead of a slim telescopic stand.Typical applicationsStirring large batches of up to 50 litres in the pilot laboratoryMixing highly viscous media of up to 60,000 mPasProcesses with high torque requirements at low speedTransition from laboratory to pilot plant scaleSelection guide: MICROSTAR and MINISTAR at a glanceThe MINISTAR 80 digital is the most powerful model of the entire series, with the highest torque and the largest stirring volume. Anyone who needs less volume or a higher speed will find a suitable smaller alternative in the table:ModelMax. torqueStirring volume (H2O)Speed rangeDisplayMICROSTAR 7.5 digital7.5 Ncm5 l50 to 2,000 rpmLEDMICROSTAR 7.5 control7.5 Ncm5 l30 to 2,000 rpmLCDMICROSTAR 15 digital15 Ncm10 l50 to 1,000 rpmLEDMICROSTAR 15 control15 Ncm10 l30 to 1,000 rpmLCDMICROSTAR 30 digital30 Ncm20 l50 to 500 rpmLEDMICROSTAR 30 control30 Ncm20 l30 to 500 rpmLCDMINISTAR 20 digital20 Ncm15 l50 to 2,000 rpmLEDMINISTAR 20 control20 Ncm15 l30 to 2,000 rpmLCDMINISTAR 40 digital40 Ncm25 l50 to 1,000 rpmLEDMINISTAR 40 control40 Ncm25 l30 to 1,000 rpmLCDMINISTAR 80 digital (this product)80 Ncm50 l50 to 500 rpmLEDMINISTAR 80 control80 Ncm50 l30 to 500 rpmLCDTechnical detailsMax. stirring volume per stirring position (H2O)50 lMotor power, input60 WMotor power, output46 WMotor principleBrushless DCSpeed displayLEDSpeed range0/50 - 500 rpmMax. viscosity60,000 mPasMax. power at the stirring shaft42 WPermissible duty cycle100 %Max. torque at the stirring shaft80 NcmSpeed setting accuracy±1 rpmStirring tool mountingChuckChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmStand mountingArmArm diameter13 mmArm length160 mmHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature range5 - 40 °CPermissible relative humidity80 %InterfaceUSB (Micro-USB)Connected load100 to 240 V, 50/60 Hz, device power consumption 69 W (standby 0.5 W), DC voltage 24 V=, current consumption 2,900 mA, Micro-USB interface for firmware updatesIP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)70 x 193 x 147 mmWeight1.72 kgScope of delivery1 x MINISTAR 80 digital stirrer, basic unit1 x stirring shaft guard R 300, with fixing screws (2 pieces)1 x chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA grants a 2-year manufacturer's warranty on the MINISTAR 80 digital, extended to 10 years when registered at ika.com/register within 90 days of purchase. For stirring elements, stands or another model from the same series, our procurement service is available. The entire range of stirring and mixing technology can be reached via the Stirring and mixing technology category.

Sale price: €1,084.50 Manufacturer's RRP: €1,446.00 25% below manufacturer's RRP
Discount

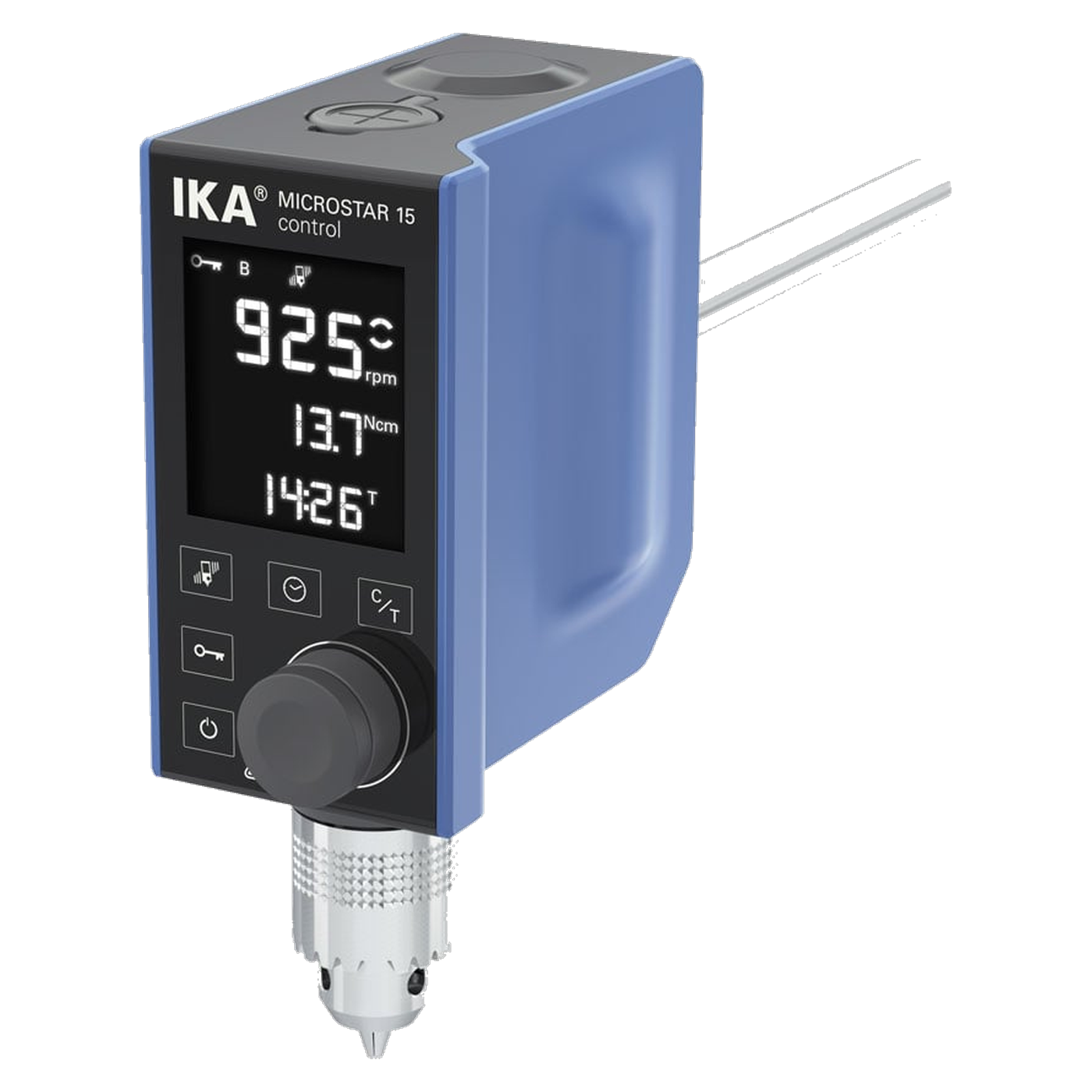

IKA MICROSTAR 15 control Überkopfrührwerk, bis 10 l, 15 Ncm
IKA MICROSTAR 15 control Overhead Stirrer, up to 10 l, 15 Ncm, 0025001986
Manufacturer number: 0025001986

With a torque of 15 Ncm and a stirring volume of up to 10 litres of water, the MICROSTAR 15 control sits in the middle of IKA’s MICROSTAR range, designed for samples up to 8,000 mPas at speeds ranging from 0/30 to 1,000 revolutions per minute. This model is suitable for applications that require more power than the 7.5 model but do not yet fall within the scope of the MINISTAR series with its larger housing.Display, timer and temperature sensorThe difference between the control model and the structurally identical MICROSTAR 15 digital is evident in the display. Instead of an LED display, the MICROSTAR 15 control has an LCD glass display which shows speed, temperature and a timer ranging from 0 to 6,000 minutes. The supplied H 67.60 stainless steel temperature probe measures the sample temperature between -10 and 350 °C via a PT1000 measurement, which can be read directly on the display. A torque display is also included; however, it only shows a trend and not a calibrated absolute measurement. To document measurement series or for firmware updates, the device connects to labworldsoft via Micro-USB or the integrated WPAN interface (Bluetooth).Drive and mechanical connectionThe brushless DC motor draws 32 watts and delivers up to 15.7 watts to the stirring shaft, with a duty cycle of 100 % in continuous operation. The stirrer is mounted on the stand via a 13 mm diameter, 160 mm long extension arm; the chuck accommodates stirring shafts from 0.5 to 8.2 mm, which can be changed using the supplied chuck key. The hollow shaft, with an internal diameter of 8.5 mm, can be inserted whilst the unit is stationary. A vibration detection system automatically switches off the motor as soon as the stirring tool becomes unbalanced.Controls and operating conditionsA rotary knob controls the speed with an accuracy of ±1 rpm; above 300 rpm, the deviation is a maximum of ±1 %. A button lock protects a configuration once set from accidental adjustment. The housing, made of coated cast aluminium and thermoplastic, is designed to be chemical-resistant and is protected against dust and splashing water in accordance with IP 54. The MICROSTAR 15 control may be operated at ambient temperatures of 5 to 40 °C and relative humidity of up to 80 %.Typical applicationsFormulation and batch preparations requiring moderate mixing powerTemperature-controlled stirring via the PT1000 sensorProcessing of medium-viscosity samples up to 8,000 mPasLaboratory routines with documented speed via labworldsoftSelection guide: an overview of the MICROSTAR/MINISTAR seriesTwelve models make up the MICROSTAR and MINISTAR series from IKA: six in the ‘control’ version and six in the structurally identical ‘digital’ version. The number in the model name indicates the maximum torque in Ncm; the ‘control’ and ‘digital’ versions differ in terms of display and additional functions, but not in terms of torque class.ModelSeriesMax. torqueDisplayTimerTemperature measurementBluetooth/WPANMICROSTAR 7.5 controlcontrol7.5 NcmLCDyesyes (PT1000)yesMICROSTAR 7.5 digitaldigital7.5 NcmLEDnononoMICROSTAR 15 control (this product)control15 NcmLCDyesyes (PT1000)yesMICROSTAR 15 digitaldigital15 NcmLEDnononoMICROSTAR 30 controlcontrol30 NcmLCDyesyes (PT1000)yesMICROSTAR 30 digitaldigital30 NcmLEDnononoMINISTAR 20 controlcontrol20 NcmLCDyesyes (PT1000)yesMINISTAR 20 digitaldigital20 NcmLEDnononoMINISTAR 40 controlcontrol40 NcmLCDyesyes (PT1000)yesMINISTAR 40 digitaldigital40 NcmLEDnononoMINISTAR 80 controlcontrol80 NcmLCDyesyes (PT1000)yesMINISTAR 80 digitaldigital80 NcmLEDnononoTechnical detailsMax. stirring volume (H2O)10 lMax. torque at the stirring shaft15 NcmSpeed range0/30 to 1,000 rpmSetting accuracy for speed±1 rpmMax. viscosity8,000 mPasMotor power (input / output)32 W / 22 WChuck clamping range0.5 to 8.2 mmHollow shaft, internal diameter8.5 mmTime setting range for timer0 to 6,000 minTemperature measurement range-10 to 350 °CHousing materialCoated cast aluminium / thermoplasticPermissible ambient temperature / humidity5 to 40 °C / 80 %IP ratingIP 54 (DIN EN 60529)Dimensions (W x H x D)60 x 173 x 136 mmWeight1.26 kgConnected load100-240 V, 50/60 Hz, 32 WScope of deliveryMICROSTAR 15 control, stirrer (base unit)R 300 stirrer shaft guardFixing screws for the stirrer shaft guard (2 pieces)Temperature sensor H 67.60, stainless steel (PT1000)Chuck keyRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the MICROSTAR 15 control; this is extended to 10 years upon registration at ika.com/register within 90 days of purchase. For additional stirring elements, temperature sensors or a stand, our procurement service will take care of the assembly; the full range of stirring and mixing equipment is available in the shop.

Sale price: €1,128.75 Manufacturer's RRP: €1,505.00 25% below manufacturer's RRP
Discount Promo

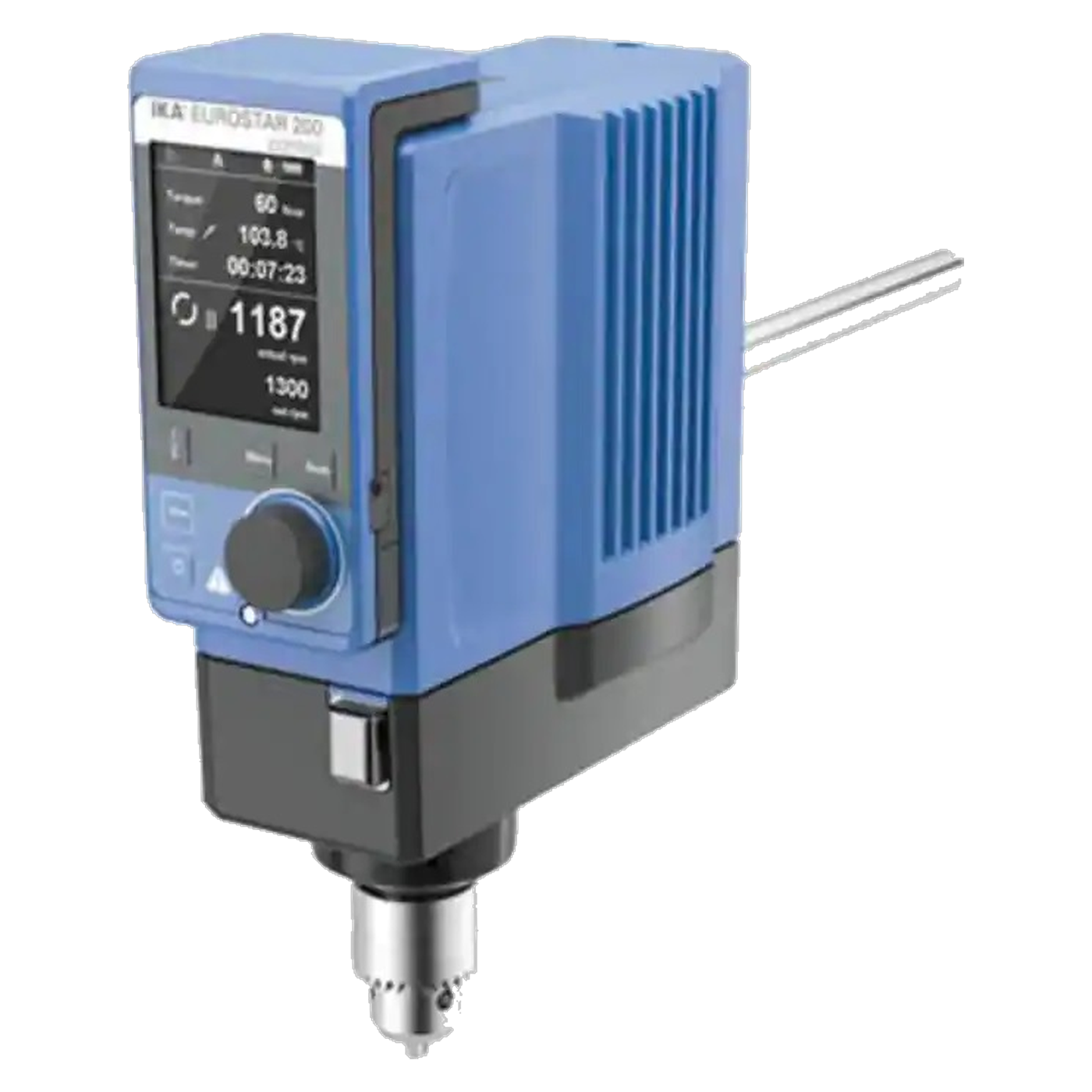

IKA EUROSTAR 200 control Überkopfrührwerk, bis 100 l, 200 Ncm
