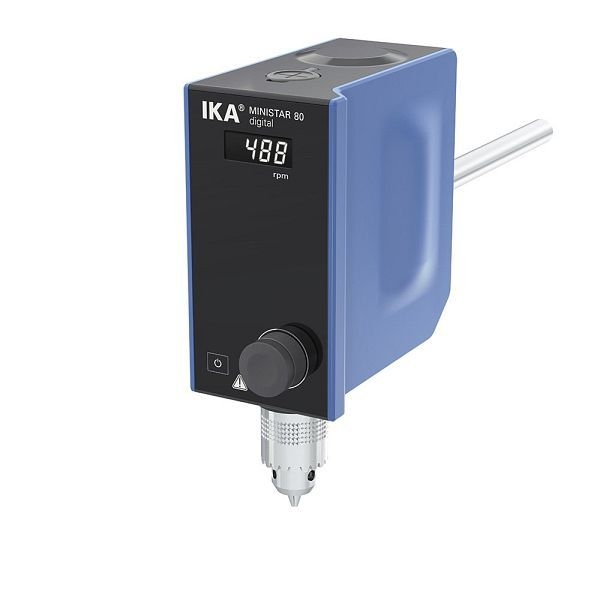

IKA electronic stirrer, MINISTAR 80 digital, 0025004887

MINISTAR 80 digital
The space-saving, high-performance models in the MICROSTAR and MINISTAR series are being expanded with further models. These new stirrers also focus on perfect core functionality, are compact and easy to use.

Compact design
The minimalist design and focus on the essentials make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions.

Constant torque
: Across the entire speed range, the models in the MICROSTAR and MINISTAR series guarantee constant torque. The new units are available in six different versions with speeds of up to 2,000 rpm and a torque of up to 80 Ncm.

Easy operation
: Operation is via a sturdy rotary knob. The display shows the speed clearly.

Quick updates
Regular software updates can be carried out quickly and easily via the USB interface.

Technical data
: Maximum mixing volume per mixing point (H₂O) 50 l
Motor power input 60 W
Motor power output 46 W
Motor type Brushless DC
Speed display LED
Speed range 0/50 – 500 rpm
Maximum viscosity 60,000 mPas
Maximum power at the stirring shaft 42 W
Permissible duty cycle 100 %
Max. torque at the stirring shaft 80 Ncm
Speed adjustment method: rotary knob
Speed adjustment accuracy ±1 rpm
Speed measurement deviation at n > 300 rpm ±1 %
Speed measurement deviation at n < 300 rpm ±3 rpm
Stirring tool mounting: collet
Collet clamping range 0.5 – 8.2 mm
Hollow shaft, Inner diameter 8.5 mm
Hollow shaft (through-type – when stationary) Yes
Mounting on stand: extension
arm Extension arm diameter 13 mm
Extension arm length 160 mm
Rated torque 0.8 Nm
Display: timer None
Housing material: coated cast aluminium / thermoplastic
Dimensions (W x H x D) 70 x 193 x 147 mm
Weight 1.72 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
USB interface Yes
Voltage 100 – 240 V
Frequency 50/60 Hz
Power consumption 69 W
Standby power consumption 0.5 W
DC voltage 24 V =
Current consumption 2900 mA

Accessories and spare parts available on request
