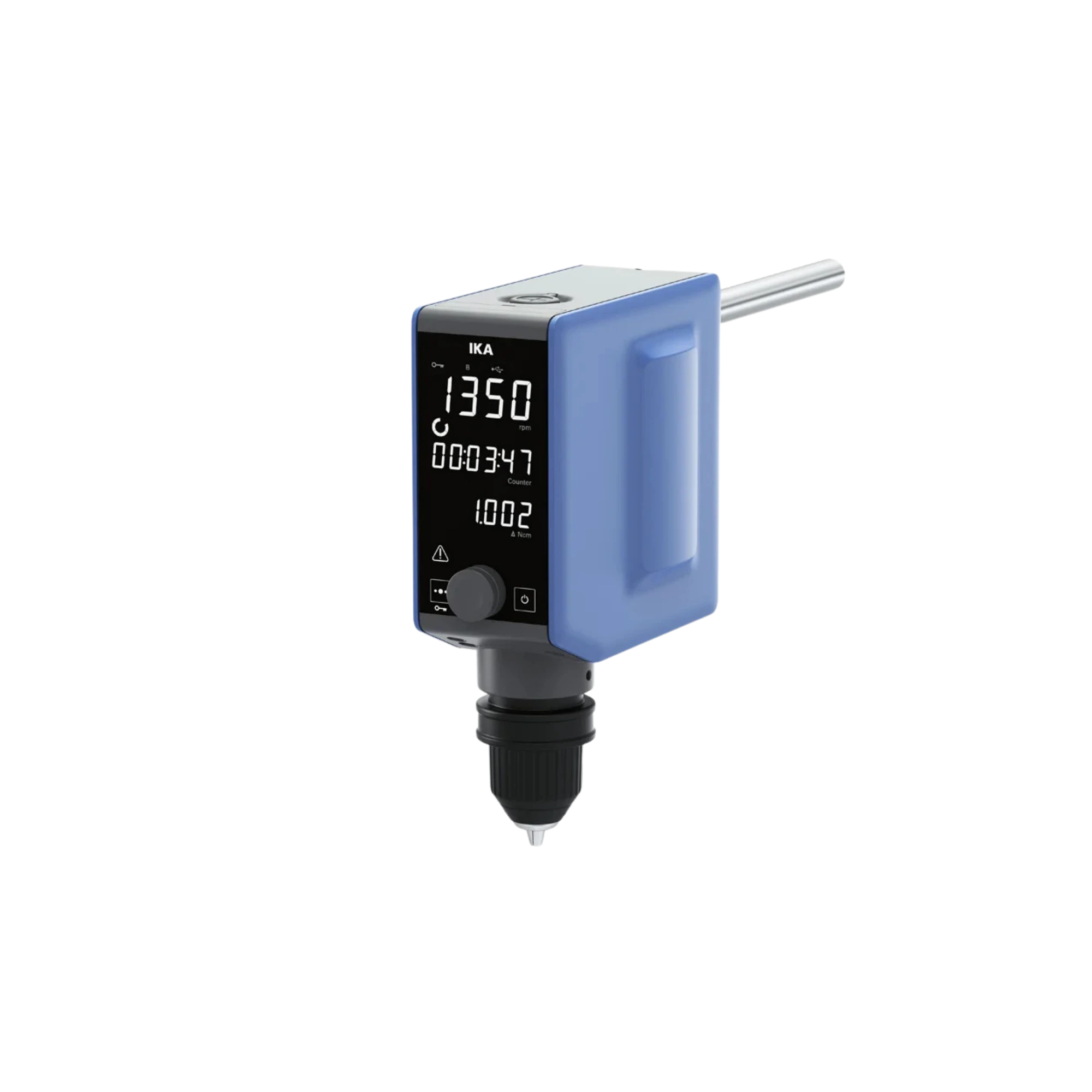

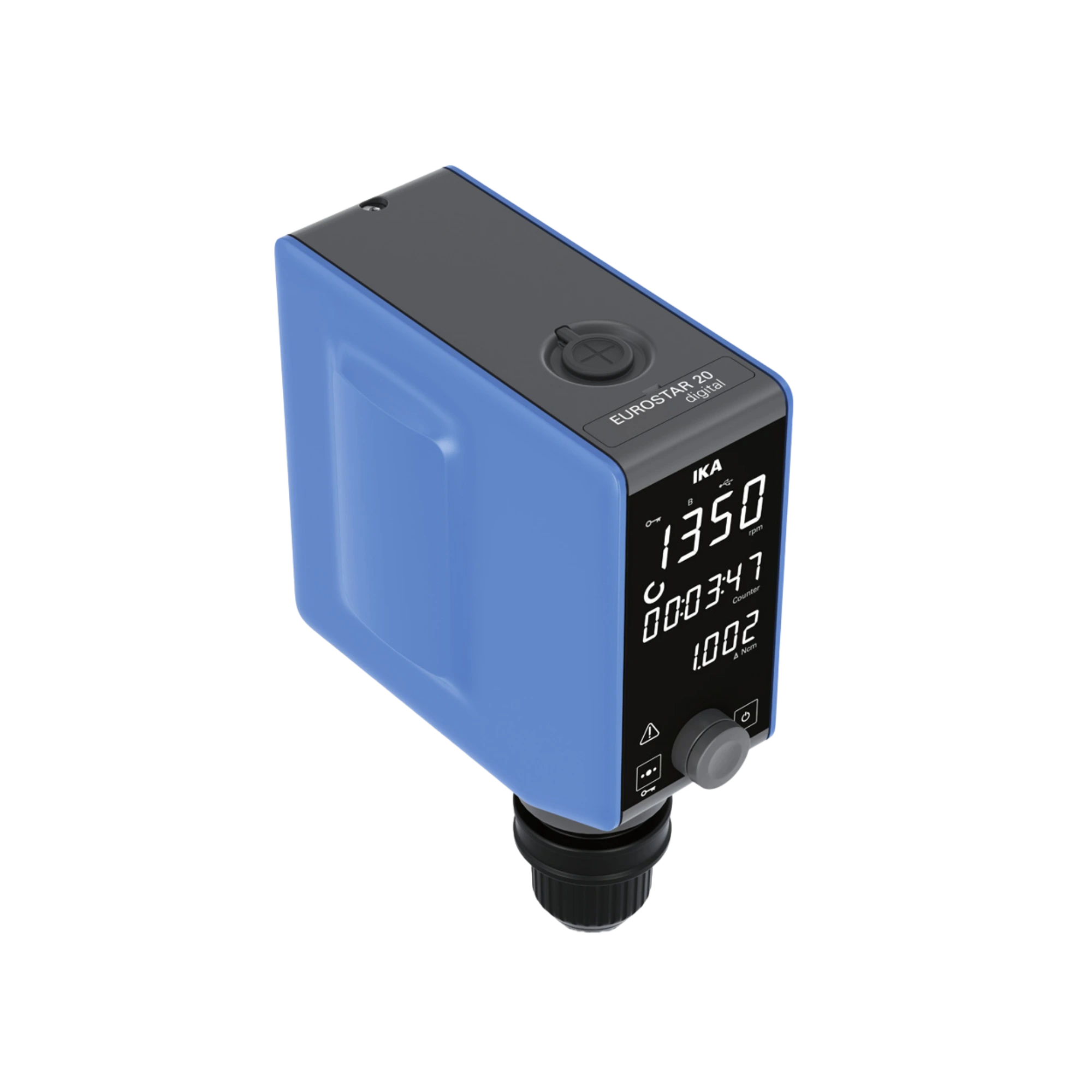

IKA EUROSTAR 20 digital overhead mixer with LCD display, up to 25 litres, 0020105154

The IKA EUROSTAR 20 digital overhead stirrer (MPN 0020105154) represents the modernised, highly optimised mechatronic generation of universal laboratory stirrers for simple to moderately demanding mixing tasks. With a footprint reduced by up to 23 per cent compared to its predecessor models, this compact instrument fits perfectly into any flexible laboratory layout. Designed for sample volumes of up to 25 litres (based on water), the system handles viscosities of up to 10,000 mPas with ease. It thus offers the ideal process engineering system solution for routine applications, standard mixing processes and reproducible analytical runs in a professional B2B laboratory environment.

Innovative torque trend measurement for sample monitoring

An outstanding metrological feature of the digital series is the integrated torque trend measurement. The system records transient changes in the medium’s viscosity with an accuracy of ±6 Ncm and displays the relative viscosity trend directly on the clear LCD display. This provides laboratory staff with valuable insights into the current state of the mixing process at all times. Thanks to a sophisticated automatic speed adjustment system covering a wide range from 30 to 2000 revolutions per minute, the stirrer maintains the selected speed absolutely constant even during transient changes in viscosity, thereby ensuring error-free results.

Ergonomic tool change and high operational safety

From a process engineering perspective, the EUROSTAR 20 digital is consistently designed for maximum user-friendliness and process reliability in daily continuous operation. The integrated quick-release chuck allows the user to change stirring tools comfortably with one hand, without the need for any additional tools. A dedicated lock button protects the system during operation against accidental parameter changes by the user. To reliably prevent mechanical damage or hazardous situations, the stirring drive features autonomous safety circuits which trigger an immediate automatic shutdown in the event of an overload or blockage of the stirring element.

Future-proof connectivity and robust housing design

The system’s infrastructure architecture enables straightforward integration into digitised laboratory workstations. Equipped with standard USB-C and RS232 interfaces, the overhead stirrer can be seamlessly connected to a PC and fully controlled and comprehensively documented via the labworldsoft laboratory software ®. The mechanically robust housing consists of a combination of coated die-cast aluminium and sturdy thermoplastic, which meets the demanding IP 54 protection rating. The brushless DC motor operates virtually wear-free, whisper-quiet (52 dBA) and absolutely clean, meaning the system is fully qualified for a 100 per cent duty cycle in continuous operation.

Technical details

Drive & Performance Data

• Motor type: Brushless DC motor (BLDC)
• Motor power consumption: 70 watts
• Motor output: 42 watts
• Maximum power at the mixing shaft: 42 watts
• Total power consumption: 186 watts
• Permissible duty cycle: 100 per cent (designed for continuous, uninterrupted operation)
• Voltage range: 100–240 V / Frequency: 50/60 Hz

Mixing & viscosity data

• Max. mixing volume per mixing point (water): 25 litres
• Maximum viscosity: 10,000 mPas
• Max. torque at the stirring shaft: 40 Ncm
• Max. torque at 30–600 rpm: 40 Ncm
• Maximum torque at 600–2,000 rpm: 40 to 20 Ncm (linear adjustment)
• Rated torque: 0.2 Nm

Speed and time control

• Speed range: 30 to 2000 rpm (revolutions per minute)
• Speed adjustment: Continuously variable via electronic control
• Speed adjustment accuracy: ±1 rpm
• Speed measurement deviation (n > 300 rpm): ±1 per cent
• Speed measurement deviation (n < 300 rpm): ±3 rpm
• Timer: Yes, built-in (setting range: 1 to 6000 minutes)
• Reversible rotation direction / Intermittent operation: No / No

Metrology & Sensors

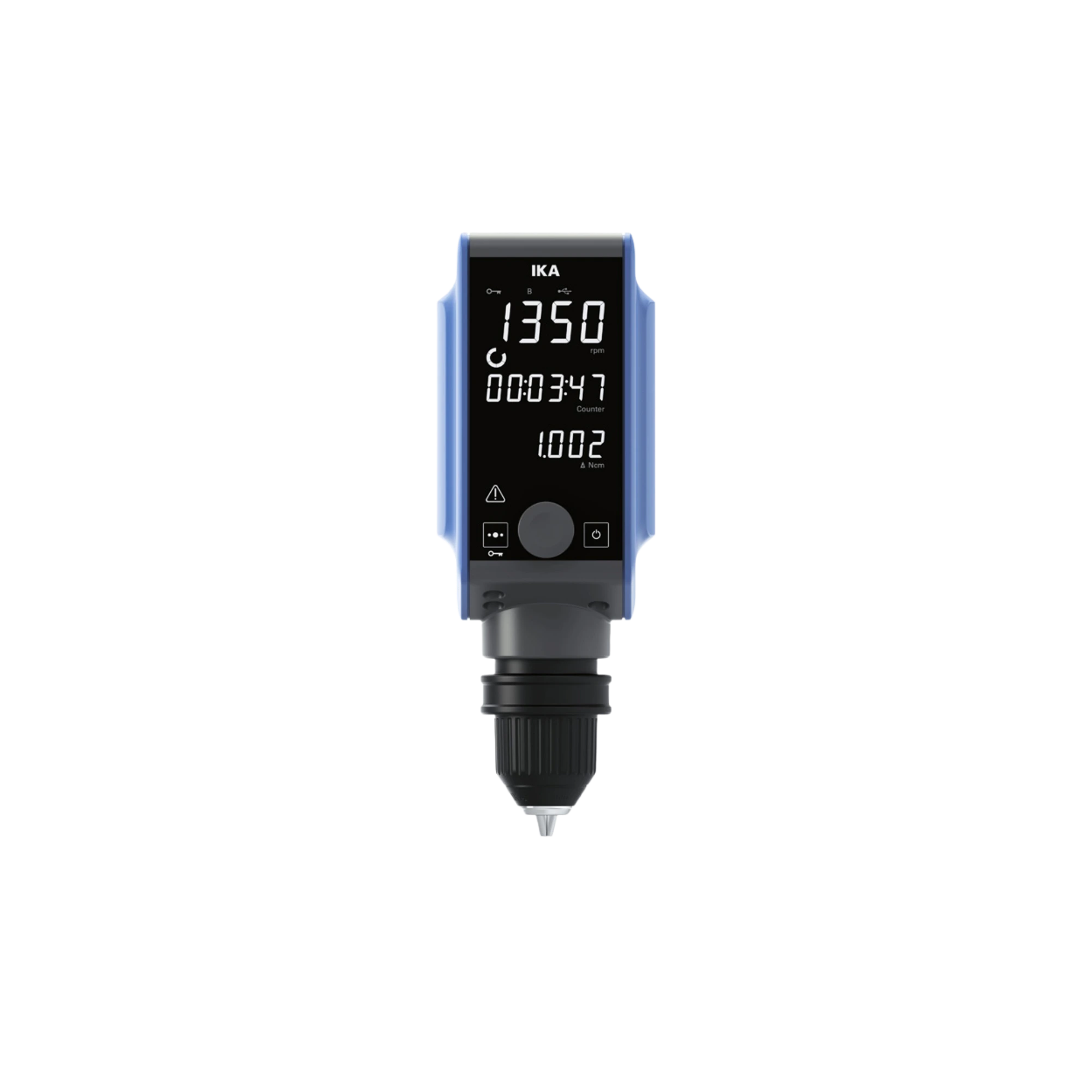

• Speed display & timer display: Digital LCD display
• Torque measurement: Integrated viscosity trend (trend mode)
• Torque trend deviation: ±6 Ncm
• Temperature display / External sensor connection: No / No

Design & Geometry

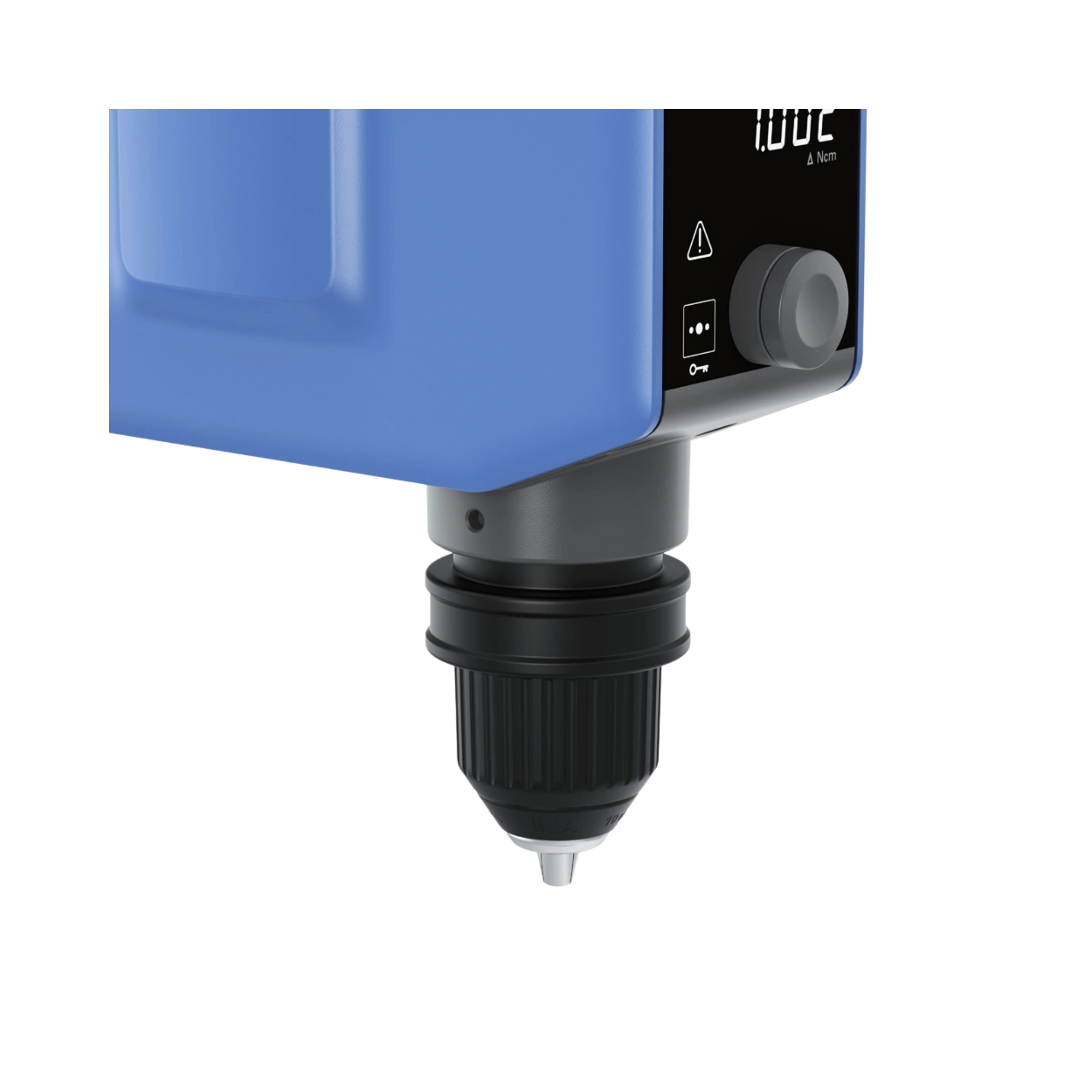

• Agitator attachment: Chuck / Quick-release chuck (clamping range diameter: 0.5 to 10 mm)
• Hollow shaft (can be inserted whilst stationary): Yes (internal diameter: 11 mm)
• Mounting on stand: Sturdy extension rod (diameter: 16 mm / length: 220 mm)
• Housing material: Coated cast aluminium and thermoplastic
• Protection class according to DIN EN 60529: IP 54 (splash- and steam-proof)
• Noise level without tools: 52 dB(A)
• Dimensions (width x depth x height): 89 x 191 x 237 mm
• Net weight: 3.8 kg
• Permissible ambient temperature: +5 to +40 degrees Celsius (relative humidity up to 80 per cent)

Contents of the pack

• 1 x IKA EUROSTAR 20 digital overhead stirrer (MPN: 0020105154)
• 1 x Integrated extension rod for stand mounting
• 1 x universal mains lead
• 1 x Detailed operating instructions / safety guide

Customised requirements & accessories

To ensure your EUROSTAR 20 digital mixing workstation is optimally equipped, we stock a comprehensive range of genuine IKA system peripherals:

• Stirring tools & shaft guards: A wide selection of stainless steel and PTFE stirring elements (e.g. propeller stirrers, anchor stirrers, paddle stirrers) as well as the matching IKA R 401 stirring shaft guard with a practical hinge (MPN 0020122349).
• Stand accessories: Extremely stable IKA bench stands (e.g. R 1826) as well as robust cross-sockets (e.g. R 182) for vibration-free mounting of the 3.8 kg drive unit.
• Software integration: labworldsoft ® for digital process automation, remote control and documentation of all transient stirring data via the USB-C or RS232 interface. Make use of our technical procurement service to design your laboratory set-up to suit your specific requirements.
