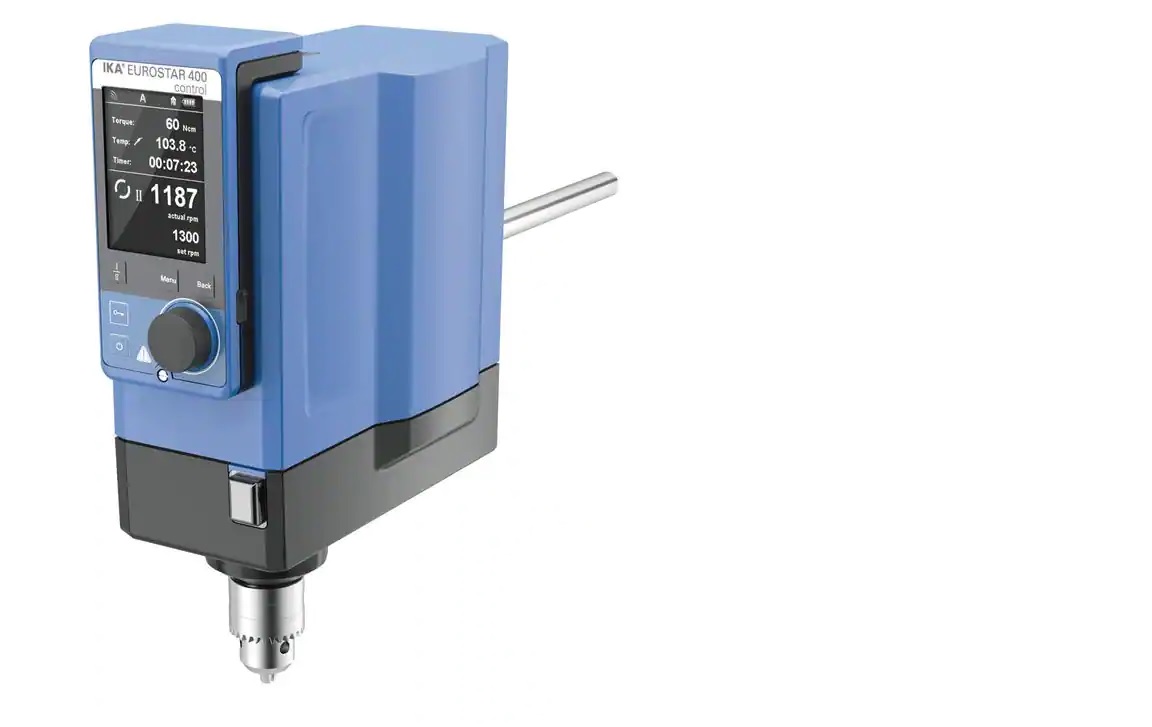

IKA EUROSTAR 400 control, 0004214100

EUROSTAR 400 control
High-performance agitator for highly viscous media and intensive mixing of volumes up to 150 l (H₂O). With detachable remote control and digital TFT display. A microprocessor-controlled system maintains the set speed constantly within the range of 0/6 – 2,000 min⁻¹ (two speed ranges). The RS 232 and USB interfaces on the laboratory stirrer allow all parameters to be controlled and documented. An integrated torque trend display measures changes in the sample’s viscosity. An electronic safety circuit ensures that the unit switches off in the event of a fault or overload. The setpoint and actual speeds are continuously matched. This ensures that the speed remains constant even when the viscosity of the medium changes.
Multilingual TFT display
Programmable functions
Integrated temperature measurement
Interval
operation Timer
Adjustable safety circuit
Lock function
Infinitely variable speeds
Pass-through
stirrer shafts Overload protection
Short-term overload operation
Compact design
H 67.60 temperature sensor and WH 11 WiCo mount included in the scope of delivery

Technical data
: Maximum mixing volume per mixing point (H₂O) 150 l
; Motor power input 220 W
; Motor power output 176 W
; Motor type: brushless DC
; Speed display: TFT
; Speed range: 0–6 – 2000 rpm
Intermittent operation: yes
Viscosity: max. 100,000 mPas
Power: max. at the stirring shaft: 167 W
Permissible duty cycle: 100%
Torque: max. at the stirring shaft: 400 Ncm
Torque I: max. 400 Ncm
Torque II: max. 80 Ncm
Speed range I (50 Hz) 6–400 rpm
Speed range II (50 Hz) 30–2000 rpm
Speed range I (60 Hz) 6–400 rpm
Speed range II (60 Hz) 30–2000 rpm
Speed adjustment Continuously
variable Speed adjustment accuracy ±1 rpm
Speed measurement deviation at n > 300 rpm ±1 %
Speed measurement deviation at n < 300 rpm ±3 rpm
Stirring tool mounting Collet
Connection for external PT1000
temperature sensor Temperature display yes
Chuck clamping range 3–16 mm
Hollow shaft, internal diameter 10.3 mm
Hollow shaft (through-type – when stationary) Yes
Mounting on stand Extension
arm Extension arm diameter 16 mm
Extension arm length 160 mm
Torque display Yes
Speed control electronic
Nominal torque 4 Nm
Torque measurement trend
Deviation in torque measurement I ±40 Ncm
Deviation in torque measurement II ±12 Ncm
Timer Yes
Timer display TFT
Time setting range 1 – 6000 min
Temperature measurement range –10 – +350 °C
Temperature measurement resolution 0.1 K
Temperature measurement accuracy ±0.5 + PT1000 tolerance (DIN EN 60751 Class A) K
Maximum permissible deviation of temperature sensor ≤ ± (0.15 + 0.002 × ITI) K
Housing material: coated cast aluminium / thermoplastic Communication
range (depending on building) max. 150 m
Dimensions (W x H x D) 114 x 345 x 268 mm
Weight 8.8 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS-232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 226 W

Accessories and spare parts available on request
