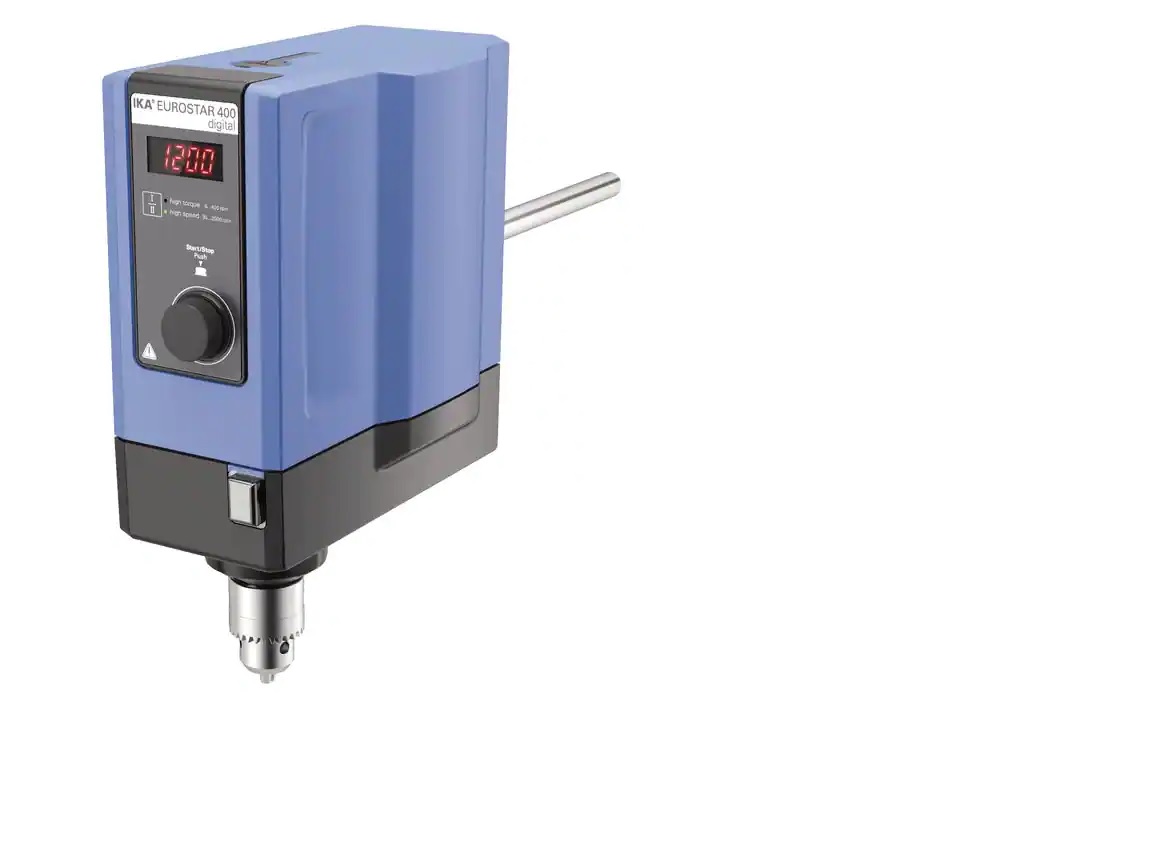

IKA EUROSTAR 400 digital, 0004214000

EUROSTAR 400 digital
High-performance agitator for highly viscous media and intensive mixing of volumes up to 150 l (H₂O). A microprocessor-controlled system maintains a constant speed set between 0/6 and 2,000 min⁻¹ (two speed ranges). An electronic safety circuit ensures that the unit switches off in the event of a fault or overload. The setpoint and actual speeds are continuously matched. This ensures that the speed remains constant even if the viscosity of the medium changes.
Digital speed display
Infinitely adjustable speed
Interchangeable
stirring shafts Overload protection
Short-term overload operation
Compact design
Very quiet
operation Error code display

Technical data
: Maximum mixing volume per mixing point (H₂O) 150 l
; Motor power input 220 W
; Motor power output 176 W
; Motor type: brushless DC
; Speed display: 7-segment LED
; Speed range 0–6 – 2000 rpm
Maximum viscosity 100,000 mPas
Maximum power at the stirring shaft 167 W
Permissible duty cycle 100%
Maximum torque at the stirring shaft 400 Ncm
Maximum torque I 400 Ncm
Maximum torque II 80 Ncm
Speed range I (50 Hz) 6 – 400 rpm
Speed range II (50 Hz) 30 – 2,000 rpm
Speed range I (60 Hz) 6 – 400 rpm
Speed range II (60 Hz) 30–2000 rpm
Speed adjustment: Continuously
variable Speed adjustment accuracy: ±1 rpm
Speed measurement deviation at n > 300 rpm: ±1 %
Speed measurement deviation at n < 300 rpm: ±3 rpm
Stirring tool mounting: Collet
Collet clamping range: 3–16 mm
Hollow shaft, Inner diameter 10.3 mm
Hollow shaft (through-shaft – when stationary) Yes
Mounting on stand Arm
Arm diameter 16 mm
Arm length 160 mm
Speed control Electronic
Rated torque 4 Nm
Dimensions (W x H x D) 114 x 325 x 245 mm
Weight 8.4 kg
Permissible ambient temperature range 5–40 °C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 42
Voltage 230 V
Frequency 50/60 Hz
Power consumption 226 W

Accessories and spare parts available on request
