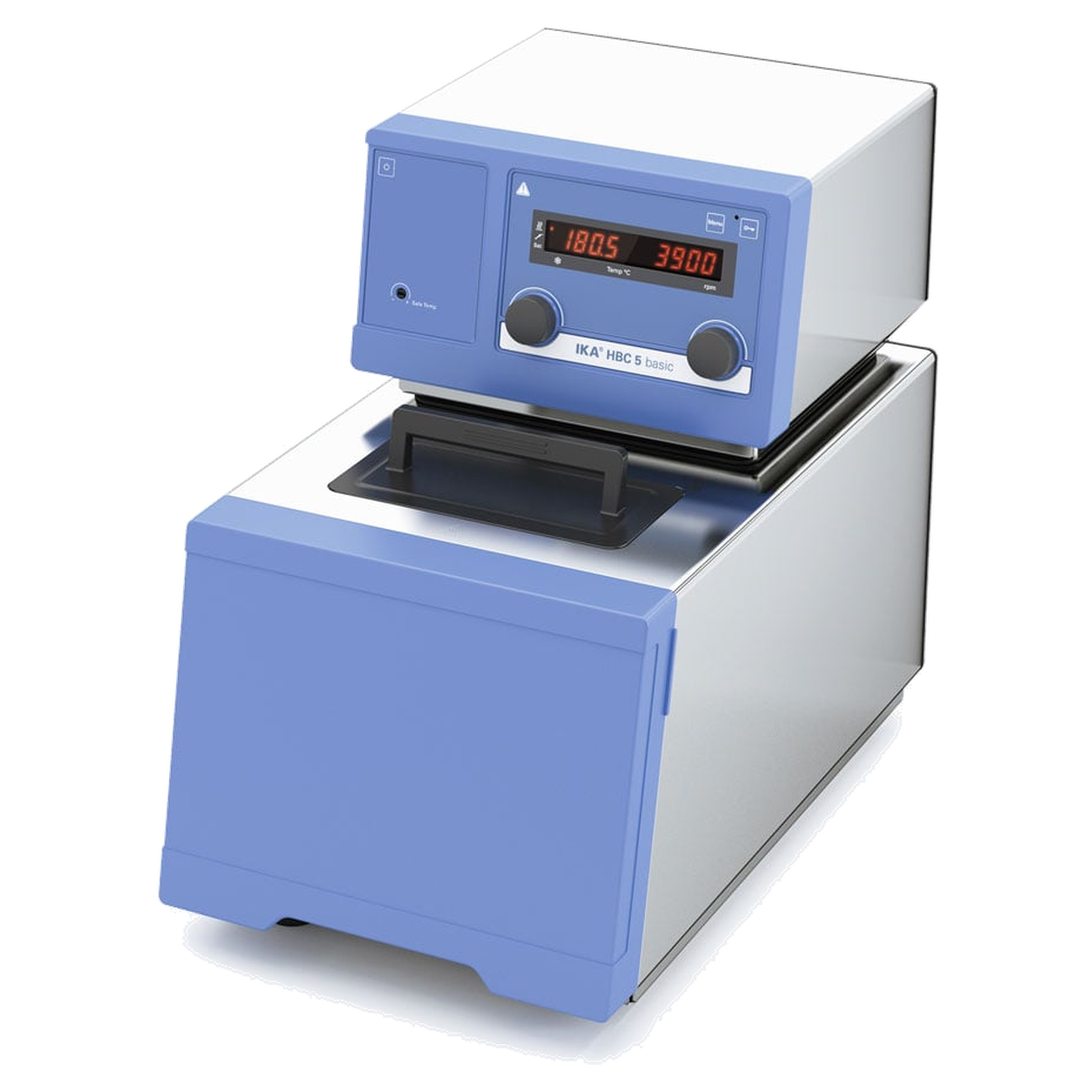

IKA HBC 5 basic Heating Bath Circulator, Bath 5 to 7 l, up to 250 °C, 0004125000
€3,049.50
% Manufacturer's RRP: €4,066.00 25% below manufacturer's RRP
- Heating bath circulator with stainless steel bath, filling volume 5 to 7 l
- Heating power 2,500 W, working temperature up to 250 °C
- Temperature stability ±0.02 K according to DIN 12876, LED display
- Pressure/suction pump with up to 31 l/min, connections M16x1
- Drain valve at the front, CC1 cooling coil included in the scope of delivery
- Class III FL according to DIN 12876, safety circuit 0 to 260 °C
- 3-year IKA warranty on registration within 90 days of purchase
Product information "IKA HBC 5 basic Heating Bath Circulator, Bath 5 to 7 l, up to 250 °C, 0004125000"
The HBC 5 basic is the LED version of the smaller HBC devices. The device is a heating bath circulator with a stainless steel bath for 5 to 7 l filling volume and works up to 250 °C. Temperature and pump speed appear on an LED display, and operation is by push and rotary knobs. Two NW 12 hoses, the CC1 cooling coil and a USB cable are included.
The bath: 5 to 7 litres
The bath opening is 172 mm wide and 82 mm deep. The whole device measures 275 x 406 x 500 mm and weighs 17 kg. The bath is easy to clean and insulated, and a drain valve sits on the front. For emptying, a hose is connected, without direct contact with the temperature control medium.
Temperature and control
The heating power is 2,500 W. The working temperature starts at room temperature plus 10 K and ends at 250 °C, and with external cooling an operating temperature down to -20 °C is specified. The PID control achieves a temperature stability of ±0.02 K according to DIN 12876. The display resolves to 0.1 K and the set temperature can be set to an accuracy of 0.1 K. A PT 100 measures the working temperature and a PT1000 the safety temperature. In addition, an external PT 100 probe can be connected, and the device then indicates operation with an external probe.
Pump and connections
The pressure and suction pump has variable output and delivers up to 31 l/min at 0 bar back pressure. Maximum pressure 0.61 bar, on the suction side 0.45 bar. The pump housing is made of a plastic resistant to temperature and chemicals. The pump connections are M16x1, and the cooling coil is connected with NW 8.
Protection and PC connection
According to DIN 12876 the device carries class III with FL for flammable liquids. The safety circuit is set between 0 and 260 °C with the screwdriver supplied. Low and high level protection as well as visual and audible warnings are present. Via RS 232 or Micro-USB the device can be controlled and monitored with the labworldsoft software, and the device software can be updated online.
Typical applications
- Temperature control in the stainless steel bath with 5 to 7 l filling volume up to 250 °C
- Circulating temperature control medium to external consumers via M16x1
- Emptying the bath via the drain valve at the front
- Externally cooled operation down to -20 °C
- Working with flammable liquids according to class III FL
- Control and monitoring with labworldsoft
Selection guide
The HBC 5 control is equipped with a colour TFT display, timer and a removable wireless display. For a larger filling volume, the HBC 10 basic with 8 to 11 l is available. If you are looking for a bath with a separate bridge circulator, you will find an alternative in the IC basic pro 12 c Package .
Technical details
| Device type | Heating bath circulator with stainless steel bath |
| Filling volume | 5 to 7 l |
| Bath opening (width x depth) | 172 x 82 mm |
| Class and marking according to DIN 12876 | III, FL |
| Heating power | 2500 W |
| Power consumption | 2650 W |
| Working temperature | Room temp. +10 K @1000 rpm to 250 °C |
| Operating temperature min. (with external cooling) | -20 °C |
| Temperature control | PID |
| Working temperature probe / safety temperature probe | PT 100 / PT1000 |
| Connection for external temperature probe | PT 100 |
| Temperature stability according to DIN 12876 | ±0.02 K |
| Display of working and safety temperature | LED |
| Display resolution | 0.1 K |
| Setting accuracy of set temperature | 0.1 K |
| Safety circuit, adjustable | 0 to 260 °C |
| Low and high level protection | yes |
| Warning function visual, audible, for over-temperature | yes |
| Pump type | Pressure/suction pump, pump output variable |
| Max. pump pressure (0 l flow rate) | 0.61 bar |
| Max. pump pressure suction side (0 l flow rate) | 0.45 bar |
| Max. flow rate (0 bar back pressure) | 31 l/min |
| Pump connections | M16x1 |
| Cooling coil connection | NW 8 |
| Calibration option | yes |
| Permissible duty cycle | 100 % |
| Interfaces | RS 232, Micro-USB |
| Dimensions (W x H x D) | 275 x 406 x 500 mm |
| Weight | 17 kg |
| Permissible ambient temperature | 5 to 40 °C |
| Permissible relative humidity | max. 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Power supply | 230 V, 50/60 Hz |
Scope of delivery
- 1 x HBC 5 basic heating bath circulator
- 2 x Hose olive NW 12
- 1 x CC1 cooling coil
- 1 x Screwdriver (for the safety circuit)
- 1 x USB cable, USB A to Micro-B, 2 m
Warranty and procurement service
The IKA manufacturer's warranty of 2 years applies to the HBC 5 basic, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure hoses and further accessories.
