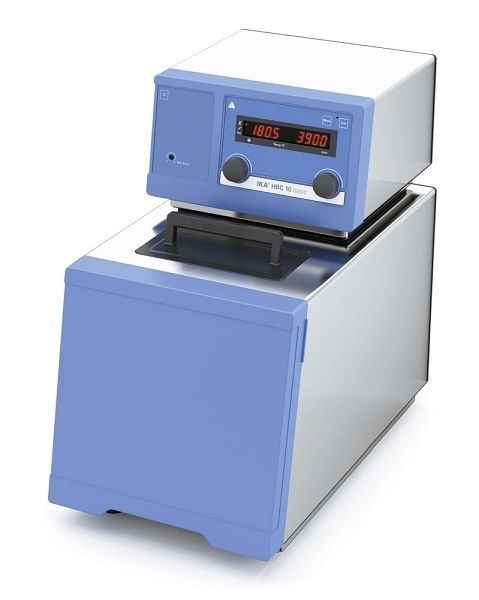

IKA Heating, Bath and Circulation Thermostat, 7–10 l, HBC 10 basic, 0004135000

HBC 10 basic
The HBC 10 basic bath and circulation thermostat has a maximum operating temperature of 250 °C, and its high-quality stainless steel bath has a capacity of 7.5–10.5 litres. The large surface area of the heating element ensures optimum heat exchange and uniform heating of the medium. The unit’s high-quality insulation enables particularly fast heating times. The bath is easy to clean and has a drain valve on the front. A hose is connected for draining, so that the user does not come into direct contact with the temperature-controlled medium. To further ensure customer safety, the HBC 10 basic complies with the highest safety classification III (FL) for use with flammable liquids in accordance with DIN 12876.
Temperature range: 20–250 °C
Temperature stability: ± 0.02 K
Integrated cooling coil
Adjustable safety circuit
High-performance pressure and suction pump with a housing made of temperature- and chemical-resistant plastic
Intuitive menu navigation with push-buttons and rotary knobs
Temperature setting and pump speed are shown
on a large, easy-to-read LED display Visual and audible warning signals
USB / RS 232 interface for controlling and monitoring the units via labworldsoft® and for online updating of the unit software

Technical data
Device type Circulating
bath Class designation according to DIN 12876 III
Marking according to DIN 12876 FL
Heating power 2500 W
Operating temperature Room temperature +10K @1000rpm – 250 °C
Minimum operating temperature (with external cooling) –20 °C
Temperature display: yes
Temperature control: PID
Operating temperature sensor: PT 100
Safety temperature sensor: PT 1000
Operating temperature display: LED
Safety temperature display: LED
Temperature stability: DIN 12876 ±0.02 K
Connection for external temperature sensor PT 100
Display resolution 0.1 K
Display of operation with external sensor: yes
Setpoint accuracy: ±0.1 K
Visual warning function: yes
Audible warning function: yes
Overtemperature warning function: yes
Safety circuit: adjustable 0–260 °C
Low-level protection: yes
High-level protection: yes
Capacity: 8–11 l
Pump type: pressure/suction pump
Adjustable pump output: yes
Maximum pump pressure: (0 litres flow rate) 0.61 bar
Pump pressure (suction side) max. (0 litres flow rate) 0.45 bar
Flow rate, max. (0 bar back pressure) 31 l/min
Pump connections M16x1
Cooling coil connection, nominal diameter 8
Bath depth, min. 150 mm
Calibration option yes
Technical data in accordance with DIN 12876
Permissible duty cycle 100 %
Dimensions (W x H x D) 275 x 456 x 500 mm
Weight 18 kg
Permissible ambient temperature range 5–40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS-232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 2650 W

Accessories and spare parts available on request
