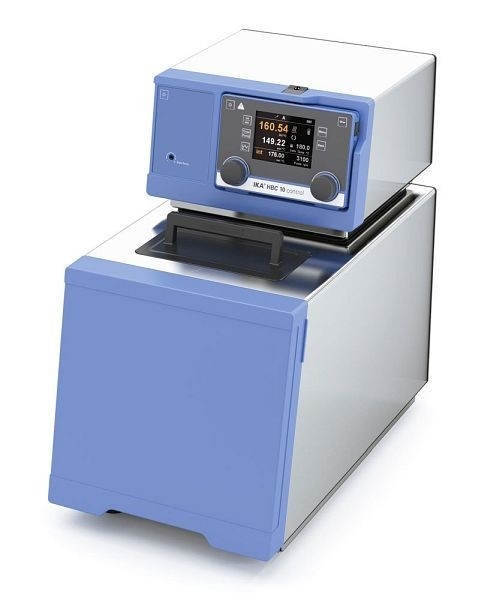

IKA Heating, Bath and Circulation Thermostat, 7–10 l, HBC 10 control, 0004137000

HBC 10 control
The HBC 10 control bath and circulation thermostat has a maximum operating temperature of 250 °C, and its high-quality stainless steel bath has a capacity of 7.5–10.5 litres. The colour TFT graphic display shows all relevant process data. The user can switch from internal to external control at the touch of a button. The unit’s high-quality insulation enables particularly fast heating times. The multilingual, image-based menu navigation via push and rotary buttons makes navigation simple and safe. The bath is fitted with a drain valve on the front. A hose is connected for draining, so that the user does not come into direct contact with the temperature-control medium. Thanks to the innovative detachable remote control, the unit can be operated from a distance of up to 10 metres.
Temperature range: 20–250 °C
Temperature stability: ± 0.01 K
The detachable, wireless display enables safe operation, e.g. in front of a closed fume cupboard
. Temperature setting, pump speed, liquid level and safety temperature are shown
on a large, easy-to-read TFT display. High-performance pressure and suction pump with a housing made of temperature- and chemical-resistant plastic
. Integrated cooling coil
. Adjustable safety circuit
. Safety classification III (FL) in accordance with DIN 12876
. Electronic timer function: 0–99h 59min
Visual and audible warning functions
Connection of a solenoid valve possible
USB/RS-232 interface for controlling and monitoring the units via labworldsoft® and for online updating of the unit’s software

Technical data
Device type Circulating
bath Class designation according to DIN 12876 III
Marking according to DIN 12876 FL
Heating power 2500 W
Operating temperature Room temperature +10K @1000rpm – 250 °C
Minimum operating temperature (with external cooling) –20 °C
Temperature display: yes
Temperature control: PID
Operating temperature sensor: PT 100
Safety temperature sensor: PT 1000
Operating temperature display: TFT
Safety temperature display: TFT
Temperature stability: DIN 12876 ±0.01 K
Connection for external temperature sensor PT 100
Display resolution 0.01 K
Display of operation with external sensor: yes
Setting accuracy for setpoint temperature: ±0.1 K
Visual warning function: yes
Audible warning function: yes
Overtemperature warning function: yes
Safety circuit: adjustable 0–260 °C
Low-level protection: yes
High-level protection: yes
Filling volume: 8–11 l
Pump type: pressure/suction pump
Adjustable pump output: yes
Maximum pump pressure: (0 litres flow rate) 0.61 bar
Pump pressure (suction side) max. (0 litres flow rate) 0.45 bar
Flow rate max. (0 bar back pressure) 31 l/min
Pump connections M16x1
Connection for cooling coil NW 8
Bath depth min. 150 mm
Bath width 172 mm
Bath depth 82 mm
Calibration option yes
Technical data in accordance with DIN 12876
Permissible duty cycle 100 %
Multi-interface yes
Alarm output (voltage-free contact) max. 30 V AC/DC
Alarm output (voltage-free contact) max. 1 A
Switching output for solenoid valve 24 VDC
Switching output for solenoid valve max. 0.8 A
Standby input 5 VDC
Dimensions (W x H x D) 275 x 456 x 506 mm
Weight 18.3 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS-232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 2650 W

Accessories and spare parts available on request
