IKA Horizontal Shaker, HS 501 digital, 0025002982
€4,329.00
% Regular price: €5,772.00 (25% saved)

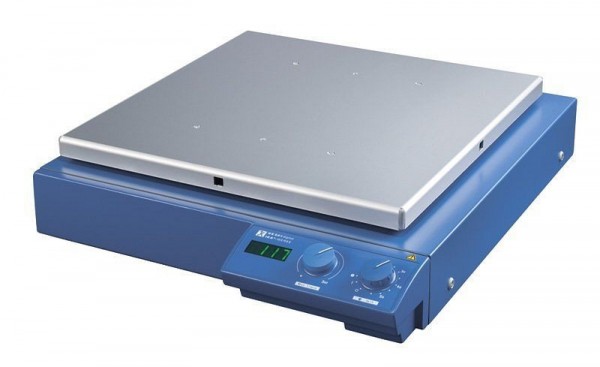

Product information "IKA Horizontal Shaker, HS 501 digital, 0025002982"
HS 501 digital
Flat horizontal shaker with a large support surface and a maximum shaker load of 15 kg.
Speed continuously adjustable from 0–300 rpm
Digital speed display
Shaking stroke 30 mm
Ideal for all horizontal vessels, e.g. separating funnels
Continuous operation (indefinite) even under extreme loads
Timer
Attachments not included; please order
separately Integrated USB and RS-232 interfaces
Technical data
: Motion type: reciprocating
; Shaking stroke: 30 mm
; Permissible shaking weight (including attachment) 15 kg
Motor power input 70 W
Motor power output 19 W
Permissible duty cycle 100 %
Speed range 0–300 rpm
Speed display 7-segment LED
Timer Yes
Timer display Scale
Time setting range 1–55 min
Operating modes Timer and continuous operation
Dimensions (W x H x D) 505 x 120 x 585 mm
Weight 26 kg
Permissible ambient temperature range 5–50 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS-232 interface Yes
USB interface Yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 74 W
Fuse 2x T4A 250V
Accessories and spare parts available on request
