IKA ICC basic eco 8 c Immersion Circulator Package, Plastic Bath Size S, up to 100 °C, 0008035700
€1,918.50
% Manufacturer's RRP: €2,558.00 25% below manufacturer's RRP
- IB 8 eco plastic bath, size S, water only, up to 100 °C
- ICC basic circulator with LED display, temperature stability ±0.02 K according to DIN 12876
- Heating power 2000 W, circulator alone up to 150 °C
- With CS.ICC cover, PCS.ICC pump connection set and CC2 cooling coil
- Pressure/suction pump with a flow rate of up to 18 l/min
- Safety circuit 0 to 160 °C, DIN 12876 class III FL
Product information "IKA ICC basic eco 8 c Immersion Circulator Package, Plastic Bath Size S, up to 100 °C, 0008035700"

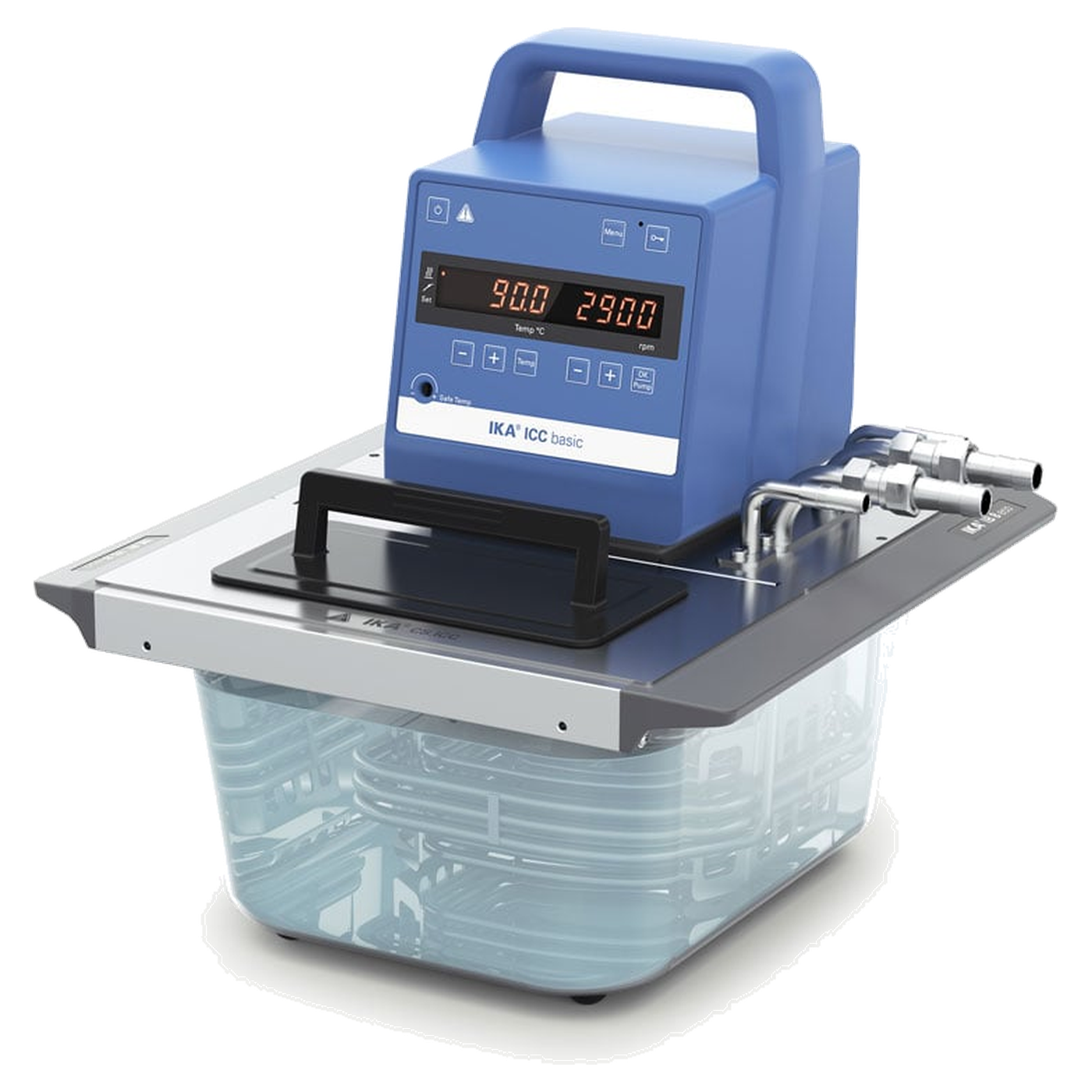

The ICC basic eco 8 c (MPN 0008035700) combines the ICC basic circulator with the small IB 8 eco plastic bath of size S. Besides circulator and bath, the BS.ICC bath bridge, CS.ICC cover, PCS.ICC pump connection set and CC2 cooling coil are included. The circulator shows the temperatures on an LED display.
ICC basic circulator in detail
It is operated via push and rotary knobs. The temperature stability according to DIN 12876 is ±0.02 K, the display resolves to 0.1 K, and the set temperature can be set to an accuracy of 0.1 K. Control is by PID, a PT 100 measures the working temperature and a PT1000 the safety temperature. A carrying handle and an integrated stand are on the housing. The device is available individually as the ICC basic under ident number 0004134400.
The IB 8 eco bath
The plastic bath of size S has an opening of 188 x 105 mm at the bottom, at the upper bath edge at most 227 x 118 mm. The immersion depth is 85 to 125 mm, and the package measures 320 x 335 x 349 mm. Only water and temperatures up to 100 °C may be used in the bath, while the circulator alone reaches 150 °C.
Pump set and cooling coil
With the PCS.ICC pump connection set, the integrated pressure/suction pump can be used for external applications. The pump output is variable, and the flow rate is up to 18 l/min at 0 bar back pressure. The CC2 cooling coil is intended for temperature control below or near ambient temperature, and for the circulator the minimum operating temperature with external cooling is -20 °C. The CS.ICC cover is also included.
Warnings and protection
A safety circuit from 0 to 160 °C can be set. The device warns visually and audibly, including for over-temperature, and protects against low and high level. It complies with DIN 12876 class III and carries the marking FL. The RS 232 and Micro-USB interfaces are used for control and monitoring via the IKA labworldsoft software.
Classification in size S
The ICC control eco 8 c contains the same bath with the same accessories and additionally the PT 100.30 probe, and there the circulator has a TFT display and a temperature stability of ±0.01 K. With a plastic bath of size S and the ICC basic circulator there is also the ICC basic eco 8. A stainless steel bath of size S for temperatures up to 150 °C is available in the ICC basic pro 9 c.
Typical applications
- Water bath up to 100 °C in the small plastic bath
- External circuit via the PCS.ICC pump connection set
- Temperature control below or near ambient temperature with the CC2 cooling coil
- Connection to a PC via RS 232 or Micro-USB
Technical details
| Min. bath depth | 150 mm |
| Device mounting | Clamp |
| Permissible duty cycle | 100 % |
| Dimensions of circulator (W x H x D) | 145 x 340 x 200 mm |
| Ambient temperature | 5 to 40 °C |
| Relative humidity | max. 80 % |
| Protection class (DIN EN 60529) | IP 21 |
| Interfaces | RS 232, Micro-USB |
| Power supply | 230 V, 50/60 Hz |
| Power consumption | 2100 W |
| Heating power of circulator | 2000 W |
| Circulator, working temperature | Room temp. +10 K at 1000 rpm to 150 °C |
| Min. operating temperature with external cooling | -20 °C |
| Control type | PID |
| Internal probe | PT 100 (working temperature), PT1000 (safety temperature) |
| Temperature display | LED |
| Temperature stability | ±0.02 K |
| Display resolution | 0.1 K |
| Set temperature, setting accuracy | 0.1 K |
| Pump | Pressure/suction pump, output variable |
| Max. flow rate at 0 bar back pressure | 18 l/min |
| Max. pump pressure at 0 l flow rate | 0.3 bar |
| Max. suction pressure at 0 l flow rate | 0.2 bar |
| Package total | 320 x 335 x 349 mm |
| Bath type | IB 8 eco, size S |
| Bath material | Plastic |
| Max. temperature in plastic bath | 100 °C, water only |
| Immersion depth | 85 to 125 mm |
| Opening at bath bottom | 188 x 105 mm |
| Opening at upper bath edge (max.) | 227 x 118 mm |
| Class according to DIN 12876 | III with FL marking |
| Warning function | visual, audible, over-temperature |
| Adjustable safety circuit | 0 to 160 °C |
| Low-level and high-level protection | yes |
| Calibration option | yes |
Scope of delivery
- 1 x ICC basic Compact Immersion Circulator
- 1 x IB 8 eco plastic bath (size S)
- 1 x BS.ICC bath bridge
- 1 x CS.ICC cover
- 1 x PCS.ICC pump connection set
- 1 x CC2 cooling coil
Warranty and procurement service
The IKA manufacturer's warranty of 2 years applies to the ICC basic eco 8 c, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure a replacement bath, a cover or other accessories for this package.
