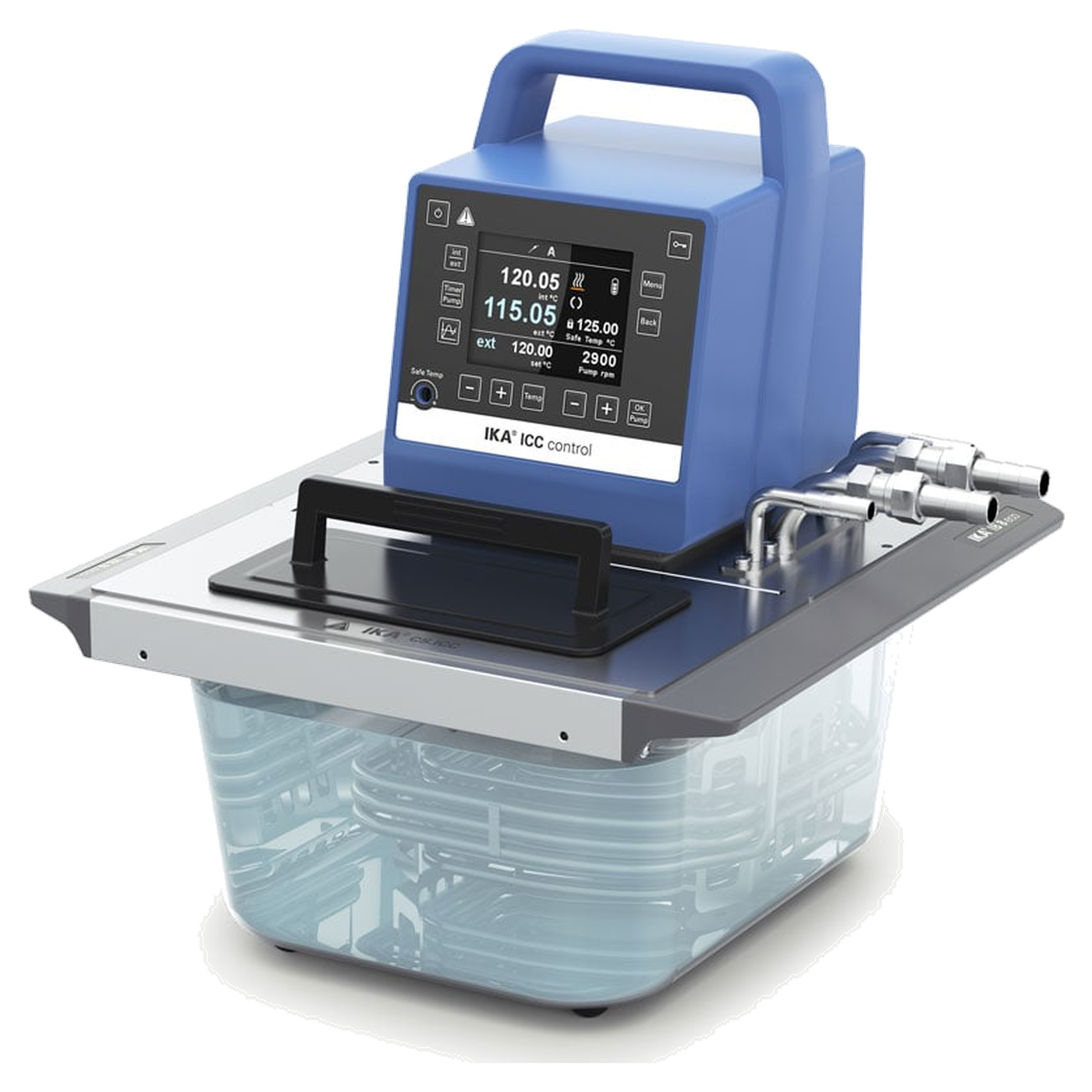

IKA ICC control eco 8 c Immersion Circulator Package, Plastic Bath Size S, up to 100 °C, 0008036100
€2,697.00
% Manufacturer's RRP: €3,596.00 25% below manufacturer's RRP
- IB 8 eco plastic bath, size S, water only, up to 100 °C
- ICC control circulator with TFT display, temperature stability ±0.01 K according to DIN 12876
- Heating power 2000 W, circulator alone up to 150 °C
- With CS.ICC cover, PCS.ICC pump connection set, CC2 cooling coil and PT 100.30 probe
- Pressure/suction pump with a flow rate of up to 18 l/min
- Safety circuit 0 to 160 °C, DIN 12876 class III FL
Product information "IKA ICC control eco 8 c Immersion Circulator Package, Plastic Bath Size S, up to 100 °C, 0008036100"
The ICC control eco 8 c (MPN 0008036100) combines the ICC control circulator with the small IB 8 eco plastic bath of size S and five accessory parts. The ICC control circulator comes with the BS.ICC bath bridge, CS.ICC cover, PCS.ICC pump connection set, CC2 cooling coil and the PT 100.30 temperature probe. The bath is approved for water only and ends at 100 °C, whereas the circulator alone works up to 150 °C.
The IB 8 eco bath in size S
The bath is made of plastic. Its opening at the bottom measures 188 x 105 mm, at the upper bath edge at most 227 x 118 mm. The immersion depth is 85 to 125 mm, and the whole package measures 320 x 335 x 349 mm. Set values up to 100 °C are possible with water, above that the range of use of the bath ends.
What comes in addition to the circulator
The ICC control circulator carries ident number 0004136600 and is also available as the standalone unit . The package additionally includes bath, bridge, cover, pump connection set, cooling coil and probe. The ICC control eco 8 with the same bath, by contrast, consists only of circulator, bath and bath bridge.
Pump, cooling coil and external cooling
The pressure/suction pump of the circulator is intended for internal and external applications, and the PCS.ICC connection set is part of the package. The pump output is variable, and the flow rate is up to 18 l/min at 0 bar back pressure. The CC2 cooling coil is used for temperature control below or near ambient temperature. For the circulator, a minimum operating temperature of -20 °C applies with external cooling.
Display, control and programs
The TFT display shows working and safety temperature, and the display resolves to 0.01 K. The temperature stability according to DIN 12876 is ±0.01 K, and the set temperature can be set to an accuracy of 0.1 K. The PT 100.30 can be operated at the connection for external temperature probes, and the display indicates operation with an external probe. In addition there are 10 individual procedures with up to 10 steps each, a carrying handle and an integrated stand.
Safety
The safety circuit is adjustable between 0 and 160 °C. Visual and audible warnings, the over-temperature warning and low and high level protection are part of the circulator. The classification is DIN 12876 class III with the marking FL.
With or without accessories, control or basic
If you need a cooling coil and pump connection, this package is the right choice. If you only want a bath with circulator, the eco 8 without c will do. The ICC basic eco 8 c comes with the same bath as well as cover, pump connection set and cooling coil, but contains the ICC basic circulator with LED display and ±0.02 K temperature stability. For temperatures above 100 °C in the bath, a package with a stainless steel bath comes into question, for example the ICC control pro 9.
Typical applications
- Water bath up to 100 °C in the plastic bath of size S
- Temperature control with external PT 100 probe
- External circuit via the PCS.ICC pump connection set
- Temperature control below or near ambient temperature with the CC2 cooling coil
- Programs with up to 10 steps
- Control and monitoring via RS 232 or Micro-USB with the IKA labworldsoft software
Technical details
| Package total | 320 x 335 x 349 mm |
| Bath type | IB 8 eco, size S |
| Bath material | Plastic |
| Max. temperature in plastic bath | 100 °C, water only |
| Immersion depth | 85 to 125 mm |
| Opening at bath bottom | 188 x 105 mm |
| Opening at upper bath edge (max.) | 227 x 118 mm |
| Heating power | 2000 W |
| Working temperature of circulator | Room temp. +10 K at 1000 rpm to 150 °C |
| Operating temperature min. (with external cooling) | -20 °C |
| Temperature control | PID |
| Working and safety probe | PT 100 (working temperature), PT1000 (safety temperature) |
| Display of working/safety temperature | TFT |
| Temperature stability according to DIN 12876 | ±0.01 K |
| Display resolution | 0.01 K |
| Setting accuracy of set temperature | 0.1 K |
| Connection for external temperature probe | PT 100 |
| Indication of operation with external probe | yes |
| Pump | Pressure/suction pump, output variable |
| Max. flow rate at 0 bar back pressure | 18 l/min |
| Max. pump pressure at 0 l flow rate | 0.3 bar |
| Max. suction pressure at 0 l flow rate | 0.2 bar |
| Classification according to DIN 12876 | III with FL marking |
| Warning functions | visual, audible, over-temperature |
| Safety circuit, adjustable | 0 to 160 °C |
| Low/high level protection | yes |
| Calibration | yes |
| Minimum bath depth | 150 mm |
| Mounting | Clamp |
| Duty cycle | 100 % |
| Circulator (W x H x D) | 145 x 340 x 200 mm |
| Permissible ambient temperature | 5 to 40 °C |
| Permissible relative humidity | max. 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Interfaces | RS 232, Micro-USB |
| Voltage, frequency | 230 V, 50/60 Hz |
| Power consumption | 2100 W |
Scope of delivery
- 1 x ICC control Compact Immersion Circulator
- 1 x IB 8 eco plastic bath (size S)
- 1 x BS.ICC bath bridge
- 1 x CS.ICC cover
- 1 x PCS.ICC pump connection set
- 1 x CC2 cooling coil
- 1 x PT 100.30 temperature probe
Warranty and procurement service
The IKA manufacturer's warranty of 2 years applies to the ICC control eco 8 c, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure a replacement bath, a cover or further accessories for this package.
