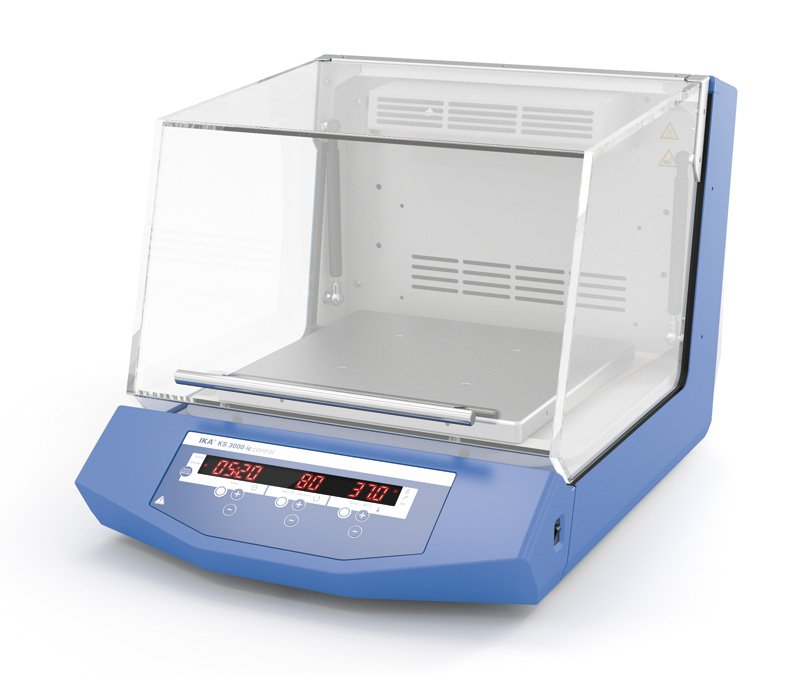

IKA Incubation Shaker, built-in cooler, KS 3000 ic control, 0003940100

KS 3000 ic control
incubation shaker with an innovative design for unattended operation in a temperature-controlled environment. With built-in cooling coil for connection to an external cooling unit, e.g. RC 2 basic / control.
Large LED display for speed and time settings
. Control elements with an antimicrobial coating to reduce
bacterial growth. Integrated PID temperature control (uses two PT 1000 temperature sensors)
. Junction box located within the working chamber for the use of an additional temperature sensor, e.g. PT 1000.60 (included in the scope of delivery)
. Electronic control of temperature and speed
. Electronic timer: 0 – 999 h (minutes and hours can be set)
Built-in cooler for connection to an external cooling unit, e.g. RC 2 basic / control
; the unit switches off
automatically in the event of faults; the unit stops automatically when the lid
is opened; drip tray with drain hose at the rear
of the unit; simple operation
; all functions can be
controlled and documented using the labworldsoft software® ; attachments not included in the scope of delivery; please order the relevant attachments separately

Technical data
: Movement type: circular
; Shaking stroke: 20 mm
; Permissible shaking weight (including attachment): 7.5 kg
; Motor power input: 45 W
; Motor power output: 10 W
; Permissible duty cycle: 100%
; Speed (min.) (adjustable) 10 rpm
Speed range 10 – 500 rpm
Speed display LED
Speed deviation 1 %
Speed adjustment in 1 RPM steps
Timer Yes
Timer display 7-segment LED
Time setting min. 1 s
Time setting range 1 – 59,940 min
Operating modes Timer and continuous operation
Heating power 1,000 W
Setting accuracy (setpoint temperature) ±0.1 K
Control accuracy with sensor (1 vessel, 0.5 L H₂O, ambient temperature 22°C, T=37°C) ±0.5 K
Temperature display yes
Temp. Stability (0.2 l H₂O; ambient 25°C, T=37°C) ±0.1 K
Temperature range (flow temperature T > 3°C) Room temperature – 10° – 80° °C
Connections for external cooling: yes
Built-in cooling coil: yes
Working area of inner chamber (WxHxD) 330 x 330 x 258 mm
Total volume of the inner chamber 50 l
Housing material: powder-coated
sheet steel Hood material: PMMA
Front film material: polyester film
Front panel material: painted
ABS Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) ±0.05 K
Temperature homogeneity (5 vessels, 0.5 L; RT 25°C, T=37°C) ±0.5 K
Height with lid open 875 mm
Dimensions (W x H x D) 465 x 430 x 695 mm
Weight 37 kg
Permissible ambient temperature range 15 – 32 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
RS 232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 1120 W

Accessories and spare parts available on request
