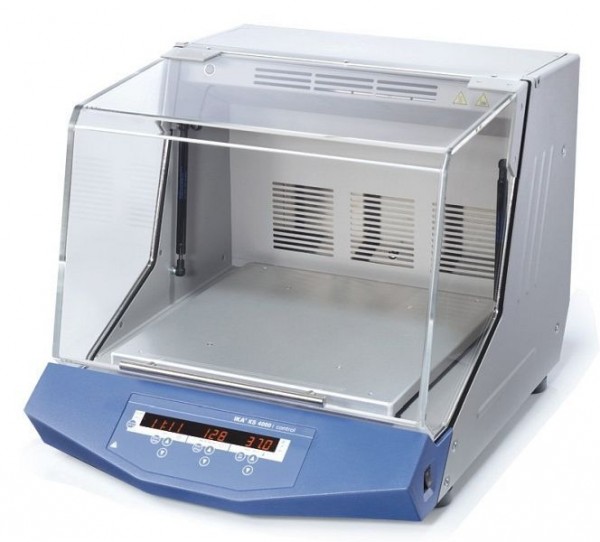

IKA Incubation Shaker, KS 4000 i control, 0003510000

KS 4000 i control
incubation shaker with an innovative design for unattended operation in a temperature-controlled environment
. Large LED display for speed and time settings
. Control elements with an antimicrobial coating to reduce
bacteria. Integrated PID temperature control (using two PT 1000 temperature sensors)
Connection socket located within the working chamber for the use of an additional temperature sensor, e.g. PT 1000.60 (included in the scope of delivery)
Electronic control of temperature and speed
Electronic timer: 0 – 999 h (minutes and hours can be set)
The unit switches off
automatically in the event of faults The unit stops automatically when the lid
is opened Drip tray with drain hose at the rear
of the unit Easy to operate
All functions can be
controlled and documented using the labworldsoft software® Attachments are not included; please order the relevant attachments separately

Technical data
Movement type: circular
Shaking stroke: 20 mm
Maximum shaking load (incl. attachment): 20 kg
Motor power input: 82 W
Motor power output: 24 W
Maximum duty cycle: 100 %
Speed (min.) (adjustable) 10 rpm
Speed range 10 – 500 rpm
Speed display LED
Speed deviation ±5 rpm
Speed adjustment in 1 RPM increments
Timer Yes
Timer display 7-segment LED
Time setting range 1 – 59,940 min
Operating modes Timer and continuous operation
Heating temperature range Room temp. +5° – 80 °C
Heating power 1000 W
Setpoint accuracy ±0.1 K
Control accuracy with sensor (1 vessel, 0.5 L H₂O, RT 22°C, T=37°C) ±0.5 K
Temperature display Yes
Temperature stability (0.2 L H₂O; ambient temperature 25°C, T=37°C) ±0.1 K
Inner chamber working area (W x H x D) 440 x 440 x 352 mm
Total volume of inner chamber 90 l
Housing material: powder-coated
sheet steel Front panel material: polyester
film Temperature stability (1 vessel, 0.5 L, ambient temperature 25°C, T=37°C) ±0.05 K
Temperature uniformity (5 vessels, 0.5 L; ambient temperature 25°C, T=37°C) ±0.5 K
Height with lid open 875 mm
Dimensions (W x H x D) 580 x 520 x 750 mm
Weight 50 kg
Permissible ambient temperature range 15 – 32 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
RS-232 interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 1120 W
Fuse 2x T10A 250 V

Accessories and spare parts available on request
