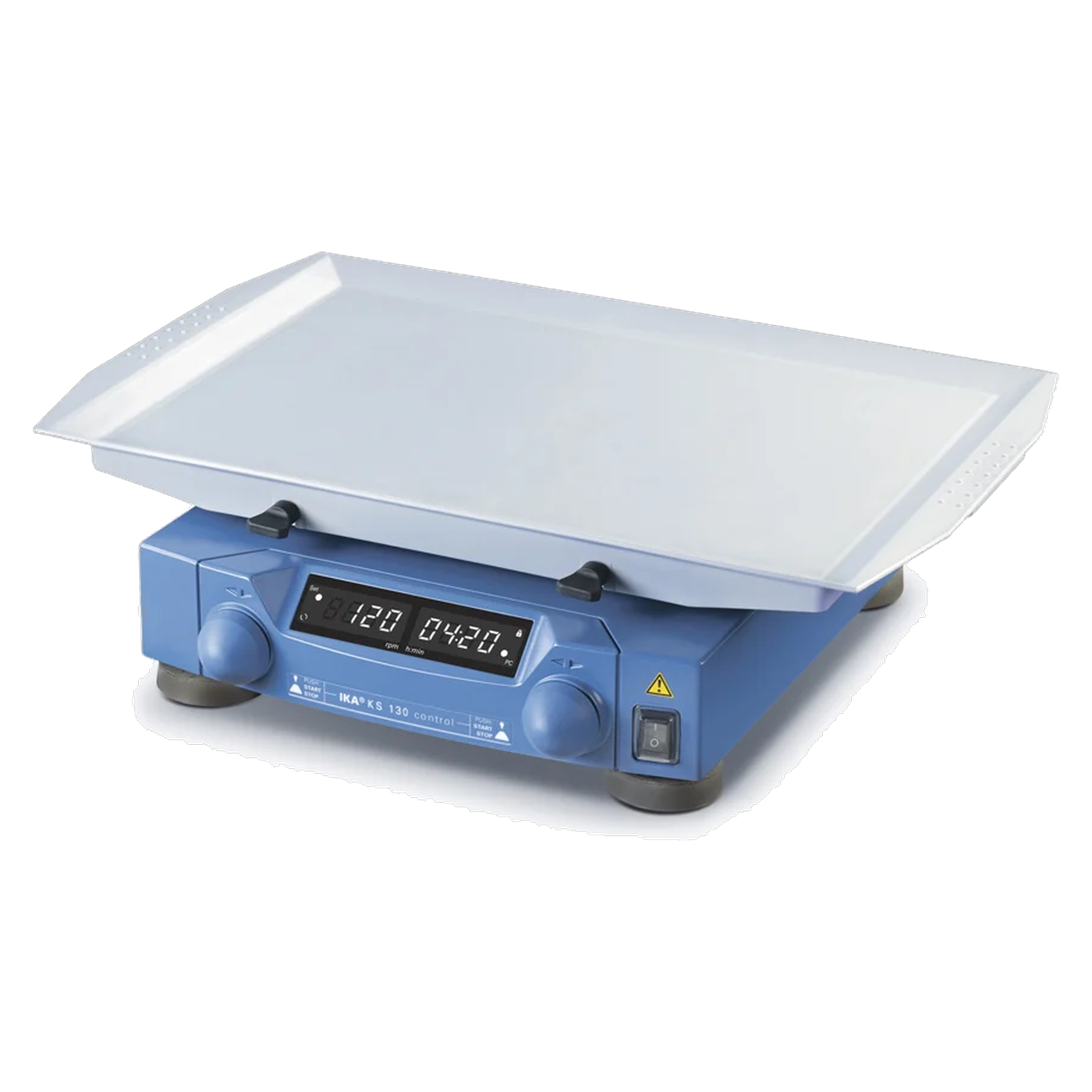

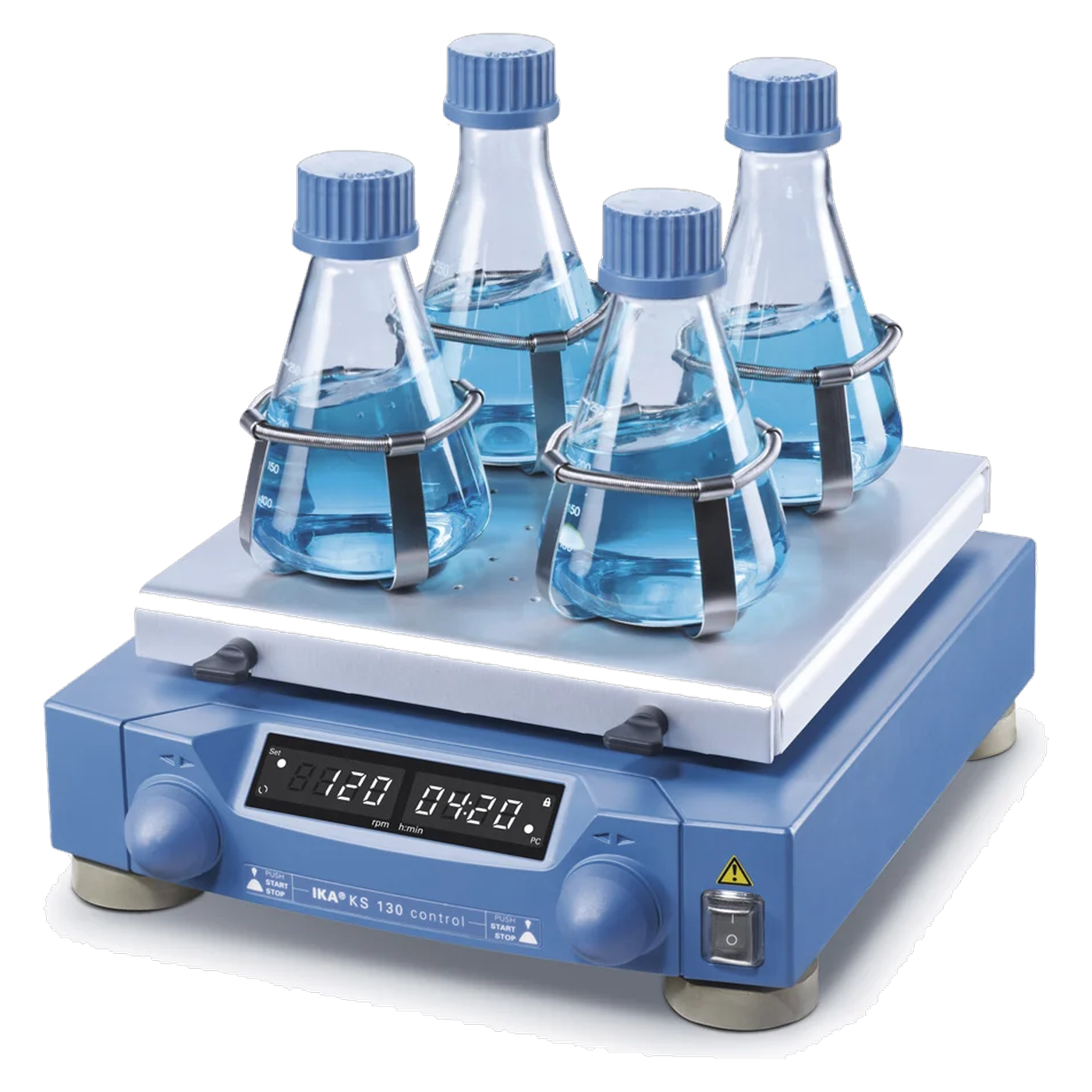

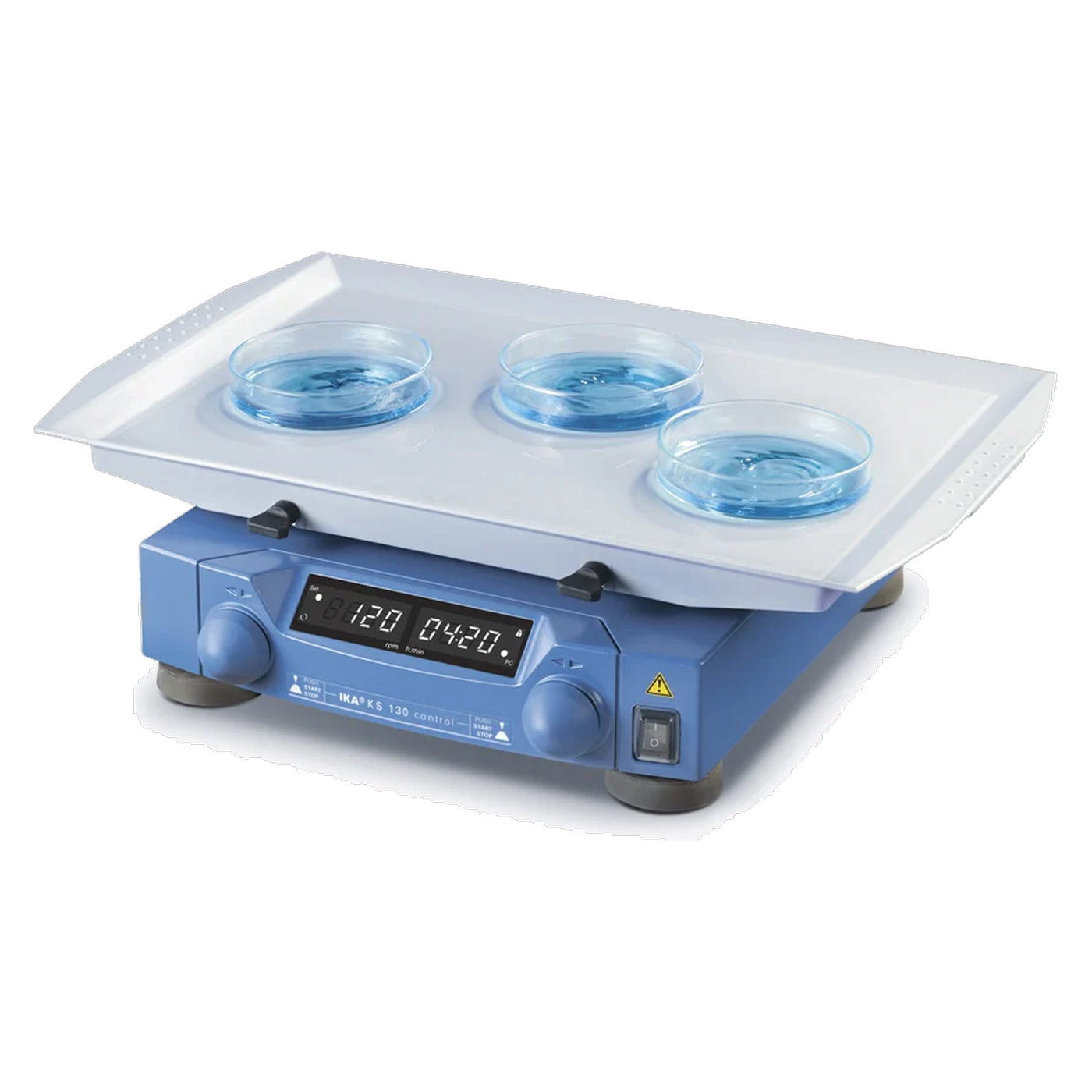

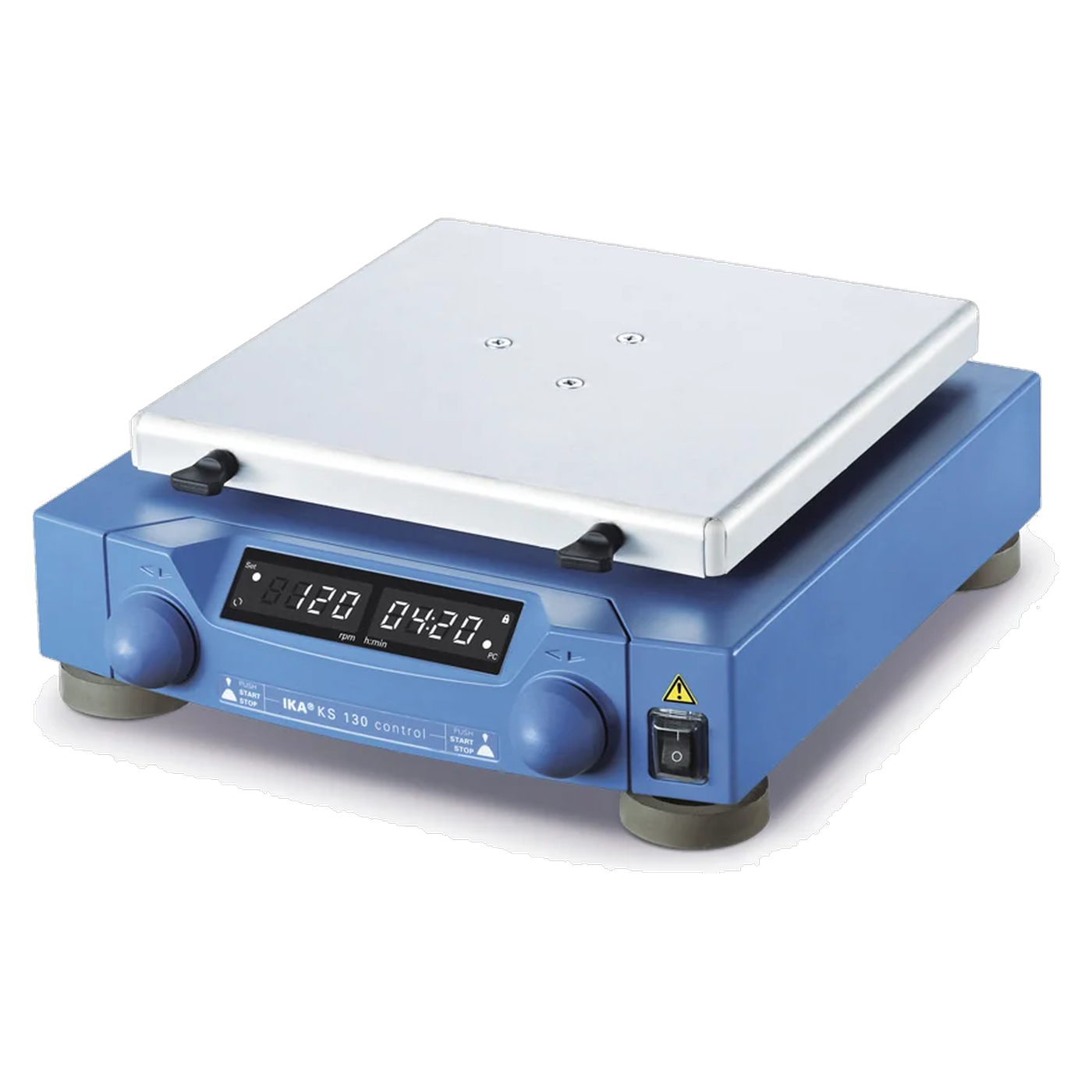

IKA KS 130 control Circular Shaker with End-point Positioning, 80 to 800 rpm, 2 kg, 0002980100
€2,139.75
% Manufacturer's RRP: €2,853.00 25% below manufacturer's RRP
- Circular shaker with end-point positioning for robot-controlled sampling
- Speed 80 to 800 rpm, shaking stroke 4 mm, shaking load up to 2 kg
- Platform 230 x 230 mm, shaking table lock
- LED display, timer 1 to 5999 min or continuous operation
- Interfaces: RS 232 and analogue output; controlled via labworldsoft
- Low-profile design 270 x 98 x 316 mm, 9.8 kg
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA KS 130 control Circular Shaker with End-point Positioning, 80 to 800 rpm, 2 kg, 0002980100"
If a sample is to be processed automatically after shaking, the shaker must come to a halt at a defined position. The IKA KS 130 control features end-point positioning for this purpose, which, according to IKA, enables automated, robot-controlled sampling. It is a compact circular shaker with a 4 mm shaking stroke, a 230 x 230 mm platform and a maximum shaking load of 2.0 kg, including the attachment.
Speed, timer and display
The speed is adjusted electronically between 80 and 800 rpm and displayed on an LED screen. The timer runs from 1 to 5999 minutes, that is, up to 99 hours and 59 minutes, whilst continuous operation is also possible. The drive is designed for 100 per cent duty cycle. With a shaking stroke of 4.0 mm, the unit mixes gently, as described by IKA. A shaking table lock is provided.
Interfaces for documentation and control
The KS 130 control can be controlled via the RS-232 interface using the labworldsoft software, and runs can be documented. There is also an analogue output. The software is not included in the Scope of delivery and can be ordered as a Lite, Starter or Pro version, depending on the range of functions required.
Typical applications
- Gentle mixing of samples up to 2 kg in shaking weight, including the attachment
- Sample preparation followed by sampling by a robot
- Mixing with a low-profile design; the unit is 98 mm high
- Shaking runs logged via labworldsoft
- Time-controlled shaking in laboratories with timer operation over several hours
Series overview
The KS 130 control accommodates sample weights of up to 2 kg. Those requiring higher shaking loads should opt for the KS 260 basic, with a capacity of 7.5 kg and a 10 mm shaking stroke, or the KS 260 control. The VXR basic Vibrax, with speeds of up to 2200 rpm, is designed for very high speeds with low loads.
| Model | Speed | Shaking stroke | Shaking weight | Weight |
| KS 130 control (this unit) | 80 to 800 rpm | 4 mm | 2.0 kg | 9.8 kg |
| KS 260 basic | 0 to 500 rpm | 10 mm | 7.5 kg | 8.5 kg |
| VXR basic Vibrax | 0 to 2200 rpm | 4 mm | 2 kg | 6.1 kg |
Technical details
| Type of movement | Circular |
| Shaking stroke | 4 mm |
| Permissible shaking weight (including attachment) | 2.0 kg |
| Platform | 230 x 230 mm |
| Motor power input / output | 45 W / 10 W |
| Permissible duty cycle | 100 % |
| Speed range | 80 to 800 rpm |
| Speed display | LED |
| Timer | Yes, LED display, 1 to 5999 min |
| Operating mode | Timer and continuous operation |
| Shaking table lock | Yes |
| Interfaces | RS 232, analogue output |
| Dimensions (W x H x D) | 270 x 98 x 316 mm |
| Weight | 9.8 kg |
| Permissible ambient temperature range | 5 to 50 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Mains connection | 220 to 240 V, 50/60 Hz, power consumption 45 W, fuse 2 x T1A 250 V |
Scope of delivery
- 1 x IKA KS 130 control circular shaker
- 4 x fixing screws
- 1 x open-ended spanner
Attachments are not included and must be ordered separately to suit the shape and size of the vessel.
Warranty and disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. At the end of its useful life, the device must be disposed of via the separate collection scheme for waste electrical and electronic equipment.
Individual requirements and procurement service
For the KS 130 control, IKA offers, amongst other things, the universal attachment AS 130.1, the AS 130.2 clamp holder with clamps for 10 to 500 ml, the AS 130.3 dish attachment, the AS 130.4 test tube attachment, the STICKMAX and an adjustable tube rack. Power cables are available with Euro, UK, Swiss and US plugs. These are accompanied by factory calibration certificates and IQ/OQ documentation. We can help you determine which attachment combination is suitable for your vessels via our procurement service.
Frequently Asked Questions
What is endpoint positioning used for? The shaker stops at a defined position so that samples can be collected automatically and by robot.
What is the maximum weight of the vessels? The permissible shaking weight is 2.0 kg, including the attachment.
Are lids included in the scope of delivery? No, lids must be ordered separately.
How long is the warranty valid for? IKA manufacturer’s warranty: 2 years; extended to 3 years if registered at ika.com/register within 90 days of purchase.
