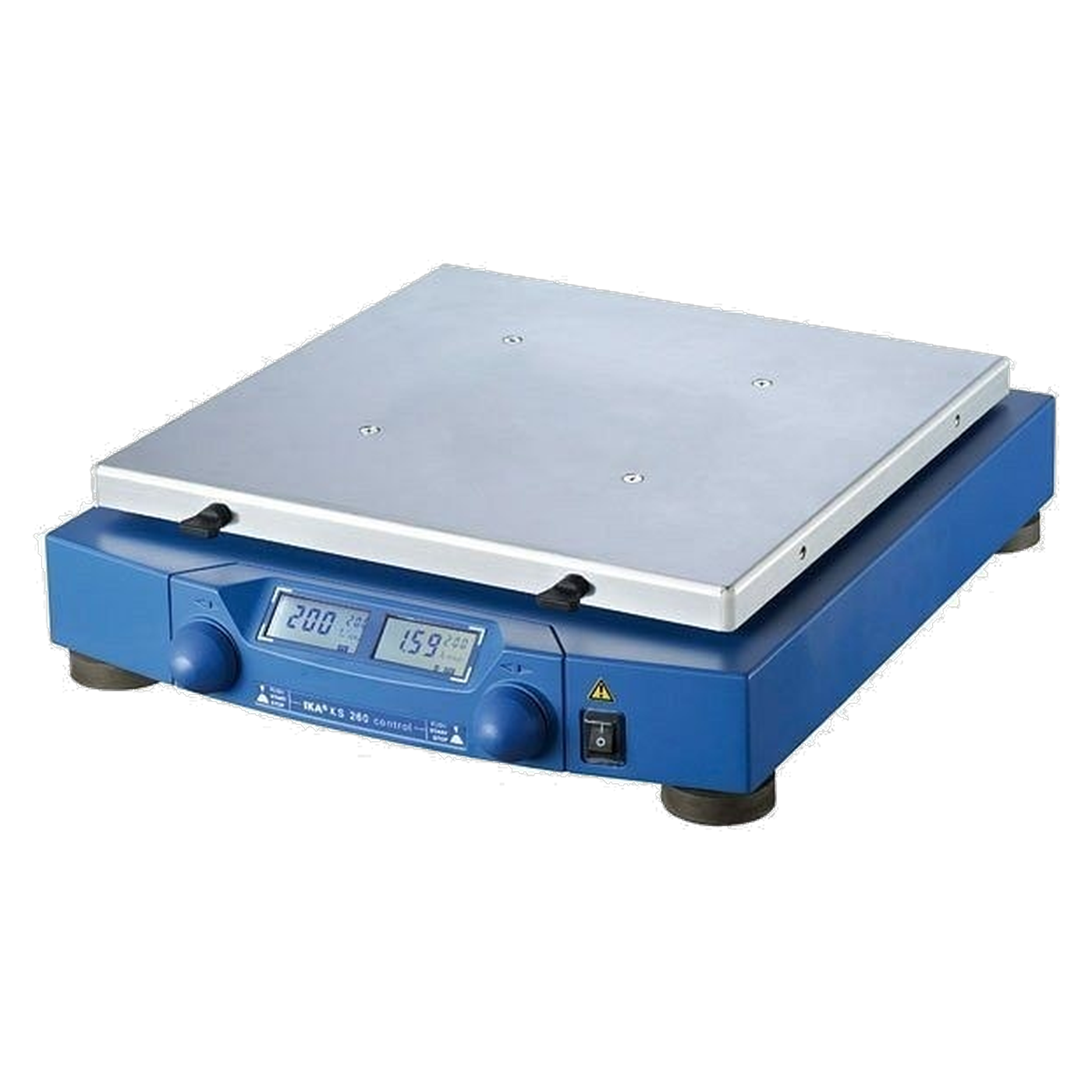

IKA KS 260 control NOL Circular Shaker, Stroke 10 mm, 10 to 500 rpm, RS 232, 0004278400
€2,689.50
% Manufacturer's RRP: €3,586.00 25% below manufacturer's RRP
- Circular shaker with a 320 x 320 mm platform and a 10 mm shaking stroke
- Speed 10 to 500 rpm, electronically controlled, with LED display
- Timer: 1 to 5,999 minutes or continuous operation
- RS-232 interface and analogue output
- Maximum shaker load 7.5 kg including attachment
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA KS 260 control NOL Circular Shaker, Stroke 10 mm, 10 to 500 rpm, RS 232, 0004278400"
Gently mixing samples and controlling or documenting the process via an interface: this is what IKA has designed the KS 260 control NOL circular shaker for. The 320 x 320 mm platform moves in a circular motion with a 10 mm stroke and can carry up to 7.5 kg. The speed ranges from 10 to 500 rpm; speed and time are shown on an LED display. The suffix ‘NOL’ is part of the designation for this model; IKA markets it as a circular shaker without end-point positioning.
Control via RS 232 and analogue output
Compared to the KS 260 basic, the ‘control’ version features an RS-232 interface. This allows the shaker to be controlled and documented externally; IKA lists the Labworldsoft software, in the Starter, Lite and Pro versions, as an accessory for this purpose. Like the KS 260 basic, it has an analogue output; IKA offers the cables and adaptors PC 1.4, PC 1.5, PC 2.1 and PC 2.2 as accessories. The time can be set from 1 to 5,999 minutes. It also supports continuous operation at 100 per cent duty cycle.
Compact design and connections
The unit measures 360 x 98 x 420 mm and weighs 8.8 kg. It draws 45 W; the motor power at the shaft is 10 W, and it is fused with 2 x T1A 250 V fuses. The mains voltage for the standard version is 220 to 240 V at 50/60 Hz; IKA also offers variants for 100 to 120 V and 100 V. Permissible ambient temperatures range from 5 to 50 °C at 80 per cent relative humidity. The protection class is IP 21 in accordance with DIN EN 60529. Power cables with Euro, UK, US or Swiss plugs are available as separate items.
Typical applications
- Gentle mixing of samples in laboratory applications
- Reproducible batches with an adjustable speed of 10 to 500 rpm
- Documentation or remote control of the shaking process via RS 232
- Mixing with suitable attachments for flasks, dishes, separating funnels and tubes
- Operation with a shaking load of up to 7.5 kg, including the attachment
Attachments and holders
Attachments are not included in the scope of delivery. For this model, IKA specifies, amongst others, the universal attachment AS 260.1, the dish attachment AS 260.3, the separating funnel attachment AS 260.5, the clamp holder AS 260.2, clamps for Erlenmeyer flasks, the base holder AS 1.60, the clamping roller AS 1.61 and the adjustable tube rack IO R 2.10.
Related models
Without an RS-232 interface, featuring an LED display and a timer ranging from 5 to 50 minutes, the KS 260 basic is the simpler version. The KS 260 control model has the same key specifications and also features a shaking table lock. For smaller loads of up to 2 kg and a stroke of 4 mm, the KS 130 control is a suitable option.
Technical details
| Type of movement | circular |
| Shaking stroke | 10 mm |
| Permissible shaking weight (including attachment) | 7.5 kg |
| Platform | 320 x 320 mm |
| Rotation speed | 0 to 500 rpm, minimum setting 10 rpm |
| Speed display | LED |
| Timer | Yes, 1 to 5,999 min, LED |
| Operating mode | Timer and continuous operation |
| Permissible duty cycle | 100 % |
| Motor power | 45 W input, 10 W output |
| Interfaces | RS 232, analogue output |
| Ambient temperature | 5 to 50 °C |
| Permissible relative humidity | 80 % |
| Dimensions (W x H x D) | 360 x 98 x 420 mm |
| Weight | 8.8 kg |
| Connected load | 220 to 240 V, 50/60 Hz, 45 W, fuse 2 x T1A 250 V |
| Protection class | IP 21 (DIN EN 60529) |
Scope of delivery
- 1 x IKA KS 260 control NOL
- 4 x fixing screws for attachments
- 1 x open-ended spanner
The scope of delivery does not include attachments and they must be ordered separately. As an electrical appliance, the shaker must be disposed of via the separate collection scheme for waste electrical and electronic equipment at the end of its useful life, and must not be placed in household waste.
Warranty
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. The warranty applies to the appliance, not to attachments, cables or software.
Individual requirements and procurement service
For the KS 260 control NOL, we supply attachments, interface cables, Labworldsoft, power cables and qualification documentation. For units with different voltage ratings, we will confirm the specification before ordering. Find out more in the procurement service section.
Frequently Asked Questions
What does NOL stand for? The abbreviation is part of the model designation. IKA markets this version as a circular shaker without end-point positioning.
How is the shaker controlled and documented? Via the RS-232 interface, for example using the IKA software Labworldsoft. An analogue output is also available.
How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years; extended to 3 years if registered at ika.com/register within 90 days of purchase.
Are attachments included in the Scope of delivery? No, they must be ordered separately.
