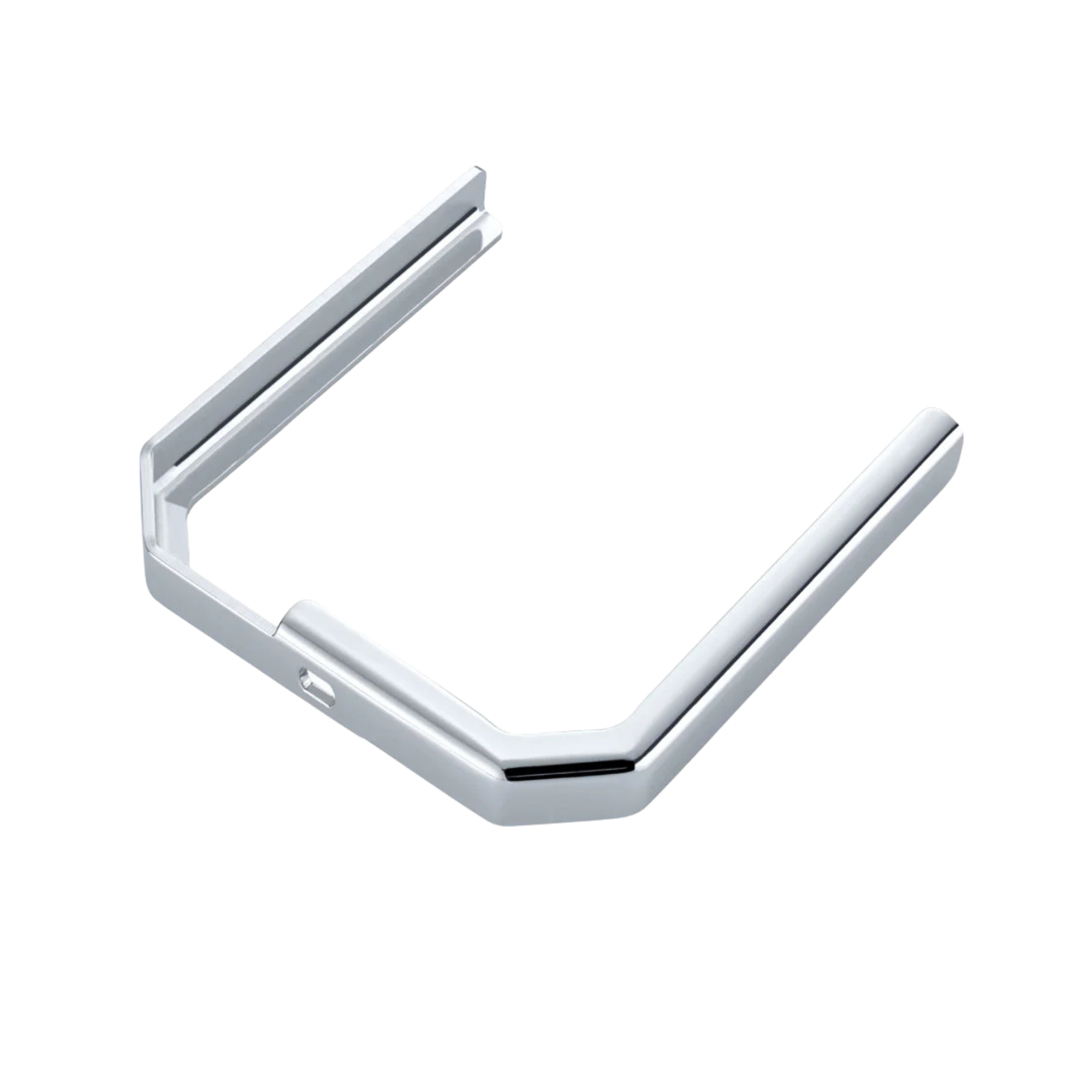

IKA LR 1000.11 anchor stirrer, stainless steel, for LR 1000, 0004663000
€302.10
% Manufacturer's RRP: €318.00 5% below manufacturer's RRP
- Standard stainless steel anchor stirrer for the IKA LR-1000 reactor system
- Stirring tool supplied as standard with the LR 1000.1 reactor vessel
- Compatible with the LR 1000 basic and LR 1000 control systems
- Minimum volume for homogenisation: 400 ml
- Weight: 0.1214 kg
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "IKA LR 1000.11 anchor stirrer, stainless steel, for LR 1000, 0004663000"
The LR 1000.11 is the standard stainless steel anchor stirrer for the IKA LR 1000 reactor system, without scrapers on the stirrer arms. It is the stirring tool supplied as standard with the LR 1000.1 reactor vessel, where it is used for mixing, dispersing and homogenising low- to medium-viscosity media. Without the additional wall scrapers found on the PEEK version, the design is simpler and, at 14 x 132 x 209 mm, also significantly more compact, an advantage when it comes to cleaning and storage as a spare part. For formulations without strong wall adhesion, this stirrer ensures uniform mixing without the need to scrape the vessel wall during stirring. As it features the same standardised stirrer shaft mount as the other LR-1000 stirring tools, it can be easily transferred between several reactor vessels within the same laboratory, for example whilst one vessel is being cleaned and a second is already running with the spare stirrer. Unlike with viscous formulations, for low- to medium-viscosity batches, the simple geometry without a scraper is sufficient to ensure uniform mixing; a side effect is that cleaning between different batches is easier, as fewer edges and transitions on the stirrer can trap residue.
Compatibility
According to the manufacturer, the anchor stirrer is approved for use with the LR 1000 basic system (ID No. 0020119960) and the LR 1000 control system (ID No. 0025001991), in each case with a minimum volume of 400 ml for homogenisation. The scope of delivery of the LR 1000.1 reactor vessel includes this particular anchor stirrer as part of the scope of delivery; it is required separately as a spare part or for a second vessel. Checking the identification number of the existing base unit before ordering provides certainty, particularly if several reactor variants are in use in the laboratory. Compared with the Basic system, the LR 1000 control system also features vacuum operation and a pH connection; however, this difference is irrelevant for pure stirring operation with this anchor stirrer.
Technical details
| Dimensions (W x H x D) | 14 x 132 x 209 mm |
| Weight | 0.1214 kg |
| Minimum volume during homogenisation | 400 ml |
Scope of delivery
- 1 x LR 1000.11 anchor stirrer
The agitator drive and the reactor vessel are not included; both must be procured separately.
Individual requirements and procurement service
For viscous, wall-adhering media, the variant LR 1000.10 with PEEK scrapers is the better choice, as it actively scrapes the product off the vessel wall. The LR 1000.11 can be reordered individually, either as a replacement part for an existing LR 1000.1 vessel or as a second stirrer for an additional reactor vessel. Our procurement service provides advice on spare parts and other accessories for your LR-1000 system, including where there are several reactor lines in the same laboratory or where there is a regular need for replacement stirrers. As stirring tools are subject to mechanical stress during continuous operation, many customers keep one or two spare stirrers in stock to avoid reactor downtime.
