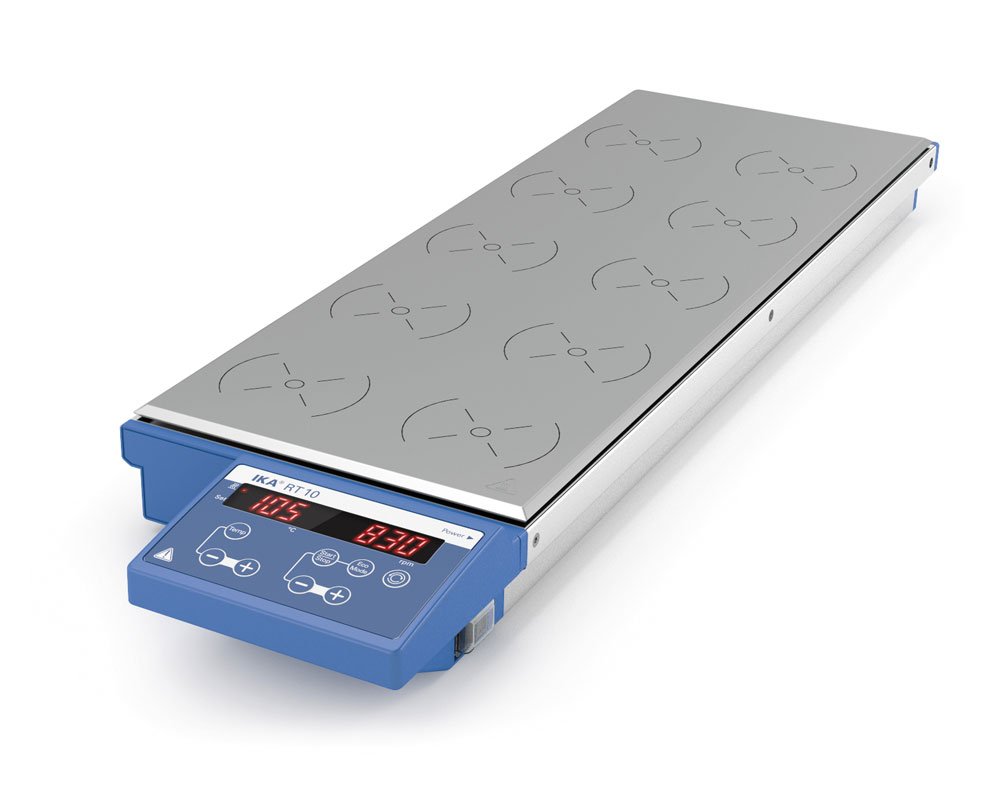

IKA magnetic stirrer with heating, 10 positions, RT 10, 0003691100

RT 10
Digital multi-position magnetic stirrer with 10 synchronously operating stirring positions and a heating function. Thanks to a silent coil drive system, the speeds at all stirring positions are identical. This enables batch analyses to be carried out under reproducible conditions. Surface temperatures can be continuously adjusted up to 120 °C, resulting in a medium temperature of up to 70 °C (depending on the vessel used). Rotational speeds are maintained at a constant level even under load changes.
Highly uniform temperature distribution across the heating plate thanks to film heating
; adjustable direction of rotation reversal
; Eco-Mode for minimal surface
heating; wear-free coil drive
; error code display
; simple operation via membrane keypad
; suitable
for continuous operation; speed range: 0–1000 rpm

Technical data
Number of stirring points: 10
Spacing between stirring points: 90 mm
Speed deviation between individual stirring points: 0%
Maximum stirring volume per stirring point (H₂O) 0.4 l
Maximum load 10 kg
Speed adjustment options 10 RPM steps
Speed range 0–1000 rpm
Stirrer rod length 25–30 mm
Heating power 375 W
Heating temperature range room temp. – 120 °C
Adjustable heating temperature range (LED
safety circuit) 50 – 150 °C
Base material: aluminium alloy
Base dimensions: 180 x 495 mm
Heating rate (1 l H₂O in H1500): 3 K/min
Dimensions (W x H x D) 190 x 60 x 610 mm
Weight 7.5 kg
Permissible ambient temperature range 5–40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
Voltage 230 V
Frequency 50/60 Hz
Power consumption 410 W

Accessories and spare parts available on request
