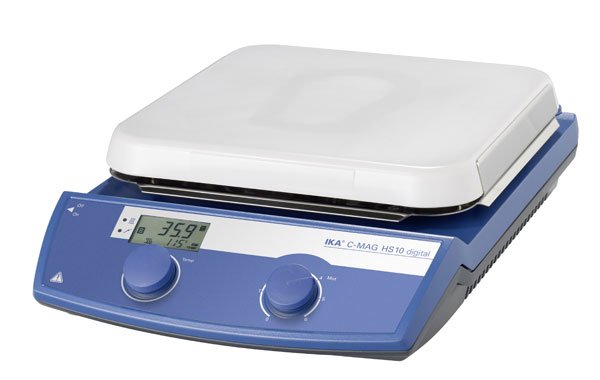

IKA magnetic stirrer with heating, ceramic hotplate, C-MAG HS 10 digital, 0004240400

C-MAG HS 10 digital
magnetic stirrer with heating and a glass-ceramic hotplate. This features excellent chemical resistance.
Powerful motor for stirring volumes up to 15 l (H₂O)
Simultaneous digital display of setpoint and actual temperatures via LCD display
Direct connection option for PT 1000 temperature probe for precise temperature control (included)
Control accuracy in the medium: ±0.5 K (when used with PT 1000)
Actual temperature display in the medium with 0.1 K resolution when using the PT 1000
temperature probe 3 selectable operating modes (Standard, Safe, Adjustment Lock)
Fixed safety limit of 550 °C
Hot Top Indicator >> Warning of hot surface to protect against burns!
Error code display in the event of a fault
Raised control panel to protect against spilt liquids

Technical data
Number of stirring points 1
Maximum stirring volume per stirring point (H₂O) 15 l
Maximum load 20 kg
Motor power output 1.5 W
Speed adjustment scale 0–6
Speed range 100–1500 rpm
Maximum stirrer rod length 80 mm
Self-heating of the work surface due to maximum stirring (ambient temperature: 22 °C / duration: 1 h) +1 K
Heating power 1500 W
Temperature display (setpoint) LCD
Temperature display (actual value) LCD
Heating temperature range 50–500 °C
Heating temperature adjustment via rotary knob
Heating plate temperature adjustment accuracy 5 K
Connection for external temperature probe PT1000
Safety circuit fixed at 550 °C
Heating plate material: ceramic
Heating plate dimensions 260 x 260 mm
Heating rate (1 l H₂O in H1500) 5 K/min
Dimensions (W x H x D) 300 x 105 x 415 mm
Weight 8.308 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 V
Frequency 50/60 Hz
Power consumption 1520 W

Accessories and spare parts available on request
