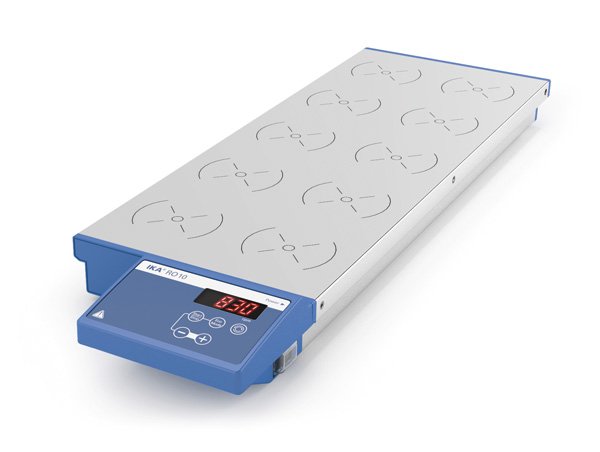

IKA magnetic stirrer without heating, RO 10, 0003691000

RO 10
Digital multi-position magnetic stirrer with 10 synchronously operating stirring positions without heating. Thanks to the silent coil drive technology, the speeds are identical at all stirring positions. This allows screening tests to be carried out under reproducible conditions. Rotational speeds remain constant even under load changes. The enclosed and compact design makes cleaning easy and protects the unit against the ingress of liquids. A removable transparent anti-slip mat is included in the scope of delivery.
Adjustable direction of rotation reversal
; Eco-Mode for minimal surface
heating; Wear-free coil drive
; Error code display
; Easy operation via membrane keypad
; Suitable
for continuous operation; Speed range: 0–1200 rpm

Technical data
: Number of stirring points: 10
; Distance between stirring points: 90 mm
; Speed deviation between individual stirring points: 0%
; Maximum stirring volume per stirring point (H₂O) 0.4 l
Maximum load 10 kg
Speed adjustment 10 RPM Speed range increments
0 – 1200 rpm
Stirrer rod length 25 – 30 mm
Base material Stainless steel 1.4301
Base dimensions 190 x 470 mm
Dimensions (W x H x D) 190 x 60 x 570 mm
Weight 5 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
Voltage 100 – 240 V
Frequency 50/60 Hz
Power consumption 25 W
DC voltage 24 V=Current
consumption 1000 mA

Accessories and spare parts available on request
