IKA MATRIX Orbital Delta Plus heating/cooling thermoshaker, 0010006853

Multifunctional temperature control and mixing

The IKA MATRIX Orbital Delta Plus is a versatile all-rounder for complex laboratory applications. It combines reliable mixing with precise heating and cooling in a single unit. Whether blood samples, active pharmaceutical ingredients, DNA/RNA samples or ELISA assays – this system optimally temperature-controls and mixes reaction vessels and plates, even with the smallest volumes. With a maximum speed of 3,000 rpm and a shaking stroke of 3 mm, excellent mixing results are achieved without cross-contamination.

High-performance heating and cooling

Thanks to high-performance Peltier technology, the MATRIX Orbital Delta Plus offers impressive ramp rates: it heats up at up to 6 °C/min and cools down at up to 2.5 °C/min (above ambient temperature) or 0.5 °C/min (below ambient temperature). This enables a drastic reduction in waiting times and increases sample throughput. The wide temperature range covers numerous applications, from cDNA synthesis and ligations to lysis reactions and denaturation processes.

Intuitive operation and robust design

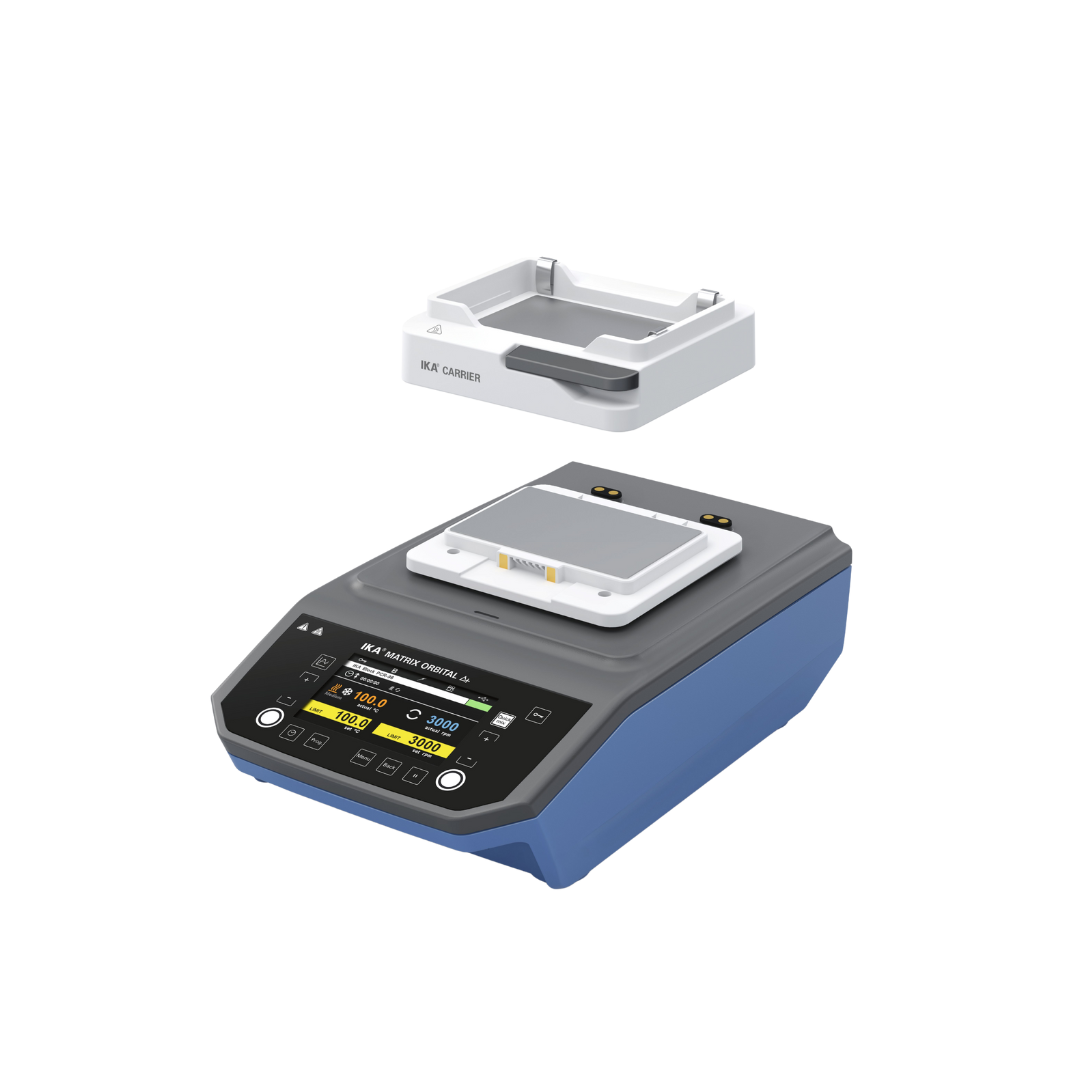

A large, clear display with an intuitive menu structure makes programming mixing, heating and cooling ramps a breeze. The instrument intelligently adjusts the speed to suit the insert, attachment and fill volume used, to prevent sample loss. The sturdy quick-release fastener allows attachments to be changed in a matter of seconds, with automatic recognition. The die-cast aluminium housing not only ensures stability but also guarantees maximum durability in daily laboratory use.

Technical details

• Operating modes: Timer, continuous and programme operation
• Motion: Orbital
• Shaking stroke: 3 mm
• Speed range: 300–3,000 rpm
• Minimum operating temperature: Room temperature – 15 °C
• Max. heating temperature: 100 °C
• Temperature adjustment range: -10 °C to 100 °C
• Heating rate: 6 °C/min
• Cooling rate: 2.5 °C/min (from 100 °C to room temperature), 0.5 °C/min (from room temperature to -15 °C)
• Temperature control accuracy: ± 0.5 °C
• Temperature uniformity: ± 0.5 °C (at 20 °C to 45 °C)
• Maximum load: 0.3 kg
• Interfaces: USB, RS 232
• Protection class: IP 21
• Dimensions (W x H x D): 216 x 127 x 351 mm
• Weight: 10.8 kg

Contents of the pack

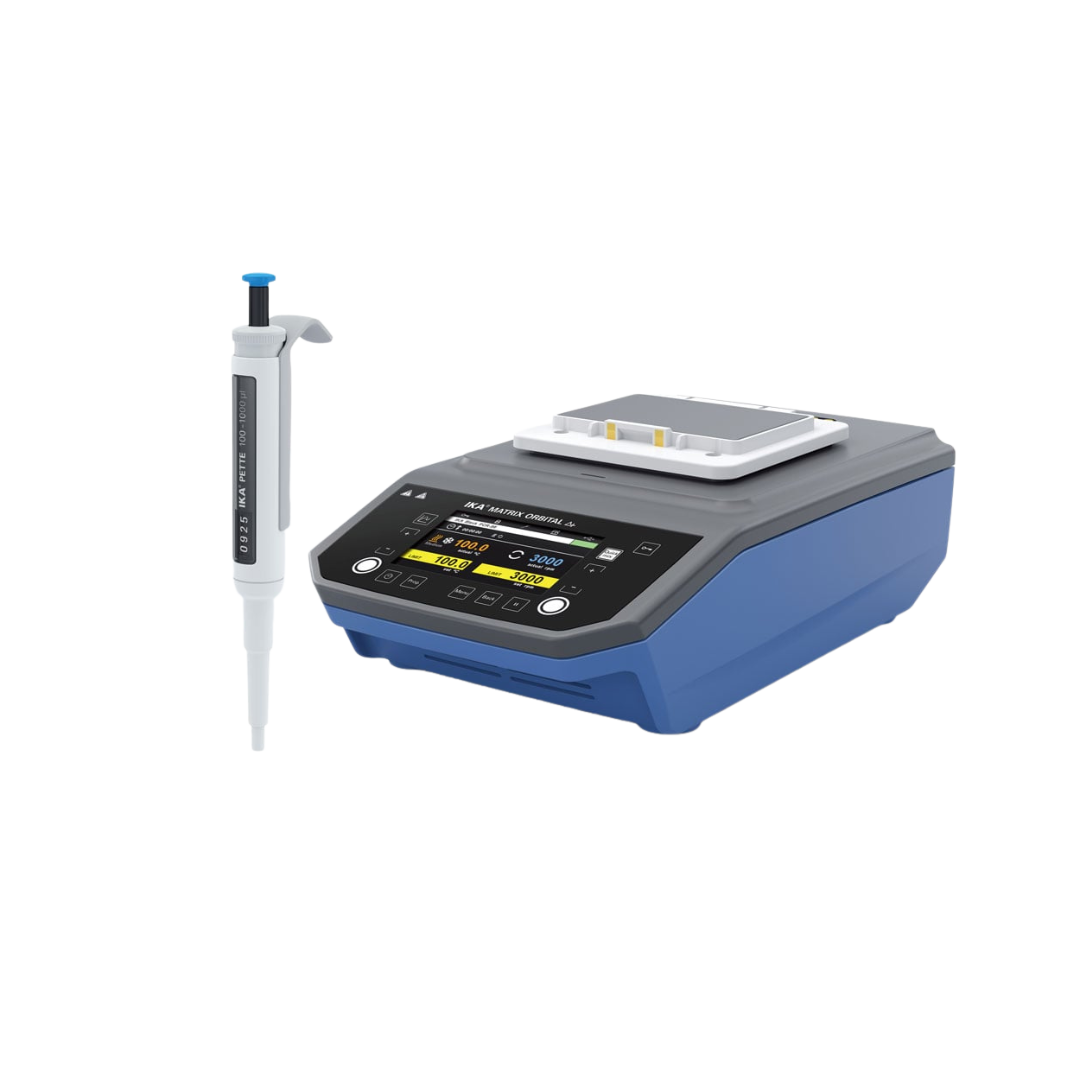

• IKA MATRIX Orbital Delta Plus base unit
• IKA PETTE vario 100–1000 µl (included in the manufacturer’s current scope of delivery)
• USB cable
• User manual

Please note: Attachments/blocks are not included and must be ordered separately.

Customised requirements & procurement service

Do you require special adapters for microtitre plates, reaction vessels or bespoke solutions for your application? We can help you find the right accessories for your MATRIX system. Please contact our procurement service for personalised advice and a bespoke quote.
