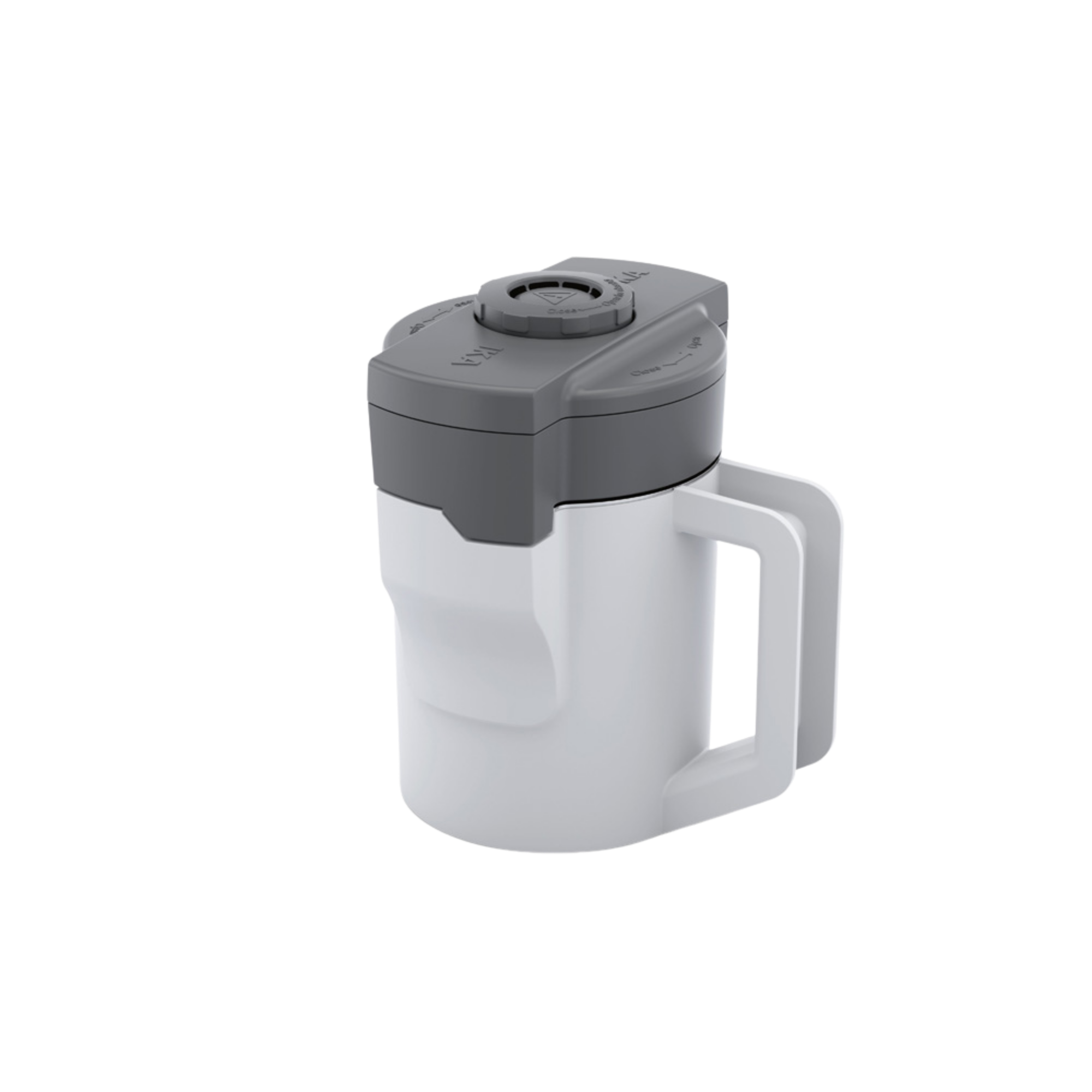

IKA MultiDrive MI 250 S grinding chamber, sealed, 250 ml, dry grinding, 0020112097
€725.25
% Manufacturer's RRP: €967.00 25% below manufacturer's RRP
- Sealed grinding vessel (250 ml) for dry grinding (IKA MultiDrive basic)
- Low-dust grinding: Special pressure equalisation via the lid for the finest powders
- Coolable: Water or dry ice cooling for frozen/temperature-sensitive samples
- Stainless steel (1.4301 / 1.4034) and silicone, FDA-compliant according to the manufacturer
- Suitable for hard and abrasive samples up to 5 on the Mohs scale (according to IKA) and with a particle size of 7 mm
- Easily removable stainless steel beater for thorough manual cleaning
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "IKA MultiDrive MI 250 S grinding chamber, sealed, 250 ml, dry grinding, 0020112097"
Dry grinding with pressure equalisation: the IKA MultiDrive MI 250 S grinding chamber
In modern laboratory analysis, the stringent quality control of food and animal feed, and materials research, the precise and loss-free preparation of samples from dry, hard or brittle materials is a core process engineering task. When raw materials such as fibrous wood, compact animal feed, frozen agricultural products or tough plastic pellets need to be ground, conventional open mills often reach their physical limits. When grinding extremely fine dusts or deep-frozen samples, excess pressure inevitably builds up inside the grinding vessel during the high-speed process. Without a professional seal, the finest sample material would escape uncontrollably into the laboratory environment, which not only leads to distorted analysis results due to sample loss but also poses a significant health risk (dust exposure) to laboratory staff. To solve this highly critical problem in dry milling elegantly, cleanly and safely, IKA has developed the highly specialised MultiDrive MI 250 S grinding chamber (MPN 0020112097). This robust, specially sealed grinding vessel significantly expands the analytical capabilities of your IKA MultiDrive universal mill and supports a low-dust, safe and reproducible batch process, even with fine powders.
The innovative sealing and pressure equalisation system
The outstanding, eponymous technological feature of the MI 250 S (the ‘S’ stands for Sealed) is its sealing and pressure-equalisation system. Unlike simple, inflexible grinding cups, this 250-millilitre vessel is fitted with a special seal. For example, when grinding brittle, frozen samples and the trapped gas expands significantly due to the inevitable grinding friction, this sealing system allows for controlled pressure relief directly via the lid. A special foam integrated into the system acts as a highly effective mechanical barrier. It retains the actual, fine powdered sample material securely and with little loss inside the grinding chamber, whilst allowing the excess air pressure to escape in a controlled manner. This system is useful for laboratories that handle extremely fine, volatile or toxic powders and must ensure reliable containment of their valuable sample material for subsequent analysis.

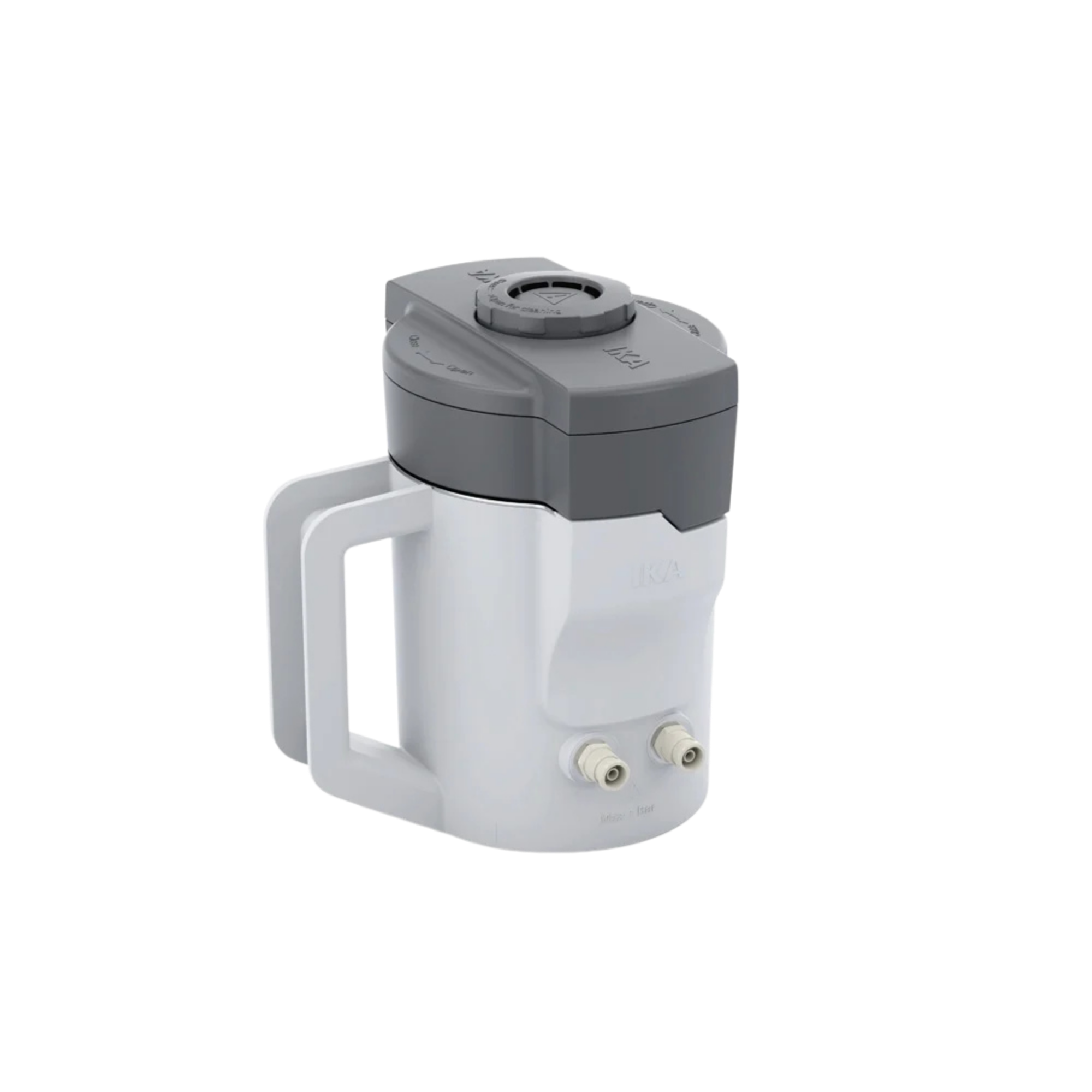

Grinding and versatile cooling options

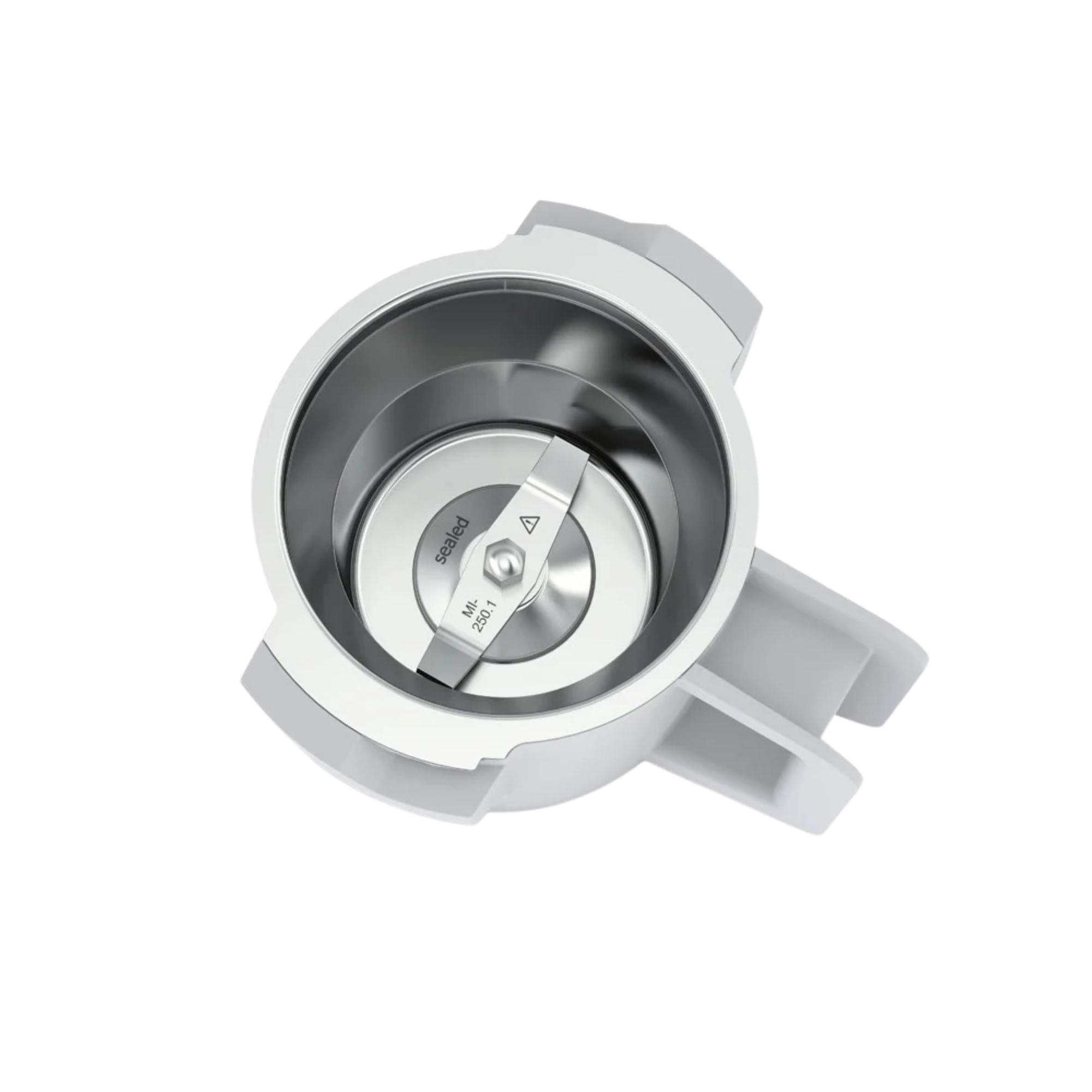

Despite its sophisticated, precision sealing technology, the IKA MultiDrive MI 250 S is a robust grinding chamber designed for heavy-duty grinding. A powerful beater made from hard and wear-resistant grade 1.4034 stainless steel is included as standard. This high-speed rotating beater effortlessly pulverises samples with a feed particle size of up to 7 millimetres and a demanding maximum material hardness of 5 on the Mohs scale. To effectively control the inevitable frictional heat generated during heavy-duty grinding processes, which could destroy sensitive analytes, the chamber offers two excellent cooling options: On the one hand, the grinding chamber can be actively cooled from the outside using water. On the other hand, the vessel is suitable for cooling the material directly inside the chamber by adding dry ice (solid CO₂) (cryogenic grinding). When cooling with dry ice, follow the notes in the IKA operating instructions. This can be useful for temperature-sensitive plastics or frozen tissue, which can melt or clump together in the shear gap at room temperature.
Material quality and cleaning
In regulated sectors such as food analysis or stringent pharmaceutical quality control, the requirements regarding material quality and the prevention of cross-contamination (carry-over) are extremely high. The surfaces of the MI 250 S grinding chamber that come into contact with the medium are therefore made of high-quality, easy-to-clean grade 1.4301 stainless steel, sensibly complemented by robust silicone sealing elements. According to the manufacturer, the material concept is designed to be FDA-compliant (Food and Drug Administration). Furthermore, according to IKA, the robust chamber is designed for the processing of abrasive substances. According to IKA, the grinding chamber is cleaned manually. However, to make this process as safe, ergonomic and thorough as possible, the stainless steel beater can be completely dismantled in just a few simple steps. This allows you to ensure at all times that no hidden powder residues or hazardous biofilms accumulate beneath the beater, thereby supporting your laboratory routine.
System integration and optimisation of the Total Cost of Ownership (TCO)
As an original accessory, the MI 250 S grinding chamber is perfectly matched to the IKA MultiDrive basic drive unit (and MultiDrive control). With extremely compact dimensions of 160 x 180 x 160 mm and a weight of just 1.5 kg, the 250-ml vessel is highly ergonomic to handle and can be stored in a space-saving manner in a laboratory cabinet. By purchasing this highly specialised, sealed grinding vessel, you will greatly expand the range of applications for your existing mill. This can make investment in additional specialised mills for very fine powders or powders that need cooling unnecessary. If you require dust protection, material retention and temperature control for your demanding dry grinding of wood, plastics or animal feed, the IKA MultiDrive MI 250 S is a suitable solution for your day-to-day laboratory work.
Technical data
- Useful volume: 250 ml
- Process type: Batch operation
- Special feature (S=Sealed): Special vessel seal with pressure equalisation via the lid and a foam barrier
- Max. feed particle size: 7 mm
- Max. material hardness: 5 Mohs
- Compatible drives: IKA MultiDrive basic (and MultiDrive control)
- Main application: Dry grinding (e.g. wood, animal feed, frozen products, plastics)
- Cooling options: Grinding chamber water-coolable; material to be ground can be cooled internally with dry ice
- Material (chamber): Stainless steel 1.4301
- Material (beater): Stainless steel 1.4034
- FDA compliance: according to the manufacturer
- Dimensions (W x H x D): 160 x 180 x 160 mm
- Weight: 1.5 kg
Scope of delivery
- 1 x IKA MultiDrive MI 250 S grinding chamber (sealed, 250 ml)
- 1 x standard stainless steel beater (already fitted, removable)
(Important note: The essential MultiDrive drive motor is not included in the scope of delivery!)
Individual requirements & accessories
To operate this sealed grinding vessel, you must have the IKA MultiDrive basic or MultiDrive control drive unit. Depending on the nature of your samples, IKA offers additional, optional tools for this vessel: For extremely hard or fibrous materials, the vessel can be fitted with a special stainless steel star knife or a hard metal beater. Our experienced procurement service will be happy to advise you on selecting suitable grinding tools and configuring your IKA MultiDrive system.
