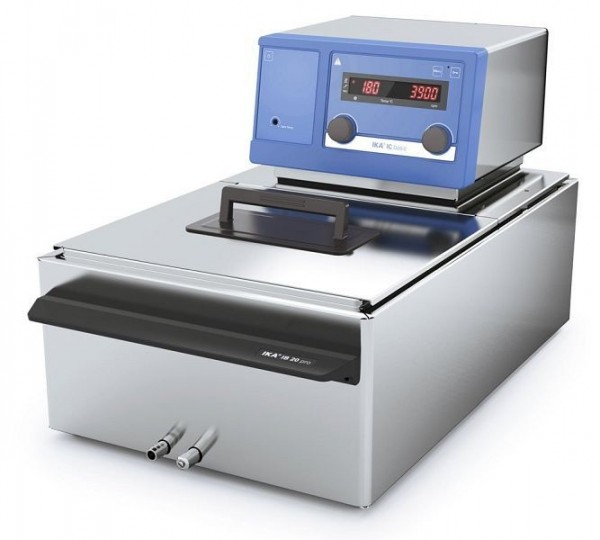

IKA Package: IC basic and 20 l per bath, lid, IC basic per 20 c, 0008036800

IC basic pro 20 c
IKA makes it easier for you to put together your temperature control system and offers ready-to-connect packages containing all the necessary accessories.

Package includes
: IC basic bridge thermostat
IB 20 pro, stainless steel bath (size L)
, PT 100.30 temperature sensor
, CC1 cooling coil
, CL.IC cover
, BS.IC bath bridge

Overall dimensions: 354 x 641 x 359 mm
Bath opening: 255 x 262 mm *
Max. bath opening: 292 x 278 mm **
Immersion depth: 95 mm–135 mm

*Maximum size of a plate that can be placed on the bottom of the bath.
**Maximum dimensions of the bath opening at the upper edge of the bath.

Max. temperature in the stainless steel bath (‘pro’ series): 200 °C

Technical data refer to the thermostat included in the package

Technical data
: Unit type: Immersion thermostat
; Class designation according to DIN 12876: III
; Marking according to DIN 12876: FL
; Heating power: 2500 W
; Operating temperature: ambient temperature +10 K @ 1000 rpm - 250 °C
Minimum operating temperature (with external cooling) -20 °C
Temperature display: yes
Temperature control: PID
Operating temperature sensor: PT 100
Safety temperature sensor: PT 1000
Operating temperature display: LED
Safety temperature display: LED
Temperature stability: DIN 12876 ±0.02 K
Connection for external temperature sensor PT 100
Display resolution 0.1 K
Display of operation with external sensor: yes
Setting accuracy of setpoint temperature: ±0.1 K
Visual warning function: yes
Audible warning function: yes
Overtemperature warning function: yes
Safety circuit: adjustable 0–260 °C
Low-level protection: yes
High-level protection: yes
Pump type: pressure/suction pump
Adjustable pump output: yes
Maximum pump pressure: (0 litres flow rate) 0.61 bar
Pump pressure (suction side), max. (0 litres flow rate) 0.45 bar
Flow rate, max. (0 bar back pressure) 31 l/min
Pump connections M16x1
Bath depth, min. 150 mm
Calibration option yes
Unit mounting: bridge
; universal clamp span 280 – 375 mm
Technical data in accordance with DIN 12876
Permissible duty cycle 100 %
Dimensions (W x H x D) 285 x 313 x 291 mm
Weight 26.06 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class in accordance with DIN EN 60529 IP 21
RS-232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 2650 W

Accessories and spare parts available on request
